Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330904-00-18-10-01-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0 mm |
|
Overall Case Length Option: |
180 mm |
|
Total Length Option: |
1.0 meter (39 in) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
1.4x1.3x118cm |
|
Weight: |
0.13kg |
Description

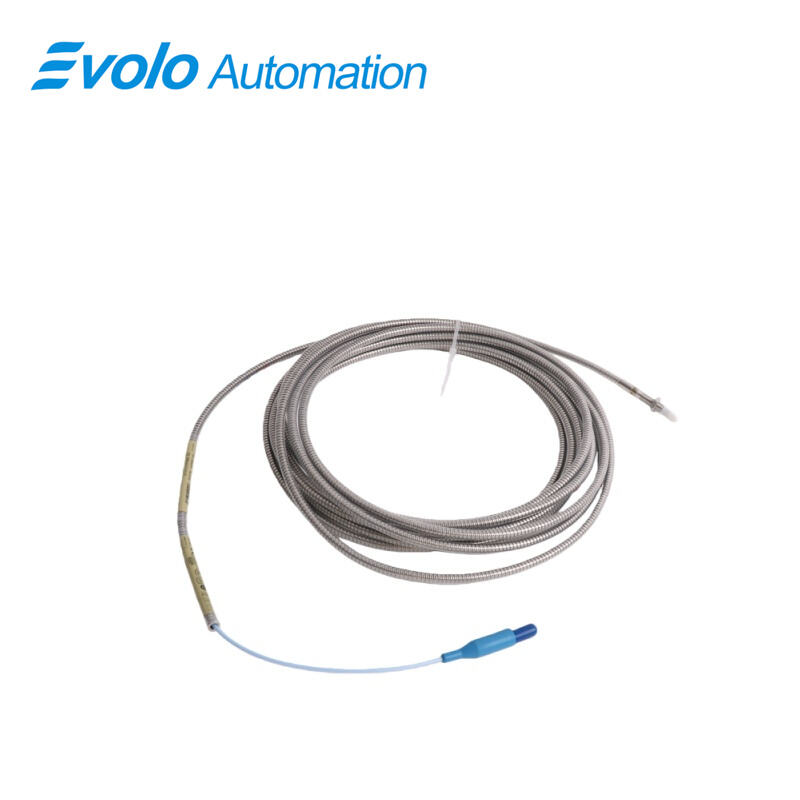

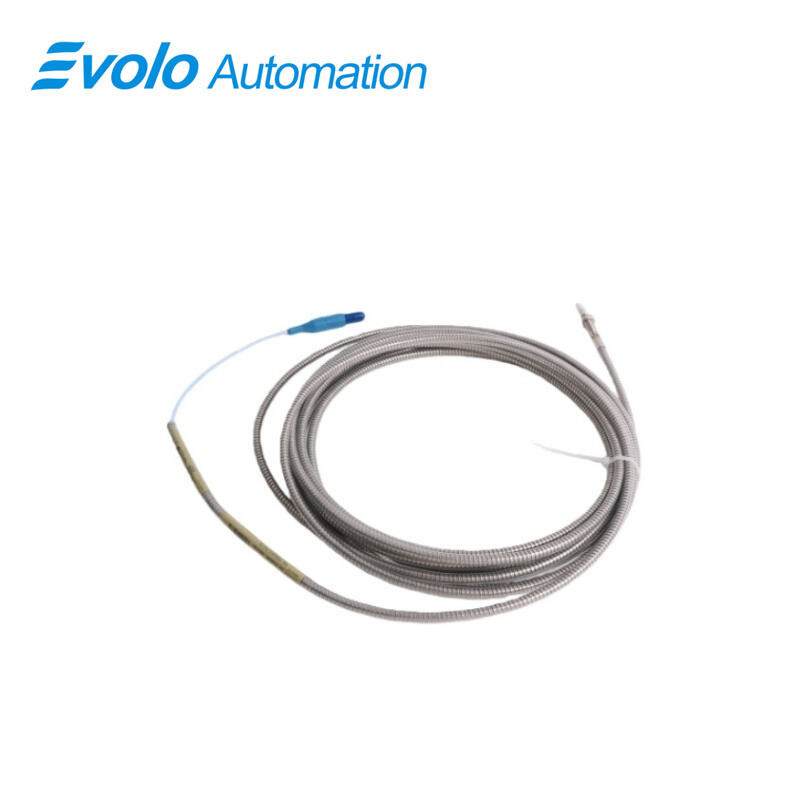

The 330904-00-18-10-01-05 3300 NSv Proximity Probes are precision non-contact eddy current sensors engineered for continuous and accurate measurement of shaft vibration, radial displacement, and axial position in critical rotating machinery. As a specialized model within the 3300 NSv Proximity Probes family, this probe is optimized for applications that require compact installation, stable electrical performance, and long-term reliability under harsh industrial operating conditions.
The 3300 NSv Proximity Probes operate by generating a high-frequency electromagnetic field at the probe tip and detecting changes caused by the movement of a conductive target surface. Variations in the probe-to-target gap are converted into a highly linear voltage output, allowing precise monitoring of both dynamic vibration and static shaft position. With a recommended gap setting of 1.0 mm and a defined linear range of 1.5 mm (60 mils), the 3300 NSv Proximity Probes deliver consistent and repeatable measurement performance, supporting early fault detection and effective machinery protection strategies.
Applications
The 330904-00-18-10-01-05 3300 NSv Proximity Probes are used for continuous monitoring of shaft vibration and radial displacement in rotating machinery such as turbines, compressors, motors, and pumps, enabling early detection of imbalance, misalignment, and bearing-related faults.
With a wide operating temperature range of -50°C to +175°C and strong resistance to oils and industrial fluids, the 3300 NSv Proximity Probes are suitable for harsh industrial environments including power generation units, petrochemical facilities, and process plants.
The compact probe body, 1.0 meter cable length, and ClickLoc connector design make the 3300 NSv Proximity Probes ideal for retrofit applications and system upgrades where space constraints and compatibility with existing monitoring systems are critical.
Specifications
|
Operating and Storage Temperature: |
-50°C to +175°C (-65°F to+351°F) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output Resistance: |
45 Ω |
|
Linear Range: |
1.5 mm (60 mils) |
|
Field Wiring: |
0.3 to 1.4 mm2 (16 to 24 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Power： |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 |
Competitive Advantage
1. High Measurement Stability and Linear Output
The 3300 NSv Proximity Probes provide a stable linear measurement range of 1.5 mm with low supply sensitivity, ensuring accurate vibration and displacement signals even under fluctuating electrical conditions.
2. Robust Design for Harsh Operating Conditions
Engineered for exposure to lubricants, process fluids, and extreme temperatures, the 3300 NSv Proximity Probes maintain mechanical integrity and signal reliability, reducing maintenance requirements and extending service life.
3. Secure Connection and Installation Flexibility
The miniature coaxial ClickLoc connector with connector protector delivers a vibration-resistant connection, while the 180 mm probe length and 1.0 meter cable support flexible installation in compact or complex machinery layouts.
