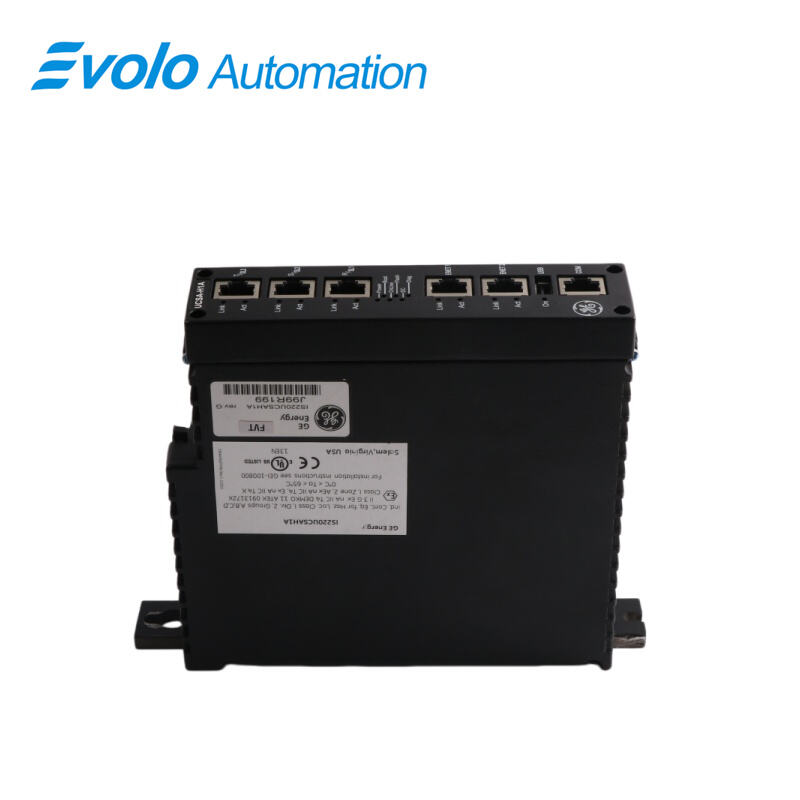

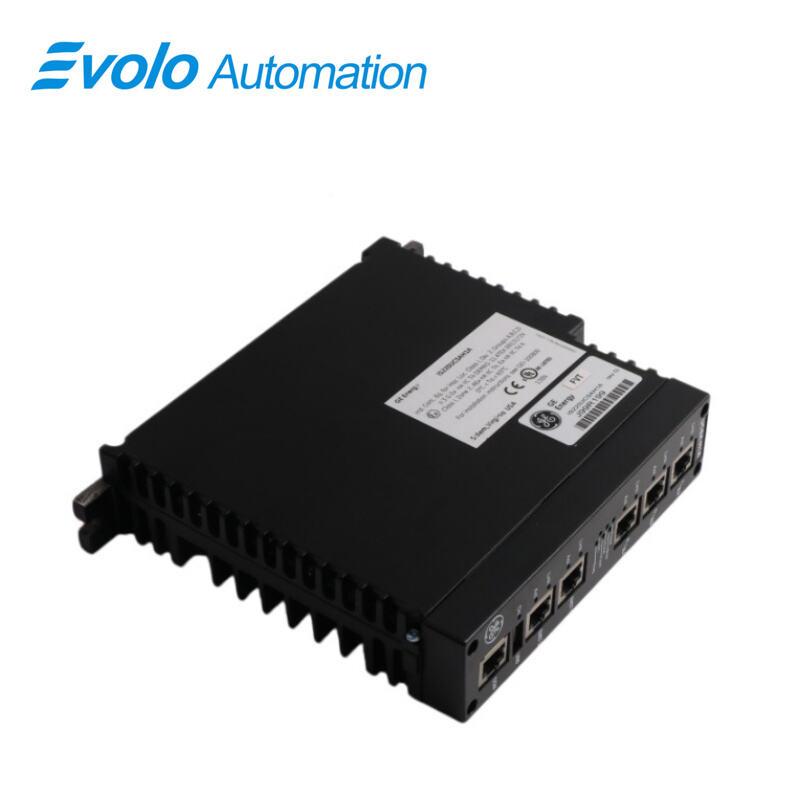

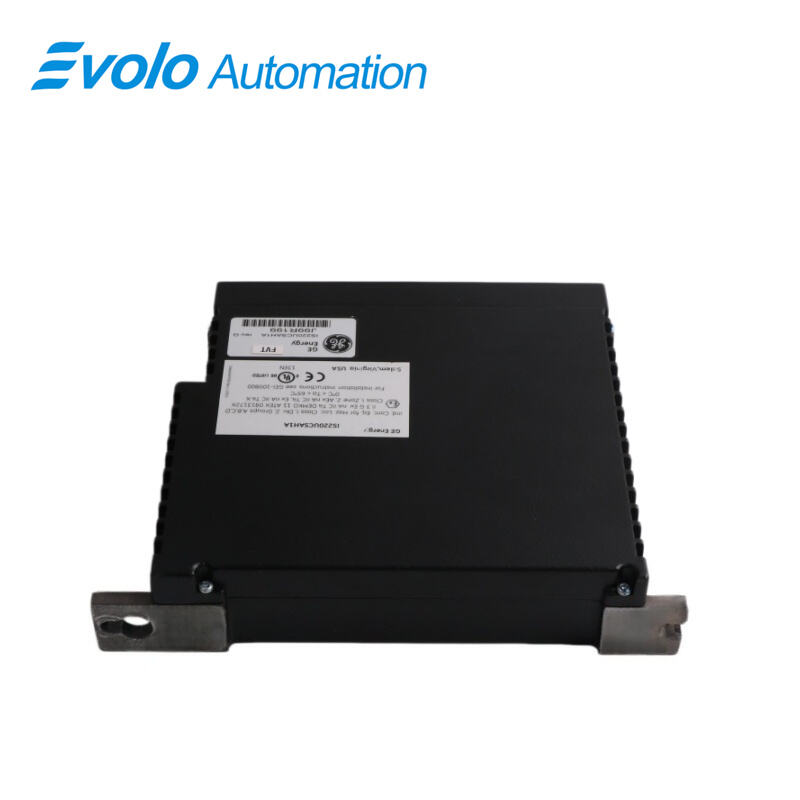

IS220UCSAH1A Embedded Controller Module

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IS220UCSAH1A
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

IS220UCSAH1A is an Embedded Controller Module manufactured and designed by General Electric as part of the Mark Vle Series used in GE Distributed Gas Turbine Control Systems.The UCSA controller is a product line of stand-alone computers that run the application code.The controller mounts in a panel and communicates with the I/O packs through onboard I/O network (IONet) interfaces.The I/O networks are private special-purpose Ethernet that supports only the I/O modules and the controllers.The controller operating system (OS) is QNX Neutrino,a real-time multitasking OS,designed for high speed,high reliability,and industrial applications.The UcSA controller platform is available for use in many applications,including balance of plant control and some retrofits.It does not have enough processing power,however for some advanced model-based control applications.

Specifications

FEATURES

Storage and Certification: The controller module is designed for use with the Mark Vle UCSA controller. It employs compact flash storage for its operational needs. It is important to note that this controller is not certified for IEC61508 safety loop usage, meaning it may not be suitable for applications with stringent safety requirements.

Power Requirements: The module requires a power supply in the range of 18 V DC to 32 V DC.This flexibility in power input, with a typical power consumption of 12.5 Watts, ensures compatibility with a variety of power sources, making it versatile and adaptable.

Temperature Tolerance: The controller exhibits robust temperature tolerance, allowing it to operate effectively in a wide range of environmental conditions. It can function reliably in temperatures ranging from O to 65 degrees Celsius. Moreover, it is designed without the need for a fan for cooling, simplifying its installation and maintenance while maintaining a cool operational profile

Hazardous Environments: The controller module is suitable for use in hazardous environments and is compatible with NFPA Class 1, Div. 2 applications. This means it can be employed safely in areas where potentially explosive substances are present, further extending its range of possible use cases

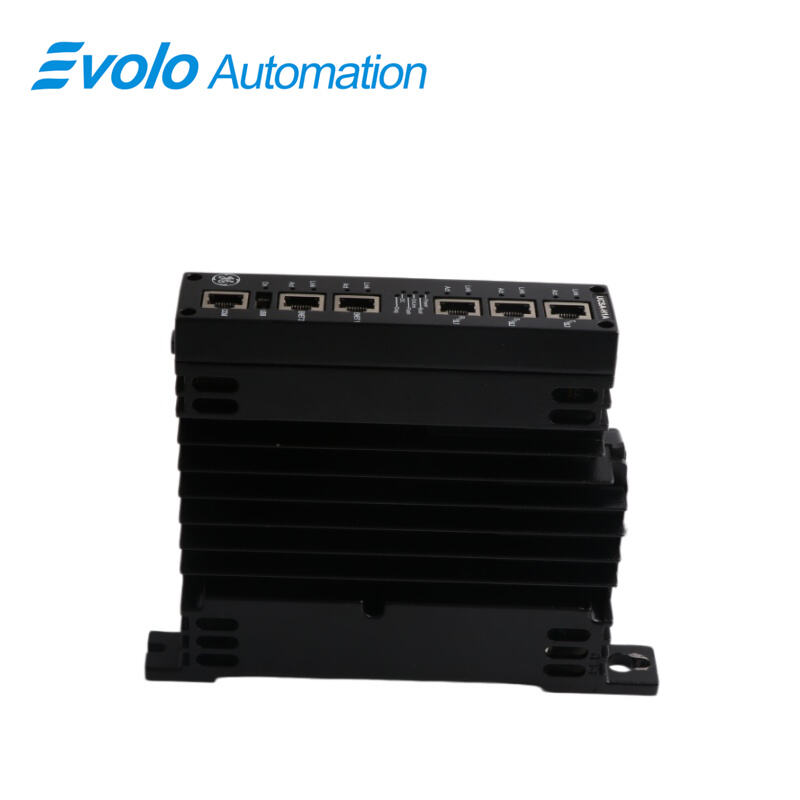

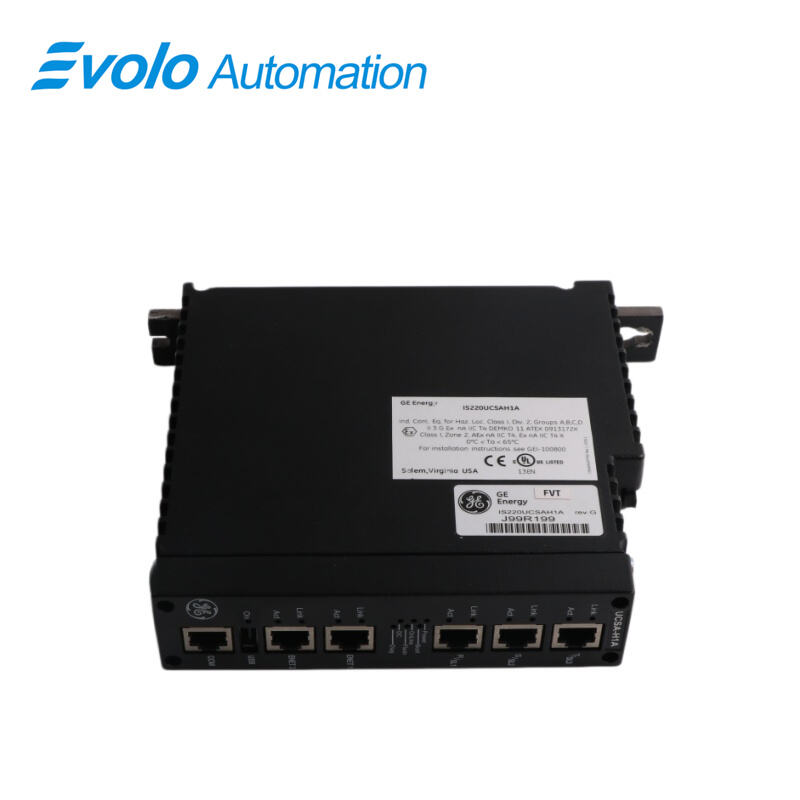

Front Faceplate Connectivity: The front faceplate of the controller module features a set of user-friendly connectivity options. It includes six female jack connectors, allowing for easy and secure cable connections. Additionally, a USB port is provided for convenient data exchange and configuration. The faceplate also incorporates a series of LED indicators that provide valuable information about the module's status and operation.

LED Indications: The LED indicators on the front panel offer essential insights into the controller's status. The Link/Act LED indicators on the left side of the faceplate provide real-time feedback on network connectivity. In the center of the faceplate, a line of LED indicators is labeled Power, Boot, Online, Flash, DC (indicating power source status), and Diag (diagnostic status).These LEDs make it easy to monitor the controller's operational health and detect any issues

Ethernet Connectivity: Supports Ethernet connections through jack connectors.This feature allows seamless integration with other control systems, such as Mark VI, Mark Vle, or EX2100 excitation controls. It also facilitates communication with maintenance and operator stations, enabling remote monitoring and control capabilities.

FREQUENTLY ASKED QUESTIONS

What is the operating system of the component?

QNX Neutrino is the operating system.

Which processor is used on the board?

Power QUICCII PRO667 MHz processor is used on the board

What are the components on the front plate?

The Controller Module front faceplate includes six female jack connectors, one USB port, and LED indications.

Where specifically was this device originally manufactured?

The IS220UCSAH1A device featured here was originally produced from General Electric's Salem, Virginia factory plant location.

Are this IS220UCSAH1A device's various Ethernet ports labeled?

Yes. Each of the Ethernet ports in this IS220UCSAH1A device's assembly should be accopanied by a factory-printed nomenaclature label for identification purposes.
