Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-40-05-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
4.0 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.7x116x1.5cm |
|
Weight: |
0.14kg |
Description

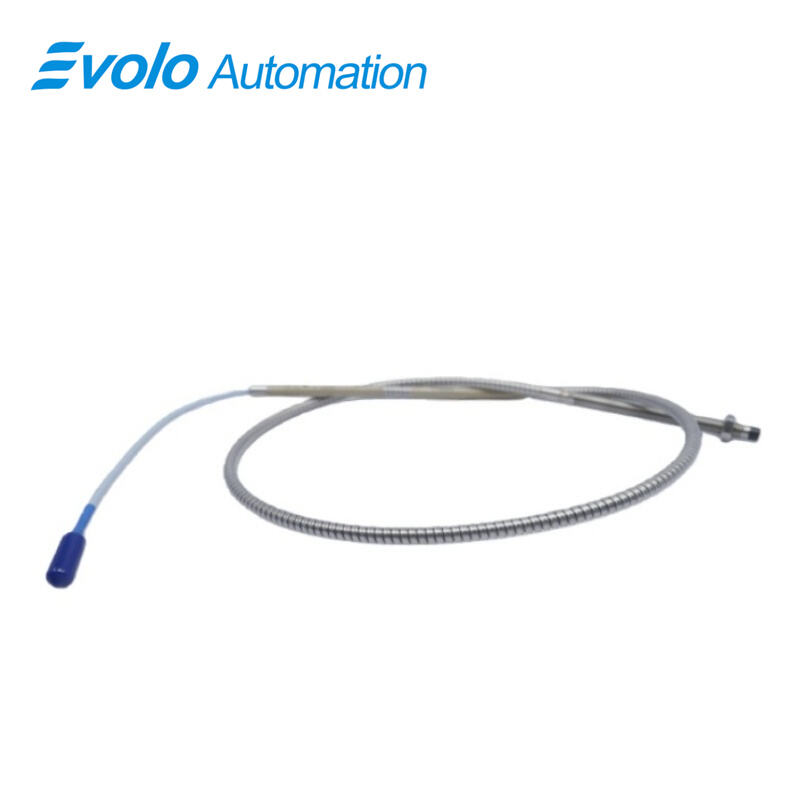

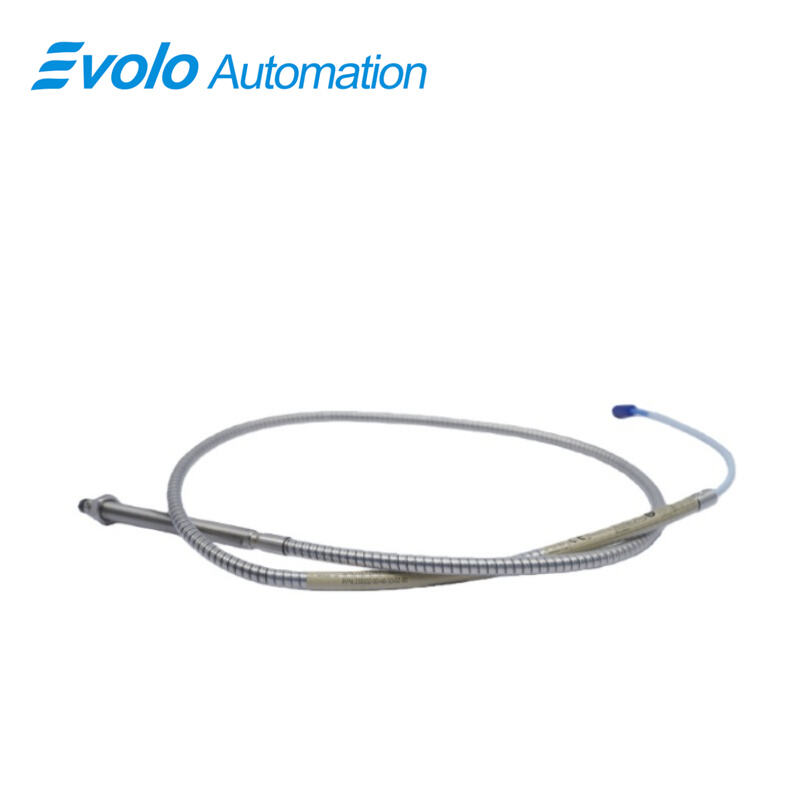

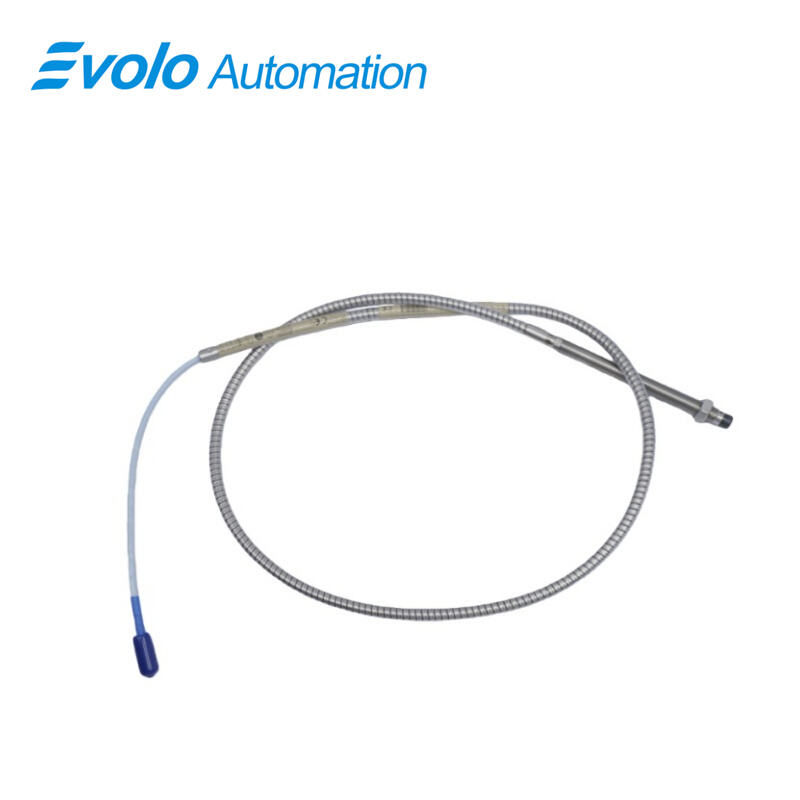

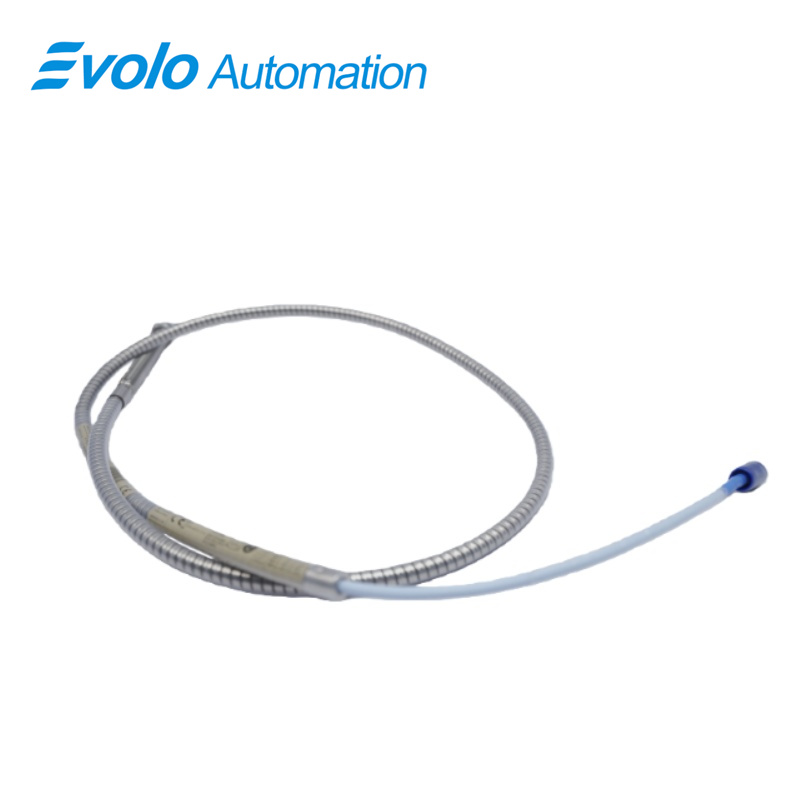

The 330102-00-40-05-02-00 3300 XL 8 mm Proximity Probe is engineered for high-precision industrial automation, machine protection, and rotor dynamics monitoring on fluid-film bearing machinery and high-speed rotating assets. As part of the Bently Nevada 3300 XL proximity transducer system, the 330102-00-40-05-02-00 probe enables both static position and dynamic vibration measurements with a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt. With a miniature coaxial ClickLoc connector and rugged cable design, the probe supports extension cable capacitance of 69.9 pF/m for stable signal transmission over long distances within compressor skids, turbine panels, and predictive maintenance infrastructures. Operating from -52°C to +177°C, this proximity probe exceeds the environmental limits of many competing industrial displacement sensors, making it suitable for heat-intensive spaces such as turbine bearing housings and gearbox enclosures. Fully compliant with API 670 standards for linearity, temperature stability, and interchangeability, the 330102-00-40-05-02-00 probe integrates seamlessly into machine health platforms, Keyphasor reference systems, and advanced rotating machinery analytics. The ClickLoc, TipLoc, and CableLoc construction reinforces mechanical reliability and supports up to 330 N (75 lbf) pull strength while maintaining durable sealing performance for continuous duty in process industries, petrochemical plants, and energy production facilities.
Applications
Vibration and Shaft Displacement Monitoring
Used on turbines, compressors, and pumps for radial vibration measurement; the 2 mm linear range supports condition monitoring thresholds for ISO/API-based protection systems.
Fluid-Film Bearing Position Measurement
Enables static displacement and centerline tracking on bearing-supported rotors; API 670 conformity ensures measurement accuracy for axial/radial alignment analytics.
Keyphasor and Rotational Speed Measurement
Applied in timing reference and tachometry functions; output stability and 50 Ω resistance deliver accurate phase data for balancing and synchronous calculations.
High-Temperature Turbomachinery Diagnostics
Withstands temperatures up to +177°C, outperforming typical proximity sensors limited to +120°C, allowing deployment near bearing and gearbox housings in power generation equipment.
Predictive Maintenance and Digital Monitoring
Supports integration into supervisory systems, vibration data collectors, and machine learning-based reliability platforms; electrical compatibility enables plug-in upgrades without bench calibration.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
API 670 Compliance & Interchangeability
Meets stringent API 670 requirements for linearity and temperature stability; interchangeable with other 3300 XL components, eliminating calibration time and reducing maintenance labor.
High Environmental Tolerance
Operates from -52°C to +177°C, enabling machine diagnostics in extreme conditions typical of refineries, LNG plants, and turbine halls; far exceeds the operating range of conventional sensors.
Superior Mechanical Retention Strength
TipLoc and CableLoc designs deliver 330 N pull strength, improving survivability under vibration and thermal cycling compared with non-reinforced probe assemblies.
Low Supply Sensitivity & Signal Stability
Less than 2 mV/V supply sensitivity reduces measurement error during power fluctuations in industrial cabinets; capacitance control at 69.9 pF/m maintains signal quality over distance.
Flexible System Upgrades & Backward Compatibility
Backward compatibility with 3300 5 mm and 8 mm systems allows cost-effective retrofit of legacy assets, reducing integration overhead for OEMs and plant operators.
