330103-11-16-10-12 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-11-16-10-12
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

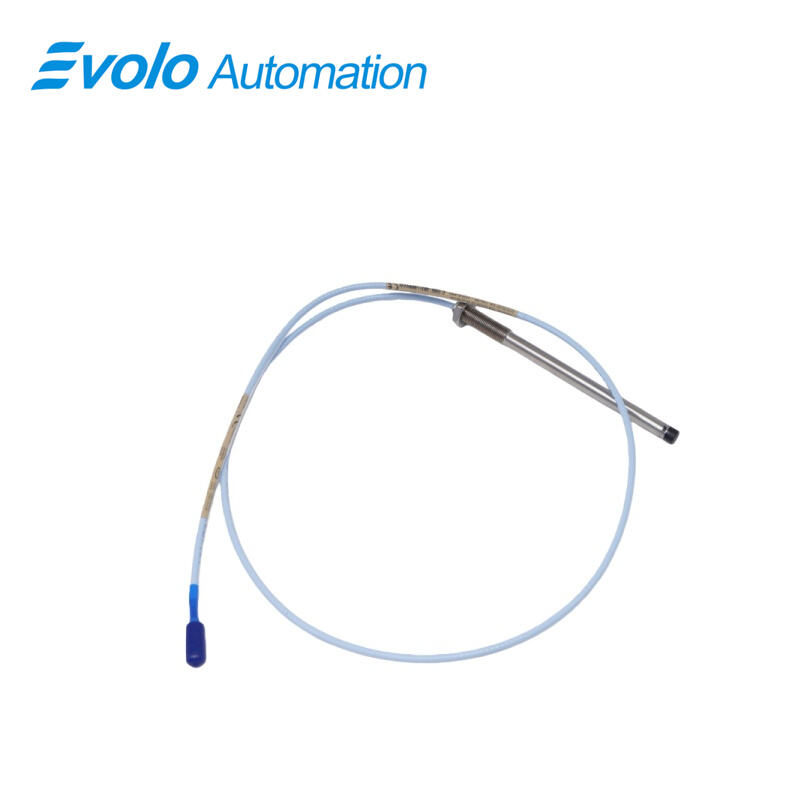

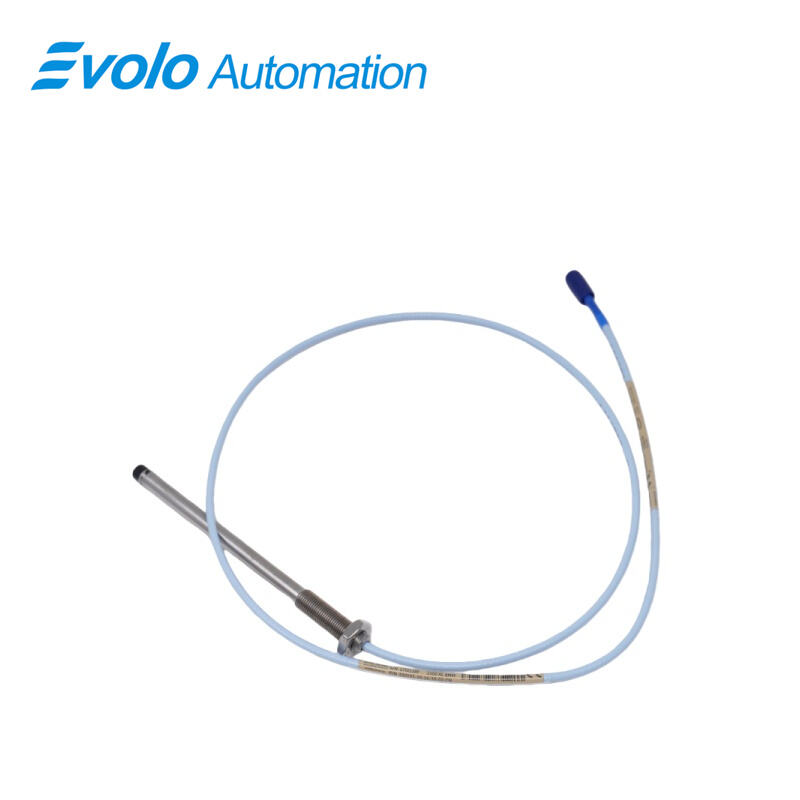

The 330103-11-16-10-12 3300 XL 8 mm Proximity Probes are high-accuracy non-contact eddy current sensors designed to provide stable and repeatable measurements of shaft vibration, radial displacement, and axial position in critical rotating machinery. As a dedicated model within the 3300 XL 8 mm Proximity Probes family, this probe is engineered to support long-term condition monitoring where precision, environmental resilience, and international certification compliance are essential.

Operating on proven eddy current measurement principles, the 3300 XL 8 mm Proximity Probes generate an output signal that is directly proportional to the distance between the probe tip and a conductive target surface. This linear signal behavior enables reliable monitoring of both dynamic vibration and static position, supporting advanced diagnostics for fluid-film bearing machines and high-speed rotating assets. With a defined 2 mm (80 mils) linear range, the 3300 XL 8 mm Proximity Probes deliver consistent measurement resolution suitable for early fault detection, trend analysis, and machinery protection systems.

The 330103-11-16-10-12 3300 XL 8 mm Proximity Probes are configured with an unthreaded length of 110 mm, an overall case length of 160 mm, and a 1.0 meter cable, making them well suited for installations that require extended probe reach while maintaining compact sensor geometry at the mounting point. The miniature coaxial ClickLoc connector with integrated connector protector ensures a secure, vibration-resistant electrical connection, reducing the risk of signal interruption in high-vibration environments.

Applications

The 330103-11-16-10-12 3300 XL 8 mm Proximity Probes are widely used for continuous monitoring of shaft vibration and radial displacement in turbines, compressors, pumps, and motors, where accurate detection of imbalance, misalignment, and bearing wear is critical.

With international approvals and a wide operating temperature range, the 3300 XL 8 mm Proximity Probes are suitable for hazardous and harsh industrial environments such as power generation facilities, petrochemical plants, and heavy manufacturing sites exposed to oil, dust, and elevated temperatures.

The extended probe length, compact sensor body, and secure ClickLoc connector make the 3300 XL 8 mm Proximity Probes ideal for retrofit and upgrade applications where installation space is limited and compatibility with existing monitoring infrastructure is required.

Specifications

Competitive Advantage

1. International Certification and Compliance

The 3300 XL 8 mm Proximity Probes support CSA, ATEX, and IECEx approvals, enabling safe and compliant operation in regulated and hazardous industrial environments worldwide.

2. Robust Construction for Long-Term Reliability

Featuring a stainless steel probe case and PPS probe tip, the 3300 XL 8 mm Proximity Probes offer strong resistance to corrosion, wear, and industrial contaminants, ensuring stable performance and extended service life.

3. Stable Electrical Performance and Installation Flexibility

With a 2 mm linear range, low supply sensitivity, and a 1.0 meter cable equipped with a vibration-resistant ClickLoc connector, the 3300 XL 8 mm Proximity Probes deliver accurate signal transmission while supporting flexible installation in complex machinery layouts.
