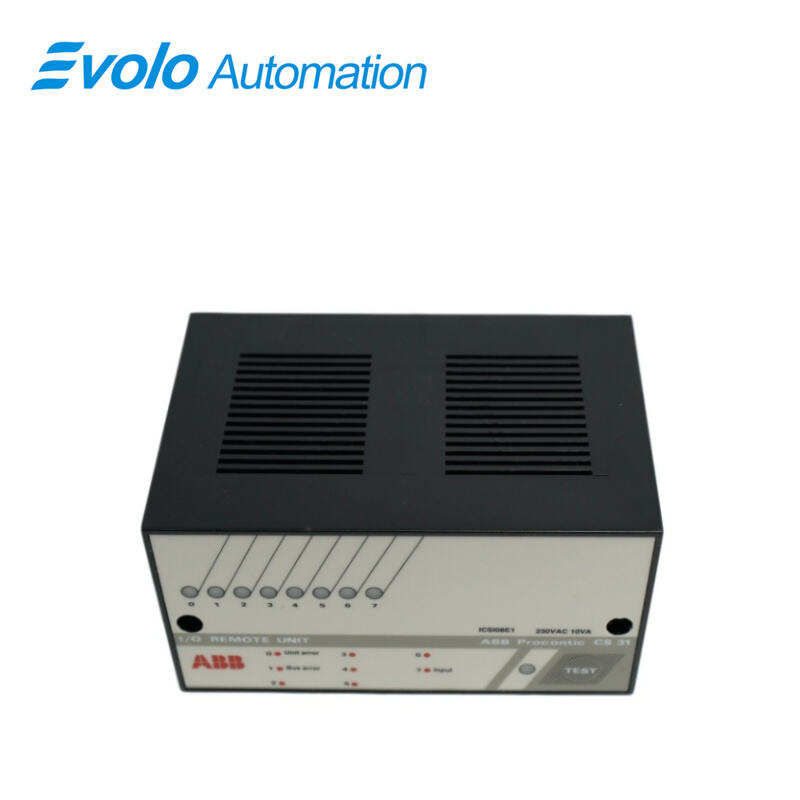

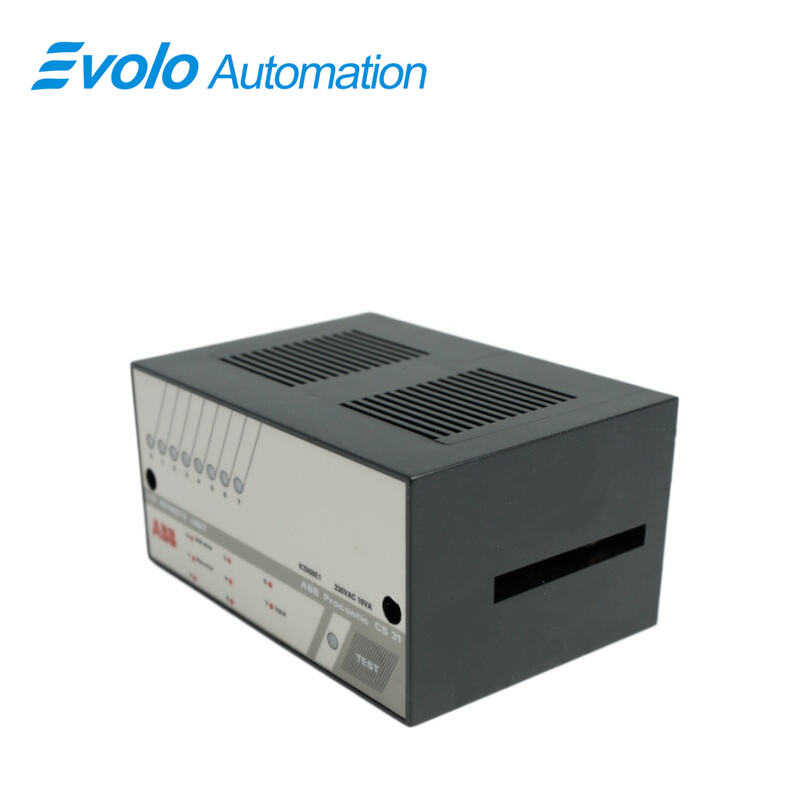

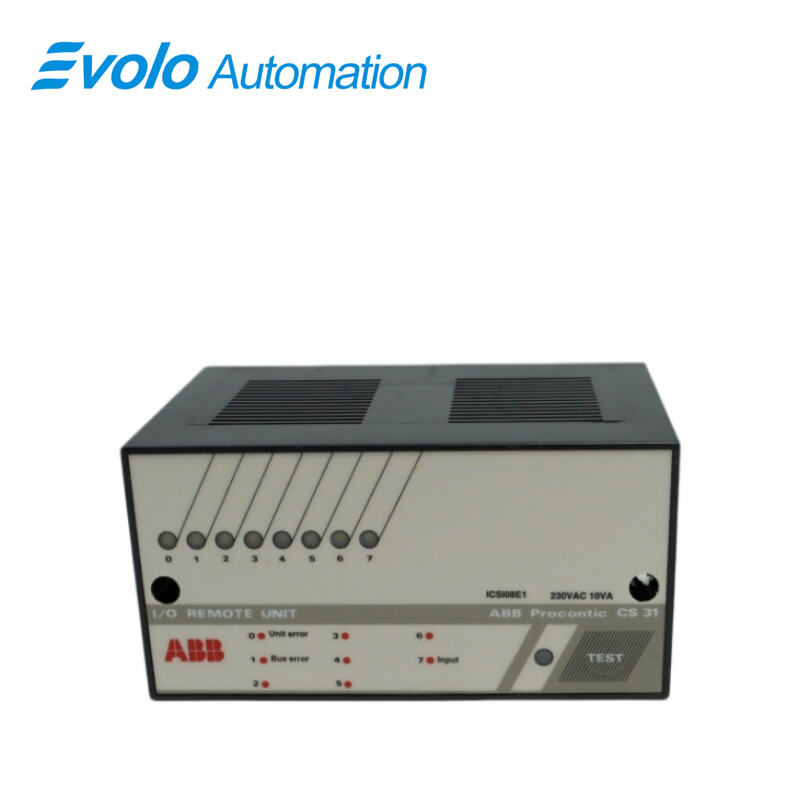

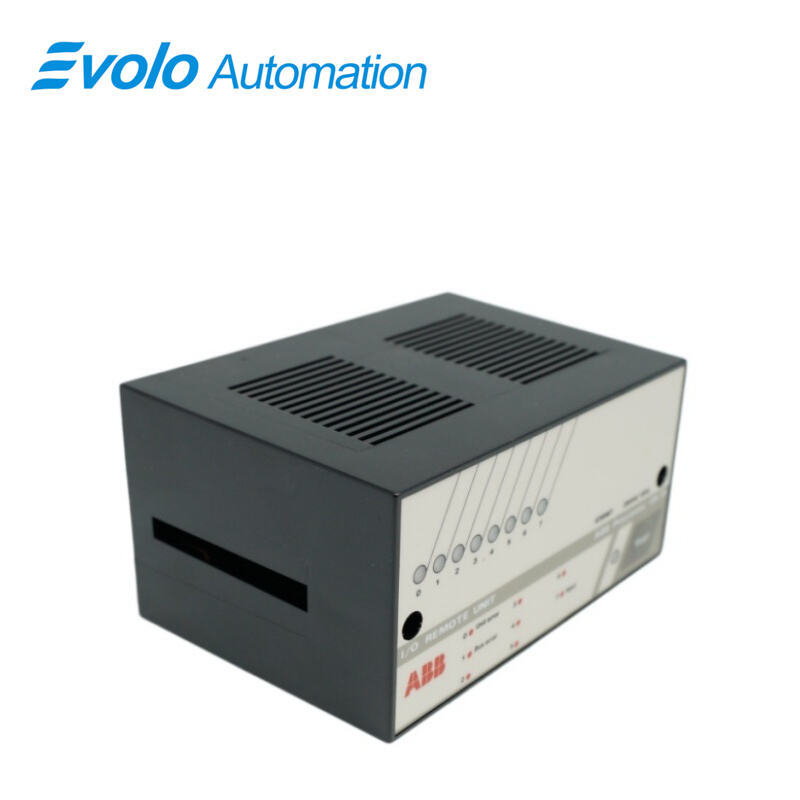

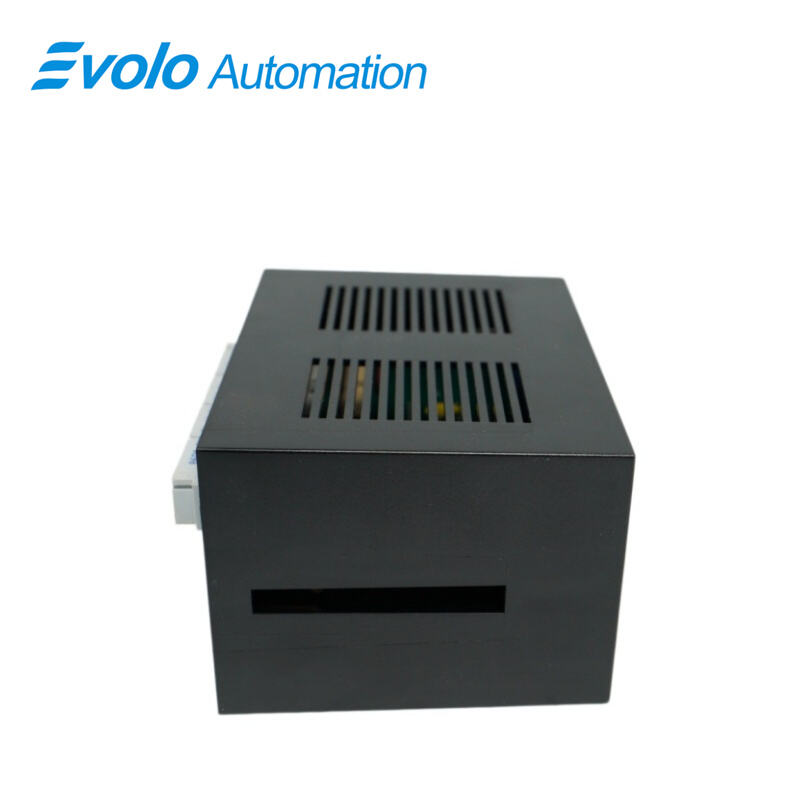

ICSI08E1 ICSI08E1-230 FPR3316101R001 Procontic CS 31 Binary Input Unit, China ICSI08E1 ICSI08E1-230 FPR3316101R001 Procontic CS 31 Binary Input Unit Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	ICSI08E1 ICSI08E1-230 FPR3316101R001
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	ICSI08E1 ICSI08E1-230 FPR3316101R001
Product Type	Procontic CS 31 Binary Input Unit
Power Supply	24 VDC
Channels	8 inputs
Input Type	Isolated binary inputs
Input Delay	Configurable 2–32 ms
Series	Procontic CS31
Operating Temperature	-20°C to +55°C

Description

The ABB ICSI08E1 ICSI08E1-230 FPR3316101R001 Procontic CS 31 Binary Input Unit is a high-performance component designed for industrial automation systems. It specializes in providing reliable input signals for various control applications, ensuring precise monitoring and control of processes in manufacturing environments.

Applications

Thermal power plants: Used for remotely acquiring the status of auxiliary contacts and disconnect switches of circuit breakers in 230V AC distribution cabinets.

Wastewater treatment plants: Receives operational feedback signals from large AC-driven water pumps and mixers for remote monitoring.

Petrochemical plants: Operates in outdoor control cabinets with significant temperature differences, acquiring switching data from AC level switches and pressure switches.

Steel smelting plants: Suitable for AC control loop logic feedback in high-temperature, high-electromagnetic-interference environments.

Rail transit manufacturing plants: Used to monitor AC status signals of large lifting equipment and power supply systems in workshops.

Troubleshooting and Maintenance

Troubleshooting:

Signal Delay Anomaly: If the acquired signal exhibits jitter, check the configuration parameters and increase the Input Delay (maximum 32ms) to filter noise.

Module Fails to Go Online: Confirm the stability of the 24V DC logic power supply and check the CS31 bus address DIP switch and shield grounding.

Maintenance Recommendations:

Ambient Temperature Control: Although it supports -20°C to +55°C, it is recommended to maintain cabinet ventilation under extreme high temperatures to prevent components from aging too quickly.

Electrical Isolation Check: Regularly test the isolation resistor between the 230V input and the system side to ensure that high voltage does not enter the DC control circuit.

FAQ

Q: Why does the ICSI08E1 ICSI08E1-230 FPR3316101R001 still need 24VDC when reading AC signals?
A: 24VDC powers internal logic and CS31 communication; 230V is only the input signal.

Q: How to adjust input delay on the ICSI08E1 ICSI08E1-230 FPR3316101R001?
A: Configurable 2–32 ms via PLC software or module switch.

Q: Are channels isolated in the ICSI08E1 ICSI08E1-230 FPR3316101R001?
A: Yes. Inputs are electrically isolated from internal circuitry for surge protection.

Q: Can the ICSI08E1 ICSI08E1-230 FPR3316101R001 operate at -15°C?
A: Yes. Rated minimum operating temperature is -20°C.

Q: Will slight voltage deviation affect ICSI08E1 ICSI08E1-230 FPR3316101R001 recognition?
A: No. It supports 230VAC with ±10% tolerance.
