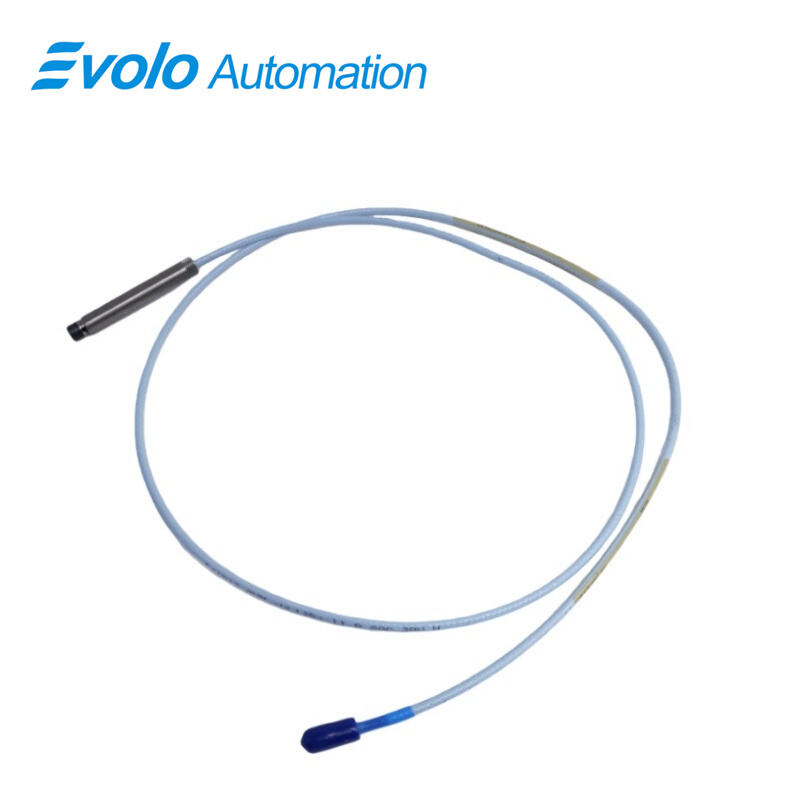

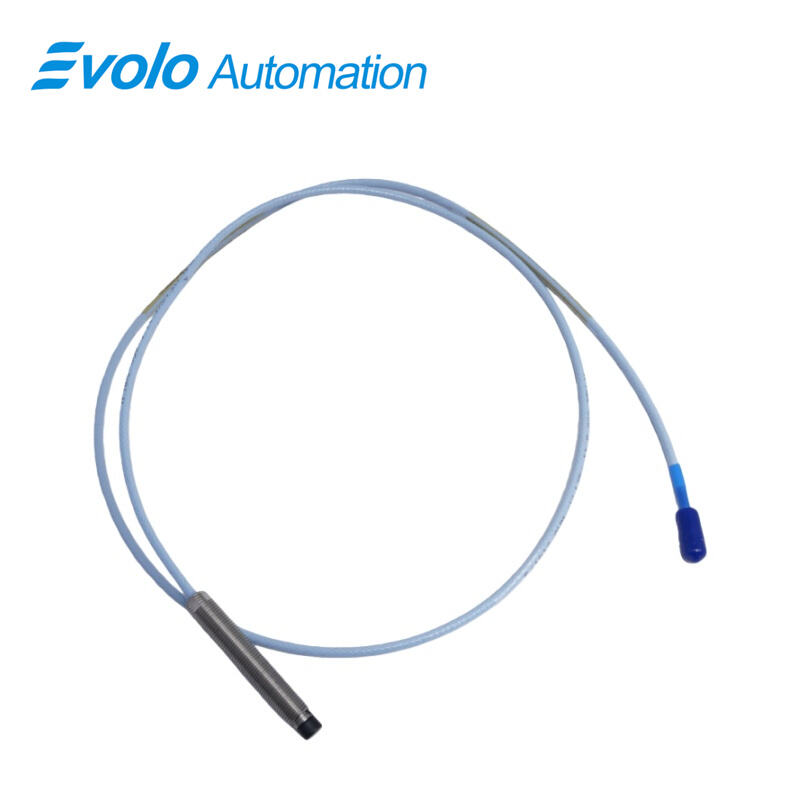

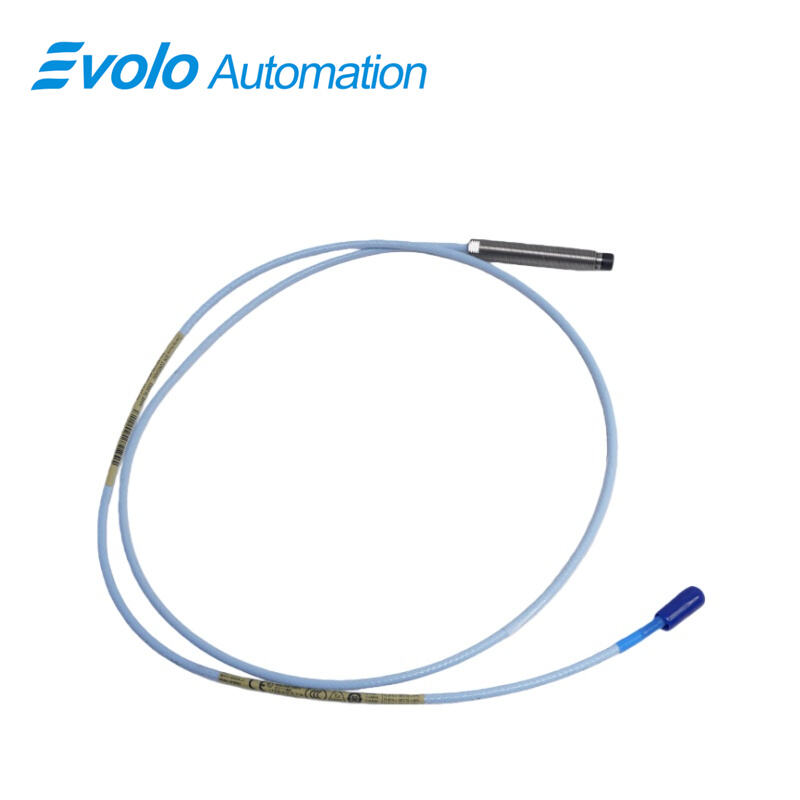

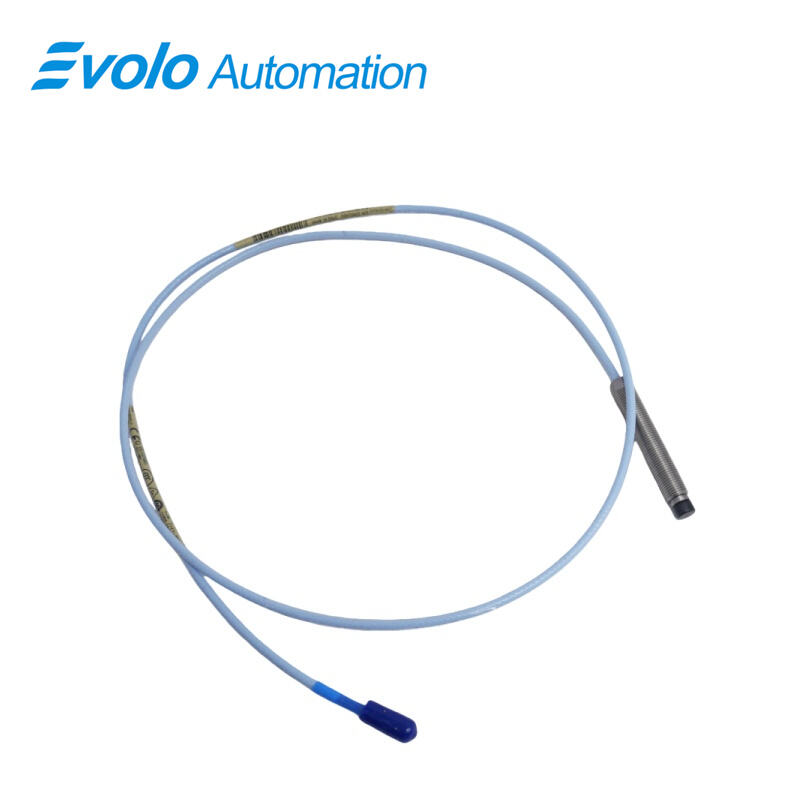

330103-00-06-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (330103-00-06-10-02-CN) is an advanced eddy current proximity transducer engineered for precise vibration and position monitoring in industrial automation. Designed with an M10x1 threaded case and a minimum case length of 60 mm, this probe provides a linear range of 2 mm (80 mils) and output directly proportional to the distance between the probe tip and conductive surface. Operating reliably across -52°C to +177°C (-62°F to +350°F), the probe supports dynamic vibration analysis and static position measurements on fluid-film bearing machines. The system includes a miniature coaxial ClickLoc connector and standard 1.0 m (3.3 ft) cable, ensuring robust signal integrity with 50 Ω output resistance and minimal voltage sensitivity (<2 mV/V). Certified under CSA, ATEX, and IECEx, the 3300 XL 8 mm probe ensures safe operation in hazardous environments. Its patented TipLoc and CableLoc designs provide superior mechanical strength, offering 330 N (75 lbf) pull strength to secure the probe and cable, while an optional FluidLoc cable prevents leakage of oils and other fluids. The probe is fully compatible with the 3300 series system, allowing interchangeability with 5 mm and 8 mm probes, extension cables, and Proximitor sensors, eliminating the need for recalibration. This combination of durability, precision, and modular design makes the 3300 XL 8 mm Proximity Probe an essential component for modern industrial automation monitoring.

Applications

Vibration Monitoring of Turbomachinery
The 3300 XL 8 mm probe accurately measures rotor vibration in fluid-film bearing machines, with a linear range of 2 mm, enabling predictive maintenance and reducing unplanned downtime.

Position Measurement of Rotating Shafts
Used for precise shaft position detection, the probe provides real-time data for alignment, rotor movement analysis, and dynamic monitoring, maintaining stability within ±2 mV/V supply sensitivity.

Keyphasor Reference for Speed Detection
By delivering consistent signal output, the probe serves as a Keyphasor sensor, providing accurate speed reference signals for turbine and generator systems with 50 Ω output resistance.

API 670-Compliant Machinery Monitoring
The probe’s design adheres to API 670 standards, supporting reliability in high-temperature and high-vibration environments, ensuring consistent data acquisition across industrial installations.

Hazardous Environment Operation
With CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm probe safely operates in flammable and explosive environments, ideal for petrochemical plants and offshore platforms.

Specifications

Competitive Advantage

Robust Mechanical Design
Patented TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, ensuring secure probe-to-cable bonding and extended service life in demanding industrial environments.

Flexible Interchangeability
Fully compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, eliminating the need for custom calibration and simplifying maintenance logistics.

High-Temperature Tolerance
Operates reliably from -52°C to +177°C, supporting critical machinery monitoring even under extreme environmental conditions.

Low Sensitivity to Supply Variation
With less than 2 mV output change per volt input, the probe ensures highly stable measurements, reducing signal drift and enhancing data accuracy.

Fluid Protection Option
Optional FluidLoc cables prevent leakage of oils and fluids through the probe assembly, maintaining safety and integrity in lubrication-intensive machinery systems.
