IC660ELB906R PCIM Interface Module

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC660ELB906R PCIM
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The IC660ELB906R PCIM Interface Module or PCIM which is made by GE Fanuc is made to be installed in an XT-type slot in a personal computer. It is designed to interface a Genius bus to a compatible host computer. It is also designed to integrate with user-developed microprocessor systems. This interface module has a cost-effective design, extensive diagnostic facilities, and high level of reliability and noise immunity, making it ideal for the Genius I/O system. The IC660ELB906R PCIM Interface Module offers control and monitoring functions such as low supply voltage detection, host system address decoding, host interrupt control, signal conditioning, and a built-in watchdog timer. It also provides an onboard DIP switch for configuring the network data rate.

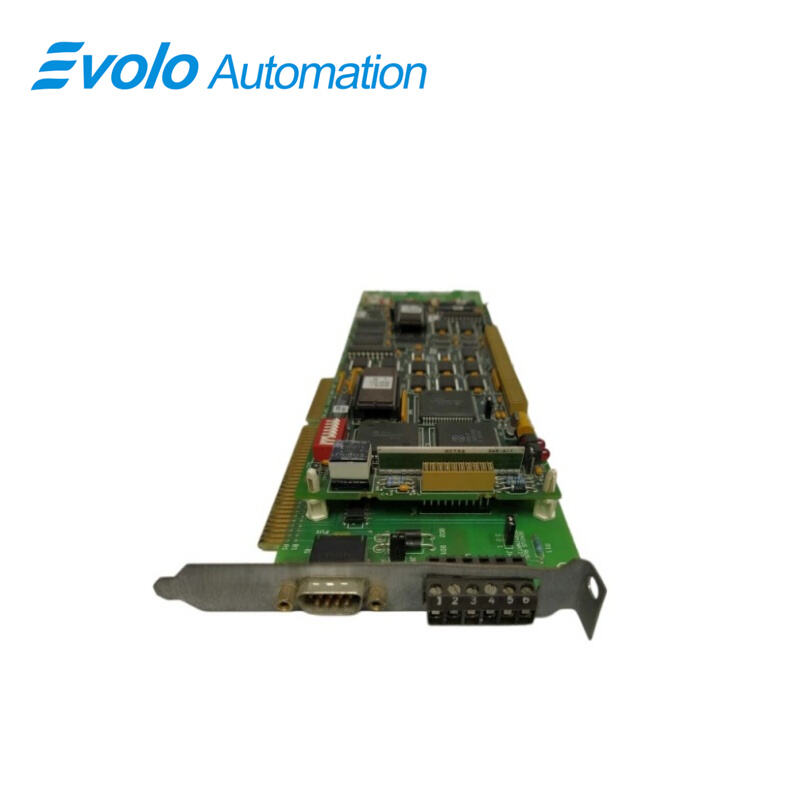

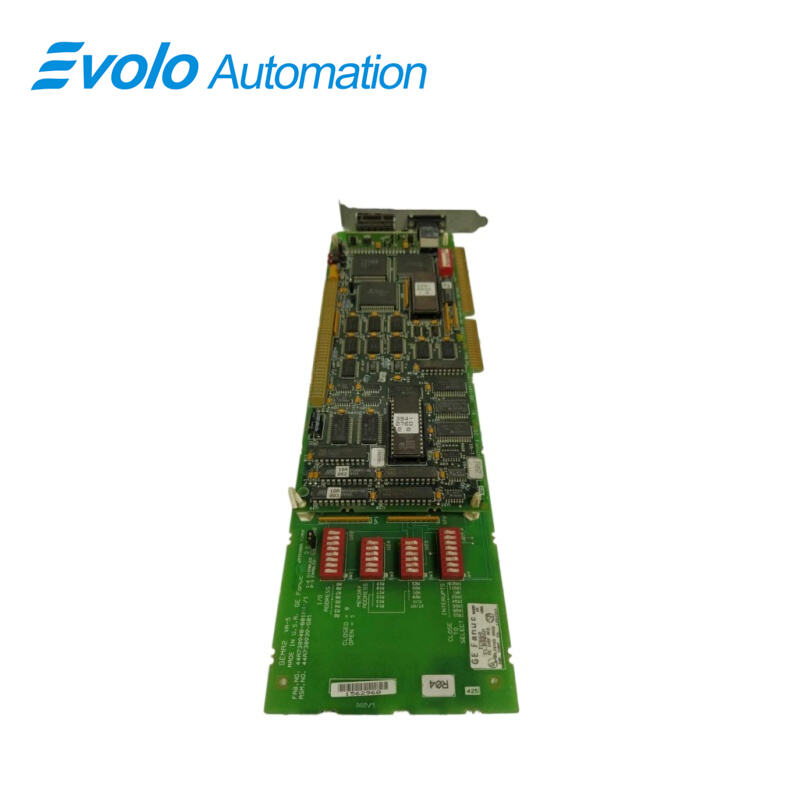

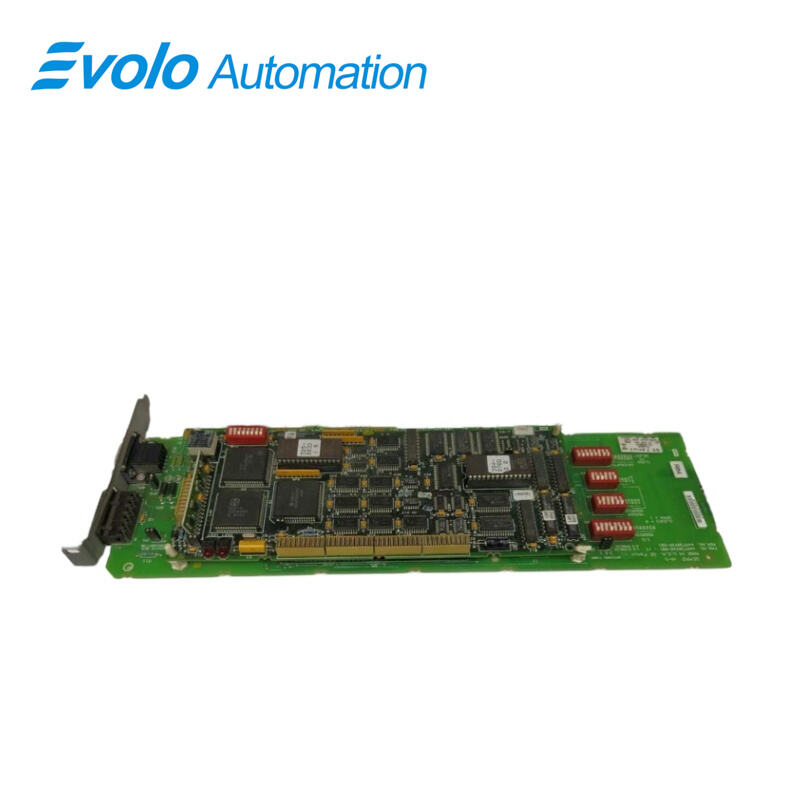

The IC660ELB906R PCIM Interface Module consists of a motherboard and a daughterboard that are made to provide effective interfacing facilities. The motherboard is a 2-layer rectangular board and the daughterboard is a 4-layer rectangular board. Its functionalities consist of 3 main sections which are the serial interface, dual-port RAM, and PCIM manage processor. The required data from the host computer is received into the input table segment for the corresponding serial bus address of the bus interface unit. In order to employ the I/O data of the bus interface unit accurately, the module arrangement of the station and information of the I/O data must be properly entered into the host computer. The I/O data includes the input and output details of the relevant serial bus addresses for the bus interface modules. A personal computer that is equipped with the IC660ELB906R PCIM Interface Module can effectively control the field control station and Genius I/O blocks that are in the same application system.

Applications

Automotive: Used for long-distance I/O node monitoring in assembly lines and paint shops, utilizing its single serial bus to cover large production areas.

Water Treatment & Environmental Engineering: Connects pump stations, sensors, and actuators distributed across different plant areas, supporting data transmission over distances exceeding 2200 meters.

Material Handling & Packaging: Responsible for the acquisition and feedback of high-speed discrete signals in large automated warehouses or high-speed packaging lines.

Steel & Mining: Utilizes its strong signal isolation and noise immunity characteristics to ensure the stability of control systems in harsh electromagnetic interference environments.

Specifications

Competitive Advantage

Host Interface: IBM PC/AT/XT compatible slot, suitable for industrial computer integration.

Communication Channel: Supports multiple daughterboard configurations, providing expansion flexibility.

Safety Mechanism: Built-in watchdog timer for automatic safety shutdown in case of host failure.

Isolation Protection: 1500V opto-isolation ensures the PC motherboard is protected from high-voltage impacts in the field.

FAQ

Is IC660ELB906R brand new or refurbished?

It is brand new and comes with a one-year warranty.

How long will it take for the IC660ELB906R to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on IC660ELB906R, please contact John for the best offer.

Do you have it in stock?

Yes, right now we have IC660ELB906R in stock ready for shipment. We can support video inspection.

Do you provide warranty as standard?

We provide a full 12-month warranty for the IC660ELB906R. So, if you have any problems within 12 months from the date of delivery, you can contact our team, who will be happy to help and explain what your next steps should be.
