330930-060-01-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-060-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

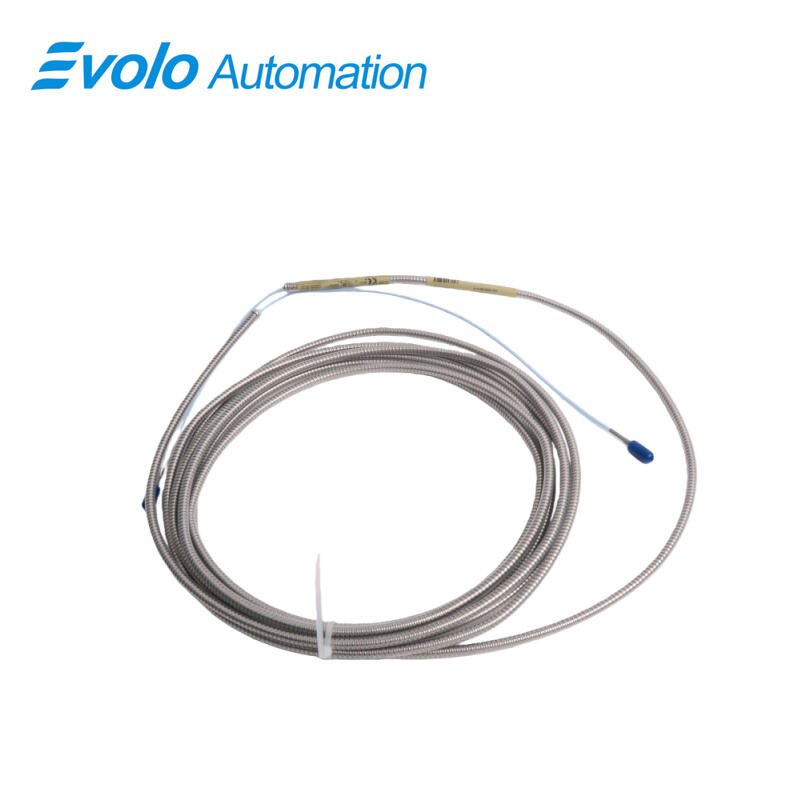

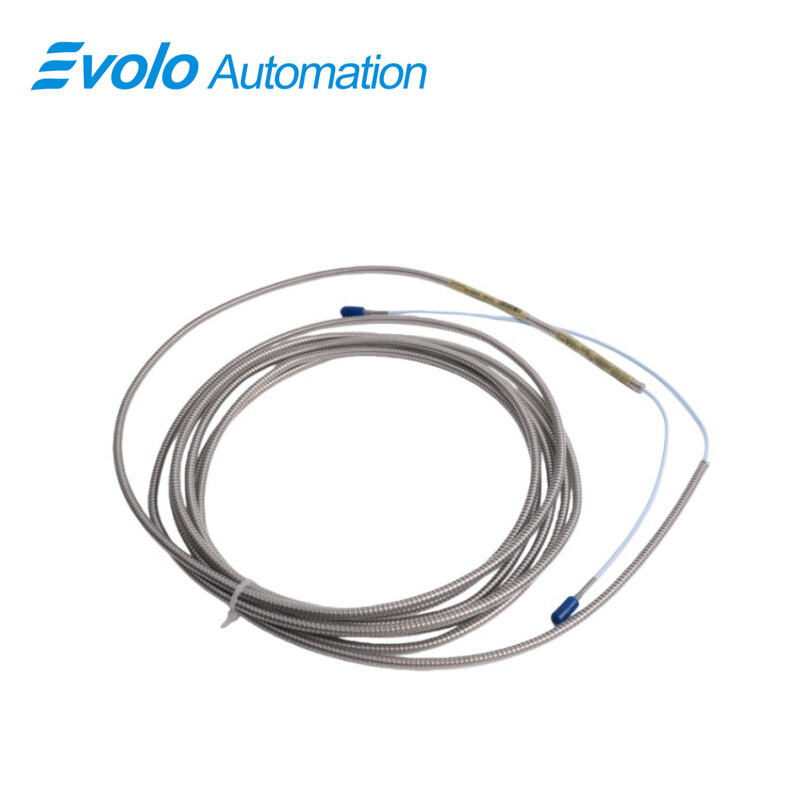

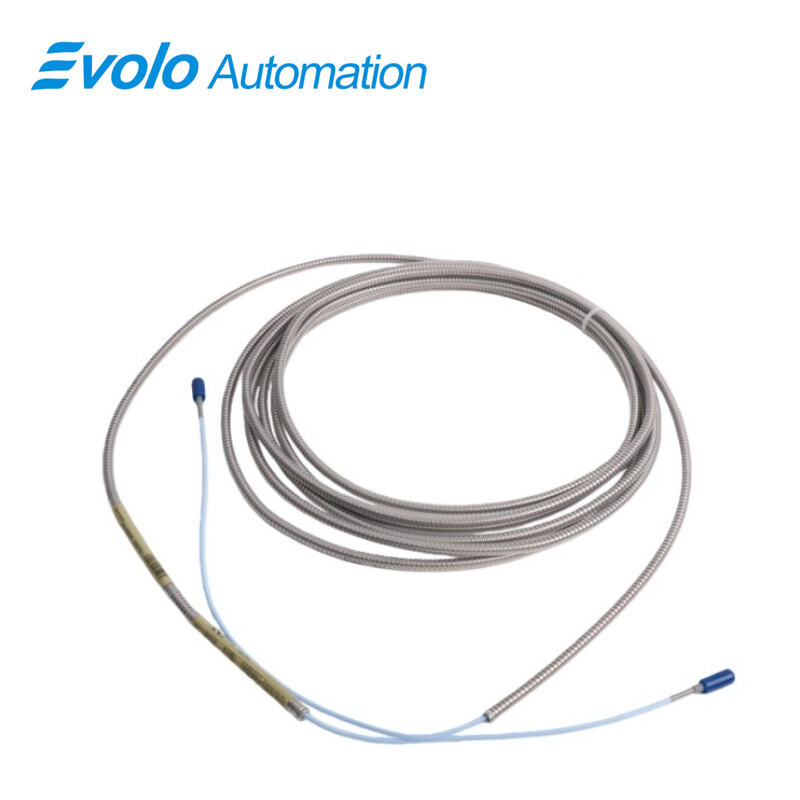

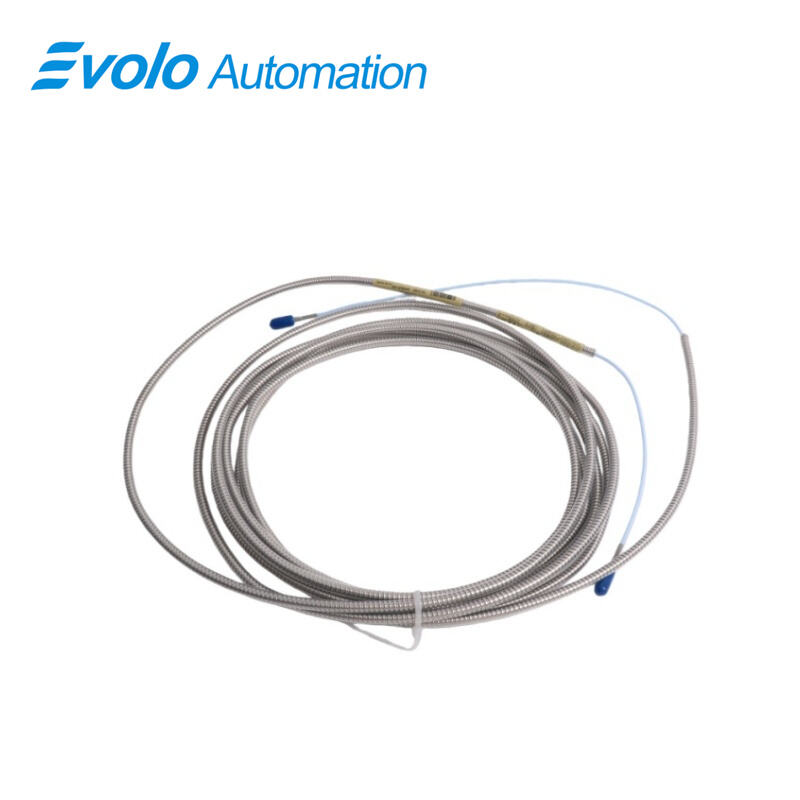

The 330930-060-01-00 3300 NSv Extension Cable is a high-performance industrial automation component designed to work with the 3300 XL NSv Proximity Transducer System. Engineered for use in tight installation environments such as centrifugal air compressors, refrigeration compressors, and process gas compressors, this extension cable ensures precise and reliable signal transmission for radial and axial measurements. With a 6.0-meter (19.7-foot) length and stainless steel armor with FEP outer jacket, the cable provides superior mechanical protection and chemical resistance, while maintaining flexibility for complex routing. The 3300 NSv extension cable supports operating temperatures from -52°C to +177°C (-62°F to +351°F) and is compatible with field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), delivering high-fidelity signals with less than 2 mV variation per volt of input. Mechanically and electrically compatible with Bently Nevada’s legacy 3300 RAM and 3000/7000-series systems, the NSv extension cable integrates seamlessly with TipLoc and CableLoc-enabled probes, providing up to 220 N (50 lb) of pull strength and robust probe-tip attachment. Ideal for small target and side-view applications, the cable ensures optimal vibration, position, Keyphasor, and tachometer signal performance, even in restricted or harsh industrial environments.

Applications

Radial Vibration and Position Measurement

Used on small shafts (<51 mm / 2 in), the cable transmits signals from the 3300 NSv probe to the monitoring system with minimal signal loss, ensuring accurate vibration readings.

Axial (Thrust) Position Monitoring

Supports precise measurement of axial displacement in fluid-film bearing machines, with linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm (40 mils) for accurate process control.

Tachometer and Zero-Speed Detection

Provides reliable phase and speed signals for machinery control systems, enabling precise monitoring from 0 to 10,000 RPM in centrifugal and reciprocating compressors.

Side-View and Small Target Monitoring

Ideal for limited side-view or counter-bore spaces, the armored FEP-jacketed cable ensures high-quality transmission of signals from reverse mount or side-view NSv probes.

Process Environment Adaptation

Chemical-resistant armor and FEP insulation enable operation in oil-lubricated and chemically aggressive process environments, maintaining signal fidelity over extended periods.

Specifications

Competitive Advantage

Enhanced Mechanical Protection

Stainless steel armor with FEP jacket safeguards the cable against impact, abrasion, and chemical exposure, extending operational lifetime compared to unarmored cables.

High-Temperature Reliability

Operating range of -52°C to +177°C ensures consistent performance in extreme industrial conditions, including refrigeration and high-temperature compressors.

Robust Electrical Connectivity

Compatible with TipLoc and CableLoc probes, providing secure probe-cable attachment and 220 N pull strength, reducing failure risks in high-vibration applications.

Legacy System Interchangeability

Fully compatible with 3300 RAM and 3000/7000-series transducer systems, allowing seamless upgrades without replacing entire monitoring systems.

Precision Signal Transmission

Maintains output resistance at 50 Ω and less than 2 mV voltage variation per volt of input, ensuring accurate and stable vibration, position, and Keyphasor measurements for automation systems.
