31000-28-10-00-026-00-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	31000-28-10-00-026-00-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

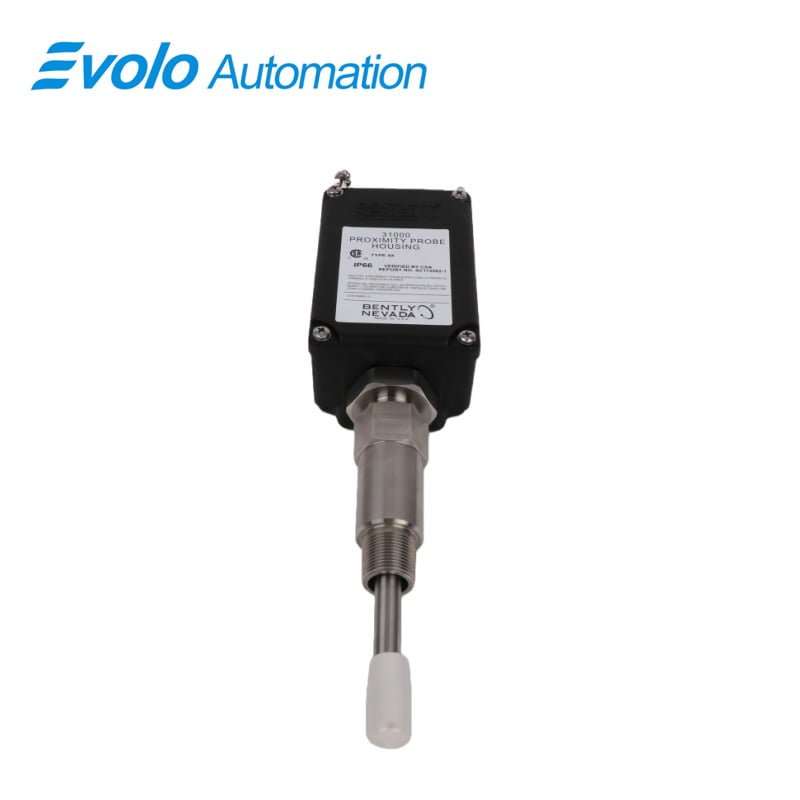

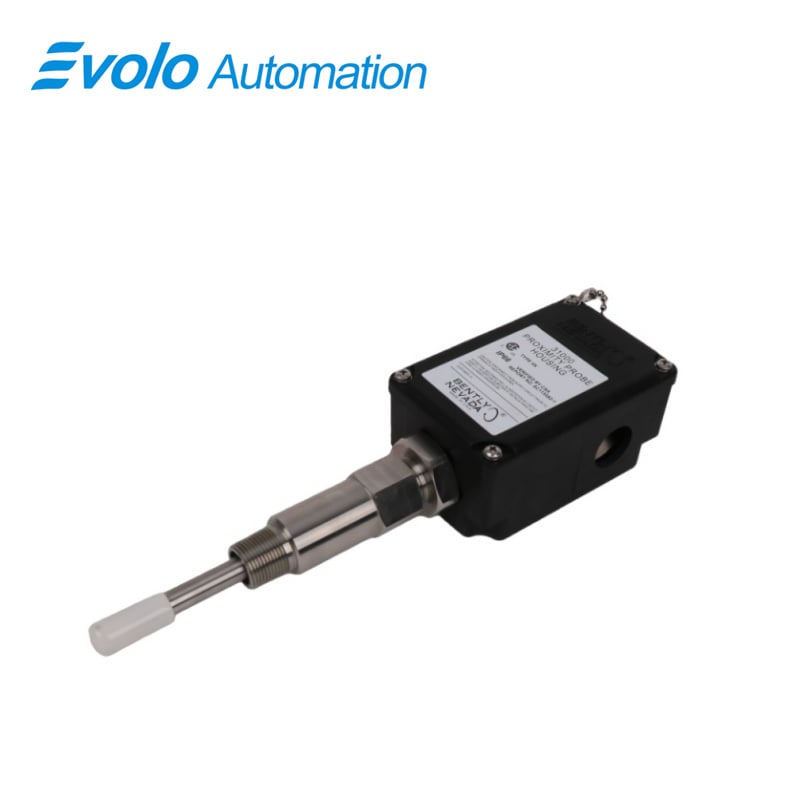

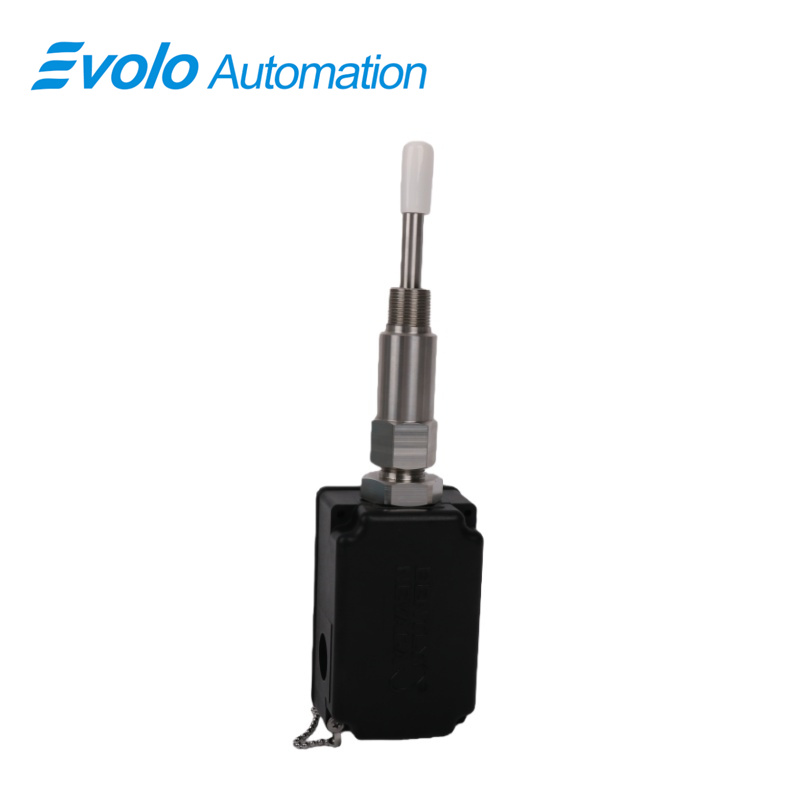

The 31000-28-10-00-026-00-02 Proximity Probe Housing Assembly is designed for precise integration of 3300 XL 8 mm Proximity Probes into automated industrial systems. Optimized for radially mounted transducers, this housing supports both vibration and Keyphasor measurements while providing external access to the probe and extension cable, allowing gap adjustment or probe replacement without stopping machinery.

Constructed from high-strength Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, the housing delivers exceptional mechanical robustness, corrosion resistance, and thermal stability. Stainless steel components, including AISI 303 exterior screws and AISI 304 sleeves, ensure long-lasting durability in industrial environments. The assembly features a probe penetration of 2.6 in and a cable length of 1.0 m (39 in). Certified Type 4X by CSA and capable of withstanding two 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and 115°C (239°F), it ensures reliable performance under extreme conditions.

Fully compliant with API 670 standards, this housing supports intrinsically safe hazardous area applications when used with approved transducer systems and I.S. barriers, offering dependable protection, operational flexibility, and ease of maintenance for automation-focused operations.

Applications

1. Vibration Monitoring for High-Speed Rotors
Securely houses probes for accurate vibration measurement in turbines, compressors, and pumps, enabling predictive maintenance and reducing unscheduled downtime.

2. Keyphasor Signal Acquisition
Ensures consistent phase reference signal measurements on rotating equipment, critical for speed and timing analysis in industrial automation.

3. External Gap Adjustment
Provides probe access without machine disassembly, allowing technicians to adjust gaps or replace probes, improving maintenance efficiency by 25–30%.

4. Harsh Environment Deployment
Corrosion-resistant PPS and stainless steel materials support use in chemical, petrochemical, and energy plants with operating temperatures from -39°C to 115°C.

5. Intrinsically Safe Applications
Supports use in hazardous areas when combined with I.S. barriers, ensuring safe operation in explosive or flammable environments.

Specifications

Competitive Advantage

1. Durable Material Construction
Glass-reinforced PPS and stainless steel ensure superior mechanical strength, corrosion resistance, and longevity in industrial settings.

2. Maintenance Efficiency
External access for probes and cables allows quick gap adjustment and replacement without shutting down machinery, reducing maintenance costs.

3. High Impact Resistance
Certified to withstand repeated 4 Joule impacts at extreme temperatures, providing reliable protection in high-stress environments.

4. API 670 Compliance
Meets stringent standards for externally mounted proximity probe housings, ensuring precise and repeatable measurements for automation systems.

5. Hazardous Area Safety
CSA Type 4X rating and compatibility with I.S. barriers allow safe deployment in explosive atmospheres, enabling uninterrupted operation.
