Honeywell ControlEdge HC900 16-Channel High-Level Analog Input Module 900A16-0103
Manufacturer: Honeywell
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Honeywell • ControlEdge HC900

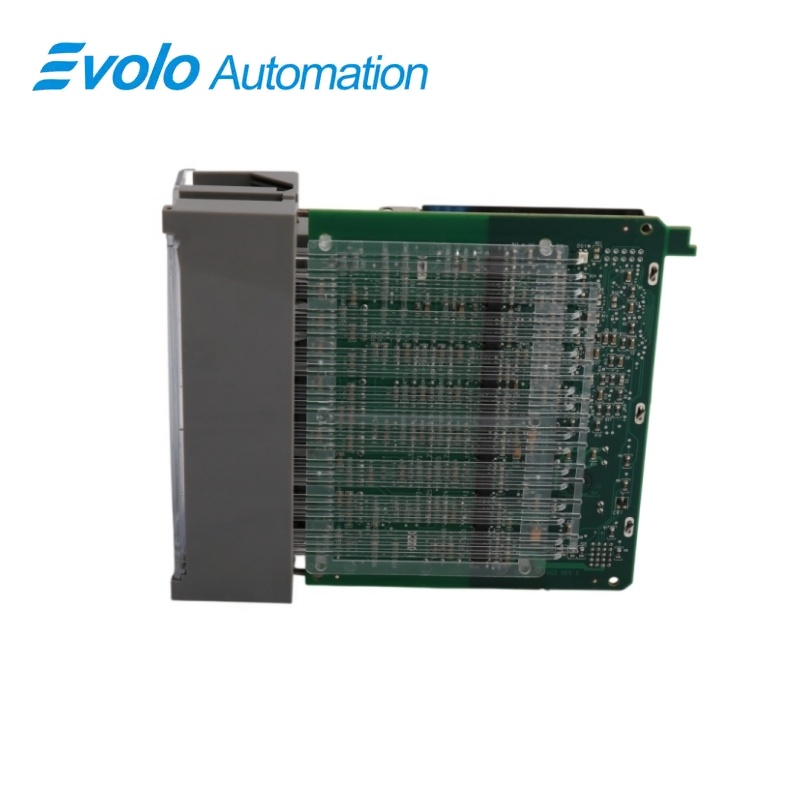

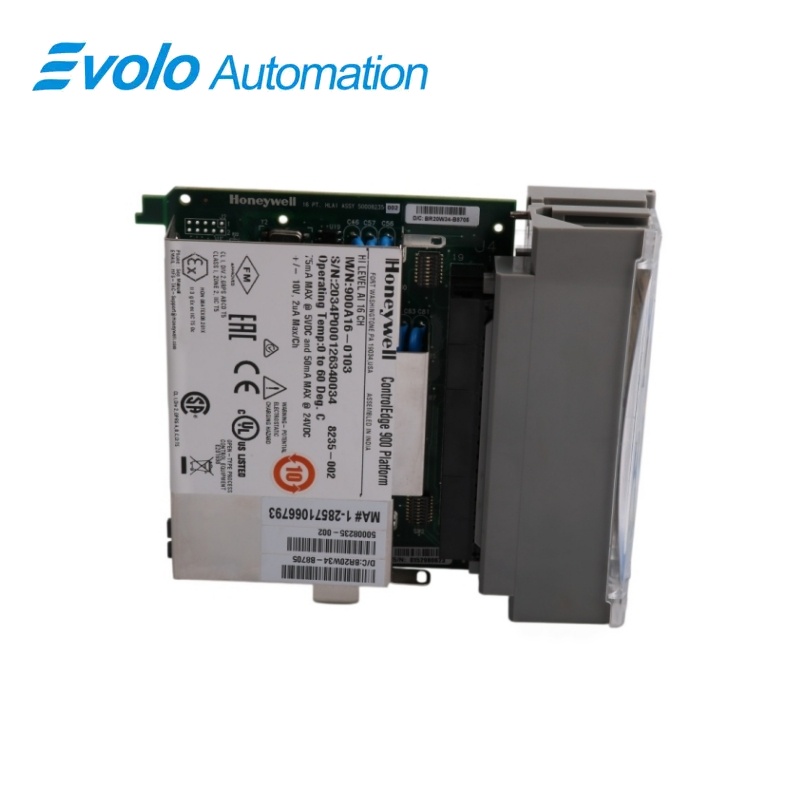

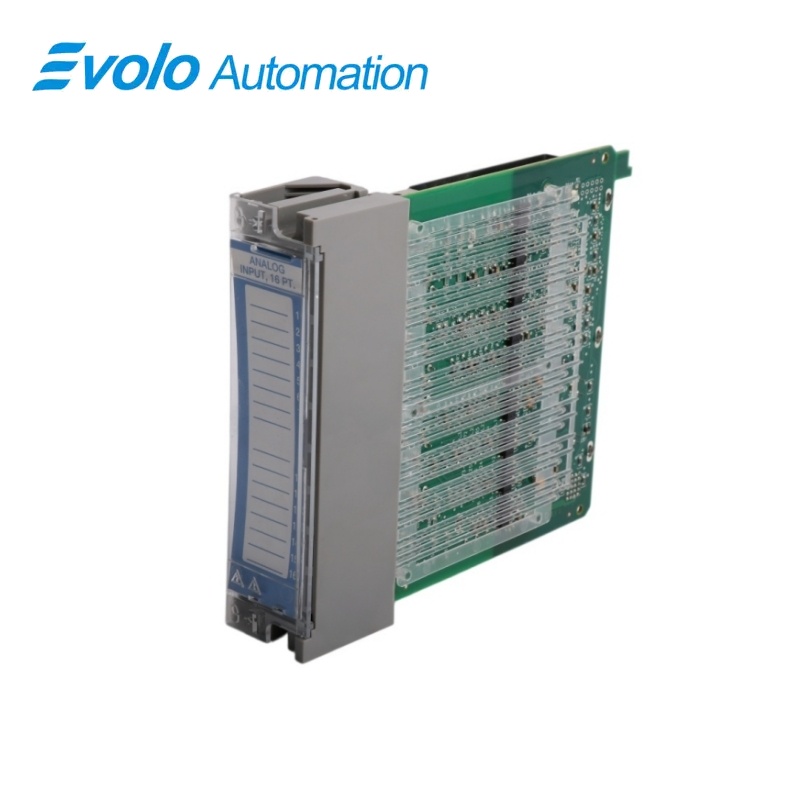

900A16-0103 ControlEdge HC900 16-Channel High-Level Analog Input Module
The Honeywell ControlEdge HC900 high-level analog input module provides sixteen isolated, user-configurable voltage or current inputs with integrated shunts, diagnostics and field calibration.
At a Glance
| Brand | Honeywell |
|---|---|
| Model | 900A16-0103 |
| Product Type | Isolated 16-channel voltage and current analog input module |
| Core Function | Acquires sixteen high-level voltage or current signals with channel isolation, diagnostics and field calibration |
| Application or Compatible Series | ControlEdge HC900 systems using compatible racks, 36-terminal blocks or remote terminal panels |
Exact Identification
Match 900A16-0103 character by character and confirm the complete ControlEdge HC900 16-Channel High-Level Analog Input Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Honeywell ControlEdge HC900 high-level analog input module provides sixteen isolated, user-configurable voltage or current inputs with integrated shunts, diagnostics and field calibration.
Each channel accepts a configured voltage or current range with point-to-point and backplane isolation. Individual 250-ohm shunt resistors can be activated by DIP switch for current inputs. Analog conversion is synchronized with controller execution and all analog modules are processed in parallel.
Key Functions
Sixteen Isolated Inputs
Each channel accepts a configured voltage or current range with point-to-point and backplane isolation.
Integrated Current Shunts
Individual 250-ohm shunt resistors can be activated by DIP switch for current inputs.
Synchronized Acquisition
Analog conversion is synchronized with controller execution and all analog modules are processed in parallel.
Official Specifications
| Input Channels | 16 isolated |
|---|---|
| Input Types | Voltage and current |
| Voltage Input Impedance | Greater than 1 MΩ |
| Current Input Impedance | 250 Ω |
| Point-to-Point Isolation | 400 V DC |
| Isolation to Logic | 1,000 V DC |
| Series-Mode Noise Rejection | Greater than 31 dB |
| Common-Mode Noise Rejection | Greater than 90 dB at 120 V AC |
| Factory Accuracy | ±0.1% of range |
| Field Calibration Accuracy | ±0.05% of range |
| Integrated Current Shunts | 16 x 250 Ω, DIP-switch activated |
| Required Terminal Block | Euro-style 36-terminal |
| Compatible Terminal Block | 900TCK-0200 |
| Compatible Remote Terminal Panel | 900RTS-0001; two per module |
| Compatible RTP Cable | 900RTC-34xx |
| Module Dimensions | 137 x 35.6 mm; height x width |
| Module Weight | 397 g |
Frequently Asked Questions
Which signals can be wired to 900A16-0103?
Configure each isolated channel for an approved high-level voltage or current range.
How is a current input selected on 900A16-0103?
Activate the channel’s integrated 250-ohm shunt with the correct DIP-switch setting.
Which terminal block is used with 900A16-0103?
Use the compatible 36-terminal Euro-style block and preserve the channel-to-terminal assignment.
Can 900A16-0103 use a remote terminal panel?
Yes; the specified arrangement uses two compatible remote terminal panels and the matching cable set.
What diagnostics are available on 900A16-0103?
Status indicators identify scanning, forced channels and module diagnostic conditions.
What must be saved before replacing 900A16-0103?
Record every channel range, scaling, failsafe value, force state, calibration and DIP-switch position.
What should be checked after commissioning 900A16-0103?
Verify all sixteen signals, isolation, scaling, current-shunt selection, calibration and module diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the matching HC900 rack and 36-terminal connection hardware.
- Set every current-channel shunt switch correctly.
- Restore channel scaling, failsafe and calibration data before loop validation.
