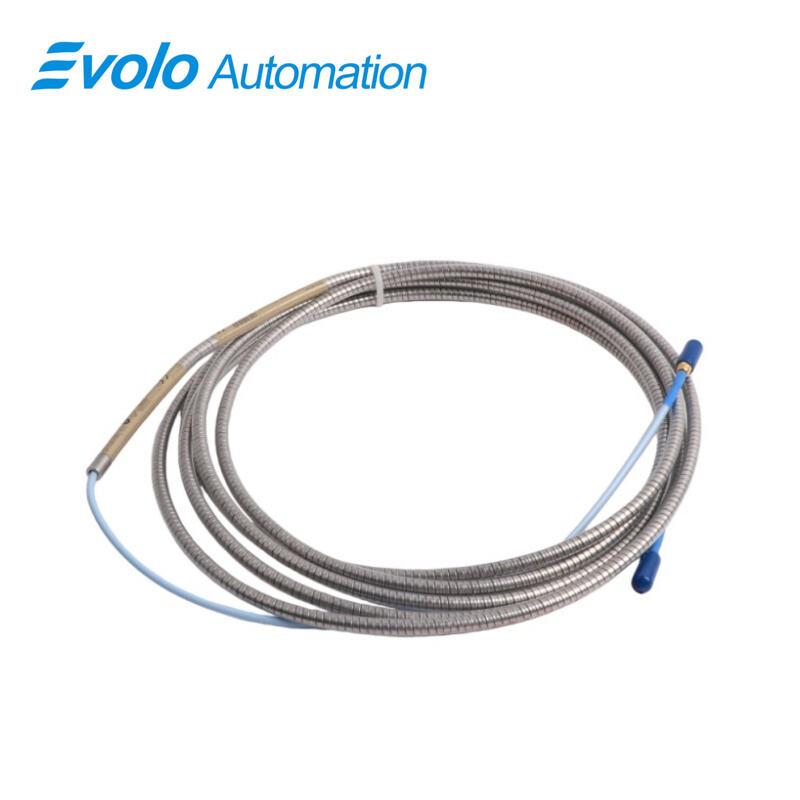

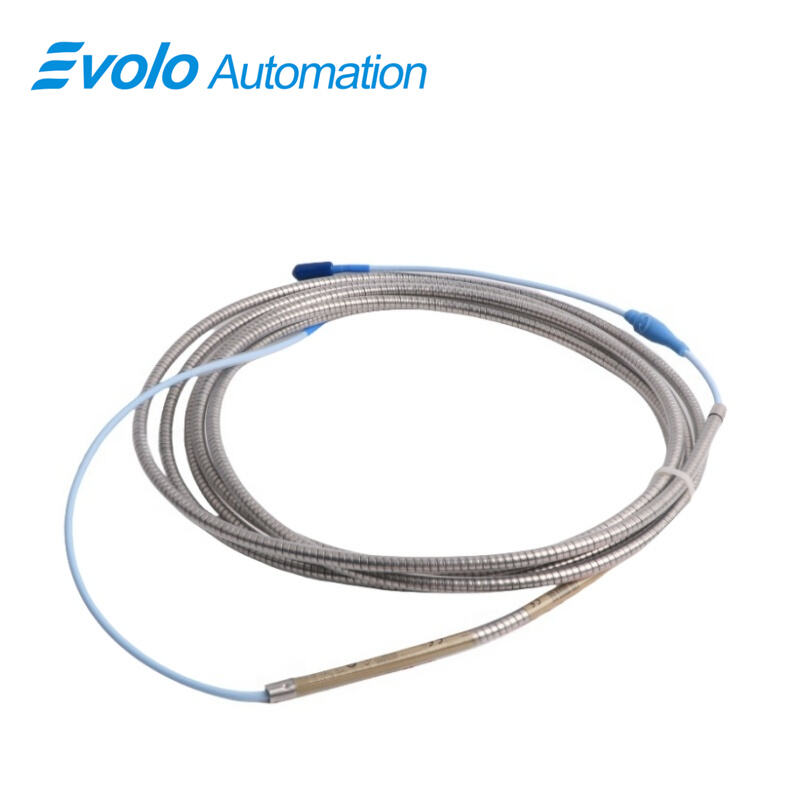

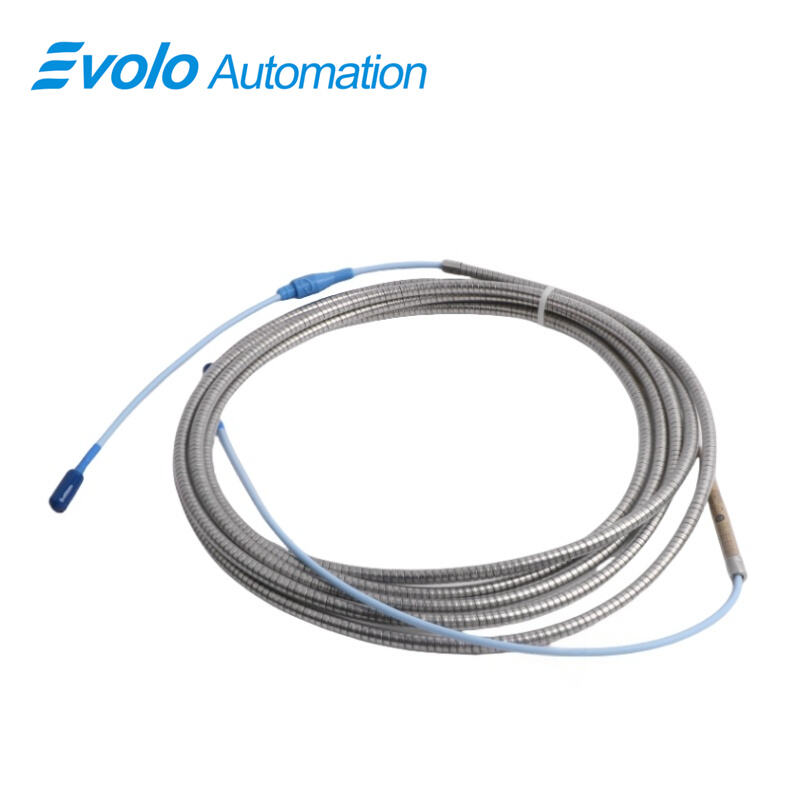

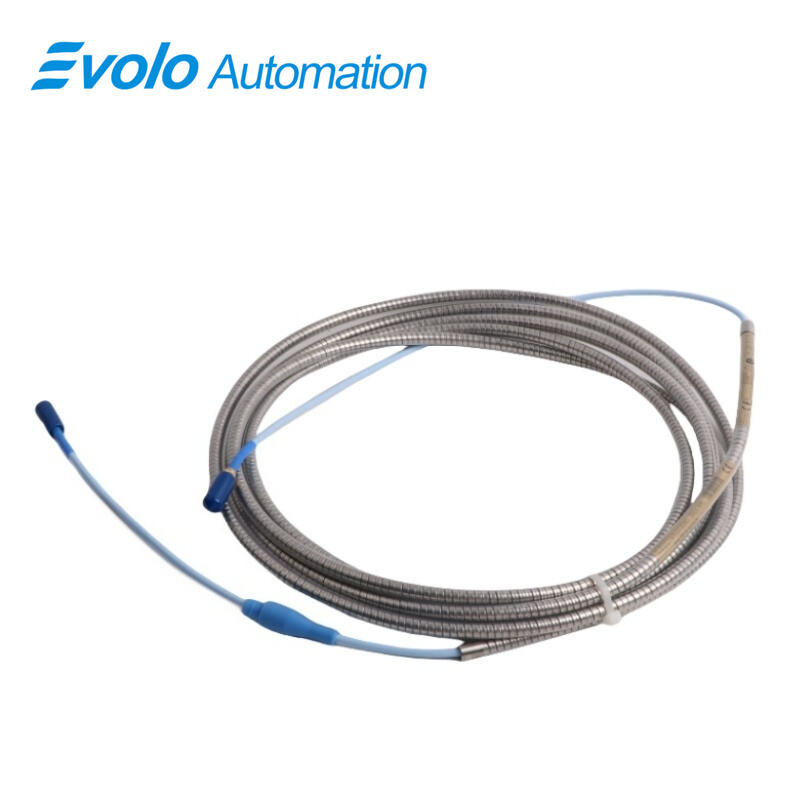

330130-040-03-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-03-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-03-05 3300 XL Standard Extension Cable is a precision-engineered component designed for use with the 3300 XL Proximity Transducer System, a cornerstone in industrial automation for accurate position and vibration monitoring. This extension cable ensures seamless connectivity between 3300 XL probes and Proximitor sensors, enabling reliable transmission of high-fidelity signals essential for real-time machine diagnostics. Specifically tailored for automated systems in turbines, compressors, and other fluid-film bearing machinery, the 3300 XL Standard Extension Cable enhances both static position measurements and dynamic vibration analysis.

Compatible with the 3300 XL 8 mm Proximity Transducer System, the 330130-040-03-05 extension cable maintains the API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. The cable supports complete interchangeability with 3300 XL probes and Proximitor sensors, eliminating the need for individual component calibration while ensuring operational flexibility in automation setups. This backward compatibility extends to non-XL 3300 series 5 mm and 8 mm components, allowing users to upgrade systems without replacing existing probes or sensors.

Engineered for durability in harsh industrial environments, the 330130-040-03-05 cable incorporates robust insulation and a reinforced connector interface, delivering high tensile strength and resistance to vibration-induced wear. The cable’s design integrates the patented CableLoc system, which secures the probe tip and cable junction with a pull strength of 330 N (75 lbf), reducing the risk of disconnection during critical operations. Additionally, an optional FluidLoc feature prevents oil or other process fluids from entering the cable interior, maintaining system integrity and minimizing maintenance downtime.

In automated monitoring applications, the 330130-040-03-05 extension cable plays a pivotal role in providing precise Keyphasor reference signals, rotational speed measurement, and high-resolution vibration data. Its reliable signal transmission ensures that predictive maintenance systems, control loops, and diagnostic software operate with maximal accuracy, enhancing machinery efficiency and longevity. By integrating this standard extension cable into your 3300 XL system, industrial operators can achieve robust, scalable, and fully automated monitoring solutions across a wide range of critical equipment.

The 330130-040-03-05 3300 XL Standard Extension Cable represents a critical upgrade for industrial automation, combining high performance, interchangeability, and mechanical robustness, making it an essential component in modern vibration and position monitoring systems.

Applications

Versatile Vibration and Position Monitoring

The 3300 XL Standard Extension Cable is designed for use with the 3300 XL 8 mm Proximity Transducer System, enabling precise measurement of both static (position) and dynamic (vibration) signals. It is ideal for monitoring fluid-film bearing machines, including turbines, compressors, and pumps, where accurate radial vibration detection is critical.

Keyphasor and Speed Measurement Integration

This extension cable supports Keyphasor reference signals and rotational speed measurements, making it suitable for applications in predictive maintenance and condition monitoring of rotating machinery.

Harsh Environment Compatibility

With CSA, ATEX, and IECEx approvals and a wide operating temperature range of -52°C to +177°C (-62°F to +350°F), the 3300 XL Standard Extension Cable is appropriate for extreme industrial environments, including petrochemical, energy, and manufacturing facilities.

Flexible Field Installation

The armored cable with connector protector, coupled with FEP insulation, allows for reliable field wiring (16–24 AWG), ensuring stable signal transmission even under physically demanding conditions.

Specifications

Competitive Advantage

High-Performance Signal Transmission

The 3300 XL Standard Extension Cable delivers precise output with minimal voltage sensitivity, maintaining less than 2 mV change per volt of input variation. Its 75 Q triaxial FEP insulation and low capacitance (69.9 pF/m typical) ensure high-fidelity signal integrity for both vibration and position measurements.

Robust and Reliable Design

The armored cable and patented CableLoc design provide enhanced mechanical strength (330 N pull force) to prevent disconnection or damage, while optional FluidLoc protection prevents fluid ingress, extending service life in harsh environments.

Full System Interchangeability

The cable is fully compatible with all 3300 XL probes and Proximitor sensors, as well as non-XL 3300 series components. This interchangeability eliminates the need for component matching or bench calibration, simplifying maintenance and reducing downtime.

Industry Standard Compliance

The system meets API 670 standards for linearity, accuracy, and temperature stability, ensuring compliance with industrial safety and performance requirements.
