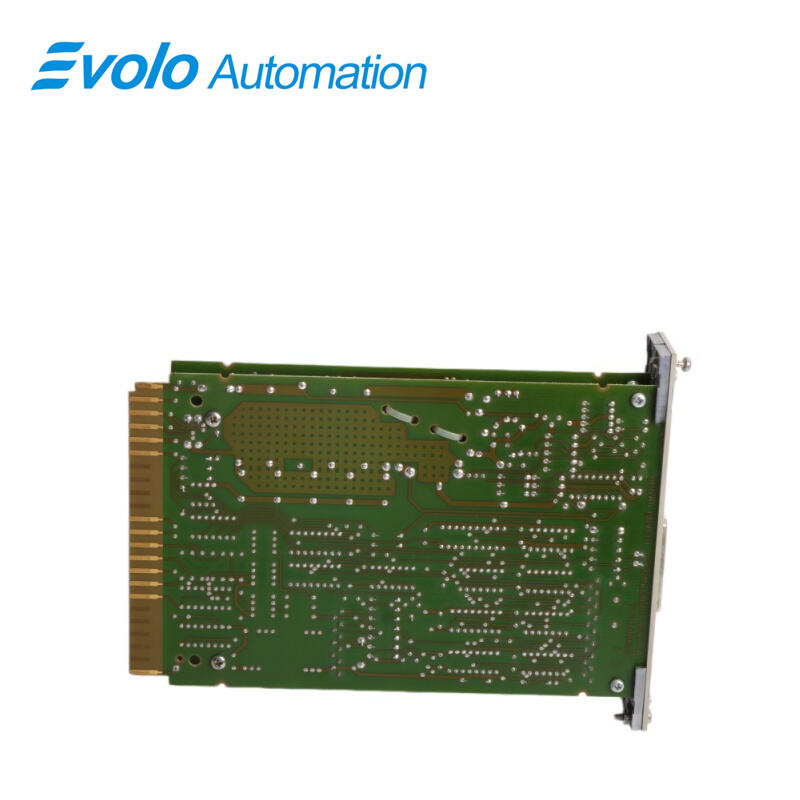

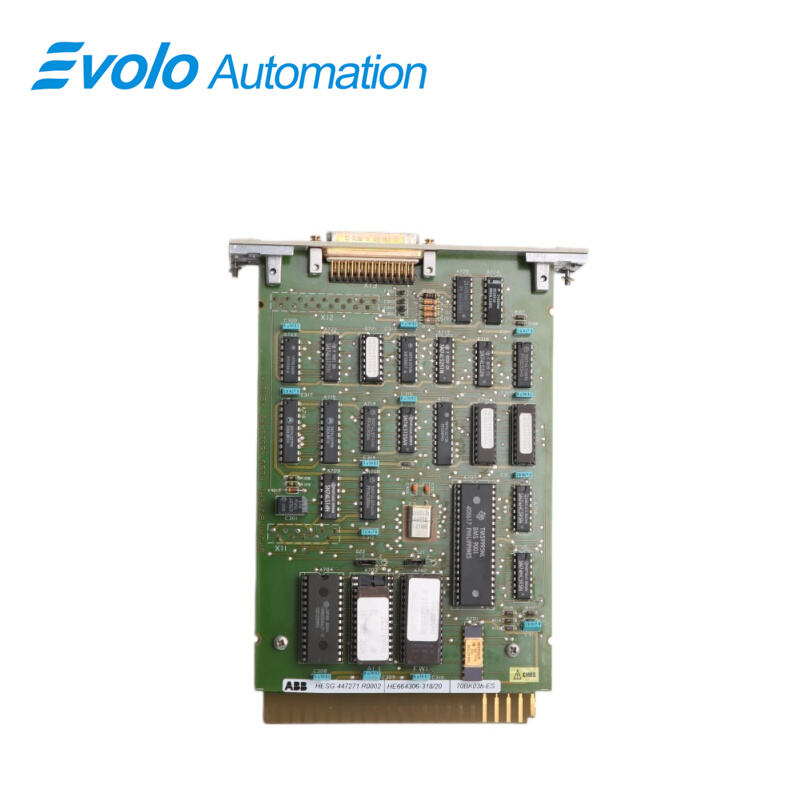

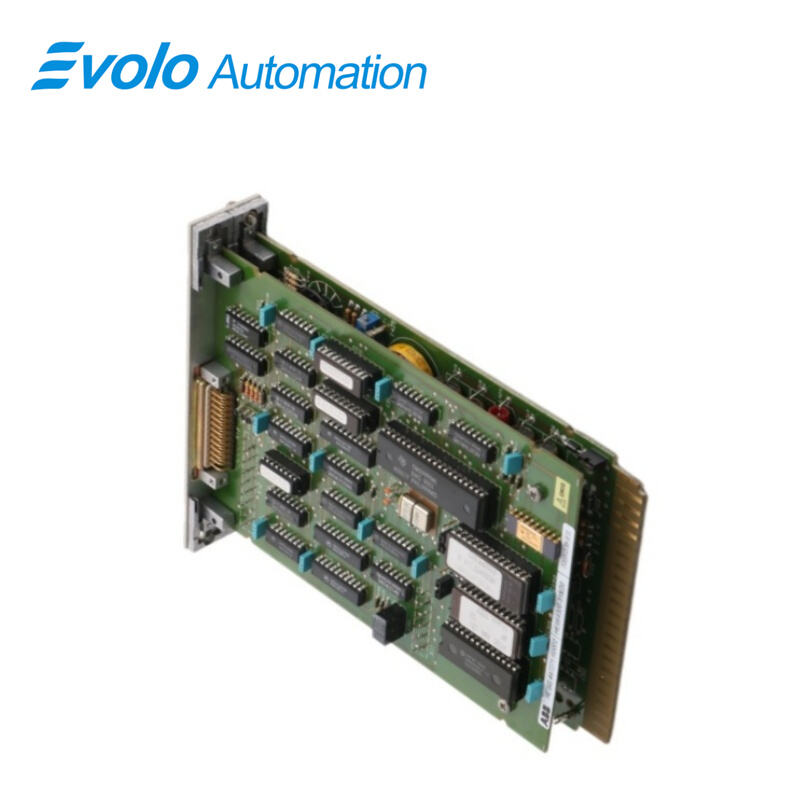

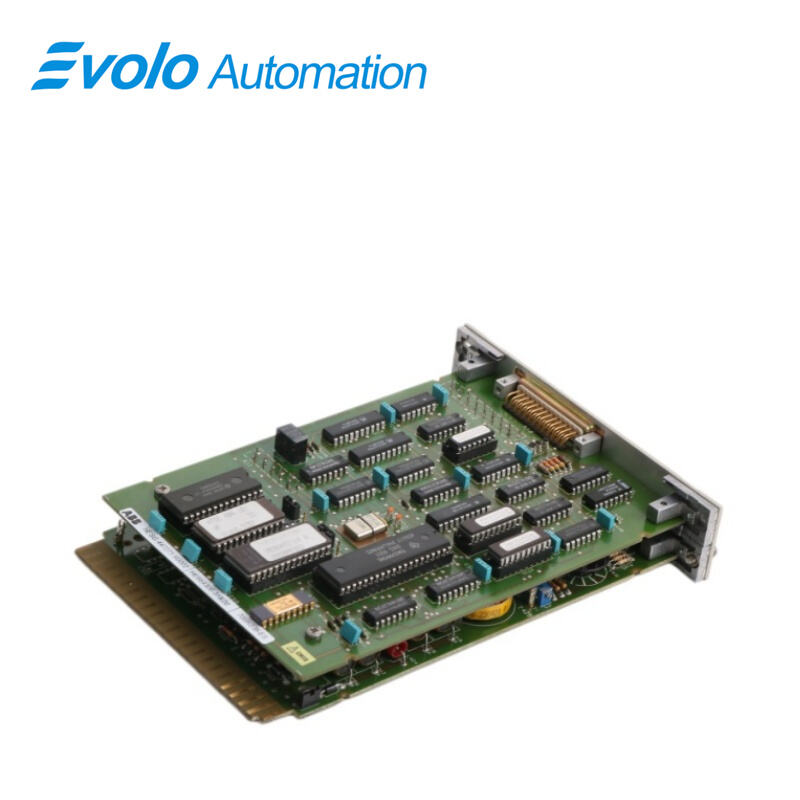

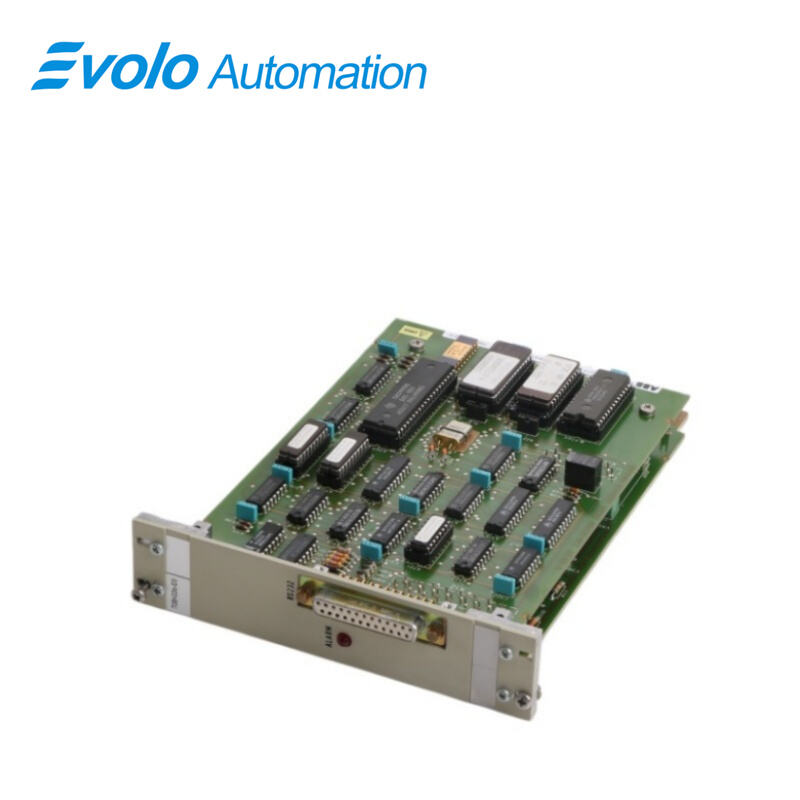

HESG447271R0002 70BK03B-ES HESG447270R0002 Bus Coupling Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	HESG447271R0002 70BK03B-ES HESG447270R0002
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB HESG447271R0002 70BK03B-ES HESG447270R0002 Bus Coupling Module is a high-performance drive module designed for seamless integration into complex industrial automation systems, enhancing efficiency and reliability in manufacturing processes.

Applications

Thermal power plants: Connect the main controller rack to remote I/O expansion racks to issue excitation commands.

Petrochemical plants: Synchronize critical process parameters such as pressure and temperature across regions within large automated cabinets.

Large steel plants: Manage the real-time exchange of control data across multiple racks in complex continuous rolling production lines.

Wastewater treatment plants: Used for bus-based serial connections in widely distributed, large-scale automated data acquisition systems.

Polysilicon processing plants: Provide robust data bridging within precision power control system cabinets.

Maintenance Recommendations

Terminal Tightening: In high-vibration factory areas, the locking devices of the coupling connectors should be checked quarterly to prevent loose connections.

Preventative Dust Removal: The bus interface is sensitive to dust and should be cleaned with dry compressed air to prevent signal short circuits.

Version Compatibility: If one module needs to be replaced, please ensure that its hardware version (e.g., R2) is compatible with the other end.

FAQ

Q: What is the difference between HESG447271R0002 70BK03B-ES HESG447270R0002?
A: Typically, the 70 series is the basic transmitter/receiver, while the 71 series is a coupled module with specific functional enhancements or extensions. They usually work in pairs.

Q: Does the HESG447271R0002 70BK03B-ES HESG447270R0002 module need to be reprogrammed after replacement?
A: No programming is required. They are physical layer communication boards; simply ensure the hardware DIP switches are set correctly.

Q: What does it mean if the indicator light of the HESG447271R0002 70BK03B-ES HESG447270R0002 module is not on?
A: This usually indicates a 24V power supply failure on the backplane or a damaged DC/DC converter chip inside the module.

Q: Can I plug and unplug the HESG447271R0002 70BK03B-ES HESG447270R0002 module while the system is running?
A: Hot-plugging is strictly prohibited! This will cause momentary data conflicts on the bus, and in severe cases, may trigger a shutdown alarm from the main controller.

Q: Does the HESG447271R0002 70BK03B-ES HESG447270R0002 module generate a lot of heat?
A: It is a low-power device. If it feels noticeably hot to the touch, it indicates an overload on the bus or a short circuit in internal components.
