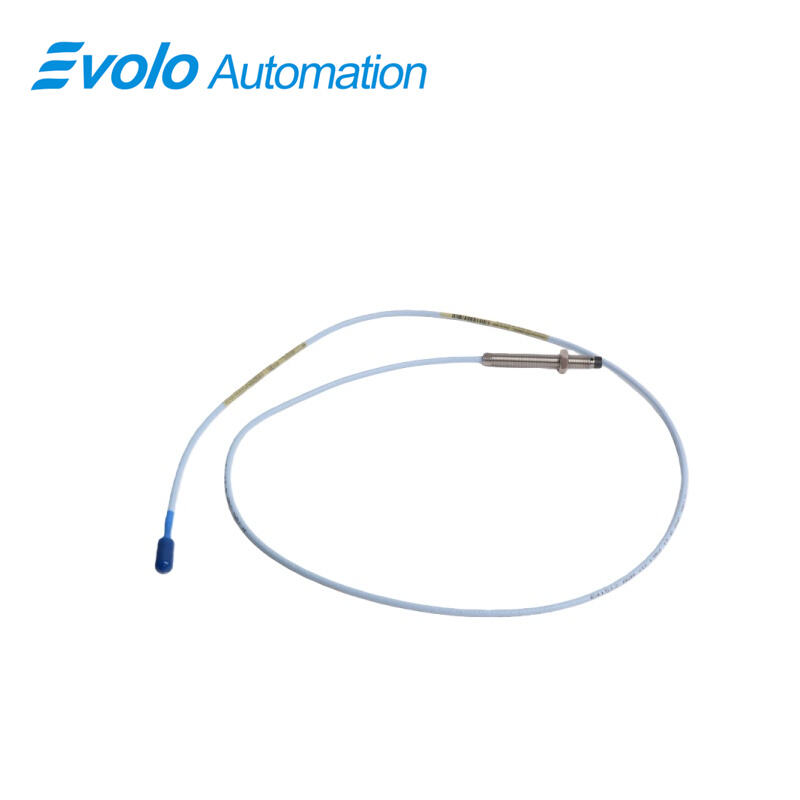

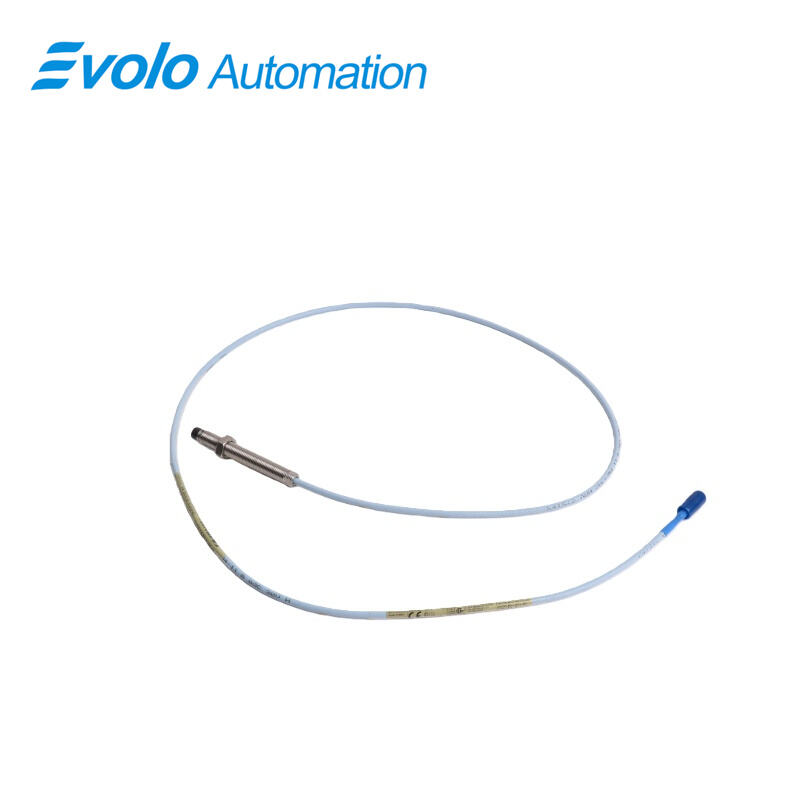

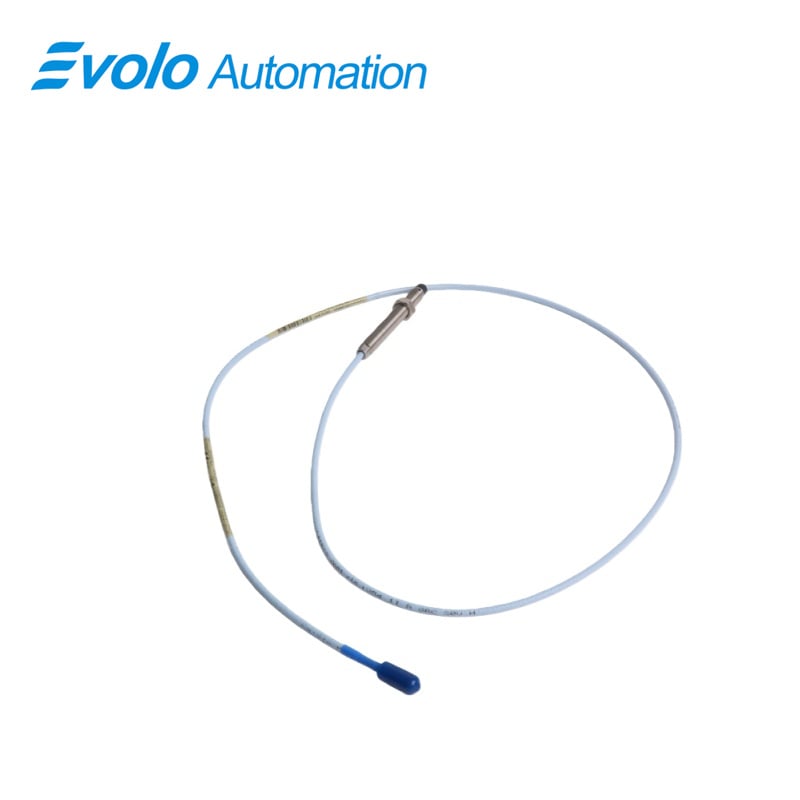

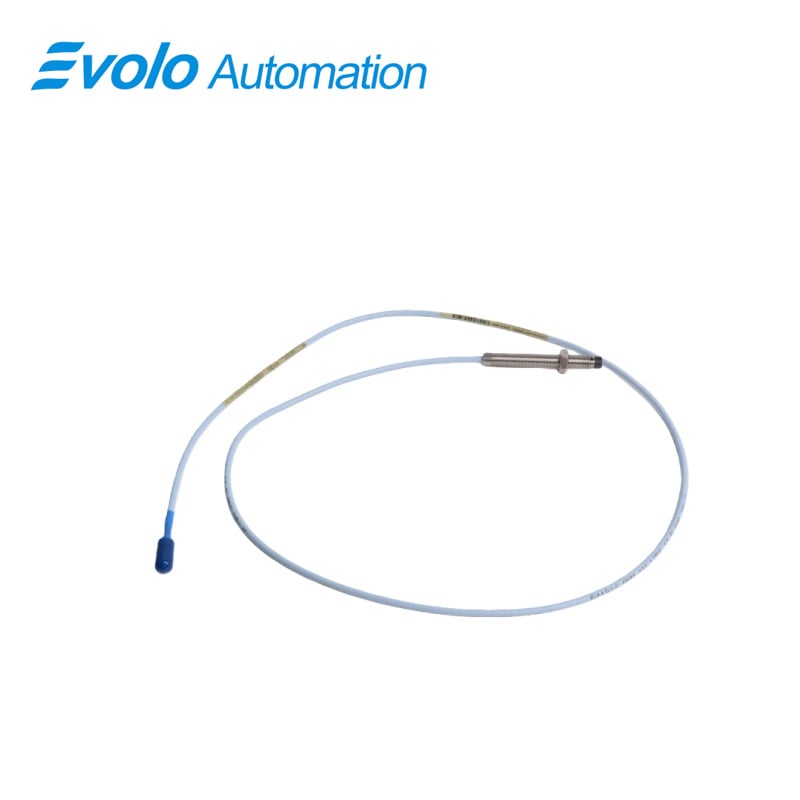

330101-01-39-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-01-39-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe is a cornerstone of modern industrial vibration analysis, specifically engineered to provide high-precision non-contact displacement measurements. As a vital element of the Bently Nevada 3300 XL transducer system, this 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe offers a significant performance upgrade over previous probe generations. The design utilizes the patented TipLoc molding technology, which creates an inseparable bond between the probe tip and the stainless steel body. This mechanical reinforcement ensures that the 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe can endure the intense pressures and fluid velocities found inside high-speed turbines and compressors without risking tip separation.

Measurement accuracy is at the heart of the 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe. With a 2 mm (80 mils) linear range and a standard scale factor of 7.87 V/mm (200 mV/mil), the 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe delivers exceptionally stable data for tracking shaft vibration, axial thrust, and eccentricities. The physical durability is further enhanced by the CableLoc design, providing a robust 330 N (75 lbf) pull strength that protects the internal wiring from accidental damage during installation or maintenance. This 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe is built with AISI 303/304 stainless steel and a high-performance Polyphenylene Sulfide (PPS) tip, making it chemically resistant to the acidic environments often found in oil and gas refineries.

Applications

The 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe is primarily utilized for monitoring radial vibration and axial position in large-scale rotating equipment such as steam turbines, gas turbines, and centrifugal compressors. By providing real-time data on shaft displacement within a 2 mm linear range, it allows engineers to identify early warning signs of unbalance, bearing wear, or misalignment, preventing catastrophic failures in power generation and petrochemical facilities.

In the oil and gas industry, this probe is frequently deployed in hazardous locations that require stringent safety certifications like ATEX and IECEx. Its stainless steel housing and PPS tip material offer superior resistance to corrosive fluids and high-pressure steam. The probe's ability to operate in extreme thermal environments—ranging from -52°C up to +178°C—makes it ideal for monitoring critical pumps and gearboxes in refineries and offshore platforms where environmental conditions are unforgiving.

The 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe is also used for speed and phase reference measurements using a Keyphasor signal. By detecting a notch or projection on a rotating shaft, the probe provides the essential timing data required for sophisticated machinery diagnostics and balancing. Its 1.0-meter total length and compact 3.9-inch case design allow for flexible installation in tight bearing housings where space is limited but high-fidelity data is mandatory.

Specifications

Competitive Advantage

Superior Mechanical Integrity and Durability The 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe features the patented TipLoc and CableLoc technologies. TipLoc ensures the probe tip cannot be blown off by high pressures, while CableLoc provides a 330 N pull strength that prevents the cable from pulling out of the probe body. This makes the probe significantly more durable than standard sensors, reducing the need for frequent replacements in harsh industrial zones.

Global Safety Certifications for Hazardous Areas This probe is fully certified by CSA, ATEX, and IECEx, making it suitable for worldwide deployment in explosive atmospheres. Unlike non-certified alternatives, the 330101-01-39-10-01-05 3300 XL 8 mm Proximity Probe meets the rigorous safety requirements for refineries, chemical plants, and coal mines, simplifying the compliance process for global equipment manufacturers and plant owners.

Exceptional Thermal Stability and Range With an operating temperature capability of -45°C to +180°C, the 3300 XL series offers industry-leading stability. The probe’s output sensitivity remains consistent with less than 2 mV change per volt of input fluctuation. This precision ensures that even in machinery with extreme temperature cycles, the vibration data remains accurate, preventing false alarms and ensuring more reliable predictive maintenance.
