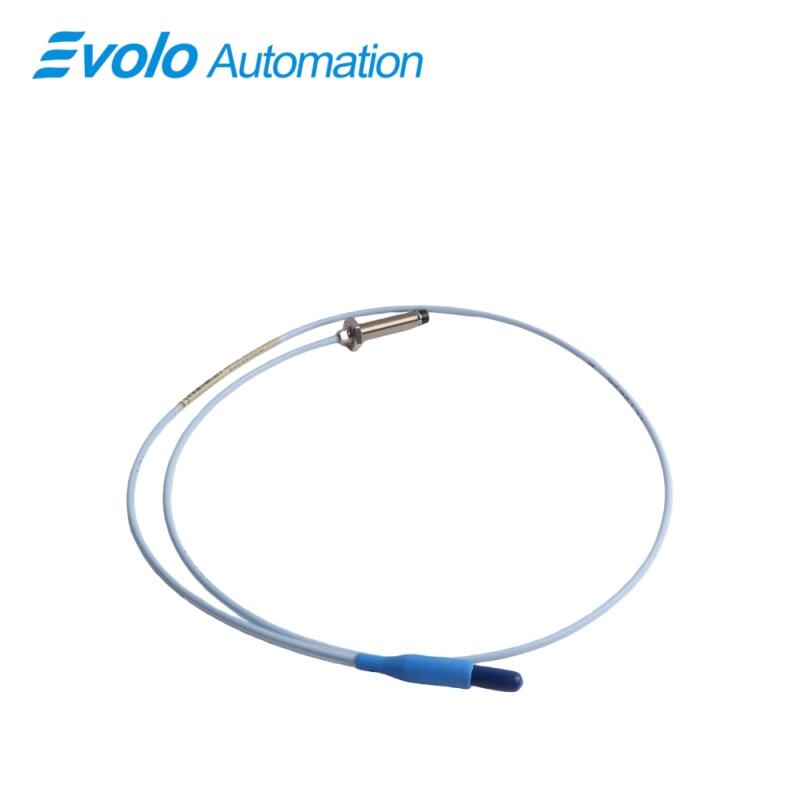

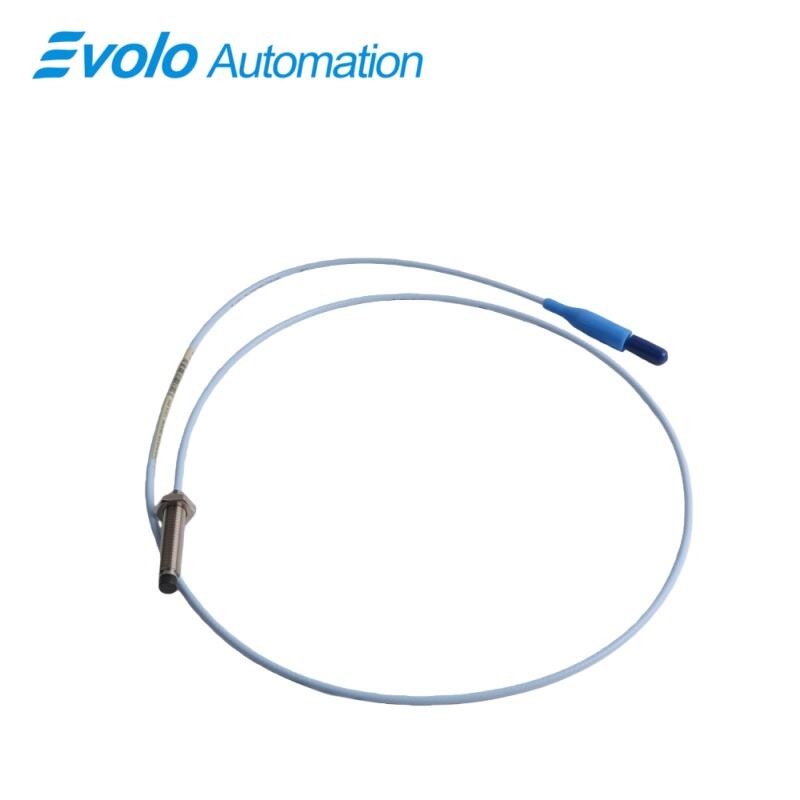

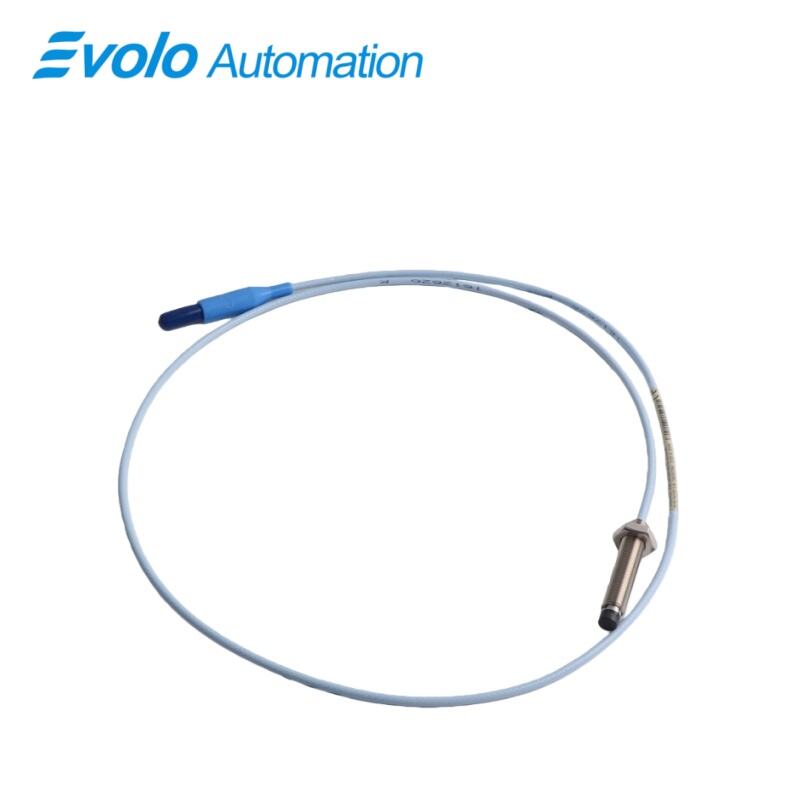

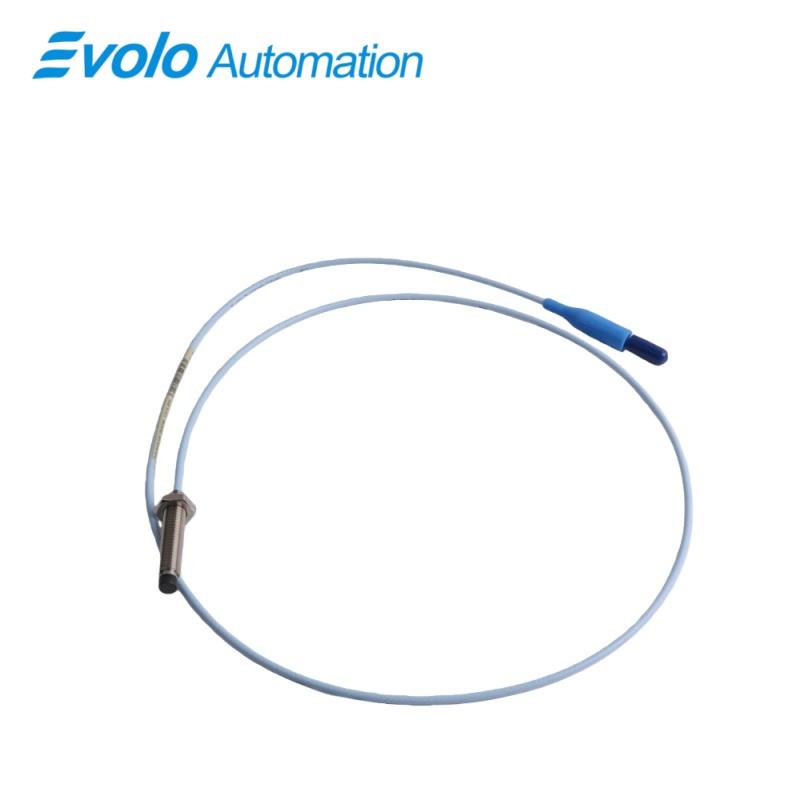

330103-00-05-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-10-01-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer manufactured by Bently Nevada, a globally recognized leader in industrial machinery protection solutions, with origin in the USA. As a core component of the 3300 XL product line, this proximity probe is engineered to deliver precise, non-contact measurement of radial vibration and axial position for critical rotating machinery, ensuring optimal operational safety and efficiency in diverse industrial settings. Unlike conventional probes, this model features a 0 mm minimum unthreaded length and a 50 mm overall case length, boasting a compact, streamlined design that fits seamlessly into space-constrained bearing housings and tight machine layouts. Equipped with a 1.0-meter (3.3 feet) standard cable terminated with a miniature coaxial ClickLoc connector and connector protector, the probe eliminates the hassle of complex wiring and minimizes signal loss during data transmission, enabling quick and reliable installation without additional extension cables.

Designed for versatility, the 330103-00-05-10-01-00 proximity probe operates within an extreme temperature range of -65°C to +108°C (-66°F to +213°F), making it suitable for harsh environments exposed to oil, moisture, and corrosive agents. Its probe tip is crafted from durable Polyphenylene Sulfide (PPS), while the case adopts high-quality AISI 301 or 306 stainless steel (SST), ensuring exceptional corrosion resistance and long-term structural stability even under continuous operation. With an output resistance of 56 Ω and supply sensitivity of less than 2 mV change in output voltage per volt change in input voltage, the probe generates high-fidelity linear voltage signals proportional to the gap between the probe tip and conductive target surfaces, providing accurate real-time data for monitoring machinery imbalance, misalignment, and bearing wear. This original new factory-sealed proximity probe requires no agency approval for most applications, offering a cost-effective, off-the-shelf solution for industrial users with minimum order quantity of 1 unit and fast 5-7 days delivery time.

Applications

The 330103-00-05-10-01-00 3300 XL 8 mm Proximity Probe is primarily used for continuous vibration and position monitoring of critical rotating equipment in power generation, manufacturing, and general industrial sectors, including steam turbines, centrifugal compressors, large pumps, and blowers. Its 2 mm linear range enables precise detection of subtle mechanical anomalies such as rotor imbalance and shaft misalignment, helping maintenance teams identify potential faults early and avoid unplanned downtime.

Thanks to its compact 50 mm overall case length and 0 mm unthreaded length, this proximity probe is ideal for installation in space-restricted machinery compartments where standard-sized probes cannot fit, such as small-diameter bearing housings and densely packed equipment racks. The 1.0-meter integrated cable with ClickLoc connector simplifies on-site wiring and reduces connection points, making it a preferred choice for quick retrofitting and system upgrades in existing production lines.

Engineered with a corrosion-resistant AISI 301/306 stainless steel case and PPS probe tip, the probe performs reliably in harsh environments contaminated with oil, coolant, and mild corrosive substances, suitable for use in automotive manufacturing plants, steel mills, and water treatment facilities. Its broad operating temperature range from -65°C to +108°C also allows deployment in extreme climate conditions, including cold storage warehouses and high-temperature industrial furnaces.

Specifications

Competitive Advantage

1.Compact Space-Saving Design for Tight Installations

Featuring a 0 mm minimum unthreaded length and 50 mm overall case length, the 330103-00-05-10-01-00 proximity probe stands out with its ultra-compact profile, which fits effortlessly into space-constrained machinery housings that are inaccessible to standard-sized probes. This design advantage eliminates the need for costly equipment modification during installation, reducing project lead times and on-site labor costs.

2.Plug-and-Play Connectivity for Hassle-Free Deployment

Equipped with a 1.0-meter standard cable and miniature coaxial ClickLoc connector with protector, the probe enables plug-and-play integration with Bently Nevada 3300 XL monitoring systems, eliminating complex wiring procedures and minimizing signal loss at connection points. The durable connector design ensures secure, vibration-resistant connections even under high-frequency machinery operation, enhancing long-term system reliability.

3.Cost-Effective Off-the-Shelf Solution with Fast Delivery

As an original factory-sealed product with no mandatory agency approval requirement, this proximity probe offers a cost-effective alternative to certified models for non-hazardous area applications. With minimum order quantity of 1 unit, in-stock supply capacity, and 5-7 days fast delivery, it caters to small-batch procurement needs of industrial users, ensuring timely equipment maintenance and production continuity.
