330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-06-15-10-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

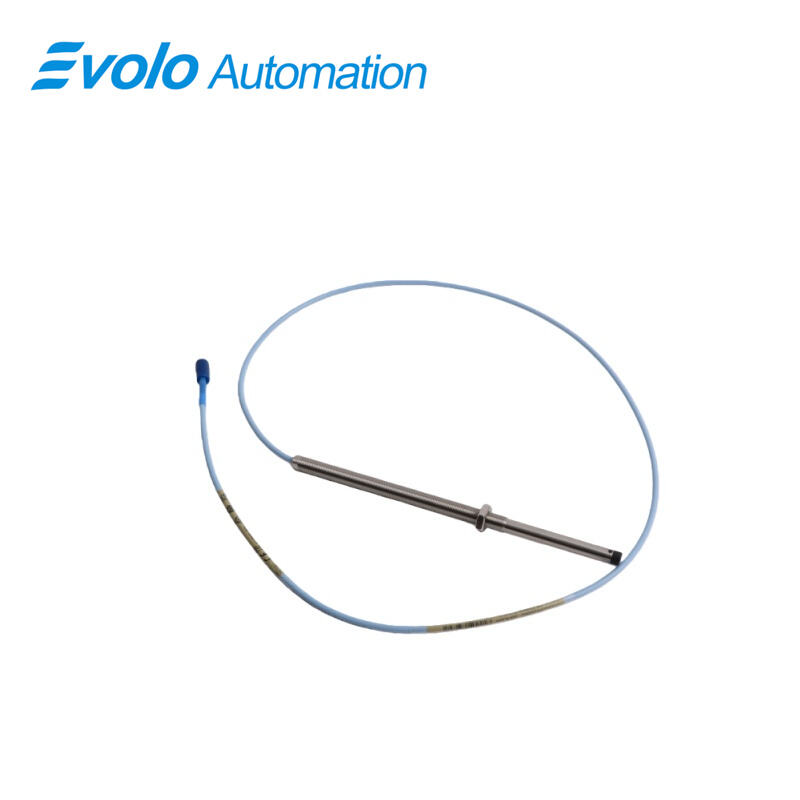

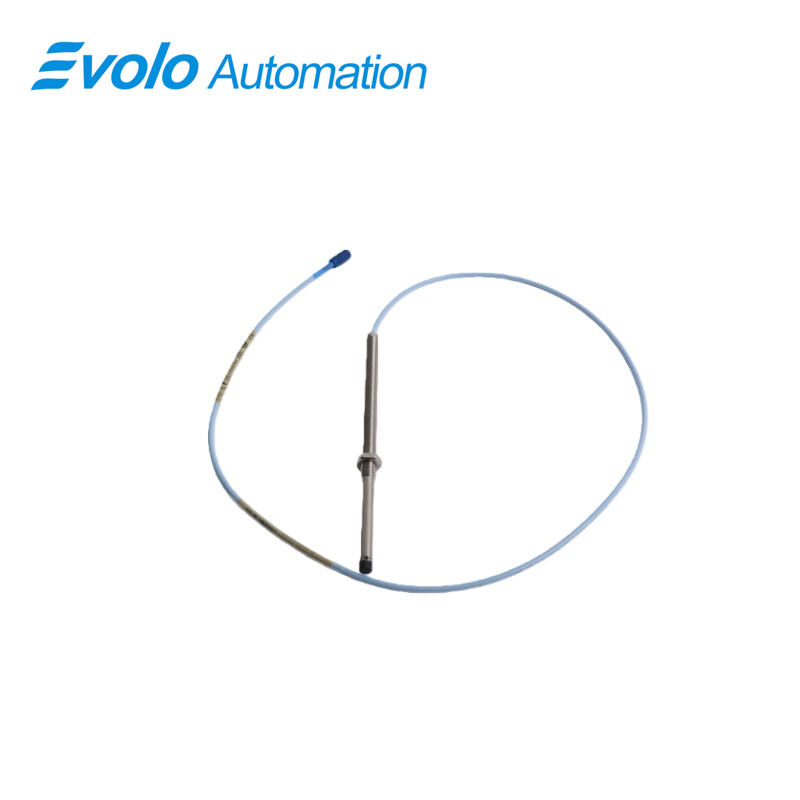

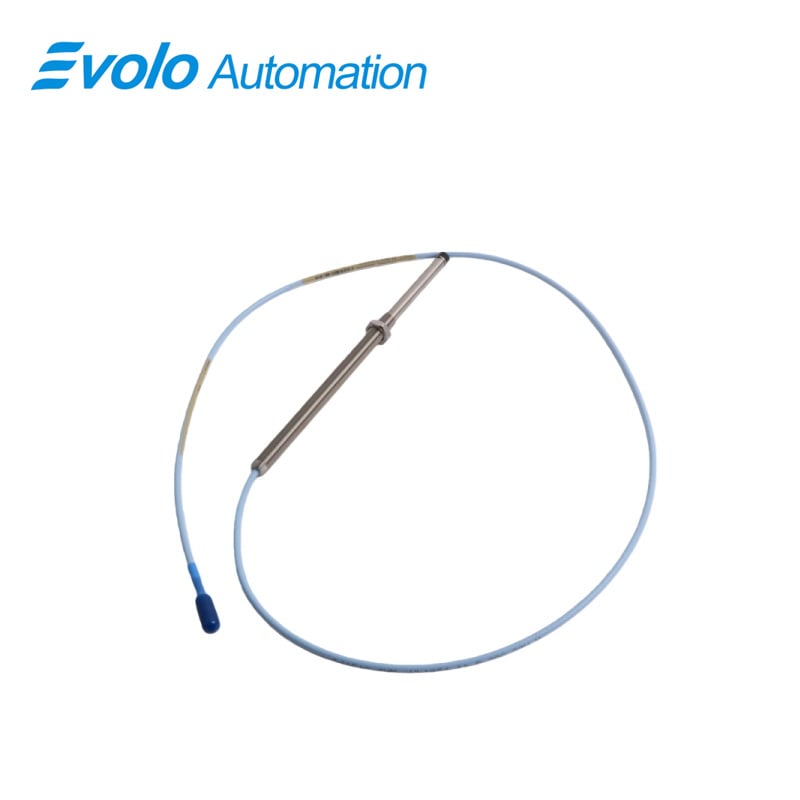

The 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes represent the pinnacle of eddy current sensing technology, specifically engineered by Bently Nevada for high-precision machinery protection. This 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes system provides a non-contacting solution for measuring static displacement and dynamic vibration by generating an output voltage directly proportional to the gap between the probe tip and the target conductive surface. Designed with a substantial 150mm overall case length and a 60mm unthreaded section, this 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes model is ideal for deep-reach installations within complex bearing housings where standard probes cannot reach.

One of the standout features of the 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes is the integration of the FluidLoc cable. This specialized cable type prevents oil, lubricants, and other industrial fluids from leaking out of the machine through the cable’s interior, maintaining environmental seal integrity. The 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes utilize a robust AISI 303/304 stainless steel housing and a Polyphenylene sulfide (PPS) tip, ensuring the 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes can withstand extreme operating temperatures ranging from -50°C to +180°C.

Applications

1.Critical Machinery Vibration Monitoring

The 330103-06-15-10-12-05 3300 XL 8 mm Proximity Probes are primarily utilized to measure radial vibration and axial position on high-speed rotating equipment. Its 2 mm linear range allows for the early detection of shaft imbalances, misalignments, and bearing wear in steam turbines, gas turbines, and centrifugal compressors.

2.Hazardous Area Condition Monitoring

Equipped with CSA, ATEX, and IECEx certifications, this probe is specifically designed for deployment in explosive or hazardous atmospheres. It is an essential component for monitoring pumps and motors on offshore oil platforms, refineries, and chemical processing plants where safety and intrinsic reliability are paramount.

3.Deep-Reach Bearing Housing Installation

With a 150mm overall case length and a 60mm unthreaded length, this model is specifically applied in scenarios where the probe must be mounted through thick machine casings or deep bearing blocks. The FluidLoc cable ensures that even when submerged in or exposed to pressurized lubricants, the signal remains clean and fluids are contained within the machine.

Specifications

Competitive Advantage

1. Robust FluidLoc Sealing Technology

Unlike standard probes that may allow oil to "wick" through the cable, the 330103-06-15-10-12-05 features FluidLoc technology. This provides an airtight and liquid-tight seal that prevents process fluids from migrating through the cable, protecting your control cabinets and reducing environmental contamination risks.

2. Global Safety and Compliance Certifications

This probe carries multiple international agency approvals (CSA, ATEX, IECEx), ensuring it meets the most stringent safety standards for hazardous locations. Its full compliance with API 670 standards ensures that it provides the level of accuracy and interchangeability required by the world's largest oil and power companies.

3. Exceptional Thermal and Chemical Resilience

The combination of AISI 304 stainless steel and a PPS tip allows the probe to operate reliably in a massive temperature window of -50°C to +180°C. It is immune to the corrosive effects of modern synthetic lubricants and harsh industrial chemicals, significantly extending its service life in high-stress environments.
