Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-TSDI-1624 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-TSDI-1624 |
|
Product Type: |
Safe Digital Input FTA Module |
|
Dimensions: |
9 × 7 × 5.8 cm |
|
Weight: |
0.12 kg |
|
Approvals: |
CE; TUV; UL; CSA; FM |
|
Input Channels: |
16 |
|
Input Voltage: |
24 VDC -15% to +30% |
|
Input Current: |
≤15 mA at 24 VDC (with redundant SDI-1624 load pair) |
|
PTC Resistance: |
260 Ω ±25% at 25°C |
|
PTC Steady Current: |
~45 mA ±35% at 24 VDC |
|
DIN Rail Type: |
TS32 / TS35 × 7.5 |
|
Used Rail Length: |
91 mm (3.58 in) |
|
Termination: |
Screw terminals (max 2.5 mm² / AWG 14; strip length 7 mm; torque 0.5 Nm) |
Description

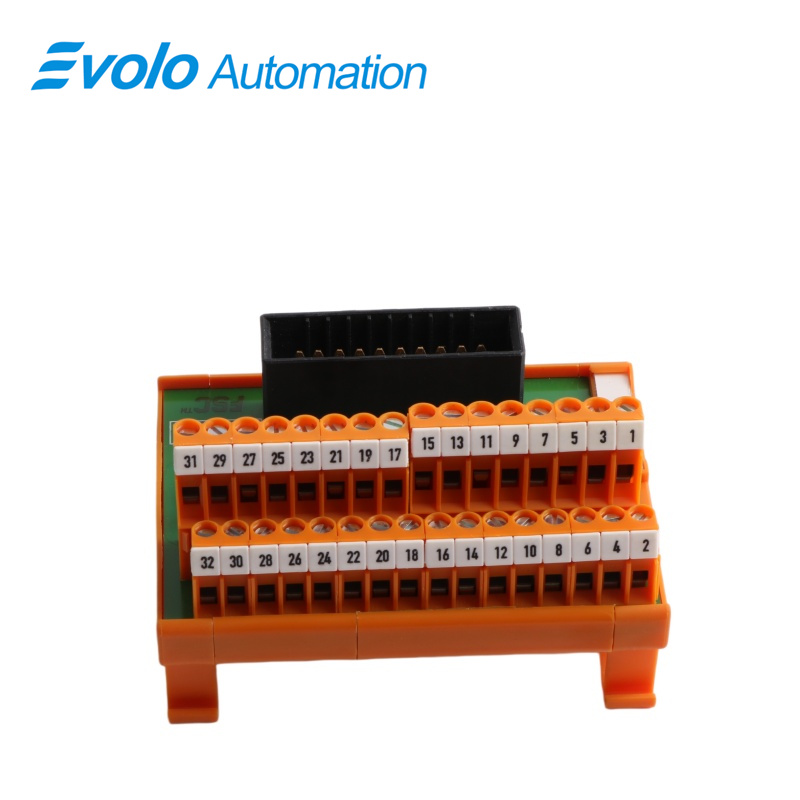

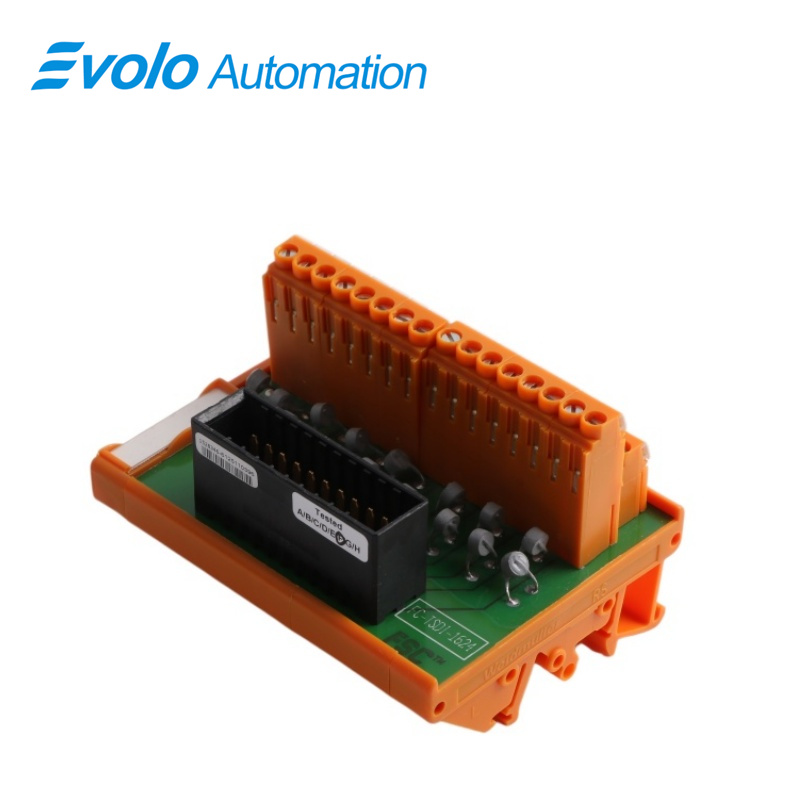

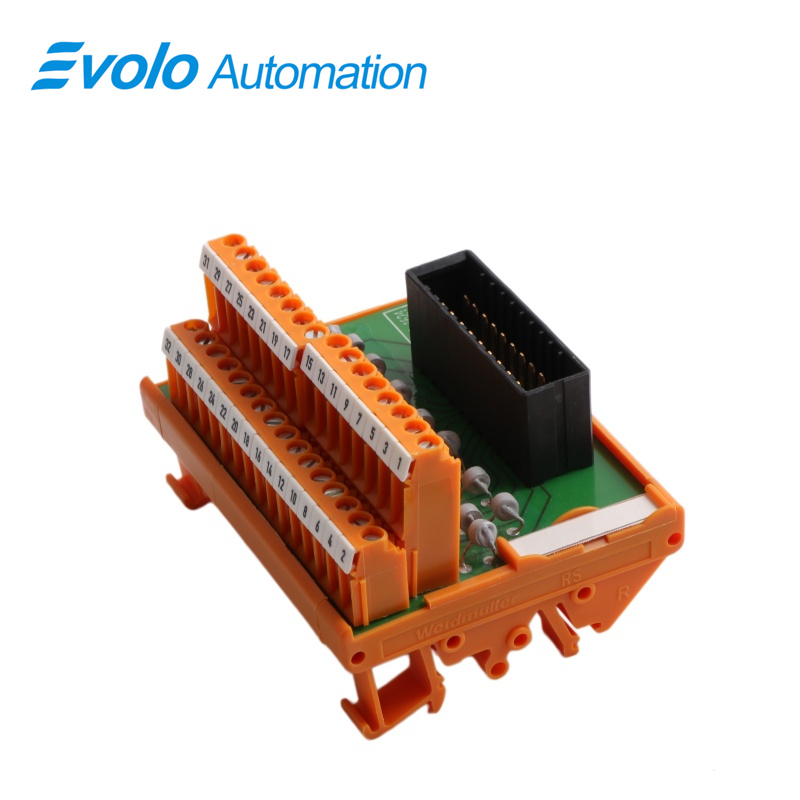

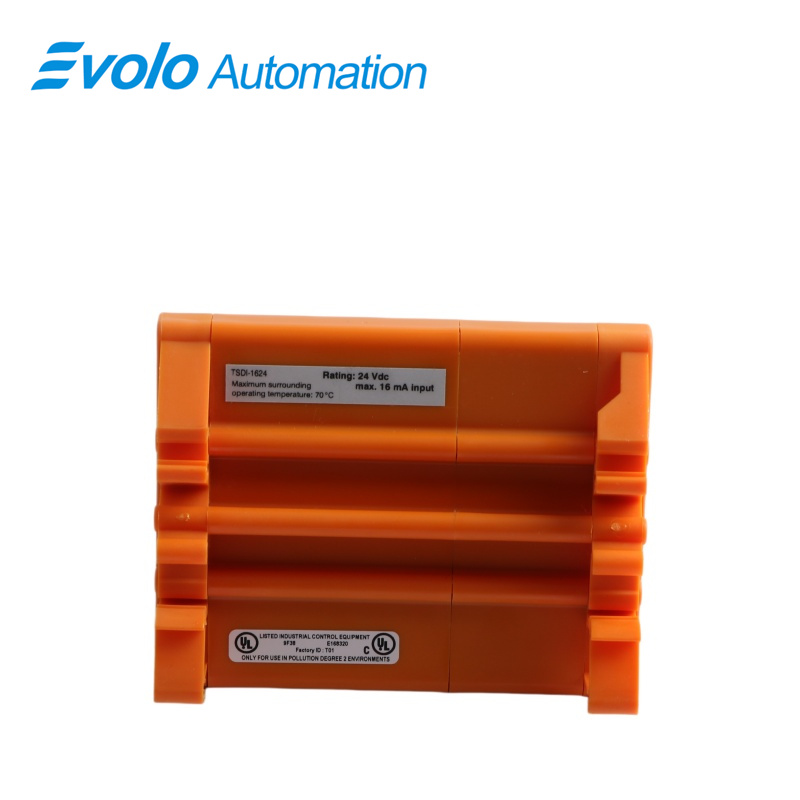

The Honeywell FC-TSDI-1624 is a Safe Digital Input FTA module. This module connects industrial field devices and control racks in the production workshop to receive and process open and close signals from various safety switches, buttons, or sensors in the field, and safely transmits these signals to the system to monitor abnormal changes throughout the production process.
Applications
Oil refinery: monitors emergency shutdown valve status and high-level switch signals to prevent flammable material leakage.
Thermal power plant: provides safe input for boiler management system (BMS), including drum level and pressure switch signals.
Large chemical plant: monitors reactor critical pressure and temperature alarm states to ensure controlled exothermic reactions.
LNG plant: used for ultra-low temperature tank and pipeline leak detection and emergency shutdown (ESD) flow isolation control.
Offshore oil production facility: safely acquires wellhead and separation system interlock signals under severe salt-spray marine conditions.
Troubleshooting
No Signal Input: First, check if the external 24V DC power supply exceeds the range of -15% to +30%. If the voltage is normal, check if the field terminals are loose, or if the PTC thermistor has overheated due to an external short circuit and triggered its protection. Power off, allow it to cool, and then reset it.
Intermittent Signal Acquisition Interruption: Check if the screw terminal tightening torque reaches 0.5 Nm. Insufficient torque can lead to poor contact due to prolonged vibration. Also, confirm that the wire stripping length is the standard 7 mm to prevent insulation from pressing into the terminals.
FAQ
Q: What is the number of input channels of the FC-TSDI-1624?
A: 16 independent field input channels.
Q: What is the input voltage range allowed for the FC-TSDI-1624?
A: 24 VDC -15% to +30%.
Q: What is the DIN rail length occupied by the FC-TSDI-1624?
A: 91 mm or 3.58 inches.
Q: What is the input current at 24 VDC for the FC-TSDI-1624?
A: Less than or equal to 15 mA current consumption.
Q: Which certifications are passed by the FC-TSDI-1624?
A: CE, TUV, UL, CSA, FM certifications.
