330101-00-72-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-72-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

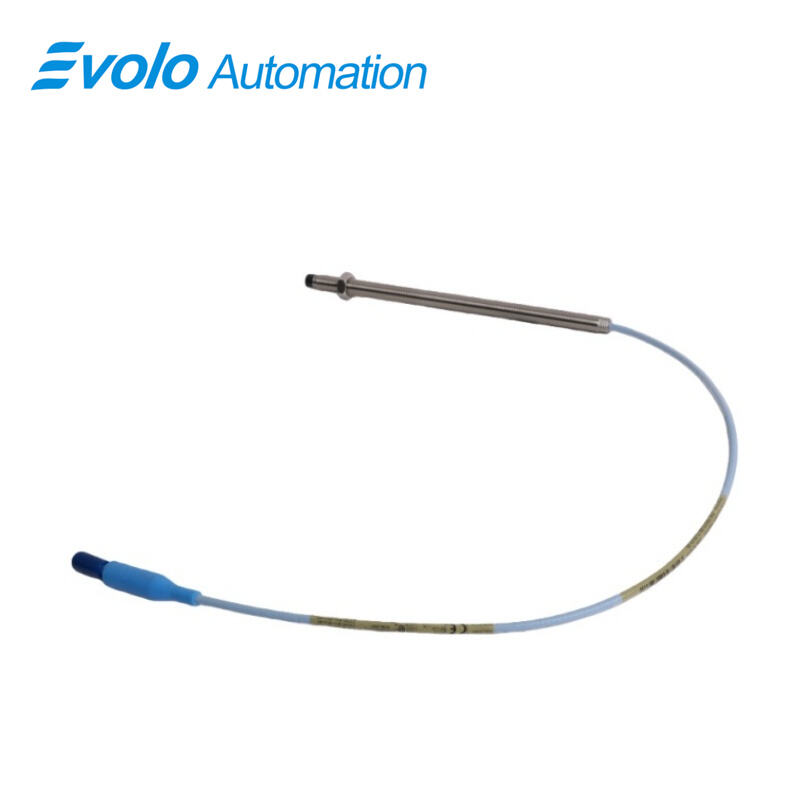

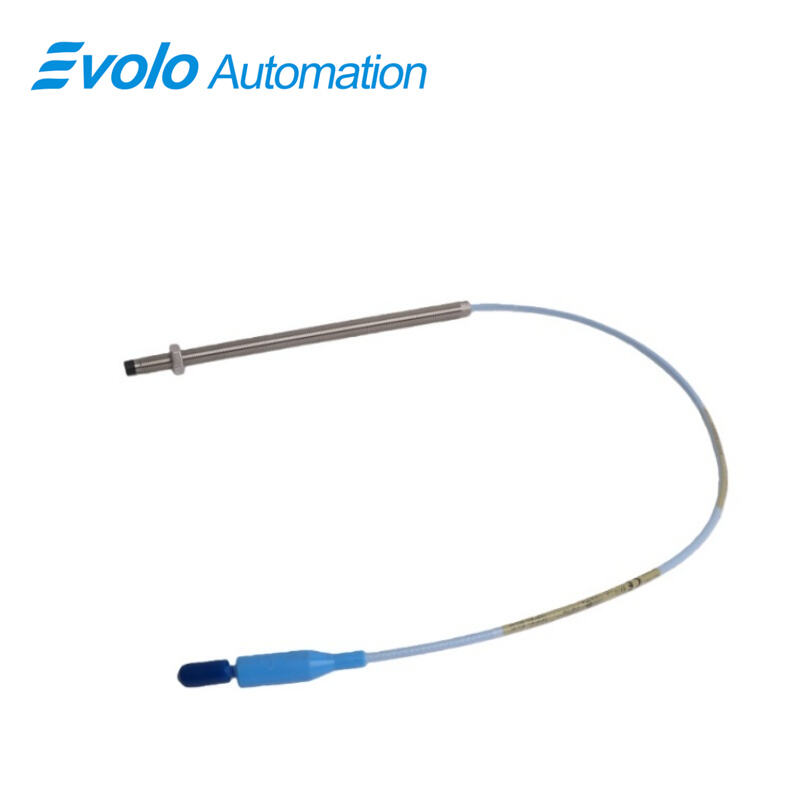

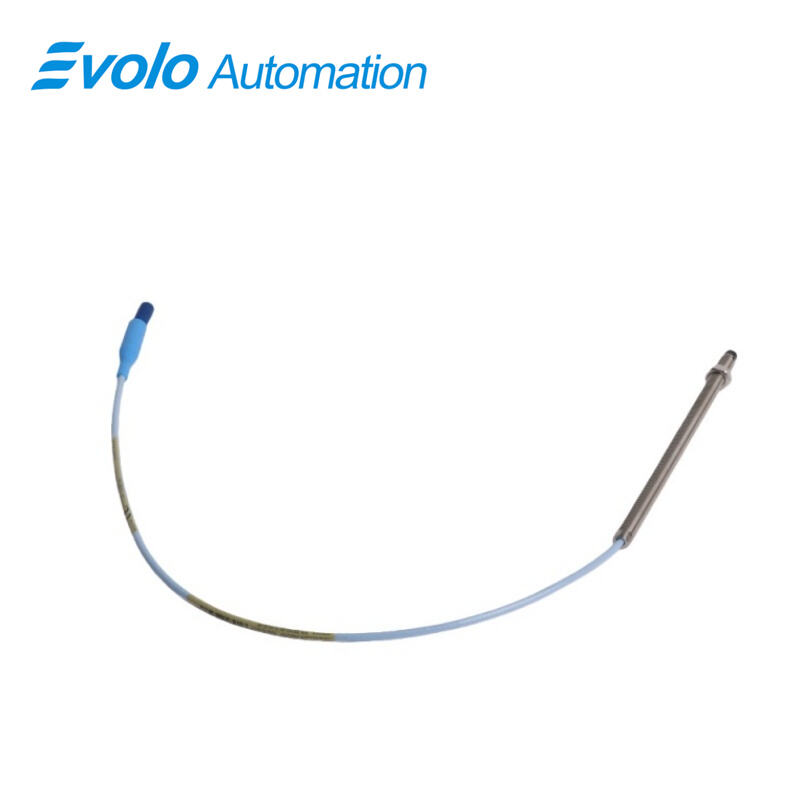

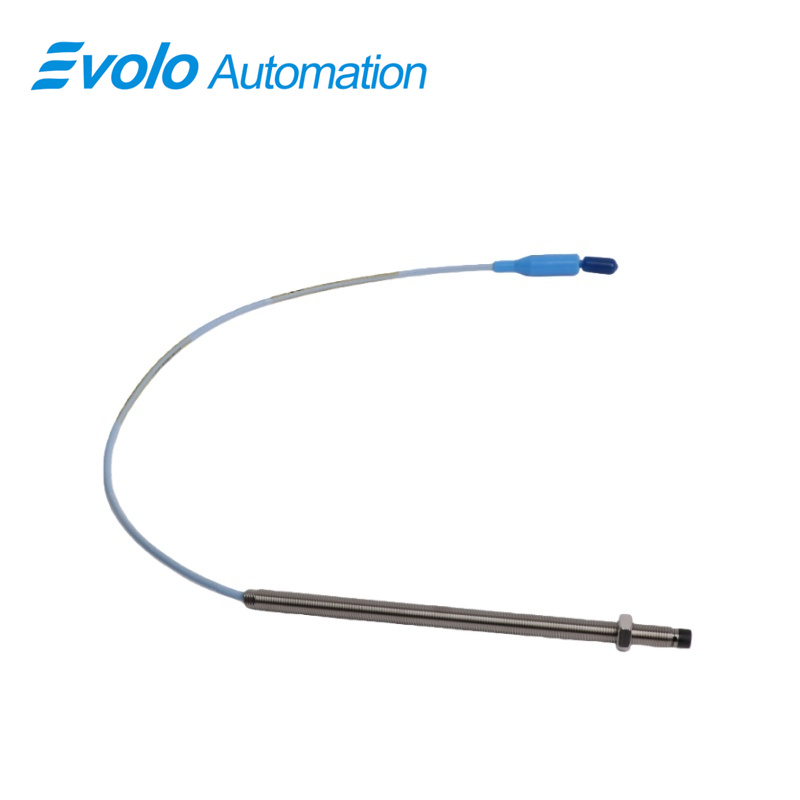

The 330101-00-72-20-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for advanced industrial automation, condition monitoring, and predictive maintenance systems. It provides an output voltage directly proportional to the distance between the probe tip and a conductive target, enabling precise measurement of both static positions and dynamic vibrations in critical machinery. The probe features a 7.2-inch overall case length with a 2.0-meter miniature coaxial ClickLoc cable, designed for secure installation and consistent performance in high-speed rotating equipment.

This probe operates reliably under extreme conditions ranging from -52°C to +177°C (-62°F to +350°F), with a 2 mm (80 mils) linear measurement range, 50 Ω output resistance, and supply sensitivity of less than 2 mV per volt, ensuring accurate readings even with input voltage fluctuations. Structural enhancements include patented TipLoc molding for a strong bond between the probe tip and body, and CableLoc design providing 330 N (75 lbf) pull strength for robust cable attachment. An optional FluidLoc cable protects against oil or fluid leakage, improving operational reliability in automated industrial applications. The 3300 XL 8 mm probe is fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, supporting easy interchangeability without the need for recalibration.

Applications

1. Turbomachinery Vibration Monitoring
Provides real-time vibration monitoring in turbines, generators, and compressors with a 2 mm linear range, enabling automated predictive maintenance and fault detection.

2. Automated Shaft Position Feedback
Delivers precise position measurement for shafts and rotors, supporting automated alignment and control in pumps and fluid-film bearing machines.

3. Keyphasor Reference Signal Generation
Generates phase reference signals for high-speed machinery, enabling automated speed calculation and vibration phase monitoring.

4. High-Temperature Industrial Monitoring
Reliable performance in extreme environments from -52°C to +177°C, suitable for automated monitoring in chemical, petrochemical, and power plant processes.

5. Rapid Maintenance and System Integration
Supports plug-and-play replacement of probes and extension cables in automated systems without bench calibration, minimizing downtime and supporting continuous operation.

Specifications

Competitive Advantage

1. High Accuracy and Linear Range
Offers a 2 mm linear range and low supply sensitivity (<2 mV/V), ensuring precise static and dynamic measurements critical for automated control systems.

2. Robust Structural Design
Patented TipLoc and CableLoc designs provide enhanced mechanical strength, with 330 N (75 lbf) pull resistance, ensuring reliability in high-vibration industrial applications.

3. Fluid Protection Option
Optional FluidLoc cable prevents oil and liquid leakage, enhancing operational safety and reliability in automated machinery.

4. Full Component Interchangeability
Compatible with all 3300 XL and standard 3300 series probes, extension cables, and Proximitor sensors, enabling easy integration and maintenance in automation systems.

5. API 670 Compliance
Conforms to API 670 standards for linearity, temperature stability, mechanical configuration, and measurement accuracy, ensuring dependable performance in high-reliability automated systems.
