Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-PDB-0824 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-PDB-0824 |
|
Product Type: |
Power Distribution Board |
|
Dimensions: |
10.7 × 9.3 × 7.3 cm |
|
Weight: |
0.18 kg |
|
Approvals: |
CE; UL, TUV, CSA (pending) |
|
Fuse Rating: |
Max 2 A T (slow acting) |
|
Fuse Dimensions: |
5 × 20 mm (0.20 × 0.79 in) |
|
Input Connector: |
2-pole header with keying (Weidmuller BVZ 7.62/02F SW; KO BV/SV7.62 keys) |
|
Field Connector: |
2-pole socket block (Weidmuller BL 5.08/2 SN OR) |
|

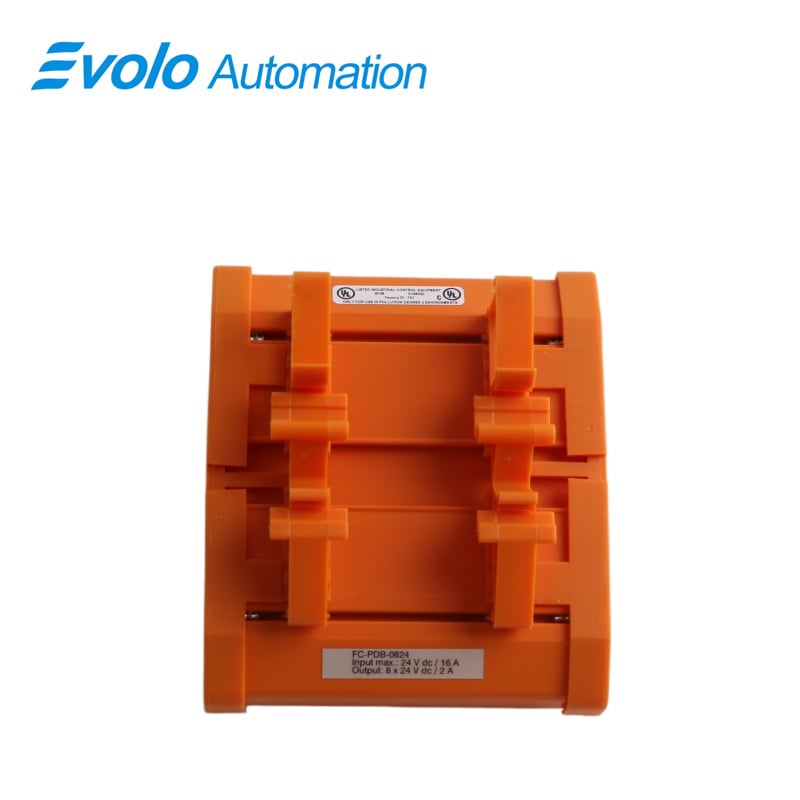

DIN Rail Type: |
TS32 / TS35 × 7.5 |
|
Used Rail Length: |
95 mm (3.74 in) |

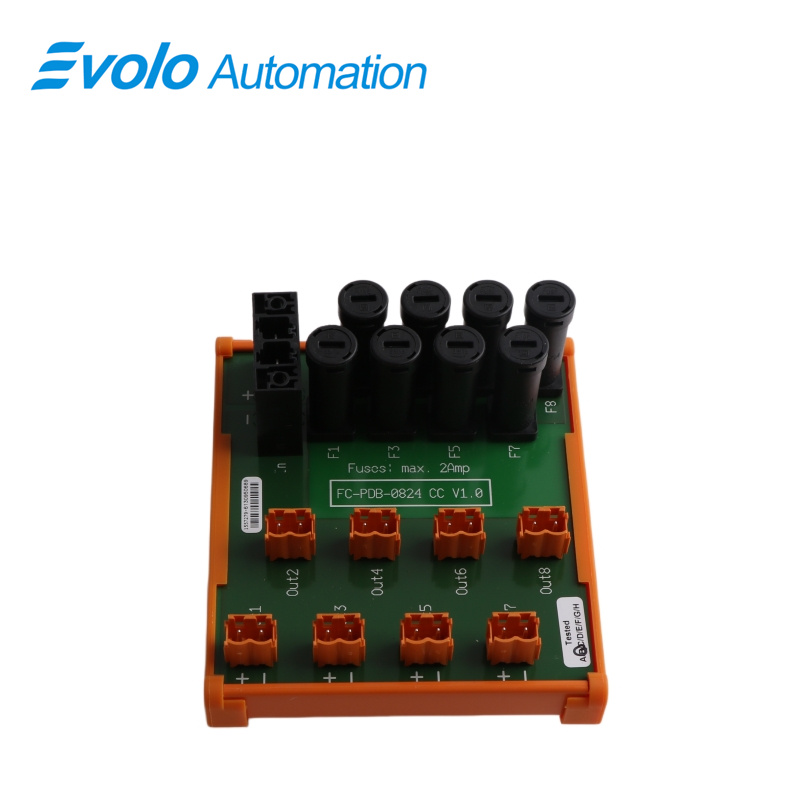

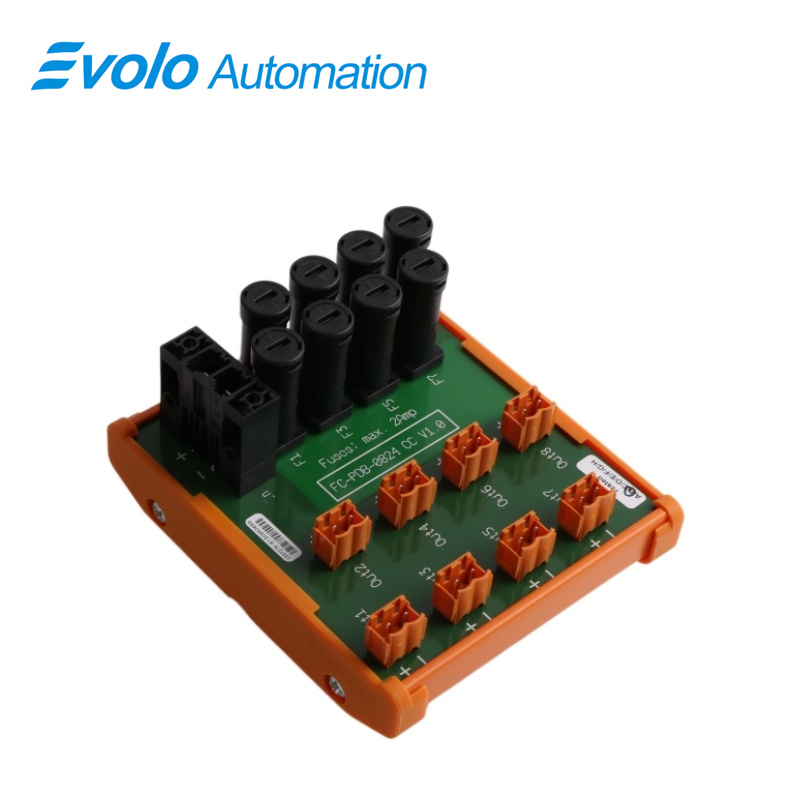

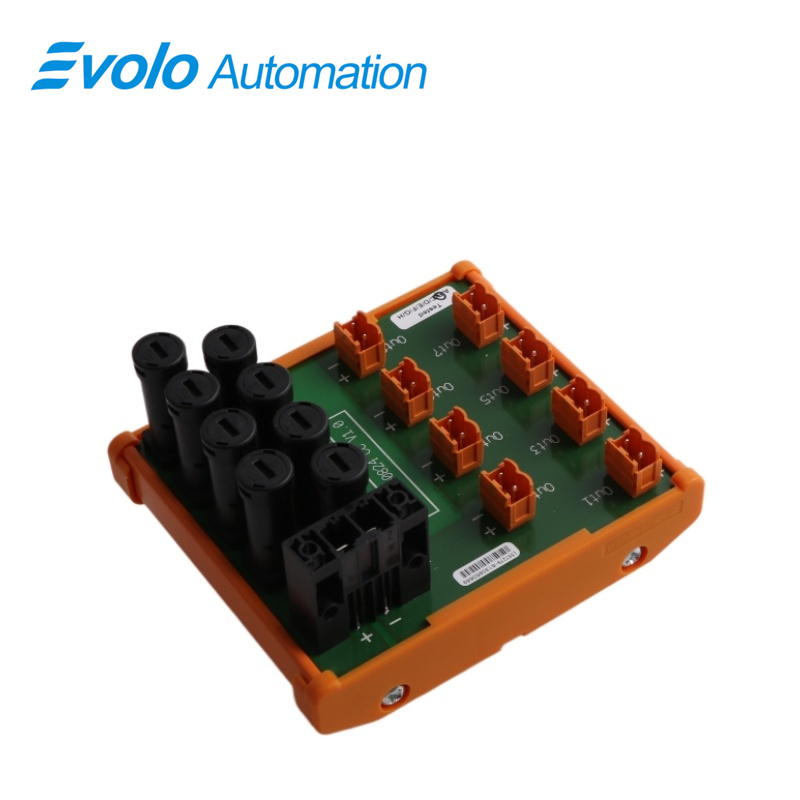

Description
The Honeywell FC-PDB-0824 is a power distribution board. Its main function is to distribute DC power from the main power supply to individual devices within the cabinet. It can distribute current to multiple machines while using its own fuses to prevent damage to other parts of a device due to excessive current in one circuit.
Applications
Large petrochemical plants: Distribute main power in control room cabinets with independent fuse protection for field instruments.
LNG export terminals: Installed in isolated control panels ensuring safe wiring of explosion-proof instruments during maintenance.
Fine chemical plants: Integrated into dense PLC reactor panels with compact rail design optimizing installation space.
Thermal power plants: Used in turbine auxiliary control loops preventing nuisance trips from surge currents in relay operations.
Offshore crude gathering platforms: Applied in hazardous control cabinets ensuring stable electrical connections in vibration and salt spray environments.
Troubleshooting
Downstream Power Loss: Inspect the specific channel fuse; if the 5x20 mm slow-acting fuse has open-circuited, verify that downstream field devices have not shorted or caused prolonged overcurrent beyond 2 A.
Input Connection Open: Ensure the Weidmuller input header is fully seated; a loose fit or misplaced KO BV/SV7.62 coding keys will prevent the 2-pole header from locking into place and completing the main power path.
Intermittent Signal Drops: Check for loose terminal screws on the Weidmuller BL 5.08 field sockets; cumulative cabinet vibrations over time can loosen the connection points.
FAQ
Q: What is the fuse size used by the FC-PDB-0824?
A: 5 × 20 mm.
Q: Which rail types are supported by the FC-PDB-0824?
A: TS32 and TS35 × 7.5.
Q: What are the fuse ratings of the FC-PDB-0824?
A: Maximum 2 A T (slow-blow).
Q: What is the DIN rail length occupied by the FC-PDB-0824?
A: 95 mm.
Q: Which certified standard is confirmed for the FC-PDB-0824?
A: CE.
