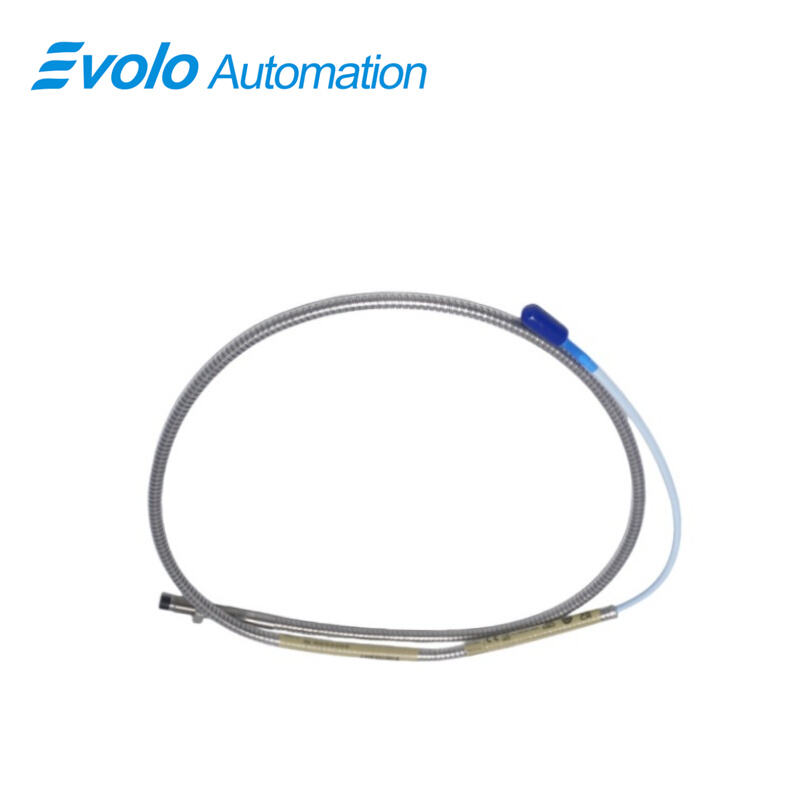

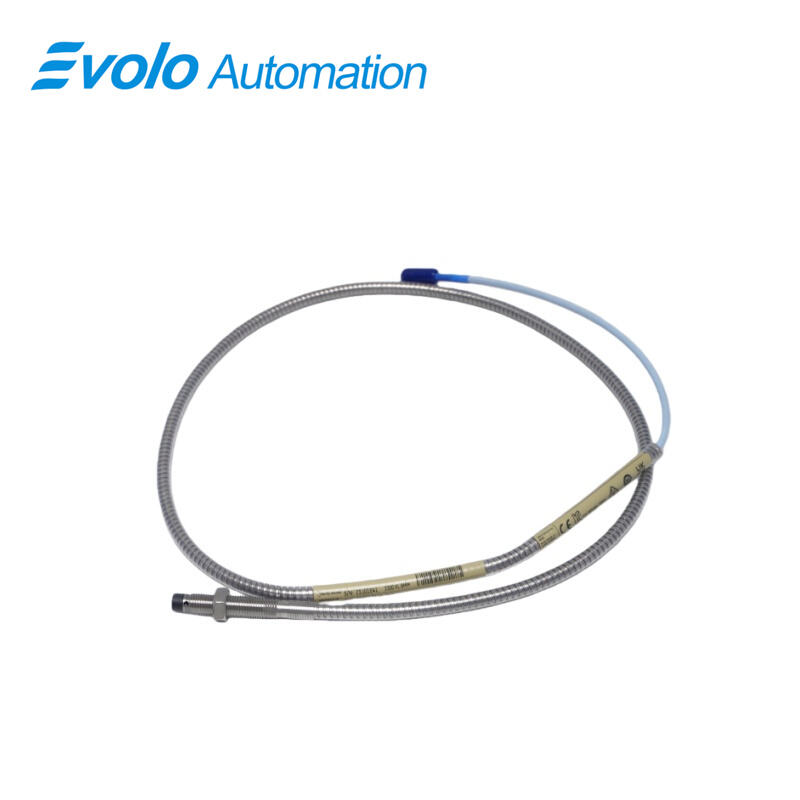

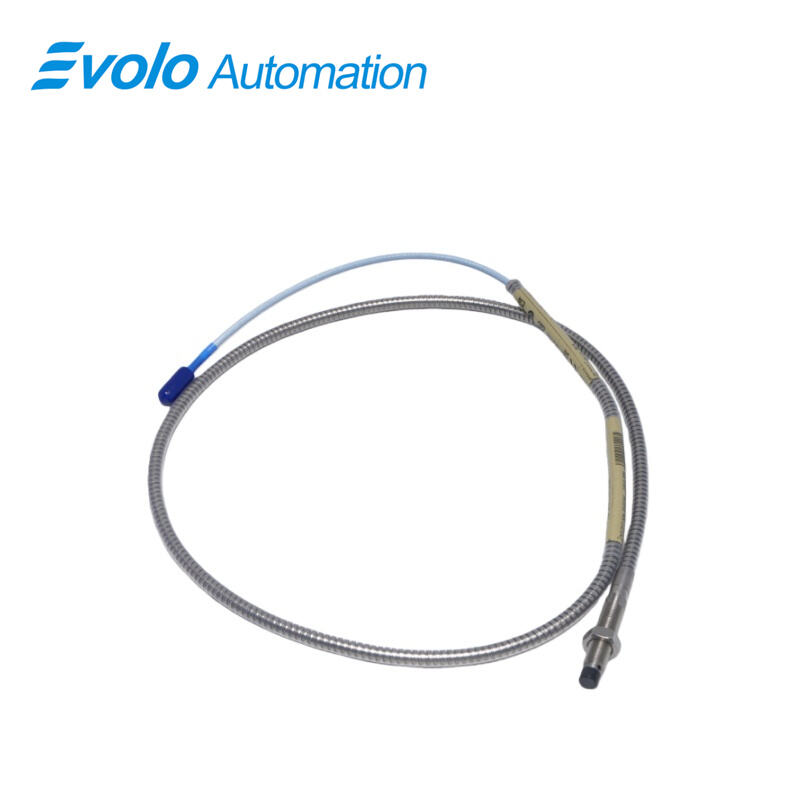

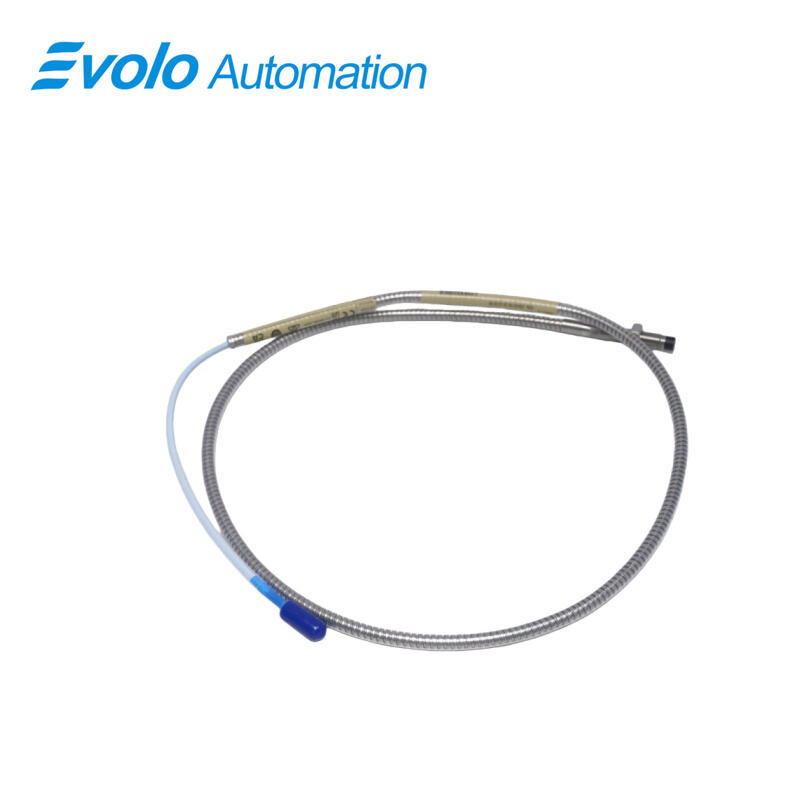

330102-00-15-10-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-15-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-15-10-01-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for automation systems, vibration monitoring, and predictive maintenance applications. This probe delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface, allowing for accurate static (position) and dynamic (vibration) measurements. Featuring a minimum unthreaded length of 0.0 inches and an overall case length of 1.5 inches, it is ideal for installations requiring compact mounting, while its total length of 1.0 meter (3.3 feet) ensures flexible integration into existing systems.

The probe comes with a Miniature coaxial ClickLoc connector with connector protector and standard cable, providing robust signal integrity in standard industrial environments. It operates reliably in a temperature range from -52°C to +177°C (-62°F to +350°F), with less than 2 mV change in output per volt input variation, and features 50 Ω output resistance. The 3/8-24 UNF threaded case and a maximum thread engagement of 0.563 inches ensure secure and repeatable installation. The probe also incorporates TipLoc and CableLoc patented designs, offering 330 N (75 lbf) pull strength to resist vibration-induced cable disconnections. Certified for CSA, ATEX, and IECEx, the probe is suitable for hazardous environments and is fully API 670 compliant for mechanical configuration, linear range, accuracy, and temperature stability. Its backward compatibility with other 3300 series probes, extension cables, and Proximitor sensors simplifies maintenance, replacement, and system upgrades.

Applications

Application 1: Compact Motor Shaft Monitoring

Measures shaft displacement and vibration in compact motors and industrial machinery, providing early warnings for misalignment or bearing wear, reducing unplanned downtime by 12–15%.

Application 2: Pump Axial and Radial Position Measurement

Monitors axial and radial movement in centrifugal and reciprocating pumps, allowing precise control of mechanical systems and preventive maintenance of fluid-film bearings.

Application 3: Compressor Keyphasor Reference

Generates Keyphasor signals for rotational speed and phase synchronization, enabling automated speed control and vibration-based protection systems.

Application 4: Gearbox Vibration Analysis

Detects shaft and gear vibration in compact gearboxes, helping identify imbalance, misalignment, and early mechanical degradation, preventing potential catastrophic failures.

Application 5: Moderate Temperature Industrial Machinery

Ideal for oil-lubricated bearings and moderate-temperature machines, providing reliable measurement with standard cabling without requiring FluidLoc options.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Environment Certified

CSA, ATEX, and IECEx approvals allow safe deployment in flammable or explosive industrial areas, increasing operational safety and compliance.

Competitive Advantage 2: Wide Operating Temperature

Maintains highly accurate output between -52°C to +177°C, ensuring stable measurements under extreme industrial conditions.

Competitive Advantage 3: Mechanical Durability

Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, reducing probe and cable failure under vibration-heavy environments.

Competitive Advantage 4: Compact Design for Limited Space

A short case length (1.5 in) and protected connector enable installation in tight machinery spaces, improving system integration flexibility.

Competitive Advantage 5: System Interchangeability

Fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, simplifying inventory management and reducing maintenance downtime.
