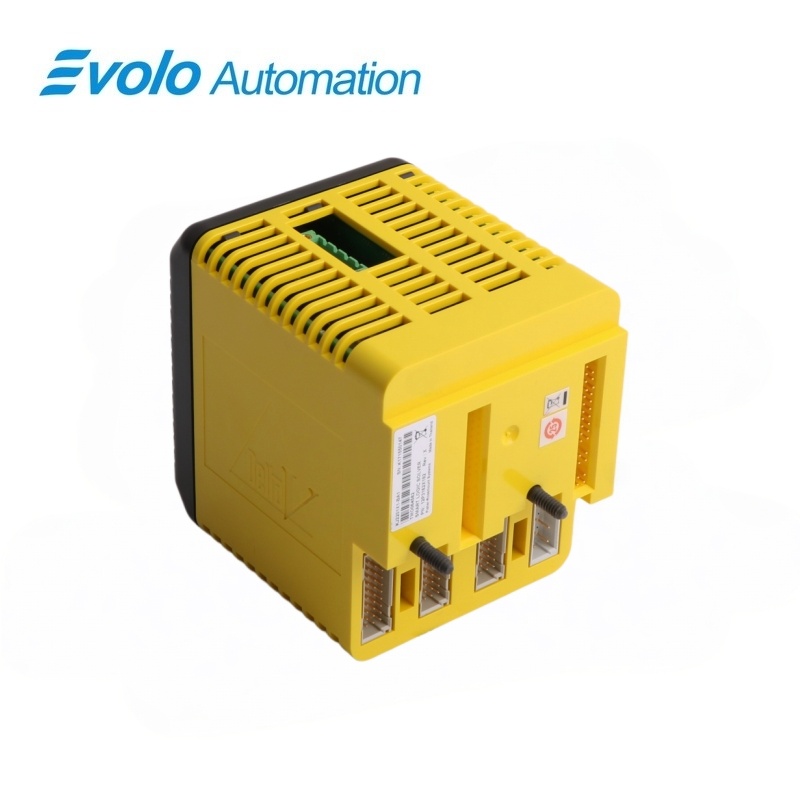

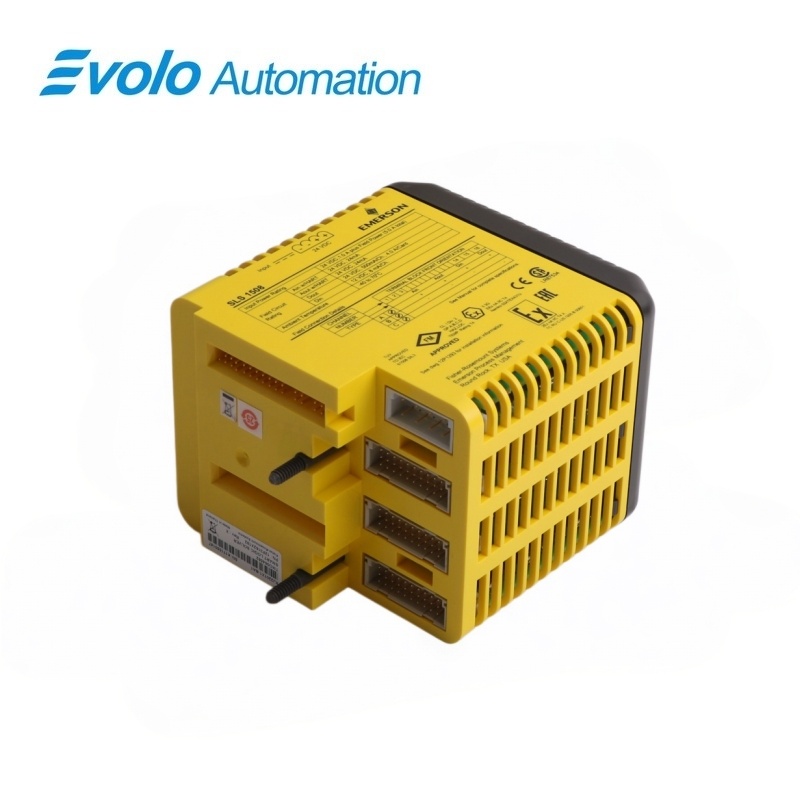

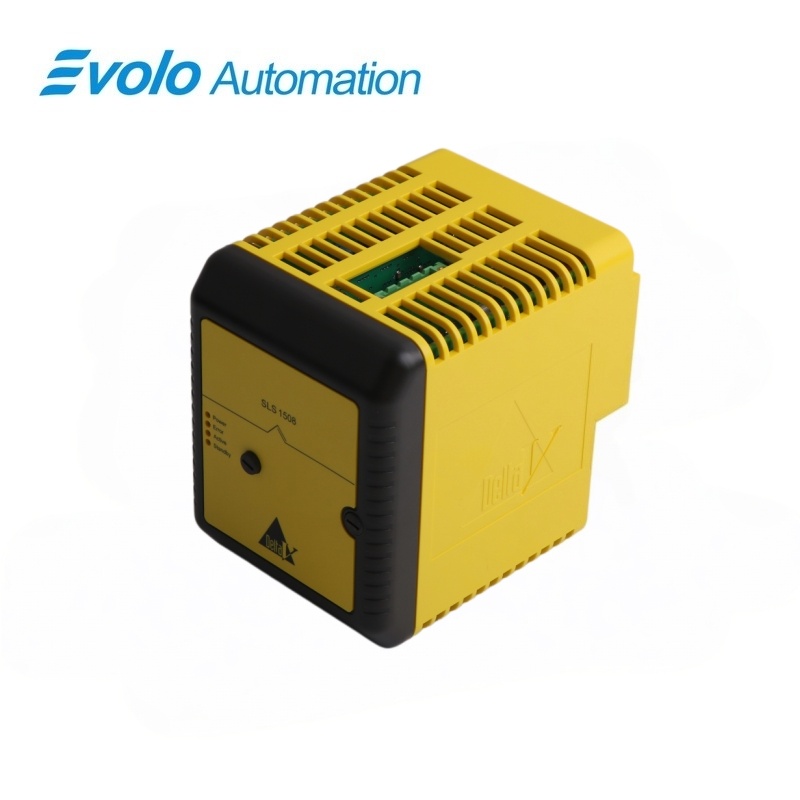

Emerson KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 SIS Logic Solver
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 SIS Logic Solver
Official-source product identification, application guidance and ordering checks for KJ2201X1-BA1 12P3162X192 SLS1508 VS3202.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 |
| Product Type | SIS Logic Solver |
| Core Function | Safety instrumented functions using configurable safety I/O. |
| Application / Compatible Series | DeltaV SIS |
Verified identification
KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 is intended for safety instrumented functions using configurable safety I/O.
Ordering control
KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 identifies a DeltaV SIS logic solver supplied for the VS3202 redundant logic-solver configuration. Redundancy uses a paired SLS assembly rather than a single standalone module.
The official SLS data sheet states that a redundant logic-solver assembly occupies four carrier slots and has a 2 A logic-solver demand at 24 VDC, plus the connected digital-output field loads. Both members of the pair must be checked as one safety-system assembly.
Key Functions
Redundant safety processing
VS3202 uses paired SLS 1508 hardware so the configured safety logic is supported by the redundant architecture.
Four-slot assembly
The redundant logic-solver arrangement occupies four carrier positions and must be installed as documented.
Pair-level diagnostics
Controller status and diagnostics must be assessed across both members rather than treating the X192 unit in isolation.
Official Specifications
| Safety I/O | 16 configurable channels |
|---|---|
| Supported modes | DI, DO, HART analog input or HART two-state output |
| Architecture | Redundant deployment for SIL 3 functions |
| Redundant safety processing | VS3202 uses paired SLS 1508 hardware so the configured safety logic is supported by the redundant architecture. |
| Four-slot assembly | The redundant logic-solver arrangement occupies four carrier positions and must be installed as documented. |
| Pair-level diagnostics | Controller status and diagnostics must be assessed across both members rather than treating the X192 unit in isolation. |
| Carrier Space | four slots |
| Logic Solver Pairing | Paired SLS 1508 |
| Logic-Solver Current Demand | 2 A |
| Logic-Solver Supply Voltage | 24 VDC |
| Safety Integrity Level | SIL 3 |
| Redundancy Mode | Redundant |
| Supported Mode 1 | DI |
| Supported Mode 2 | DO |
| Supported Mode 3 | HART analog input |
| Supported Mode 4 | HART two-state output |
| HART Support | Supported |
| Compatible Logic Solver | SLS 1508 |
| Control Strategy Scope | Assigned control modules |
| I/O Assignment Method | Defined by the DeltaV project |
Source scope: Technical statements below are limited to Emerson DeltaV SIS SLS1508 Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
How should engineers verify KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 compatibility with DeltaV SIS?
It is intended for DeltaV SIS.
How is KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 normally applied when a SIS Logic Solver is required?
Safety instrumented functions using configurable safety I/O.
How should engineers prepare the existing system for installation of KJ2201X1-BA1 12P3162X192 SLS1508 VS3202?
Confirm the specified code redundant configuration and four available slots. Match the X192 revision across the intended replacement scope.
How does KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 handle redundant safety processing?
The specified code uses paired SLS 1508 hardware so the configured safety logic is supported by the redundant architecture.
What should technicians verify about four-slot assembly when commissioning KJ2201X1-BA1 12P3162X192 SLS1508 VS3202?
The redundant logic-solver arrangement occupies four carrier positions and must be installed as documented.
Why is pair-level diagnostics important when integrating KJ2201X1-BA1 12P3162X192 SLS1508 VS3202?
Controller status and diagnostics must be assessed across both members rather than treating the X192 unit in isolation.
How should an engineer match KJ2201X1-BA1 12P3162X192 SLS1508 VS3202 before replacing an installed unit?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ2201X1-BA1 12P3162X192 SLS1508 VS3202
- Confirm VS3202 redundant configuration and four available slots.
- Match the X192 revision across the intended replacement scope.
- Verify 24 VDC capacity and connected field loads.
- Follow approved SIS bypass, proof-test and change-control procedures.
