Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
32000-28-05-08-080-03-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
80 mm |
|
Probe Penetration Option (Option D Dimension): |
80 mm |
|
Fittings: |
Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5 kg |
Description

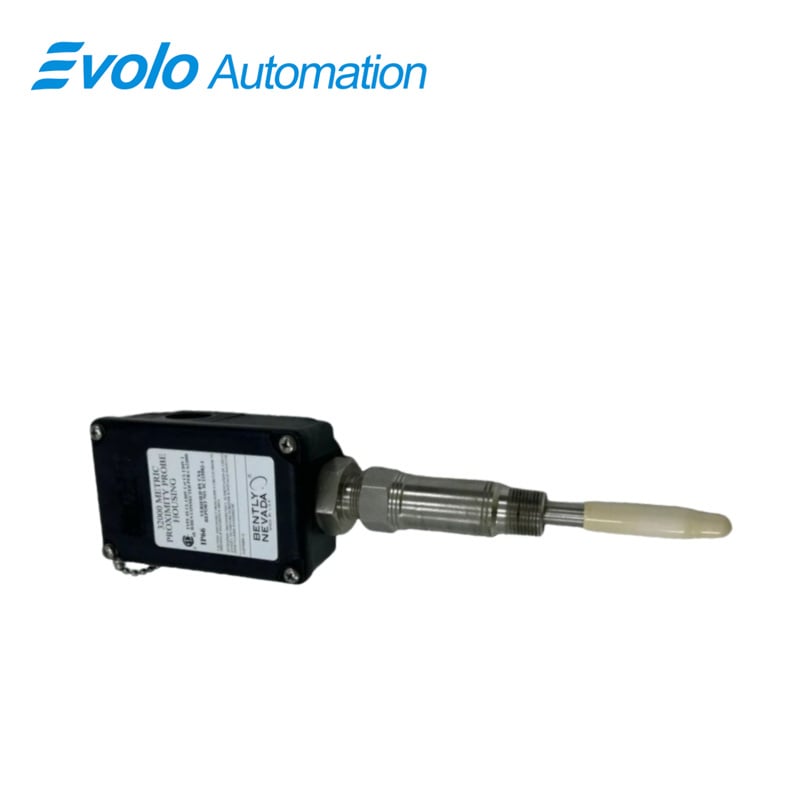

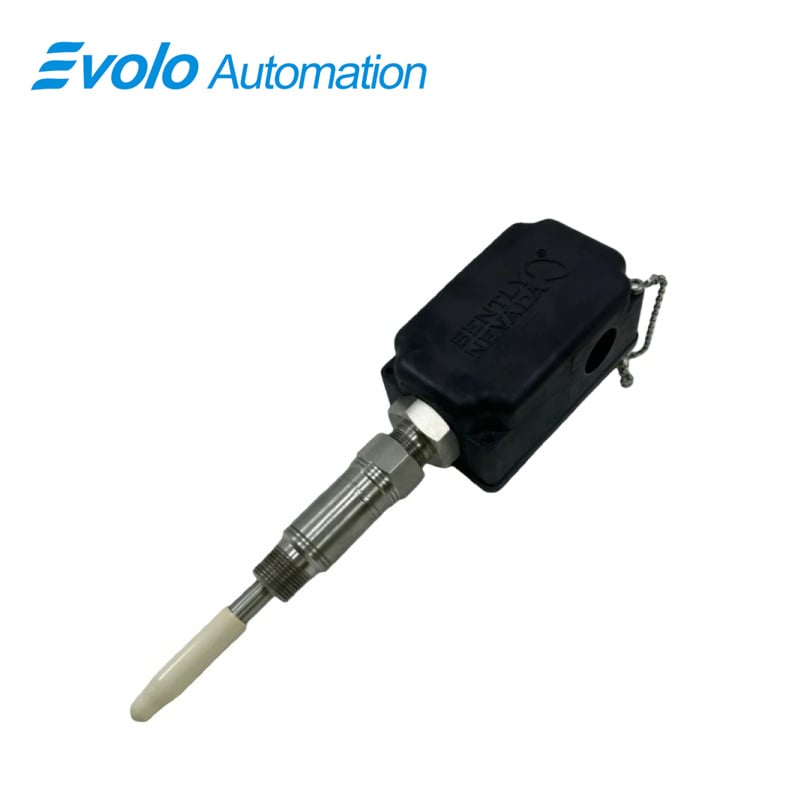

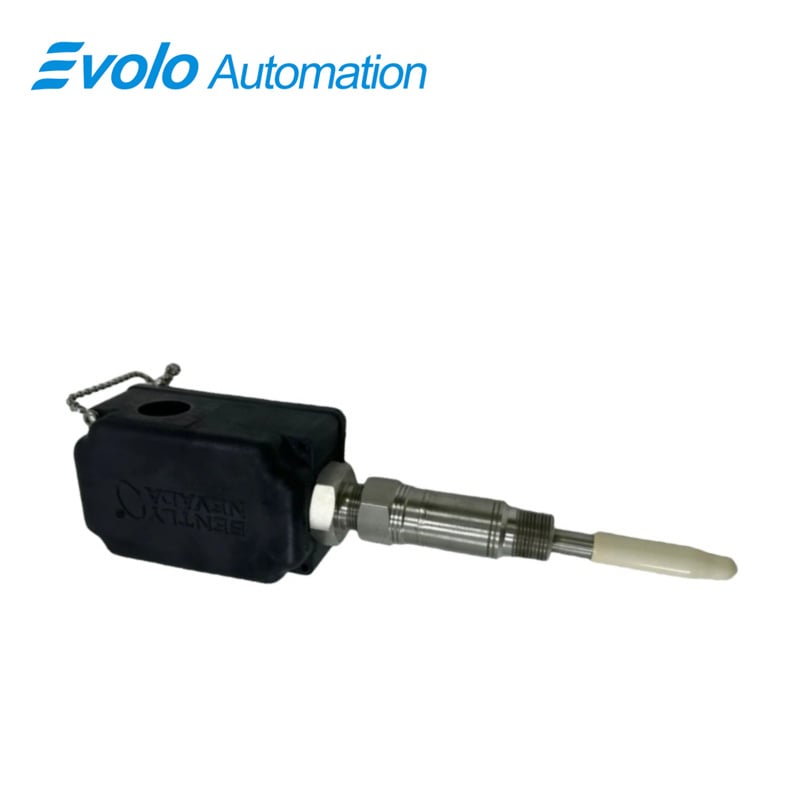

The 32000-28-05-08-080-03-02 Metric Proximity Probe Housing Assemblies are engineered for reliable use in industrial automation and rotating machinery condition monitoring systems. This Metric Proximity Probe Housing Assembly is specifically recommended for mounting proximity probes through the machine casing and is commonly applied in radially mounted transducers for vibration monitoring and Keyphasor speed or phase measurement within automated control environments.
By using the 32000 Proximity Probe Housing Assembly, automation and maintenance personnel gain external access to the proximity probe and extension cable, allowing precise probe gap adjustment or probe replacement without dismantling the machine. This design significantly reduces downtime and improves maintenance efficiency in critical automation systems such as turbines, compressors, pumps, and generators.
The 32000-28-05-08-080-03-02 Proximity Probe Housing is manufactured from high-performance polyphenylene sulfide (PPS), a robust thermoplastic known for its excellent corrosion resistance, mechanical strength, and long-term stability in harsh industrial automation conditions. Key structural components are constructed from corrosion-resistant stainless steel, ensuring durability in oil & gas, petrochemical, and power generation applications.
This Metric Proximity Probe Housing Assembly can be supplied with pre-installed 3300 XL Proximity Probes and supports multiple conduit and fitting options for seamless integration into existing automation monitoring systems. Fully compliant with API 670 standards, the 32000 Proximity Probe Housing Assembly can also be used in intrinsically safe hazardous area applications when installed with approved transducer systems and appropriate intrinsic safety barriers, meeting the stringent safety and reliability requirements of modern industrial automation.
Applications
The 32000-28-05-08-080-03-02 Metric Proximity Probe Housing Assembly is designed for industrial automation and rotating machinery monitoring systems where proximity probes must be installed through the machine casing. It is typically applied in radially mounted vibration and Keyphasor measurement configurations on turbines, compressors, pumps, and large motors. By allowing external access to a 3300 XL 8 mm proximity probe and its 0.5 m cable, this housing supports online gap adjustment and probe replacement without opening the machine, significantly reducing downtime. The Type 4X protection rating and corrosion-resistant PPS and stainless steel construction make this housing suitable for harsh environments such as oil and gas processing plants, petrochemical facilities, power generation units, and other heavy industrial automation applications. Compliance with API 670 and compatibility with intrinsically safe barriers enable its use in hazardous areas where reliable condition monitoring and machinery protection are critical.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
The 32000-28-05-08-080-03-02 Metric Proximity Probe Housing Assembly offers a strong competitive advantage through its combination of mechanical robustness, environmental protection, and automation compatibility. The glass-reinforced PPS housing provides high strength and excellent chemical resistance, while AISI 303 and 304 stainless steel components ensure long-term durability in corrosive industrial environments. Certified impact resistance at extreme temperatures and a CSA Type 4X rating enhance reliability in demanding applications. Designed specifically for 3300 XL 8 mm proximity probes, this housing fully meets API 670 requirements, ensuring seamless integration into standardized machinery protection systems. Its ability to support external probe access reduces maintenance time and lifecycle costs, making it a cost-effective and reliable solution for advanced industrial automation and condition monitoring systems.
