Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
DSQC541 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
DSQC541 |
|
Type |
PCB Backplane Controller Card |
|
Dimensions: |
25.4 x 20.8 x 1.9 cm |
|
Weight: |
0.36 kg |
|
Protection Class: |
IP20 (internal controller installation only) |
|
System Compatibility: |
ABB IRC5 series robot controllers (single/double cabinet) |
|
Operating Temperature: |
-20°C to +55°C |
|
Storage Temperature: |
-40°C to +70°C |
|
Vibration Resistance: |
5–150 Hz, 5 g |
|
Input Power: |
24 VDC (from IRC5 power module), ripple ≤100 mV |
|
Output Distribution: |
Stable 24 VDC & 5 V logic per slot, overcurrent/short-circuit protection |
|
Communication Frequency: |
125, 250, 500 kbps |
|
Physical Interface: |
5-pin DeviceNet standard connector (Phoenix) |
Description

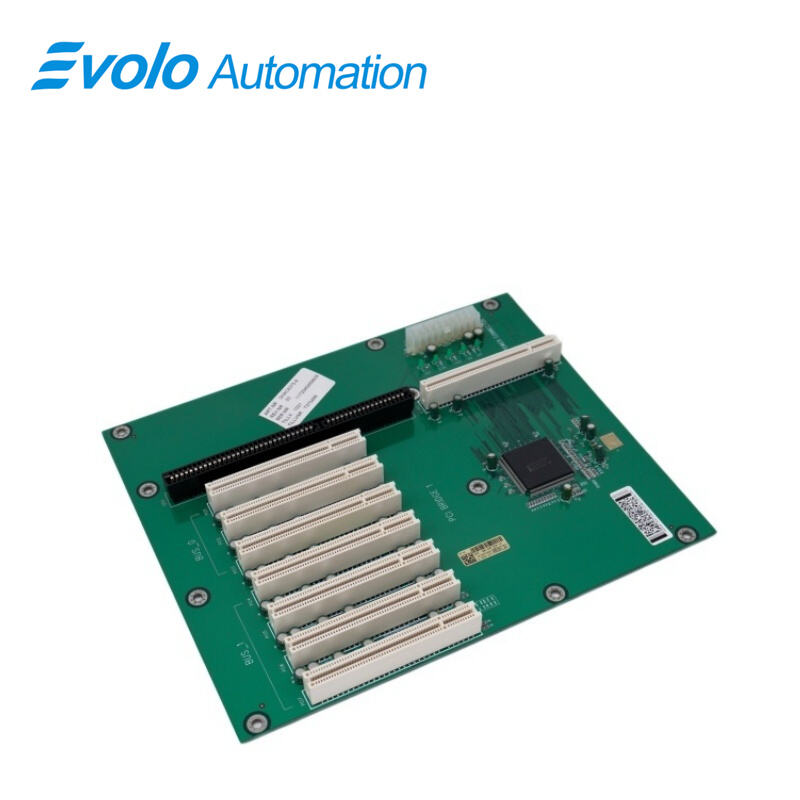

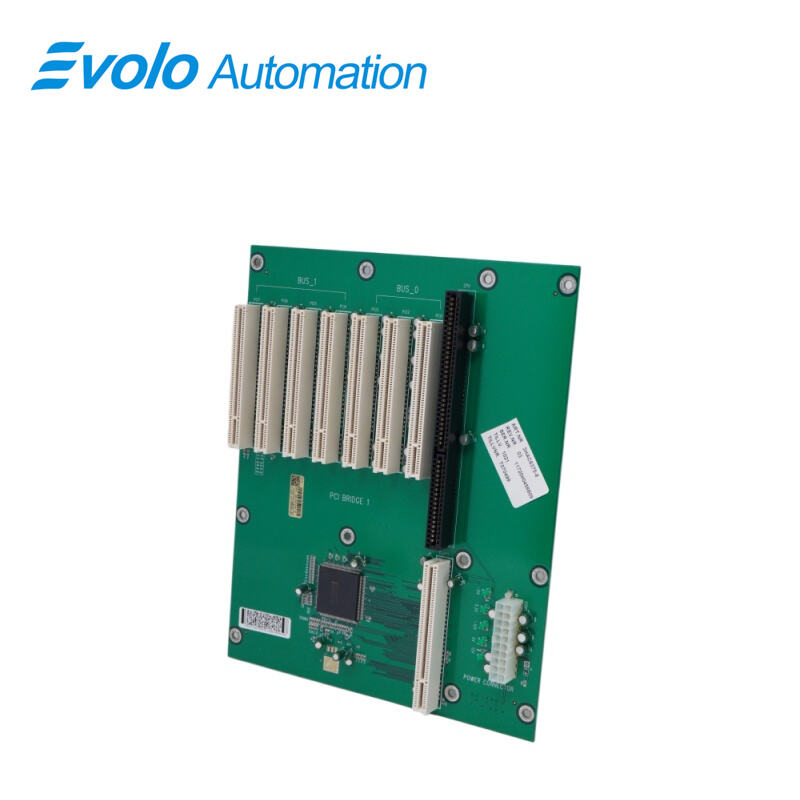

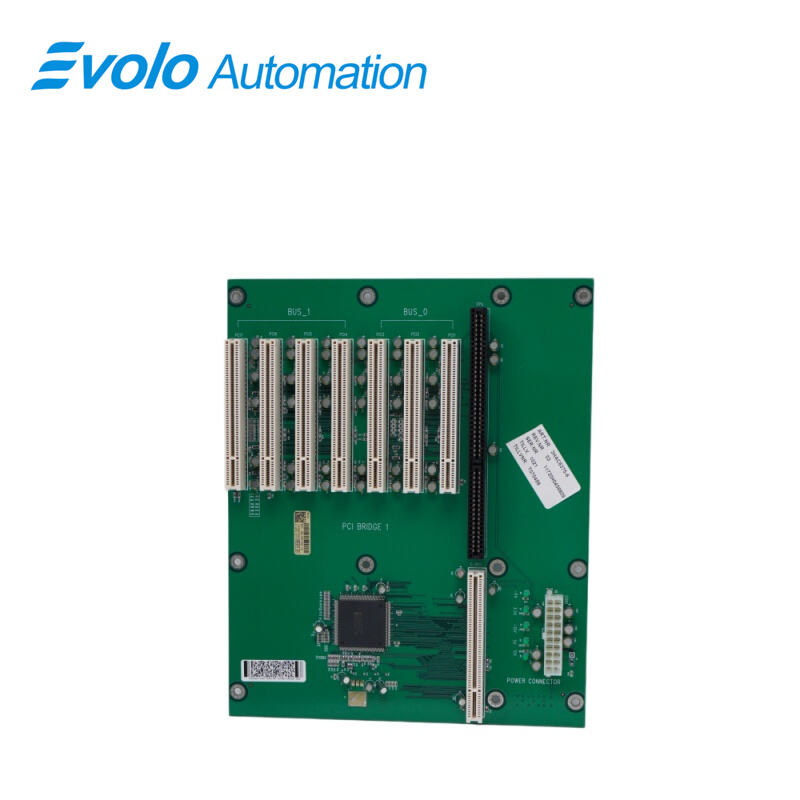

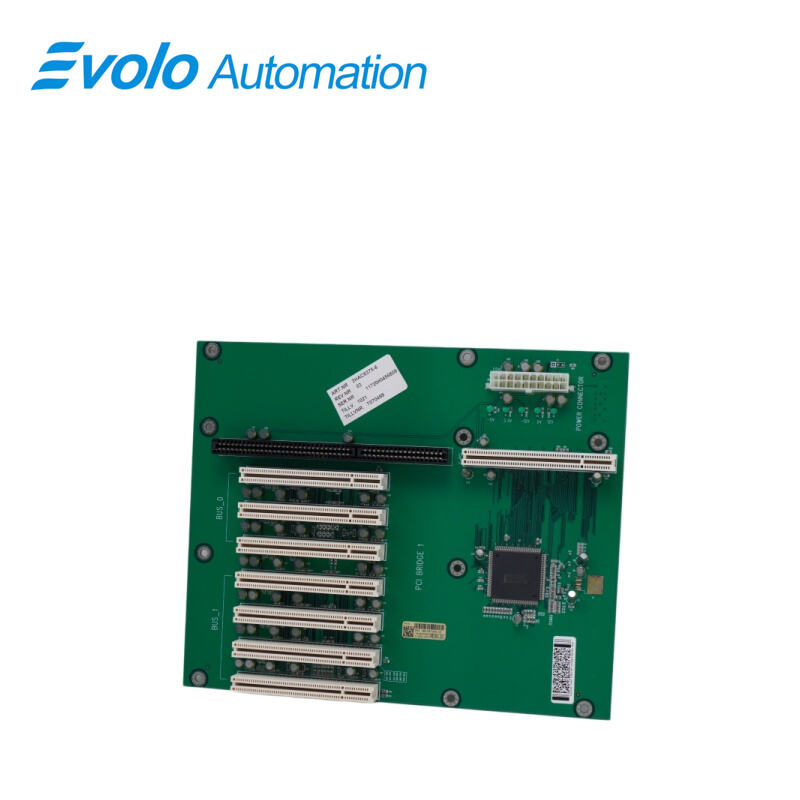

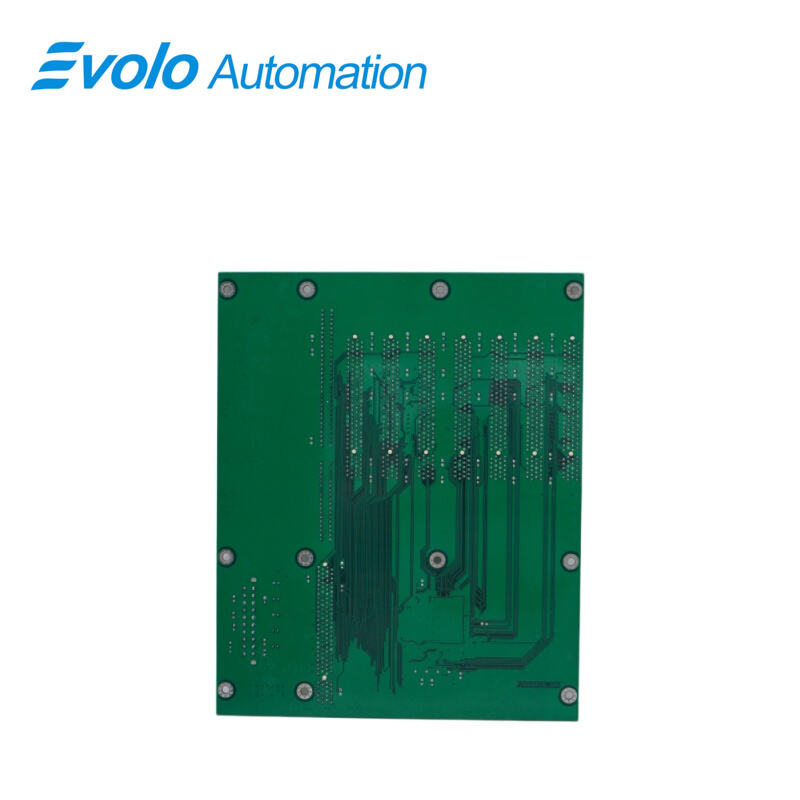

The DSQC541 is the PCB backplane controller card for the ABB IRC5 robot controller. It is used for the physical interconnection, power distribution, and high-speed signal bus transmission of core boards such as main control, axis control, and I/O. It is the "central skeleton" inside the controller.
Applications
Large automotive paint shops: Connect multiple remote I/O stations to control spray gun switching and conveyor chain synchronization.
Precision die-casting plants: Maintain stable logical interlocks between robots and surrounding machine tools in harsh electromagnetic interference environments.
Semiconductor packaging plants: Manage high-speed vacuum sensors and pneumatic components to ensure absolute synchronization of wafer pick-and-place.
Home appliance assembly plants: Enable rapid signal exchange between units in multi-robot collaborative workstations.
Heavy machinery manufacturing plants: Control long-distance distributed I/O networks to support large workspaces.
Competitive Advantage
Core Bus: Supports the IRC5 internal real-time control bus with a signal refresh cycle of <1ms, ensuring synchronization between axis control and I/O.
Slot Configuration: Integrates multiple standard card slots, compatible with IRC5 series cards such as DSQC503 (axis control), DSQC540 (main control), and DSQC532B (I/O).
Signal Isolation: Electrical isolation between card slots ≥500Vrms, resistant to industrial electromagnetic interference (EMC compliant with IEC 61000-6-2).
FAQ
Q: Will a faulty DSQC541 cause the robot to "freeze"?
A: Yes. If the DSQC541, acting as the backplane controller, fails, the IRC5 controller may lose communication with all I/O devices, and the teach pendant can display a critical system startup error.
Q: Does the DSQC541 require a separate 24V power supply?
A: Yes. Although it receives logic power from the backplane, its DeviceNet communication section still requires an external 24V supply via the 5-pin connector.
Q: Why does the teach pendant display "I/O Unit Missing" after replacing the DSQC541?
A: This is usually caused by incorrect baud rate or station configuration. The system parameters must be checked to ensure the DSQC541 is correctly set as the Internal DeviceNet master.
Q: Can the DSQC541 be repaired?
A: Most components are high-density SMD devices, making repair difficult. Replacement with a tested spare unit is generally recommended.
Q: How do I determine if the fault is a “PCB backplane” issue with the DSQC541?
A: If only partial I/O alarms occur, it may be a module issue. If all I/O and internal communication are lost, the DSQC541 or backplane is likely damaged.
