DS200FCSAG2A DS200FCSAG2ACB Current Feedback Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200FCSAG2A DS200FCSAG2ACB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

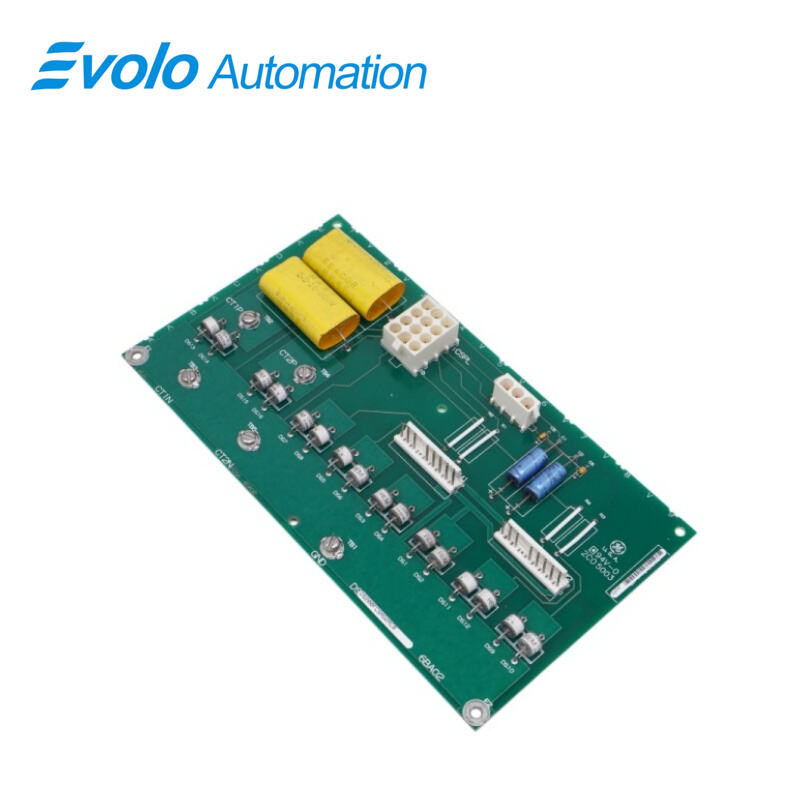

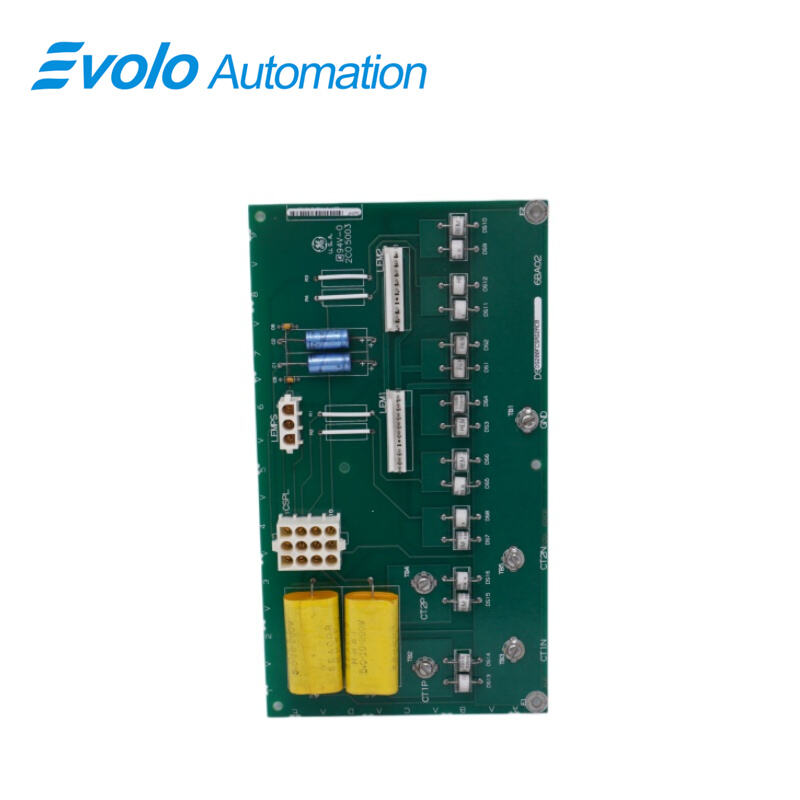

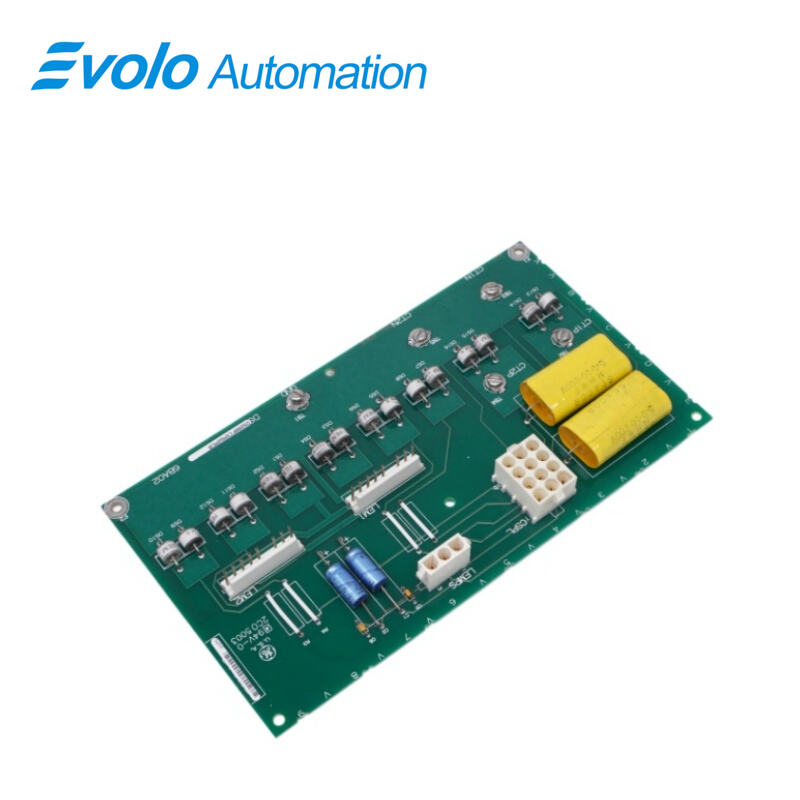

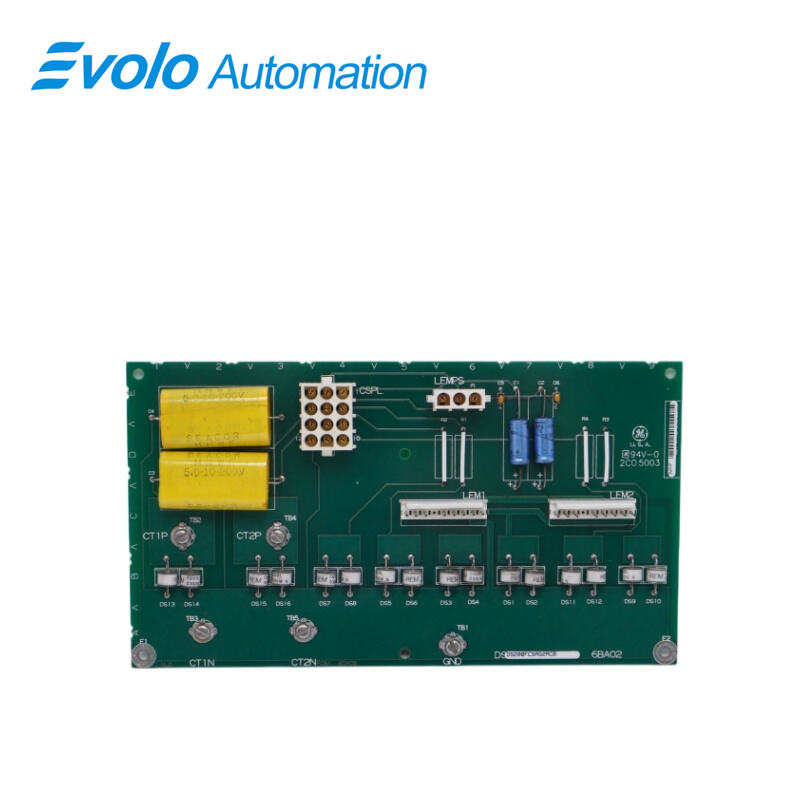

DS200FCSAG2A DS200FCSAG2ACB is a Current Feedback Board developed by General Electric. It is a part of Drive Control series. It@is specifically engineered to monitor current feedback within drive systems accurately. By continuously monitoring current levels, it ensures precise control and regulation, enhancing the efficiency and performance of system. Engineered with advanced technology and high-quality components, the it delivers exceptional precision and reliability in current feedback monitoring, Its robust construction ensures reliable operation even in demanding industrial environments, minimizing downtime and optimizing system performance.

Applications

Large gas turbine/steam power plants: Widely used in the EX2000 excitation system of GE Frame 6, 7, and 9 series units.

Iron and steel metallurgical complexes: Used for the control of rolling mills driven by large DC motors, managing precise feedback under extremely high load currents.

Oil and gas compression stations: Responsible for closed-loop control of the excitation magnetic field in high-power synchronous motor drives for long-distance pipelines.

Paper and mining machinery: Utilizing its G2-level anti-interference capability to maintain the synchronization accuracy of large drive trains in extreme dust and humidity environments.

Cabling Guidelines

1.Compliance with Regulations: Adhering to regulations set forth by organizations such as OSHA is paramount. Compliance ensures the safety of personnel and equipment during installation and operation

2. Temperature Considerations:It's essential to observe the minimum installation temperature to prevent damage to cable shielding and insulation. Extreme temperatures can compromise the integrity of these components, leading to potential malfunctions or failures

3. Avoiding Sharp Corners: Avoid pulling cables around corners with sharp edges or corners that inhibit the minimum allowable cable-pulling radius. Sharp bends can cause stress on the cables, leading to kinks, tears, or breaks in the insulation or shielding

4. Minimizing Mechanical Stress: High mechanical stress, such as excessive pulling tension, should be avoided. Cables should not be overly twisted, stretched, or flexed during installation or operation. Proper handling helps prevent damage to the cables and maintains their performance capabilities

5. Inspection of Cable Trays: Before pulling cables, a thorough inspection of all cable trays is necessary. Only pull cables into clean trays to prevent contamination or damage. Installing bushings and dropouts as needed helps maintain cable integrity and prevents strain during installation

6. Sealing Cable Ends: Cable ends should be adequately sealed before, during, and after the pulling process. Sealing prevents the ingress of water, dust, or other contaminants that could compromise cable performance or lead to corrosion over time

Functions

Current Protection: Provides overcurrent protection for equipment by monitoring current.

Performance Optimization: Adjusts control parameters based on current feedback to optimize system performance.

Fault Diagnosis: Aids in fault diagnosis by analyzing current waveforms.

Improved System Reliability: In the TMR system, multiple DS200FCSAG2A modules work together to improve the system's fault tolerance.

FREQUENTLY ASKED QUESTIONS

Q: What is DS200FCSAG2A DS200FCSAG2ACB?

A: It is a Current Feedback Board developed by General Electric.

Q: Why is it important to ground the drive common at only one point for DS200FCSAG2A DS200FCSAG2ACB?

A: Grounding the drive common at only one point helps to prevent ground loops and ensures consistency in the ground reference throughout the system. This minimizes the risk of electrical noise, interference, and potential safety hazards.

Q: What is the significance of grounding the drive common for DS200FCSAG2A DS200FCSAG2ACB?

A: Grounding the drive common provides a stable reference point for electrical signals within the drive system. It helps maintain signal integrity, prevent voltage fluctuations, and ensure proper functioning of the equipment.

Q: What should be considered if the reference is supplied by numerical control or a process instrument with a grounded common for DS200FCSAG2A DS200FCSAG2ACB?

A: If the reference is supplied by numerical control or a process instrument with a grounded common, it is important not to provide a separate ground for the drive common. Doing so could lead to ground loops and potential issues with signal integrity and system performance.
