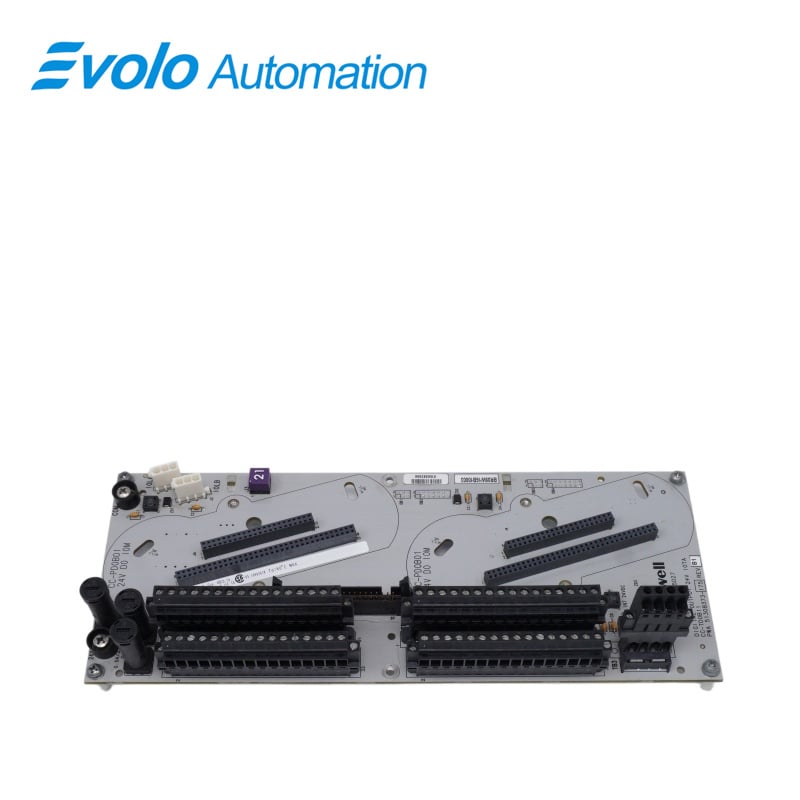

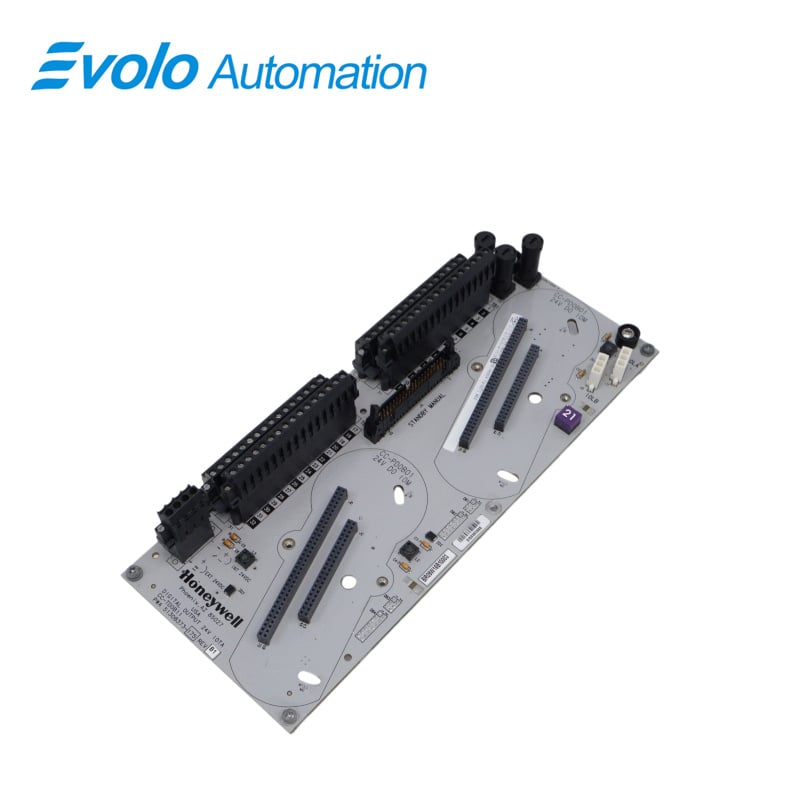

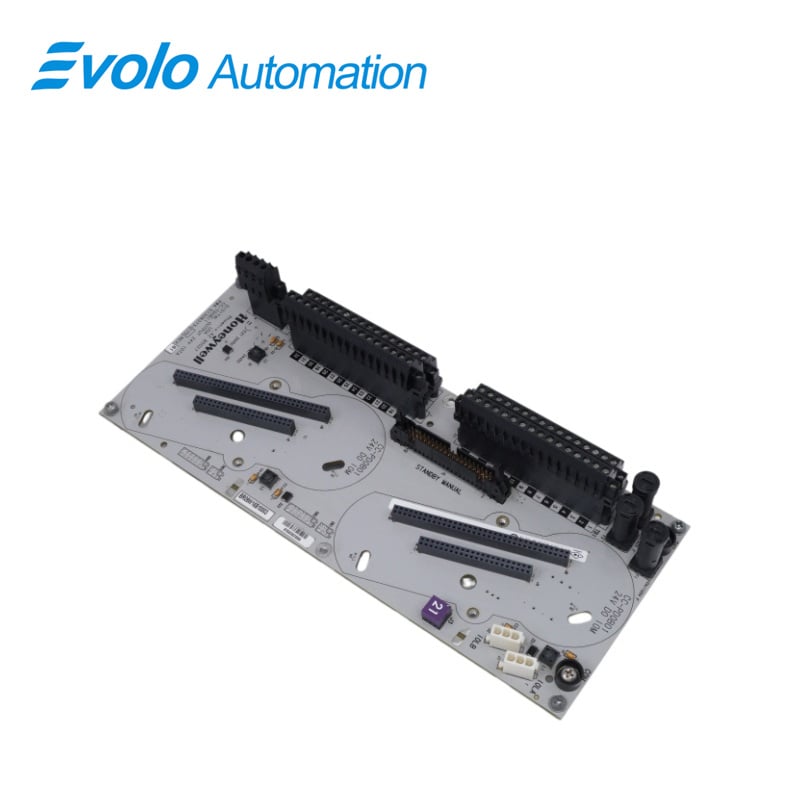

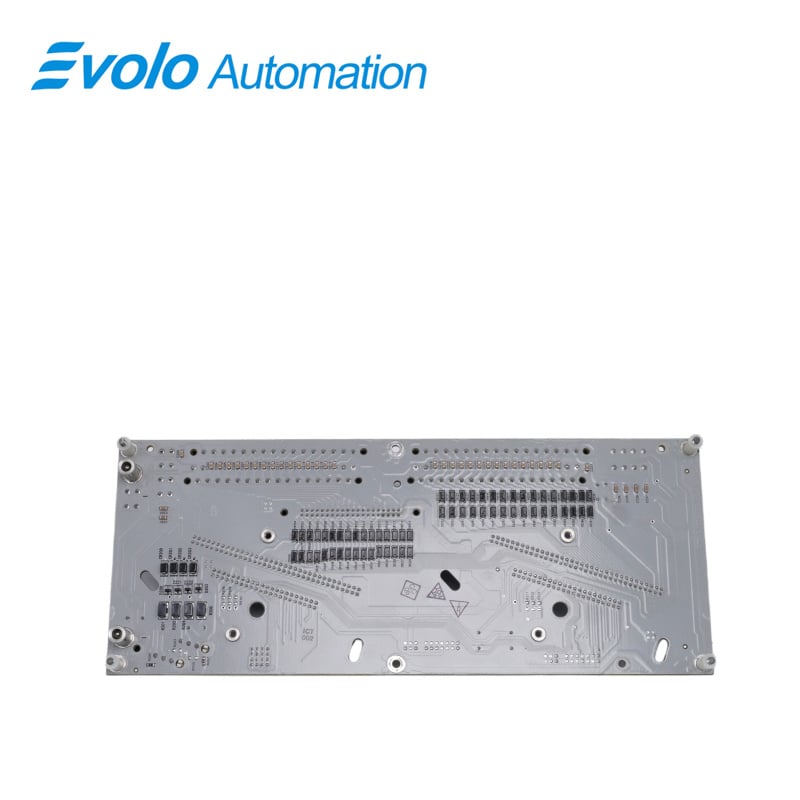

CC-TDOB11 51308373-175 Digital Output Module, China CC-TDOB11 51308373-175 Digital Output Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-TDOB11 51308373-175
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model:	CC-TDOB11 51308373-175
Product Type:	Digital Output Module
Dimensions:	29.3 × 12 × 7 cm
Weight:	0.46 kg
Redundancy:	Supported
Output Channels:	32
Output Type:	Source
Load Voltage:	15–30 VDC maximum
Load Current Capacity:	0.5 A per channel; 4 A per 8 channels; 6 A per module (no short condition)
Load Current Capacity (1 short condition):	0.5 A per channel; 3 A per 8 channels; 6 A per module
Load Current Capacity (2 short conditions):	0.5 A per channel; 1.5 A per 8 channels; 6 A per module
Galvanic Isolation:	1500 VAC RMS or ±1500 VDC
On-State Voltage:	24 V typical (at 0.5 A load current)
Off-State Voltage:	0 VDC max (3.3 VDC max under no-load condition)
Off-State Leakage Current:	5.0 µA max
Turn-On/Turn-Off Time:	10 ms max
Switchover Gap:	0 ms (redundant operation)
Output Voltage Drop:	Source voltage − 150 mV max

Description

The Honeywell CC-TDOB11 51308373-175 is a Digital Output Module. It is primarily used to transmit switching signals from the control system to external devices in the factory, such as driving solenoid valves, indicator lights, or contactors in the field. When a short circuit occurs in the external wiring, it can automatically shut down the faulty channel to protect the equipment and restore power after the fault is cleared.

Applications

Oil and gas plants: Control emergency shutdown valves and alarms with redundant switching ensuring safe interlock operation.

Thermal power plants: Control conveyors and pump valves with high channel density reducing cabinet space.

Fine chemical plants: Drive dosing solenoid valves with fast response ensuring accurate batching.

Water treatment plants: Drive relays and large valves with strong isolation preventing interference.

Steel plants: Control blast furnace interlocks with channel protection preventing fault spread.

Notable Features

Extensive internal diagnostics ensuring data integrity

Optional redundancy

Direct and reverse output support

Configurable safe-state behavior

Fuse-less short circuit protection

Latched, pulsed, or PWM output per channel

Galvanic isolation

Other infotmation

Fuse-less Short Circuit Protection:

This unique feature allows a short circuit to exist without blowing any fuses. When a particular channel is shorted, internal circuits detect this and remove power to the field connection. The channel remains de-energized until the short circuit is repaired.

FAILOPT:

Series C DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.
