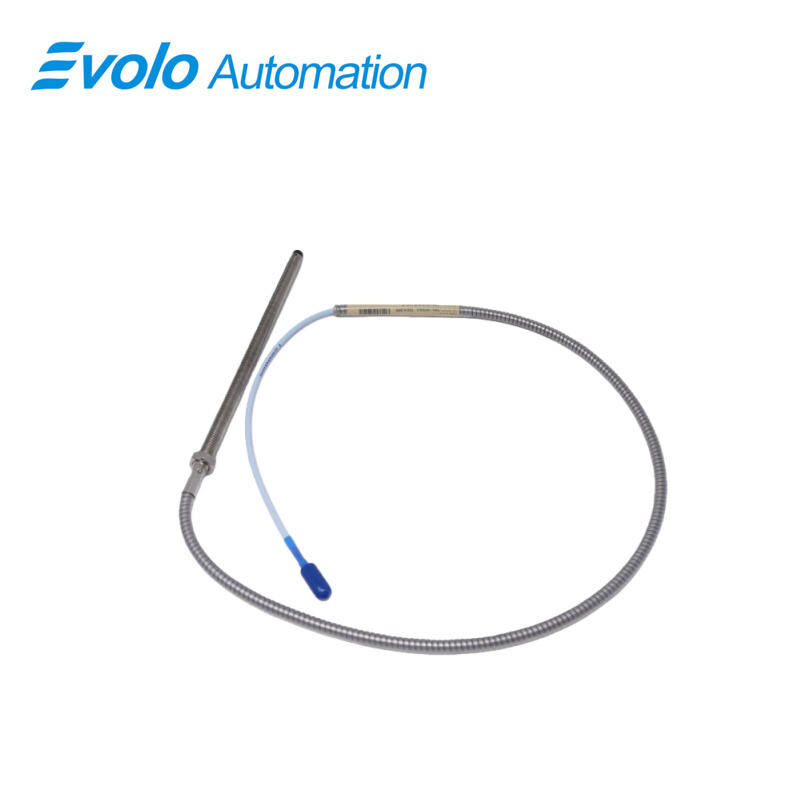

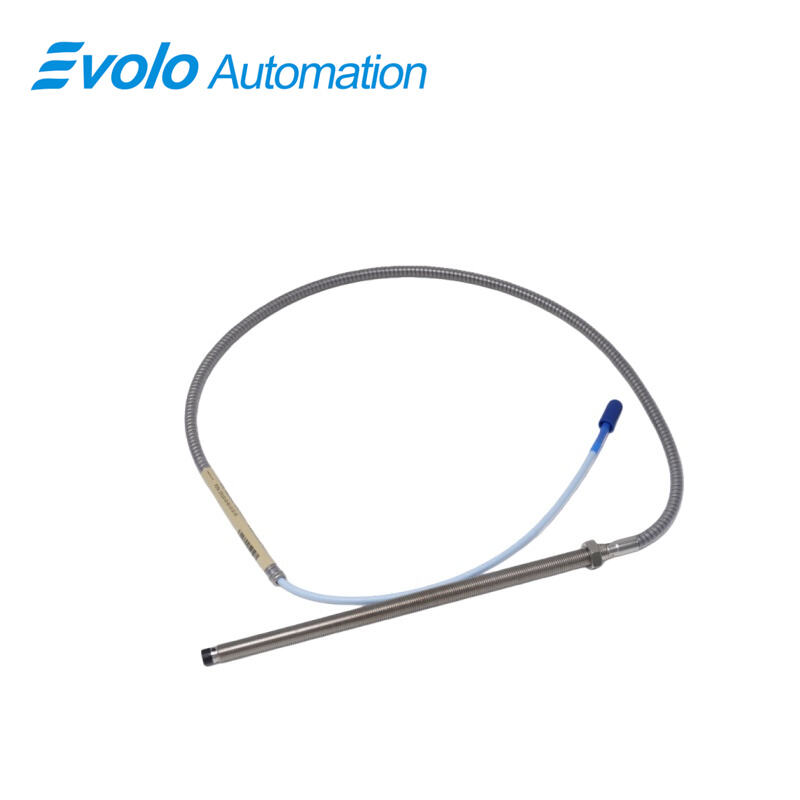

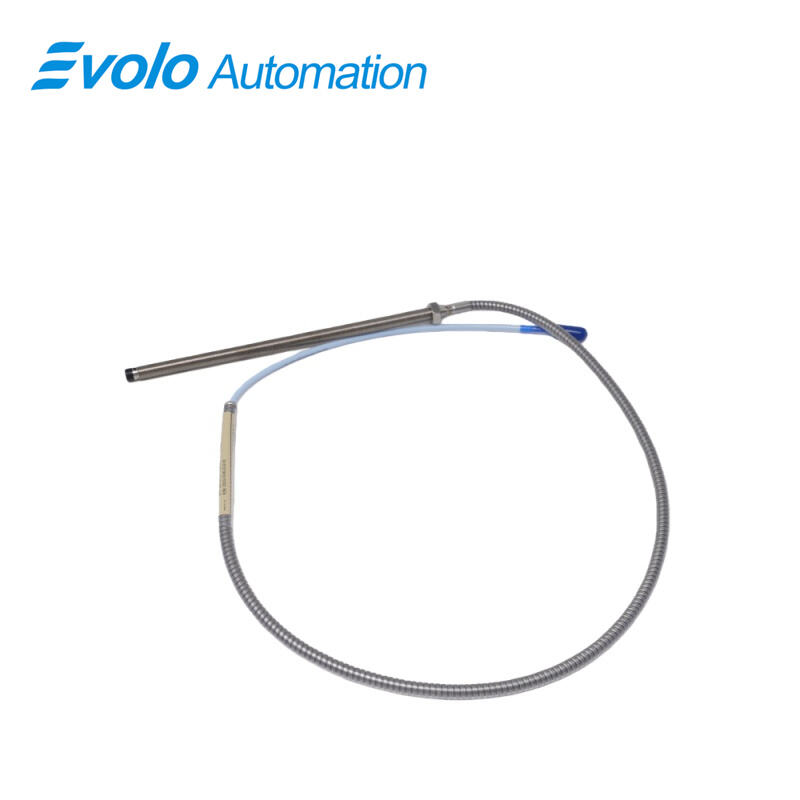

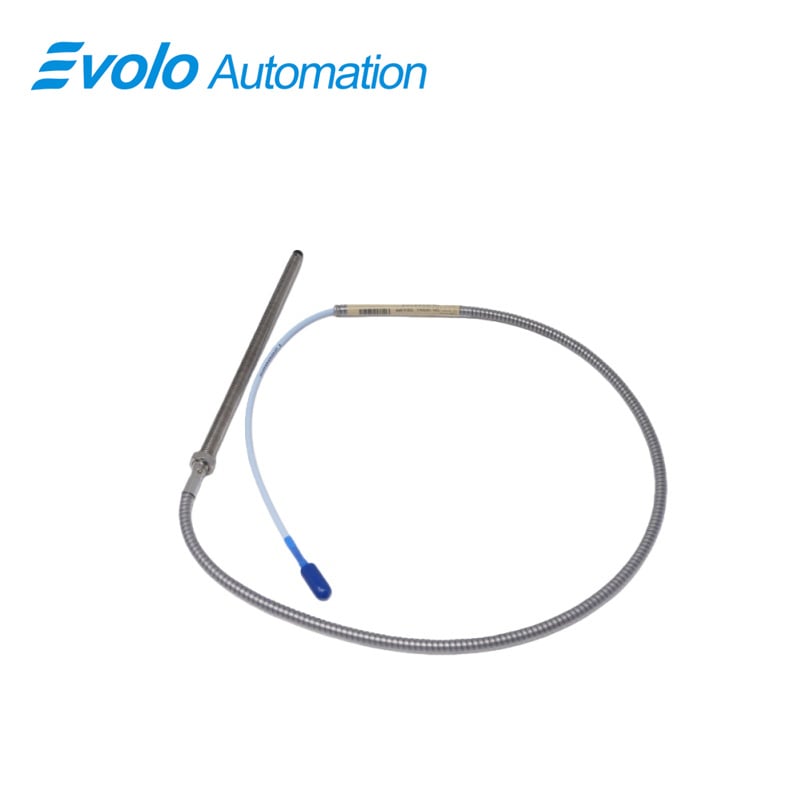

330102-00-96-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-96-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-96-10-01-00 3300 XL 8 mm Proximity Probe marks a significant leap forward in non-contacting displacement sensing, building on the trusted performance of the 3300 XL product family while introducing purposeful upgrades that elevate reliability and functionality for critical industrial use cases. What sets this 8 mm proximity probe apart from traditional models is its integration of two industry-leading patented technologies—TipLoc molding and CableLoc retention—each engineered to address common failure points in harsh working conditions, resulting in exceptional durability and consistent signal performance. The patented TipLoc molding process forges a seamless, ultra-strong bond between the probe’s polyphenylene sulfide (PPS) tip and its AISI 303/304 stainless steel body, effectively eliminating the risk of separation due to intense vibration, repeated temperature shifts, or mechanical strain—issues that often compromise standard probes in turbines, compressors, and other rotating equipment. Working in tandem, the probe’s integrated cable features the patented CableLoc design, which offers a robust 330 N (75 lbf) pull strength. This ensures the cable stays firmly attached to the probe body even in busy industrial environments or during routine maintenance, avoiding accidental disconnections that could interrupt vital monitoring processes.​

An exceptional optional feature of the 330102-00-96-10-01-00 3300 XL 8 mm Proximity Probe is the FluidLoc cable protection system—an innovative solution for applications where contact with oil, coolants, or other industrial fluids is inevitable. Unlike ordinary probes, which often allow fluids to seep through the cable-probe junction and cause sensor damage, signal distortion, or equipment contamination, the FluidLoc option creates a tight, impenetrable seal at the cable entry point. This blocks fluids from entering the probe’s interior or leaking out of the machine enclosure, making the 3300 XL 8 mm Proximity Probe an ideal choice for petrochemical refineries, power plants, and manufacturing facilities where resistance to fluids is essential for maintaining operational safety and efficiency. Beyond its protective capabilities, this probe is built for precision: it offers a 2 mm (80 mils) linear range for accurate displacement readings, along with a supply sensitivity of less than 2 mV output voltage change per volt of input voltage variation—guaranteeing steady, trustworthy data even when power supply conditions fluctuate.​

Applications

The 330102-00-96-10-01-00 3300 XL 8 mm Proximity Probe is a high-performance non-contacting displacement sensing solution, engineered to deliver precise and reliable measurements across a wide spectrum of industrial applications, leveraging its robust design and versatile core parameters. Ideal for general industry, it excels in monitoring rotating equipment such as motors, pumps, fans, and compressors—utilizing its 2 mm (80 mils) linear range and supply sensitivity of less than 2 mV/V to accurately capture shaft radial vibration, axial displacement, and runout, supporting predictive maintenance and minimizing unexpected downtime. Its 0-inch unthreaded length and 9.6-inch overall case length enable seamless fit in tight layouts, while the AISI 303/304 stainless steel housing and PPS probe tip resist mechanical wear and mild chemical exposure, paired with a miniature coaxial ClickLoc connector (with protector) for stable signal transmission in high-vibration environments and an optional 8.0-meter (26.2-foot) cable for flexible wiring across large machinery.In power generation facilities—including thermal, hydropower, and distributed energy systems—the probe thrives in monitoring steam turbines, generators, and boiler feed pumps, thanks to its ultra-wide operating temperature range of -52°C to +177°C (-62°F to +350°F) that withstands extreme heat and cold. With 50 Ω output resistance and compatibility with 3300-series proximitor sensors, it integrates seamlessly into existing control systems, while its -17.5 Vdc to -26 Vdc power requirement aligns with industrial specifications, and compact 1.4cm×124cm×3cm dimension plus 0.26kg lightweight design facilitate installation in confined spaces. For automated manufacturing in automotive, electronics, and aerospace sectors, it provides high-precision displacement detection for workpiece positioning, mold alignment, and tool setting, leveraging low signal drift and compatibility with 3300-series 5 mm/8 mm extension cables to customize sensing distances, with a robust standard cable resisting factory abrasion and ensuring consistent accuracy in high-speed production.It is also a reliable choice for heavy-duty equipment in mining and construction—deployed on crushers, conveyors, excavators, bulldozers, and cranes—where its rugged corrosion-resistant housing and wear-resistant PPS tip stand up to dust, debris, and mechanical impact.

Specifications

Competitive Advantage

1. Exceptional Temperature Tolerance for Diverse Environments​

Equipped with an ultra-wide operating temperature range of -52°C to +177°C (-62°F to +350°F), the probe outperforms standard sensors by adapting seamlessly to both frigid industrial settings and high-heat applications—from outdoor equipment in cold climates to steam turbines in power plants. Paired with a robust AISI 303/304 stainless steel case and polyphenylene sulfide (PPS) probe tip, it resists corrosion, wear, and chemical exposure, ensuring long-term reliability in harsh conditions without compromising performance.​

2. Space-Saving Flexibility for Tight Installations​

Featuring a 0-inch unthreaded length and 9.6-inch overall case length, combined with a compact dimension of 1.4cm×124cm×3cm and lightweight 0.26kg design, the probe excels in tight equipment layouts where traditional sensors struggle to fit. The optional 8.0-meter (26.2-foot) cable length (complemented by a standard 1.0-meter total length) provides flexible wiring across large machinery, while the miniature coaxial ClickLoc connector with protector ensures secure, vibration-resistant connections—eliminating disconnections in high-motion environments.​

3. Precision Measurement with Consistent Signal Stability​

The probe delivers industrial-grade accuracy with a 2 mm (80 mils) linear range and supply sensitivity of less than 2 mV/V, ensuring minimal signal drift even amid input voltage fluctuations. Its 50 Ω standard output resistance enables seamless integration with 3300-series proximitor sensors, guaranteeing low-loss signal transmission and precise capture of shaft vibration, displacement, and runout. This level of stability makes it ideal for predictive maintenance and precision positioning tasks where data integrity is critical.
