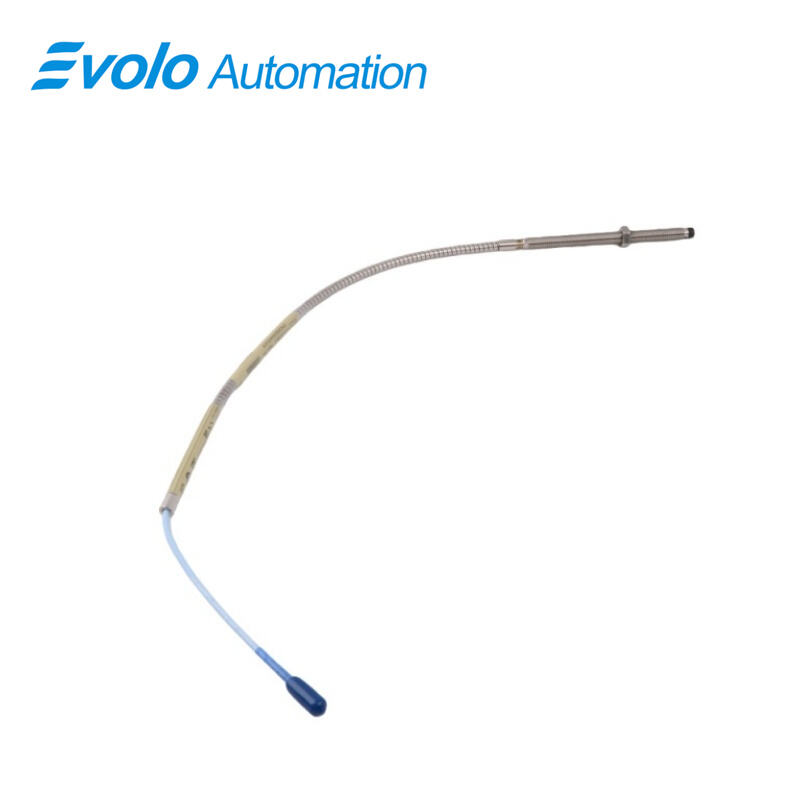

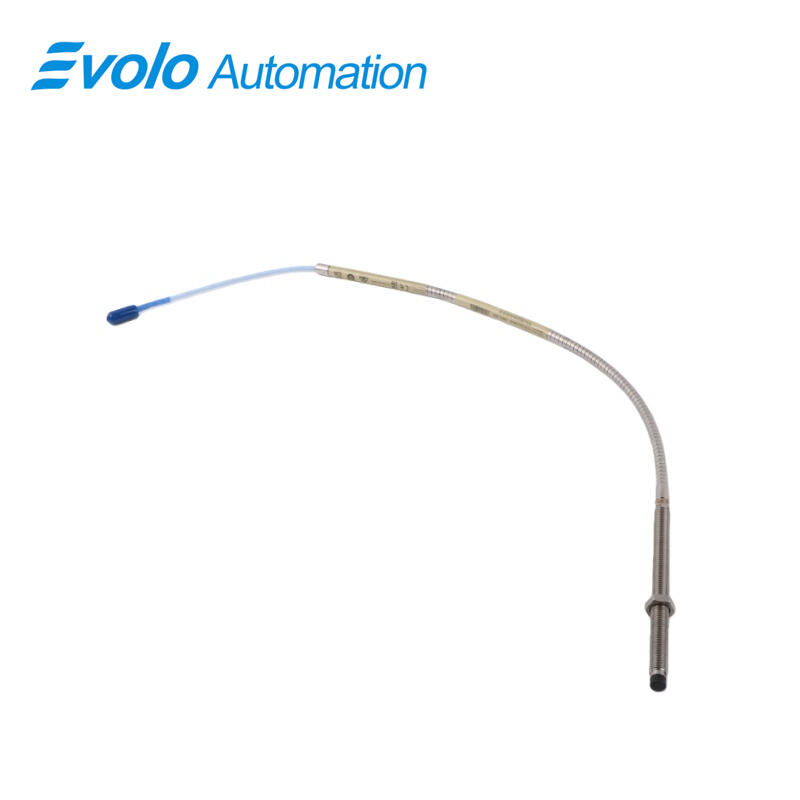

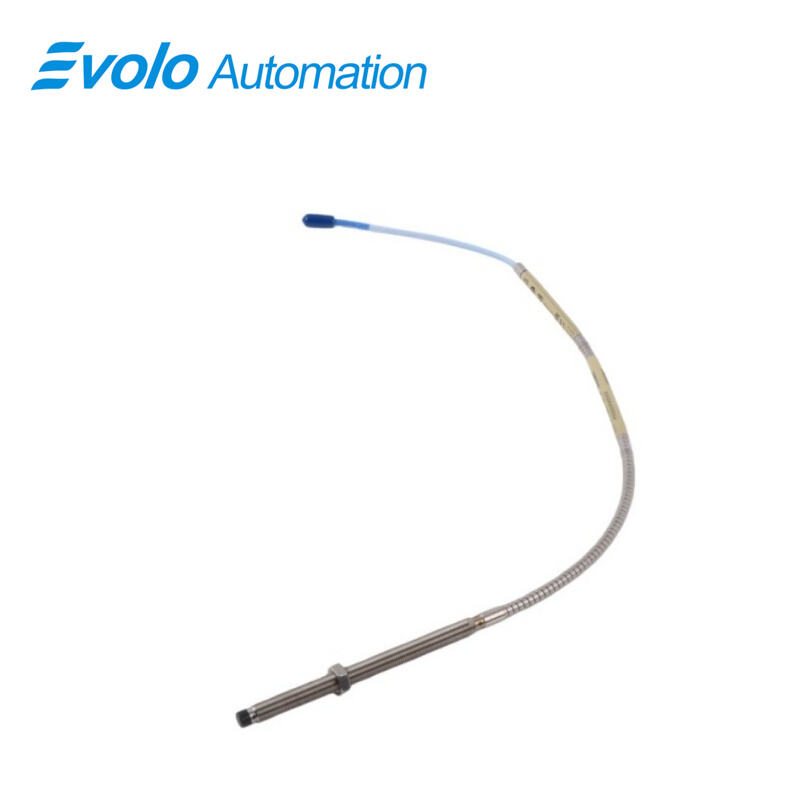

330102-00-48-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-48-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-48-10-02-05 3300 XL 8 mm Proximity Probe is an eddy-current measurement device engineered for precision vibration, displacement, and shaft position monitoring in advanced industrial automation and rotating machinery condition monitoring systems. As a key component in the 3300 XL 8 mm Proximity Transducer System, model 330102-00-48-10-02-05 provides a proportional voltage output for both static and dynamic measurements on turbines, compressors, and fluid-film bearing equipment deployed in predictive maintenance programs. Its 2 mm linear range, 50 Ω output resistance, and low supply sensitivity (<2 mV/V) ensure high signal integrity for Keyphasor reference and speed tracking applications. With ATEX, CSA, and IECEx approvals, the probe supports hazardous petrochemical and power-generation environments, while its −52°C to +177°C thermal envelope enables reliable operation through cold-start cycles and high-temperature turbine housings. Engineered with ClickLoc miniature connectors and patented CableLoc and TipLoc retention designs (330 N pull strength), the 330102-00-48-10-02-05 improves mechanical robustness and life-cycle uptime. Full backward compatibility with non-XL 3300 5 mm and 8 mm systems reduces modernization cost, facilitates DCS/SCADA integration, and enhances asset protection logic in industrial automation ecosystems focused on uptime, reliability, and performance.

Applications

Application 1 Turbine Vibration and Displacement Monitoring
With a 2 mm linear range and stable voltage proportionality, the 330102-00-48-10-02-05 supports orbit, amplitude, and frequency diagnostics on steam and gas turbines. This enables early detection of rub, imbalance, and misalignment for outage prevention.

Application 2 Compressor Shaft Position Tracking
Fluid-film bearing compressors require high-sensitivity dynamic motion data. A 50 Ω output stage and low supply sensitivity improve rod motion characterization and enhance predictive maintenance decisions for petrochemical compression assets.

Application 3 Keyphasor Reference and Timing Measurements
The probe allows accurate phase and speed reference for orbit plotting, startup analysis, and synchronous balancing. This enhances advanced diagnostic workflows in rotating machinery control modules and supervisory monitoring systems.

Application 4 API 670-Compliant Protection Systems
The 3300 XL 8 mm platform meets API 670 criteria for configuration, accuracy, and temperature stability, supporting protection logic in SCADA and DCS architectures across refinery, LNG, and power-generation environments.

Application 5 Hazardous Zone Condition Monitoring
With ATEX, IECEx, and CSA approvals, the model can be installed in explosive-rated facilities. High-temperature endurance (−52°C to +177°C) ensures continuous operation near turbine casings, cracking furnaces, and compression skids.

Specifications

Competitive Advantage

Advantage 1 Backward-Compatible Upgrade Path
The 330102-00-48-10-02-05 is fully interchangeable with non-XL 3300 5 mm and 8 mm components, reducing retrofit cost, avoiding recalibration, and simplifying modernization of legacy machinery monitoring platforms.

Advantage 2 Enhanced Mechanical Durability
CableLoc and TipLoc provide 330 N pull strength for improved cable retention under high vibration and mechanical stress, extending probe service life in industrial automation environments.

Advantage 3 Hazardous Location Certified
ATEX, IECEx, and CSA approvals enable deployment in global petrochemical and power plant installations without requalification delays, shortening project commissioning schedules.

Advantage 4 Wide Temperature Operating Window
−52°C to +177°C temperature capability supports cold-start compressor stations and high-temperature turbine housings, improving monitoring accuracy across seasonal and thermal cycles.

Advantage 5 High-Fidelity Predictive Maintenance Data
Stable non-contact displacement measurement improves fault detection resolution, enhancing predictive maintenance algorithms and boosting uptime for critical rotating assets.
