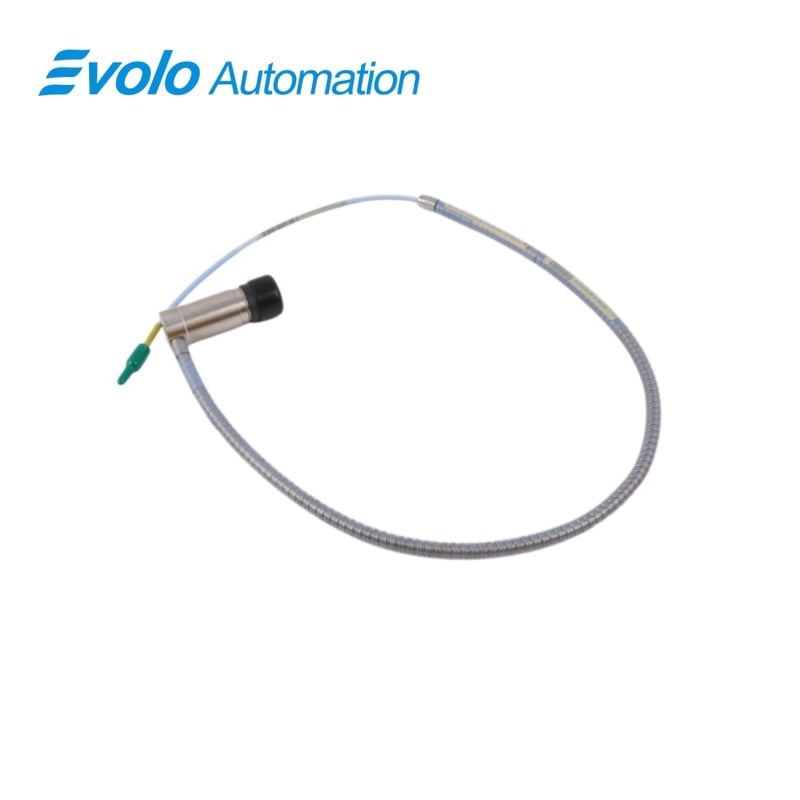

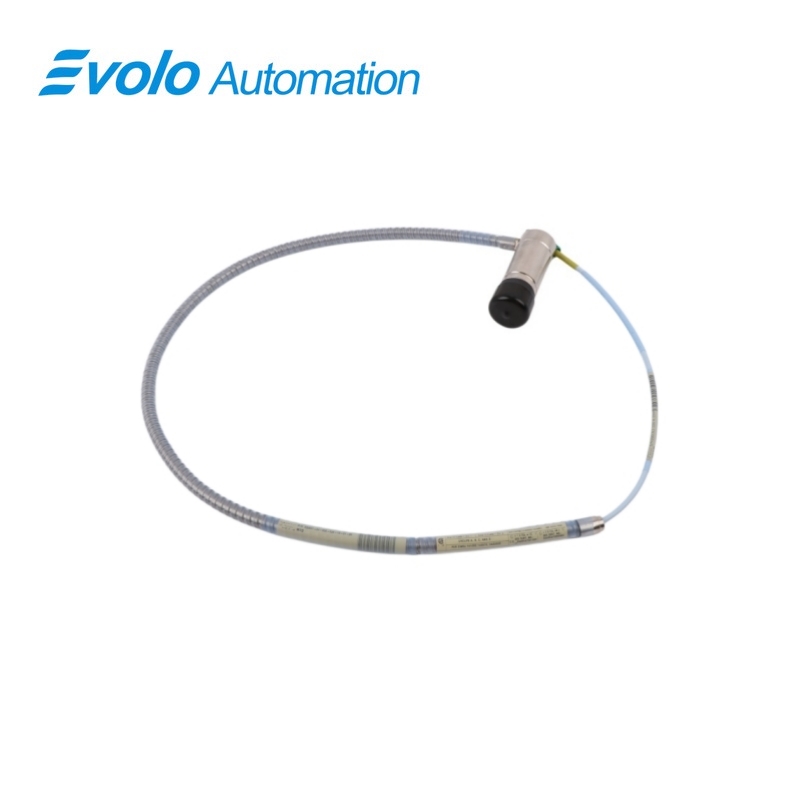

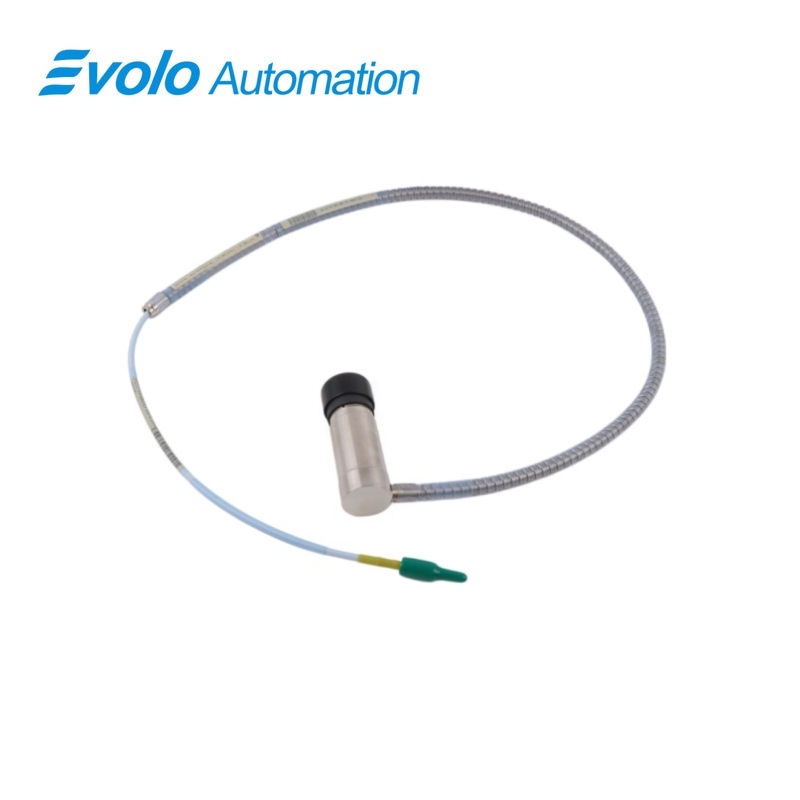

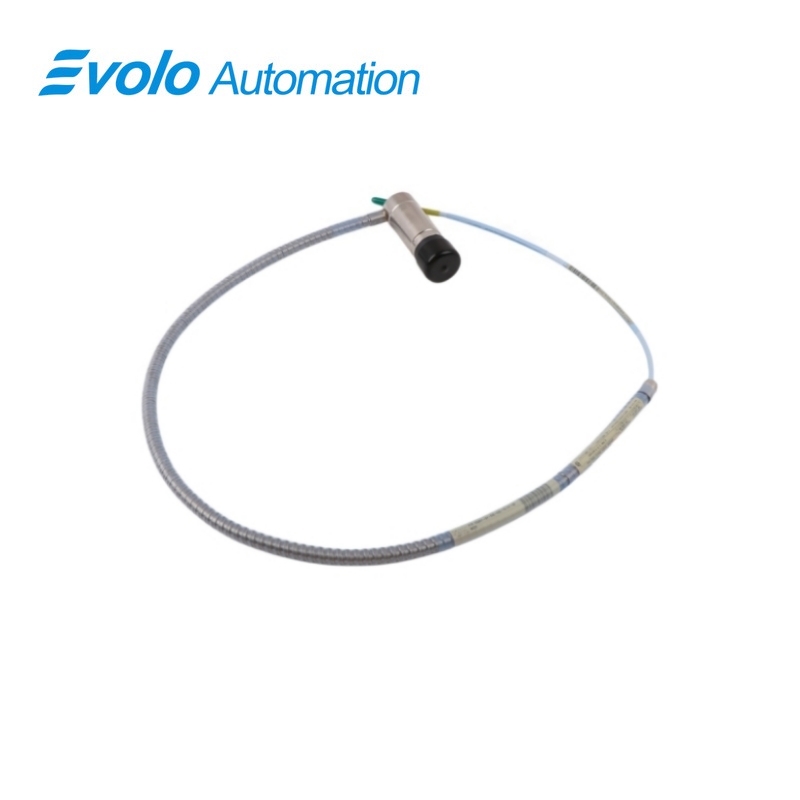

Bently Nevada 330851-04-00-27-10-01-00 3300 XL 25 mm Proximity Probe
Manufacturer: Bently Nevada
Product Family: 3300 XL 25 mm Proximity Transducer System
Product Type: Proximity Probe
Ordering Code: 330851-04-00-27-10-01-00
Official Datasheet: 163236 Rev. M
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
330851-04-00-27-10-01-00 Proximity Probe
Official Bently Nevada identification and configuration details for accurate matching within a 3300 XL 25 mm proximity transducer system.
At a Glance
| Ordering Code | 330851-04-00-27-10-01-00 |
|---|---|
| Manufacturer | Bently Nevada |
| Product Family | 3300 XL 25 mm |
| Product Type | Proximity Probe |
| Probe Case | Smooth 1.06 in diameter, side exit |
Exact Identification
Match the complete ordering code and the probe nameplate before replacement.
Model Configuration
Side-exit smooth case, 2.7 in case length, 1.0 m total length and SST armor.
System Role
For the matching 3300 XL 25 mm differential-expansion transducer system.
Product Overview
330851-04-00-27-10-01-00 is a configured Bently Nevada 3300 XL 25 mm proximity probe. Its side-exit smooth case and armored 1.0 m lead are defined by the manufacturer ordering options.
The 3300 XL 25 mm probe is designed for demanding steam-turbine differential-expansion environments. Bently Nevada specifies continuous operation while maintaining accuracy at temperatures up to 200 °C (392 °F), with intermittent exposure up to 250 °C (482 °F).
Key Functions
Differential Expansion Measurement
When used in the complete 3300 XL 25 mm system, the probe supports differential-expansion measurement on mid-size to large steam turbine generators. The official system linear range is 12.7 mm (500 mil), with a 0.787 V/mm (20 mV/mil) scale factor.
High-Temperature Probe Construction
The probe is specified for continuous operation up to 200 °C (392 °F) and intermittent exposure up to 250 °C (482 °F).
Sealed Probe and Connection
Front and rear seals work with the standard FluidLoc cable to limit moisture entry. High-temperature ClickLoc connectors are standard on the probe and matching extension cable.
Official Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product Family | 3300 XL 25 mm Proximity Transducer System |
| Ordering Code | 330851-04-00-27-10-01-00 |
| Probe Case Option 04 | Smooth 1.06 in diameter, side exit |
| Unthreaded Length Option 00 | 0.0 in |
| Overall Case Length Option 27 | 2.7 in |
| Total Length Option 10 | 1.0 m (3.3 ft) |
| Armor Option 01 | SST armor |
| Agency Approval Option 00 | No approvals |
| Probe Temperature | Up to 200 °C continuous; 250 °C intermittent |
| Complete-System Linear Range | 12.7 mm (500 mil) |
| Complete-System Scale Factor | 0.787 V/mm (20 mV/mil) |
Official sources: Bently Nevada proximity sensors and 3300 XL 25 mm datasheet 163236 Rev. M.
Frequently Asked Questions
What is 330851-04-00-27-10-01-00?
It is a configured Bently Nevada 3300 XL 25 mm proximity probe with a smooth side-exit case, 1.0 m total length, and SST armor.
What do the ordering options identify?
The code identifies the probe case, unthreaded length, overall case length, total length, armor, and agency-approval selection.
Which system uses this probe?
It is a component of the 3300 XL 25 mm Proximity Transducer System and must be paired with the matching extension cable and Proximitor Sensor.
What does the complete system measure?
Bently Nevada identifies the system for differential-expansion measurement on mid-size to large steam turbine generators.
What temperature can the probe withstand?
The official datasheet specifies continuous operation up to 200 °C (392 °F) and intermittent exposure up to 250 °C (482 °F).
Compatibility & Ordering Notes
Compatibility Checklist for 330851-04-00-27-10-01-00
- Match the complete ordering code without shortening or omitting option digits.
- Confirm the installed system is the Bently Nevada 3300 XL 25 mm Proximity Transducer System.
- Verify the smooth 1.06 in diameter, side-exit probe case and 2.7 in overall case length.
- Confirm the required 1.0 m (3.3 ft) total length and SST armor.
- Confirm the matching extension cable, Proximitor Sensor, mounting arrangement and accessories in the official system documentation.
