Bently Nevada 3300 XL 8mm Digital Transformation Accelerates: Bently Nevada Vibration Monitoring Technology Drives Smart Upgrade in Steel Plants

3300 XL 8 mm Proximity Transducer System Overview

The 3300 XL 8 mm system is a complete non-contact measurement solution composed of three core elements:

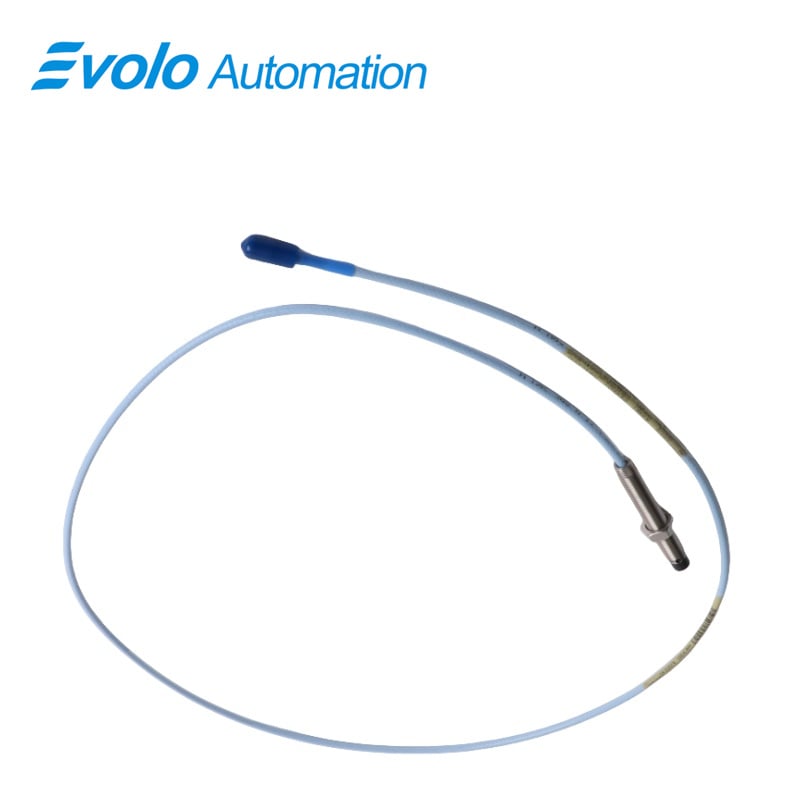

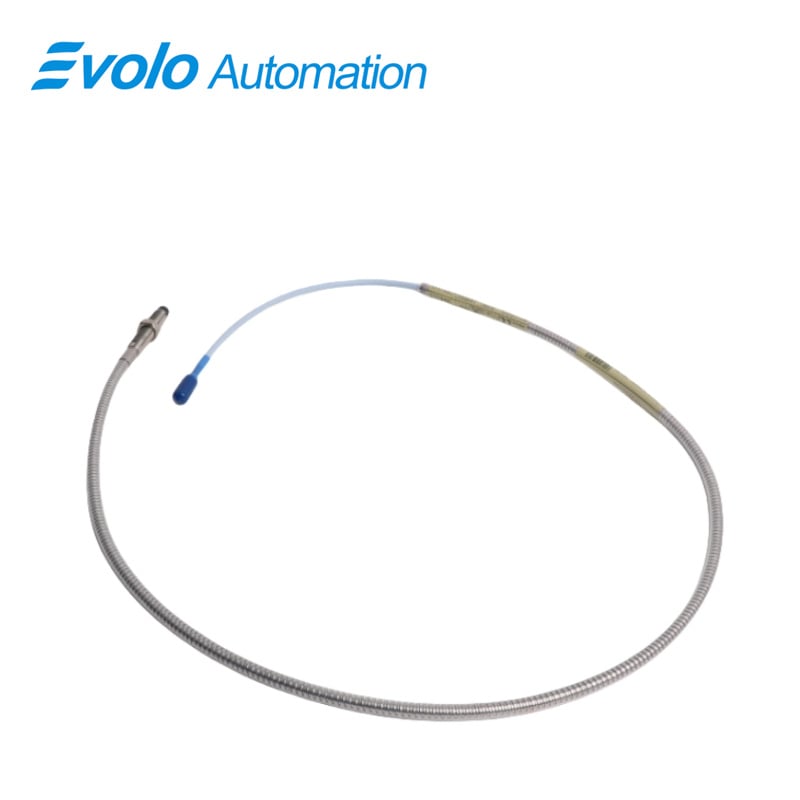

3300 XL 8 mm probe

3300 XL extension cable

3300 XL Proximitor sensor

The system outputs a voltage proportional to the distance between the probe tip and the conductive target surface. It can measure both static shaft position and dynamic vibration, making it widely used in turbine and compressor monitoring.

Its operating principle is based on eddy current sensing, which ensures stable performance even in harsh industrial environments such as oil refineries and steel mills.

Key Features of the 3300 XL 8 mm System

One of the main advantages of this system is its compliance with API 670 standards, ensuring accuracy, linearity, and environmental stability.

Core technical features include:

Non-contact eddy current measurement technology

Dual-function monitoring (vibration + position)

Operating temperature range: -52°C to +177°C

Fully interchangeable components without recalibration

High output sensitivity: 7.87 V/mm (200 mV/mil)

Strong resistance to environmental interference

In practical engineering use, interchangeability reduces installation complexity and can shorten commissioning time by nearly 40% compared with conventional systems.

System Advantages and Industrial Value

The 3300 XL 8 mm system is widely recognized for its balance of precision and operational efficiency.

1. Stable Measurement Accuracy

The system provides consistent vibration signals with minimal drift. In a steel rolling mill application, vibration measurement deviation dropped from ±7% to around ±2% after upgrading to 3300 XL probes.

2. Reduced Maintenance Effort

Because probes, cables, and sensors are fully interchangeable, field technicians can replace components without recalibration. This design reduces average downtime by 20–30% in continuous production plants.

3. Strong Environmental Adaptability

It performs reliably in extreme conditions, including high temperature furnaces and high-vibration compressor stations.

4. Cost-Effective Lifecycle Management

Backward compatibility with older 5 mm and 8 mm systems allows gradual upgrades, reducing capital investment pressure for large industrial sites.

Application Scenarios in Heavy Industry

The 3300 XL 8 mm system is mainly deployed in rotating machinery condition monitoring, including:

Steam turbines

Centrifugal compressors

Industrial pumps

Gearbox systems in steel mills

Speed and phase reference (Keyphasor) measurement

Industrial Case Insight

Comparison: 3300 XL 8 mm vs 3300 XL 11 mm System

Although both systems belong to the same product family, they are optimized for different engineering requirements.

Measurement Range

8 mm system: Standard range for general vibration monitoring

11 mm system: Extended linear range for large displacement measurement

Output Characteristics

8 mm: Higher sensitivity for detailed vibration analysis

11 mm: 3.94 V/mm (100 mV/mil) optimized for axial displacement

Application Focus

8 mm System:

Radial vibration monitoring

General rotating machinery

Compact installation environments

11 mm System:

Axial thrust position monitoring

Steam turbine differential expansion

Rod position and rod drop detection

Speed and zero-speed measurement

The 11 mm system requires full replacement of all components when upgrading, while the 8 mm system offers greater flexibility in retrofit projects.

Conclusion

The Bentley Nevada 3300 XL 8mm eddy current sensor system is suitable for industrial monitoring. This system offers high accuracy, durability, and interchangeability, and can operate in harsh industrial environments. Compared to traditional vibration measurement systems, it outputs a stable signal, reduces maintenance costs, and supports system integration. In the digital transformation of steel plants, the 3300 XL 8mm system can be used for intelligent and predictive asset management, meeting the needs of industrial operations.

Sources

https://dam.bakerhughes.com/m/23d2a1de24360b13/original/3300-XL-8mm-Proximity-Transducer-System-Datasheet-141194-pdf.pdf

https://dam.bakerhughes.com/m/27a2d91f28aadd41/original/3300-XL-11mm-Proximity-Transducer-System-Datasheet-146256-pdf.pdf

(If there is any copyright infringement, please contact me to delete this article.)

Q1: What is the main function of the 3300 XL 8 mm system?

A: It measures shaft vibration and position using non-contact eddy current technology.

Q2: What components are included in the system?

A: It consists of a probe, extension cable, and Proximitor sensor.

Q3: What is a key advantage of the system’s interchangeability?

A: All probe, cable, and sensor components are fully interchangeable without requiring individual calibration.

Q4: What is its key technical advantage?

A: Fully interchangeable design without the need for recalibration, reducing maintenance time.

Q5: Where is it commonly used?

A: It is widely used in turbines, compressors, pumps, and steel plant rotating equipment monitoring.
