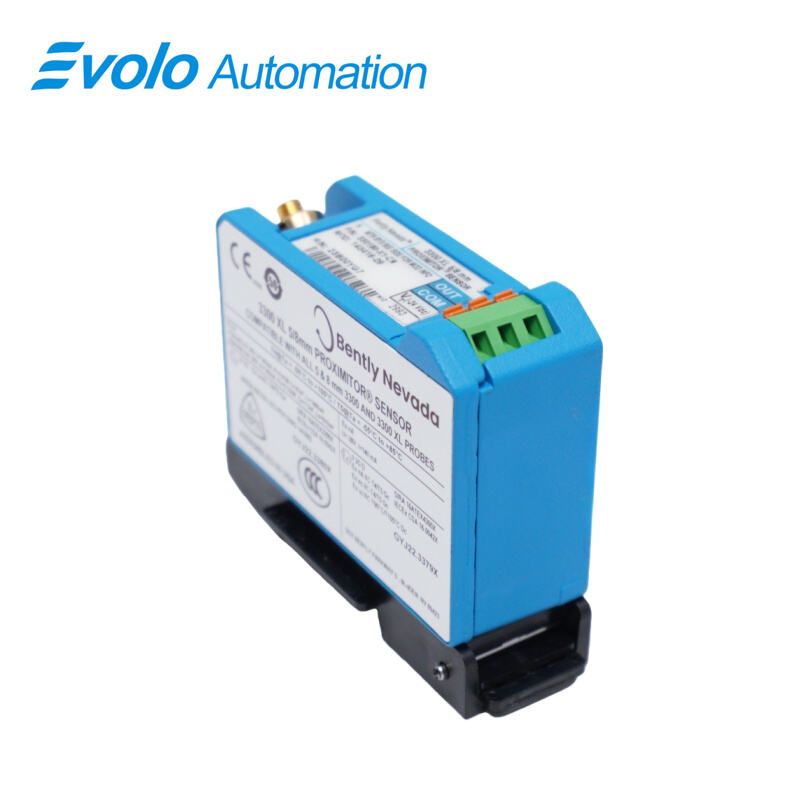

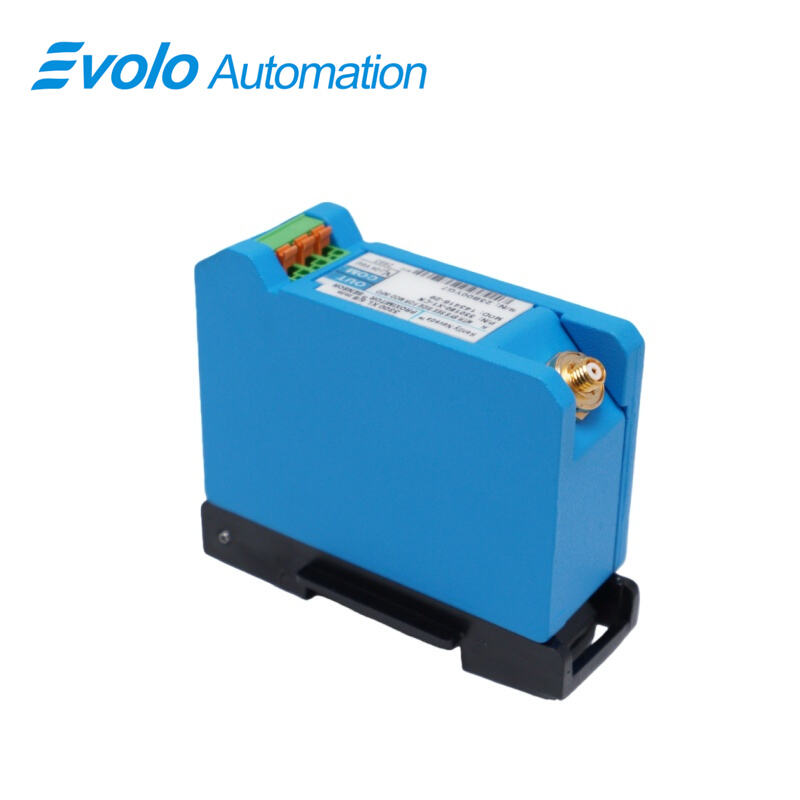

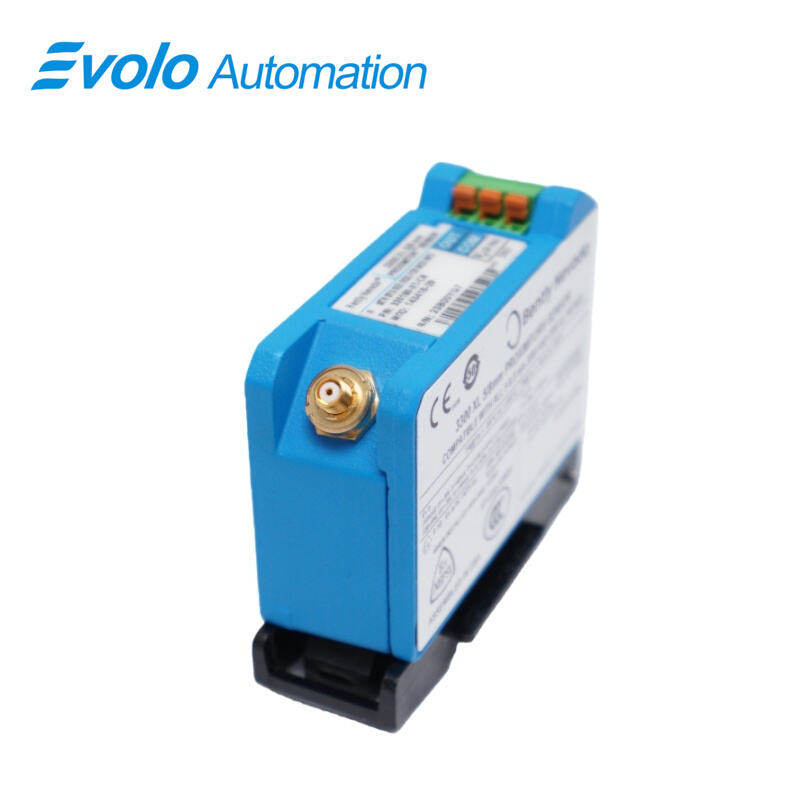

330180-X1-CN MOD 1450004-82 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-CN MOD 1450004-82
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-CN MOD 1450004-82 3300 XL Proximitor Sensor is a high-performance eddy current signal conditioner designed for industrial automation and machinery monitoring systems. Compatible with one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe and extension cable, this sensor delivers highly accurate position and vibration measurements for fluid-film bearing machines. Featuring a 1.0-meter system length and a robust A308 aluminum housing, it operates over a wide temperature range of -52°C to +100°C (-62°F to +212°F) and provides output resistance of 50 Ω with supply sensitivity under 2 mV per volt. The sensor accepts field wiring up to 305 meters (1000 feet) while maintaining a frequency response of 0–10 kHz (+0/-3 dB), and supports minimum flat target diameters of 15.2 mm (0.6 in). With CSA, ATEX, and IECEx approvals, this Proximitor Sensor supports hazardous area applications and is fully compatible with legacy 3300 and 3300 XL transducer systems, ensuring seamless integration and enhanced automation reliability. Its compact packaging allows DIN-rail or panel mounting, while improved RFI/EMI immunity and SpringLoc terminals reduce installation time and increase system robustness.

Applications

Vibration Monitoring on Fluid-Film Bearing Machines
Measures radial and axial vibration with high accuracy, enabling predictive maintenance and early detection of misalignment, imbalance, or bearing wear in pumps, compressors, and turbines.

Position Measurement on Rotating Shafts
Provides precise static and dynamic shaft position data using 3300 XL 8 mm probes, supporting automation systems that require exact shaft displacement monitoring.

Keyphasor Reference and Speed Measurements
Generates phase reference signals for rotating machinery, allowing SCADA and condition monitoring systems to calculate speed and detect anomalies in fluid-film bearing systems.

Hazardous Area Installation
CSA, ATEX, and IECEx approvals allow safe use in explosive or flammable environments, supporting automation and safety-critical applications in oil & gas, petrochemical, and chemical processing plants.

High-Density DIN-Rail or Panel Mount Integration
Compact packaging supports high-density installations without requiring separate isolator plates, reducing control cabinet space and simplifying integration into modern industrial automation systems.

Specifications

Competitive Advantage

Wide Temperature and Voltage Tolerance
Operates from -52°C to +100°C with power supply of -17.5 to -26 Vdc, ensuring stable operation under extreme industrial conditions and electrical variations.

Extended Field Wiring Capability
Supports up to 305 meters (1000 feet) of field wiring while maintaining accurate frequency response (0–10 kHz), enabling flexible installation distances between probe and monitoring system.

Enhanced EMI/RFI Immunity
Improved resistance to radio frequency and electromagnetic interference allows installation near RF-emitting equipment and in fiberglass housings without signal degradation.

SpringLoc Terminals for Rapid Field Wiring
Tool-free SpringLoc terminal strips eliminate screw clamping, speeding installation and improving connection reliability for automation technicians.

Backward Compatibility and Modular Integration
Fully compatible with legacy 3300 and 3300 XL probes and extension cables, allowing seamless upgrades, minimal reconfiguration, and full integration with existing predictive maintenance systems.
