ABB ACS800 FS450R17KE3 AGDR-81C IGBT Spare Part Kit 3AUA0000109339
Manufacturer: ABB
Condition: Brand New
Lead Time: In Stock
Origin: Estonia
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
ABB • ACS800 Drive Service Parts
3AUA0000109339 ACS800 FS450R17KE3 AGDR-81C IGBT Spare Part Kit

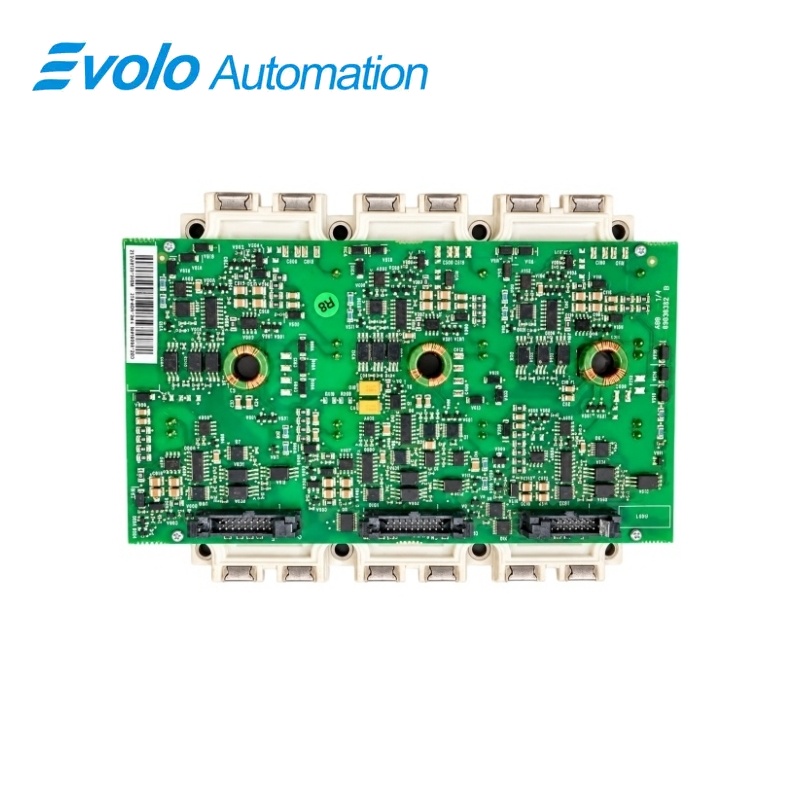

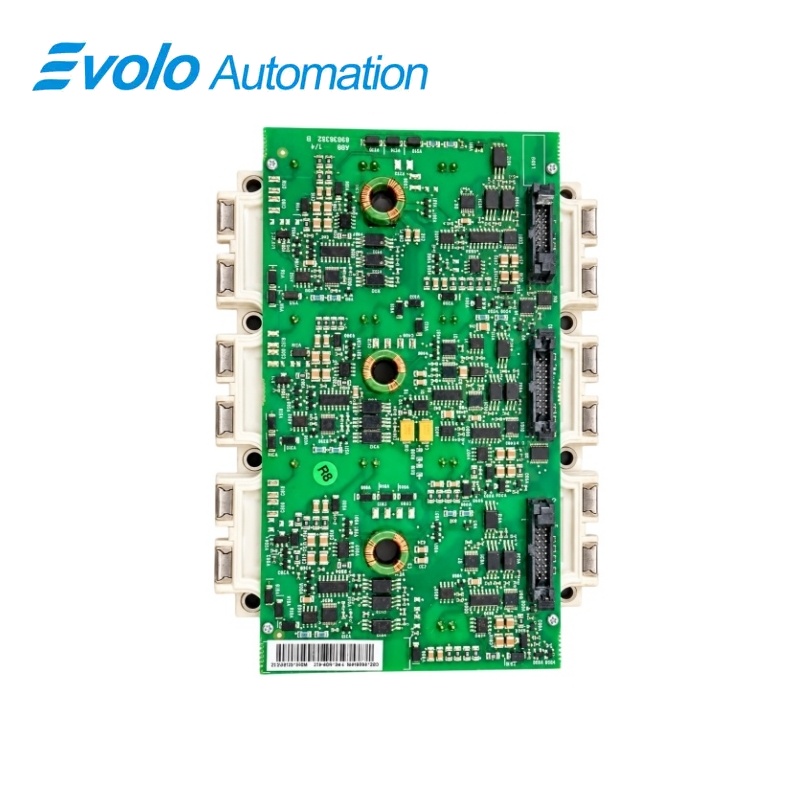

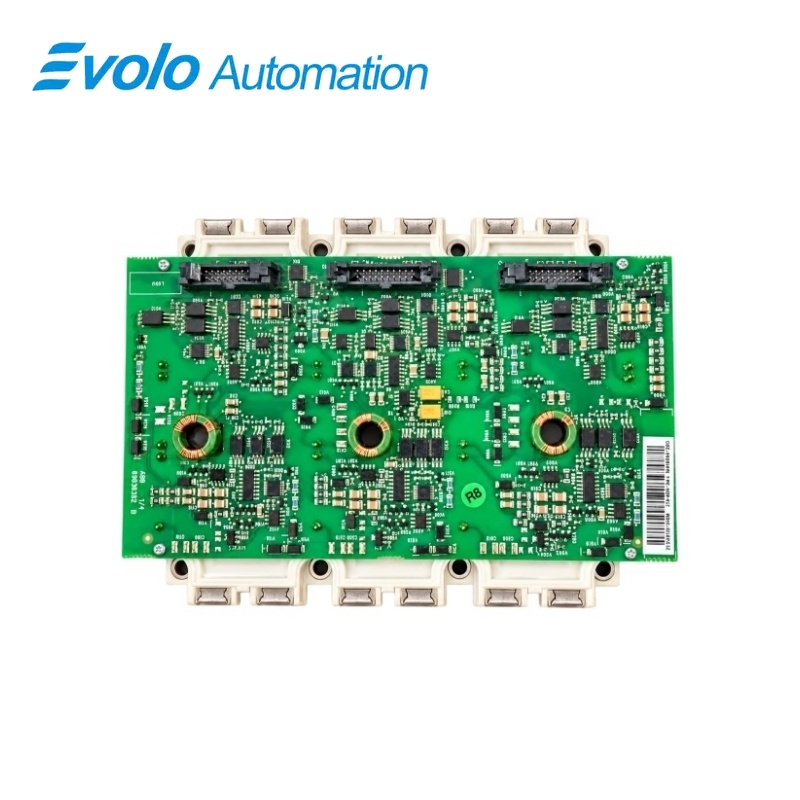

The ABB spare-part kit combines the FS450R17KE3 IGBT module with the AGDR-81C gate-drive assembly for qualified ACS800 power-module service work.
At a Glance
| Brand | ABB |
|---|---|
| Model | 3AUA0000109339 |
| Product Type | IGBT module and gate-drive spare-part kit |
| Core Function | Replaces the matched high-power IGBT and gate-drive assembly in approved ACS800 drive modules |
| Application or Compatible Series | Specified ACS800 single-drive and multidrive power modules using the FS450R17KE3/AGDR assembly |
Exact Identification
Match 3AUA0000109339 character by character and confirm the complete ACS800 FS450R17KE3 AGDR-81C IGBT Spare Part Kit designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The ABB spare-part kit combines the FS450R17KE3 IGBT module with the AGDR-81C gate-drive assembly for qualified ACS800 power-module service work.
The replacement combines the 1700 V, 450 A IGBT module with the associated gate-drive assembly. The kit is intended for the specified ACS800 single-drive and multidrive power-module arrangements. ABB requires new IGBT control ribbon cables to be fitted when the power module is replaced.
Key Functions
Matched Power Semiconductor Kit
The replacement combines the 1700 V, 450 A IGBT module with the associated gate-drive assembly.
ACS800 Service Compatibility
The kit is intended for the specified ACS800 single-drive and multidrive power-module arrangements.
Controlled Replacement Procedure
ABB requires new IGBT control ribbon cables to be fitted when the power module is replaced.
Official Specifications
| ABB Type Designation | IGBT MODULE SP KIT |
|---|---|
| Module and Drive Assembly | FS450R17KE3 / AGDR-81C |
| Semiconductor Voltage Rating | 1700 V |
| Semiconductor Current Rating | 450 A |
| Package Family | ECONO+ |
| Part Type | New spare part |
| Replacement Product ID | 68569591 |
| Selling Unit | 1 piece |
| Minimum Order Quantity | 1 piece |
| Product Net Weight | 1.1 kg |
| Customs Tariff Number | 85359000 |
| Transport Classification | Not IATA restricted under SP A158 |
| ACS800 Single-Drive Ribbon Cable for R7 | 68689015 |
| ACS800 Single-Drive Ribbon Cable for R8 | 68689023 |
| ACS800 Multidrive R7i Ribbon Cable | 68869625 |
| ACS800 Multidrive R8i Two-IGBT Ribbon Cable | 68870089 |
Frequently Asked Questions
Which drive family uses 3AUA0000109339?
Use it only in the approved ACS800 power-module arrangements that specify the matched FS450R17KE3 and AGDR assembly.
Must the ribbon cables be replaced with 3AUA0000109339?
Yes; install the correct new IGBT control ribbon cable for the target R7, R8, R7i or R8i configuration.
Can 3AUA0000109339 replace a different current-rated IGBT?
No; the power semiconductor rating and gate-drive combination must match the engineered drive module.
What electrical checks are needed before fitting 3AUA0000109339?
Isolate and discharge the DC link, verify absence of voltage and inspect the busbars, cooling path and gate wiring.
How should 3AUA0000109339 be mounted?
Follow the approved torque sequence, insulation, thermal-interface and electrostatic-discharge controls for the power module.
What should be inspected after installing 3AUA0000109339?
Check ribbon-cable seating, busbar torque, cooling contact, insulation clearances and gate-drive connections.
How should 3AUA0000109339 be tested before returning the drive to service?
Use a controlled commissioning procedure that confirms gate operation, DC-link behavior, phase current balance and fault-free operation.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the exact ACS800 power-module arrangement and frame.
- Replace the IGBT control ribbon cables during the service operation.
- Apply the approved high-voltage isolation, torque and thermal-interface procedure.
