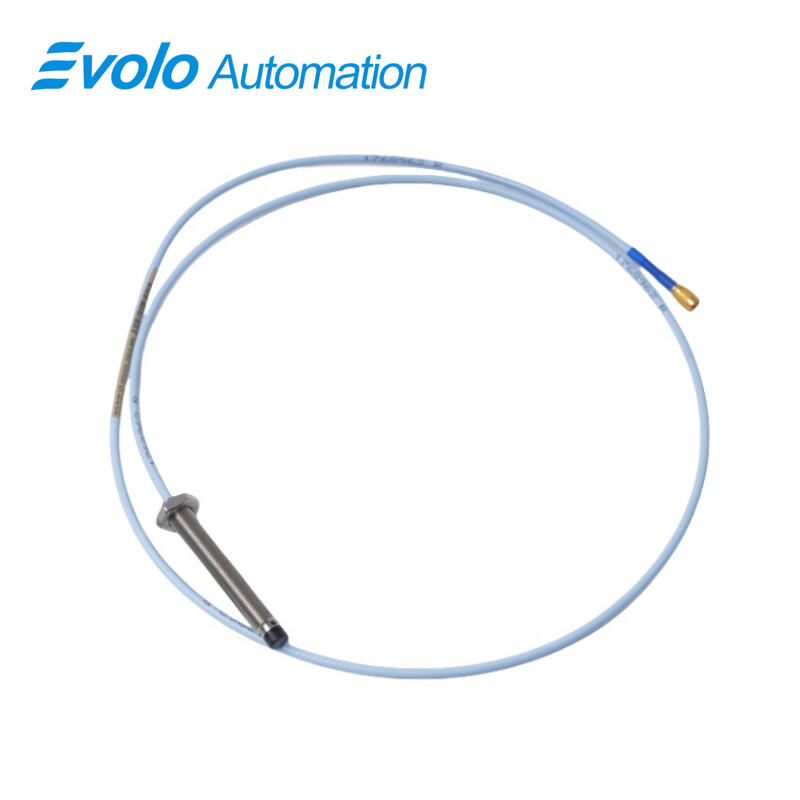

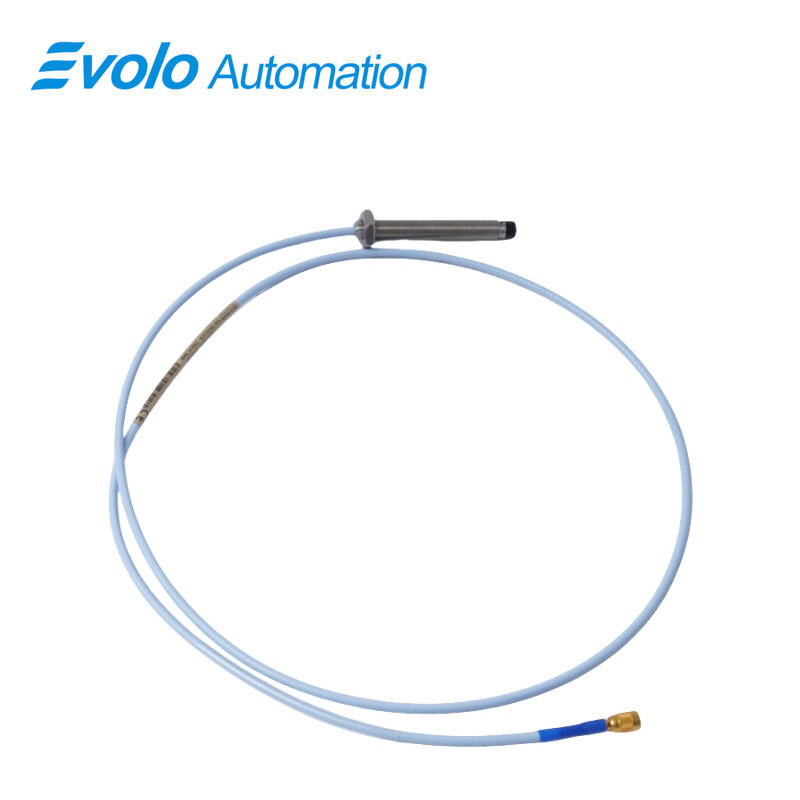

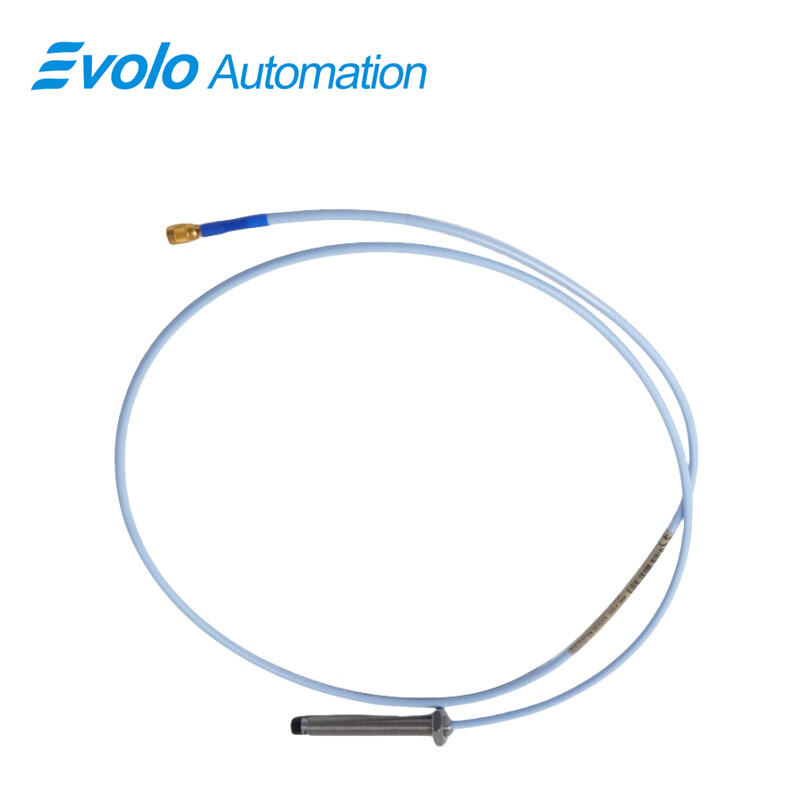

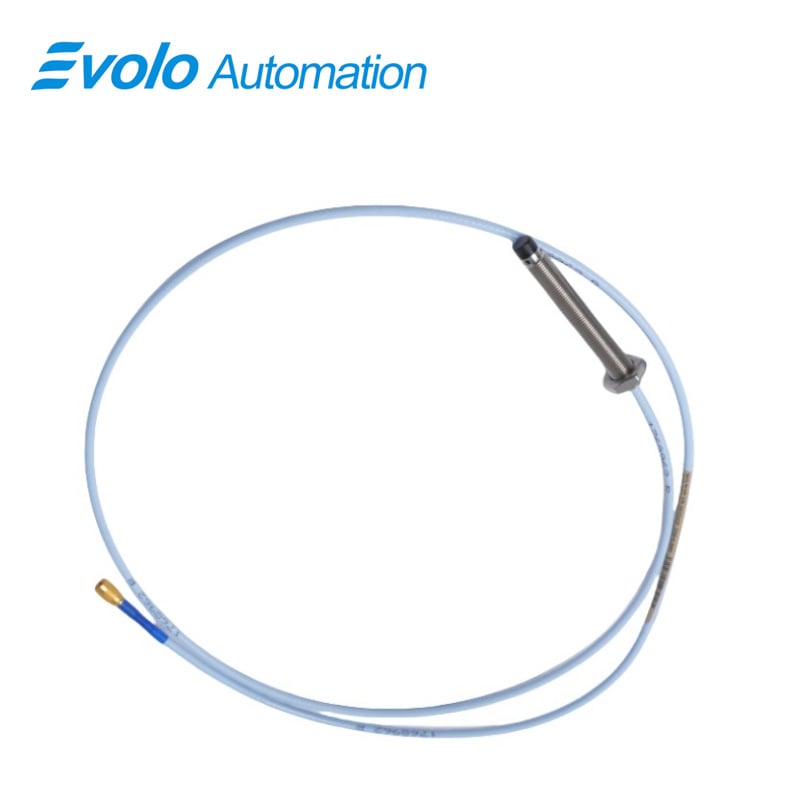

330103-02-07-10-02-00 3300 XL 8 mm Proximity Probe
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-02-07-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 3300 XL 8 mm Proximity Probe, model 330103-02-07-10-02-00, is an advanced eddy-current transducer designed for precise position and vibration monitoring in industrial automation systems. This 8 mm probe provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface, ensuring highly accurate static and dynamic measurements. Engineered for fluid-film bearing machinery, the 3300 XL 8 mm system also supports Keyphasor reference and rotational speed monitoring, making it ideal for high-performance automated monitoring applications. With a robust M10x1 threaded case, unthreaded length of 20 mm, total case length of 70 mm, and standard 1.0-meter cable with miniature coaxial ClickLoc connector, the probe guarantees durability and easy integration into complex industrial setups. The 3300 XL 8 mm system meets stringent API 670 standards for mechanical configuration, linear range, and temperature stability from -52°C to +177°C (-62°F to +350°F), providing reliable operation in harsh environments. Enhanced by TipLoc and CableLoc patented designs, the probe offers superior tip-to-body bonding and 330 N (75 lbf) pull-strength cable retention. Optional FluidLoc cables prevent leakage of oils or fluids, further supporting continuous automated operations. Fully interchangeable with other 3300 XL and legacy 3300 series 5 mm and 8 mm components, this probe simplifies maintenance and system upgrades while ensuring consistent, high-precision performance in industrial automation systems.
Key Functions
Applications
The 3300 XL 8 mm Proximity Probe is widely used in industrial automation for monitoring machinery with fluid-film bearings, turbines, compressors, and other rotating equipment. It measures shaft vibration, axial and radial displacement, and Keyphasor signals for accurate speed reference. This capability is crucial for predictive maintenance, real-time performance monitoring, and automated process control, ensuring machinery operates efficiently and safely. Its robust design allows deployment in extreme temperatures, high-vibration environments, and oil-lubricated systems, making it suitable for petrochemical, power generation, and manufacturing plants.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
20 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
2x1.5x115cm
|
|
Weight: |
0.08kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-02-07-10-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The 3300 XL 8 mm Proximity Probe offers unmatched precision and reliability in automated monitoring systems. Its backward compatibility with other 3300 series probes, extension cables, and Proximitor sensors reduces inventory complexity and eliminates the need for custom calibration. The patented TipLoc and CableLoc technologies enhance mechanical durability and signal integrity, while the optional FluidLoc feature prevents fluid contamination, extending equipment life. Compliance with API 670 standards ensures the probe meets industry benchmarks for accuracy and temperature stability. Collectively, these features position the 3300 XL 8 mm probe as a superior choice for industries requiring dependable, high-precision automation solutions.
