330101-00-13-10-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-13-10-12-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

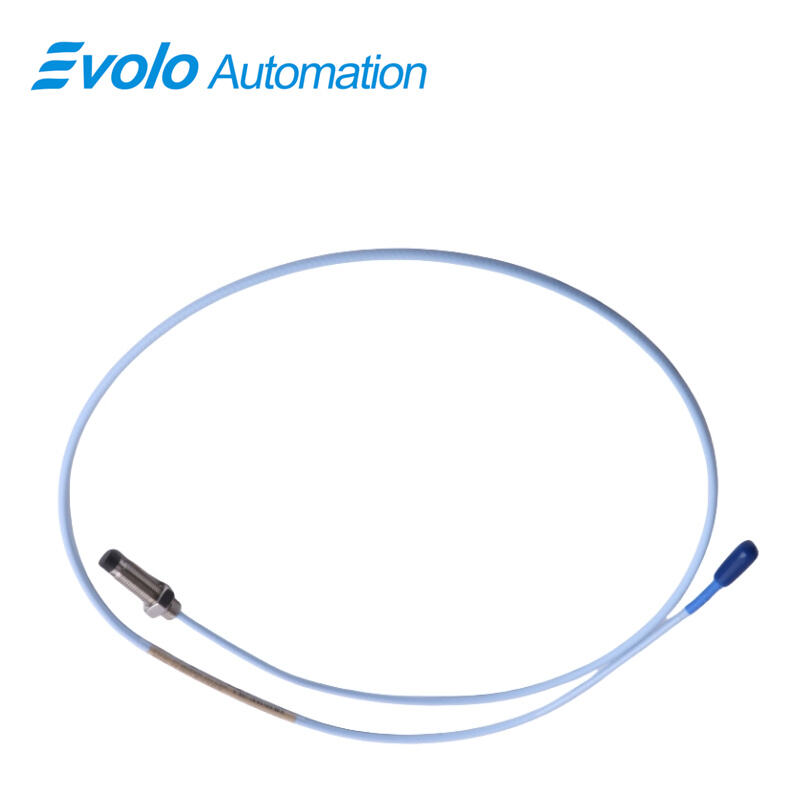

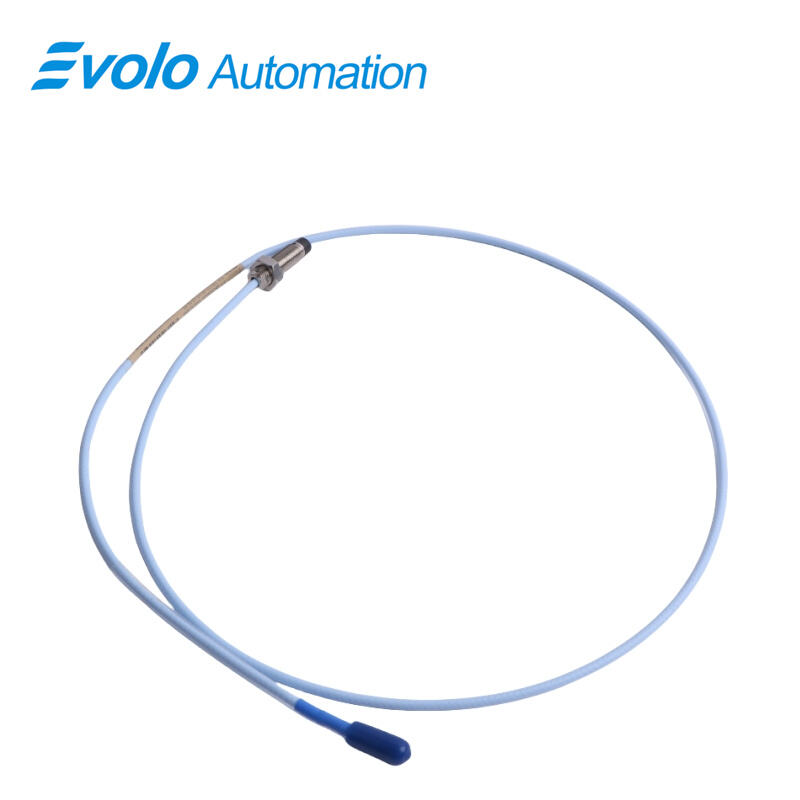

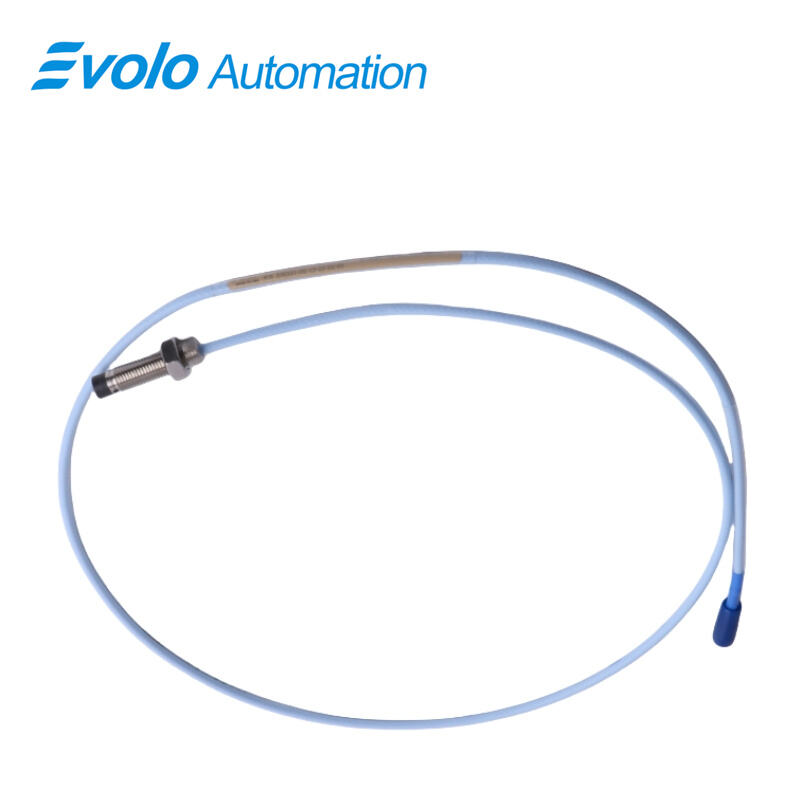

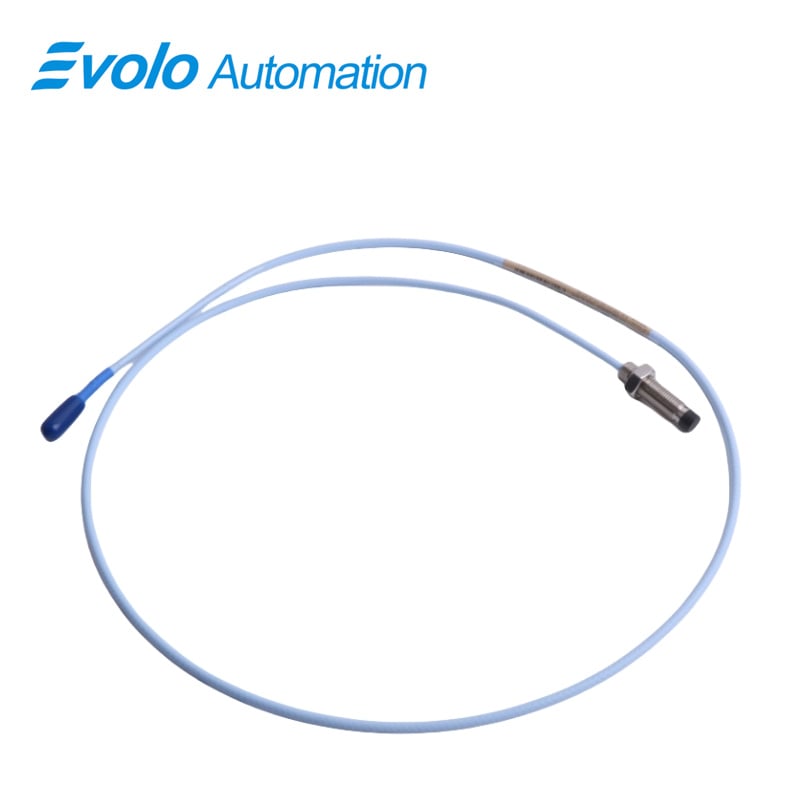

The 330101-00-13-10-12-CN 3300 XL 8 mm Proximity Probe is a precision-engineered eddy current transducer designed for advanced industrial automation, predictive maintenance, and machinery condition monitoring. This 8 mm probe provides a linear output voltage directly proportional to the distance between the probe tip and conductive surfaces, enabling both static position and dynamic vibration measurements. With an overall case length of 1.3 inches and a 1.0-meter FluidLoc cable featuring a Miniature coaxial ClickLoc connector, the probe ensures robust and reliable signal transmission in turbines, compressors, pumps, and other fluid-film bearing machinery.

Operating across -52°C to +177°C (-62°F to +350°F), the probe features less than 2 mV supply sensitivity per volt, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, ensuring high-fidelity measurement even in extreme conditions. Its 3/8-24 UNF threaded case with a maximum engagement of 0.563 inches provides secure mounting. The patented TipLoc and CableLoc designs enhance mechanical reliability with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil and fluid leakage, ensuring continuous automation performance. Fully CSA, ATEX, and IECEx certified and compliant with API 670, this probe is backward-compatible with other 3300 series probes and Proximitor sensors, supporting modular, standardized, and scalable monitoring systems.

Applications

Application 1: Turbine Vibration Monitoring

Provides high-precision vibration detection with a 2 mm linear range, enabling predictive maintenance to prevent unplanned turbine failures.

Application 2: Pump Shaft Position Measurement

Accurately measures shaft displacement in pumps, improving operational efficiency and reducing downtime.

Application 3: Compressor Speed and Phase Monitoring

Generates reliable Keyphasor signals for real-time speed and phase detection in automated control systems.

Application 4: Bearing Condition Analysis

Monitors fluid-film bearings for early detection of wear, reducing maintenance costs and improving equipment longevity.

Application 5: Oil-Lubricated Machinery Monitoring

Optional FluidLoc cable ensures leak-proof operation, maintaining measurement accuracy in oil-rich environments.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certification

Complies with CSA, ATEX, and IECEx, ensuring safe operation in explosive and hazardous environments.

Competitive Advantage 2: Fluid-Resistant Cable

The FluidLoc option prevents oil or fluid ingress, ensuring reliable signal transmission in lubricated machinery applications.

Competitive Advantage 3: Extreme Temperature Range

Operates reliably from -52°C to +177°C, suitable for both cold and high-temperature industrial environments.

Competitive Advantage 4: High Mechanical Integrity

Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, securing the probe and cable under high vibration conditions.

Competitive Advantage 5: API 670 Compliance and Component Interchangeability

Fully compliant with API 670 standards and compatible with all 3300 series probes, enabling modular and standardized monitoring system deployment.
