Emerson A6410 Dual-Channel Valve and Case Expansion Monitor
Manufacturer: Emerson (AMS/EPRO)
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
AMS 6500 MACHINERY PROTECTION
A6410 Dual-Channel Valve and Case Expansion Monitor
Official-source product identification, application guidance and ordering checks for A6410.
At a Glance
| Brand | Emerson (AMS/EPRO) |
|---|---|
| Model | A6410 |
| Product Type | Dual-Channel Valve and Case Expansion Monitor |
| Core Function | Turbine valve position and case-expansion monitoring. |
| Application / Compatible Series | AMS 6500 machinery protection |
Verified identification

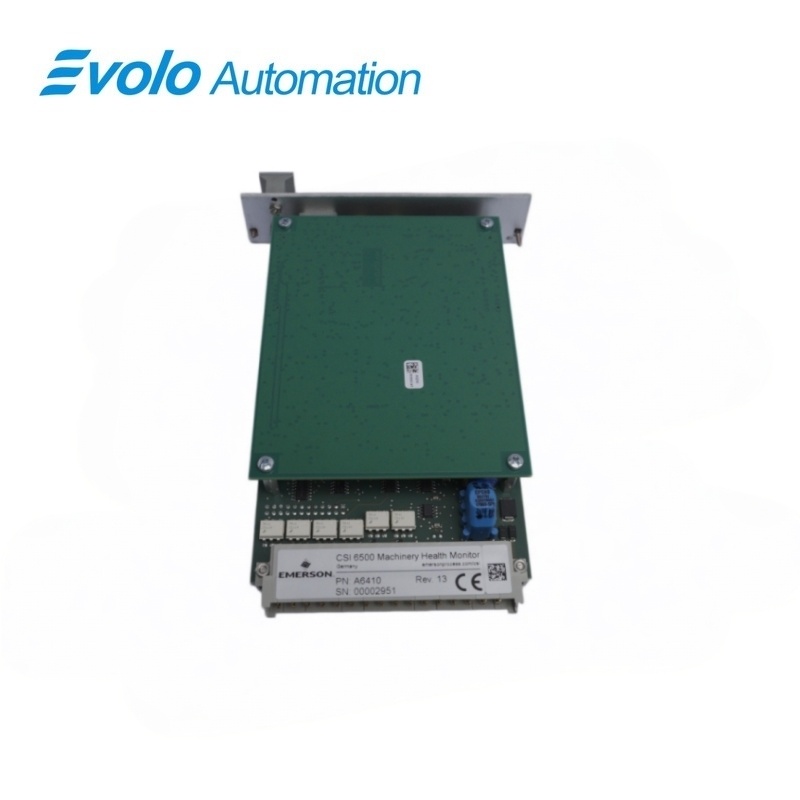

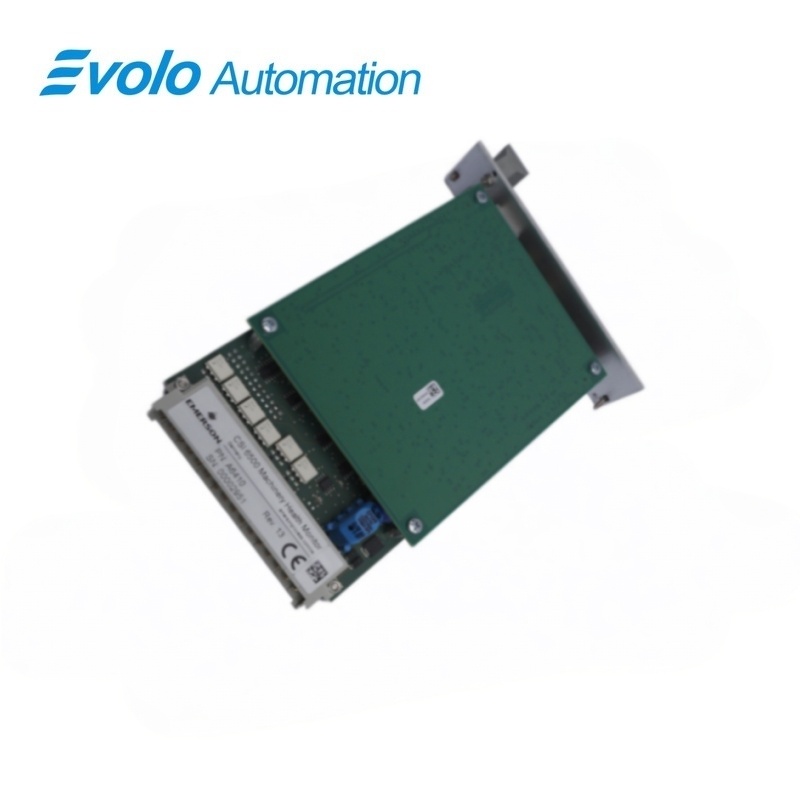

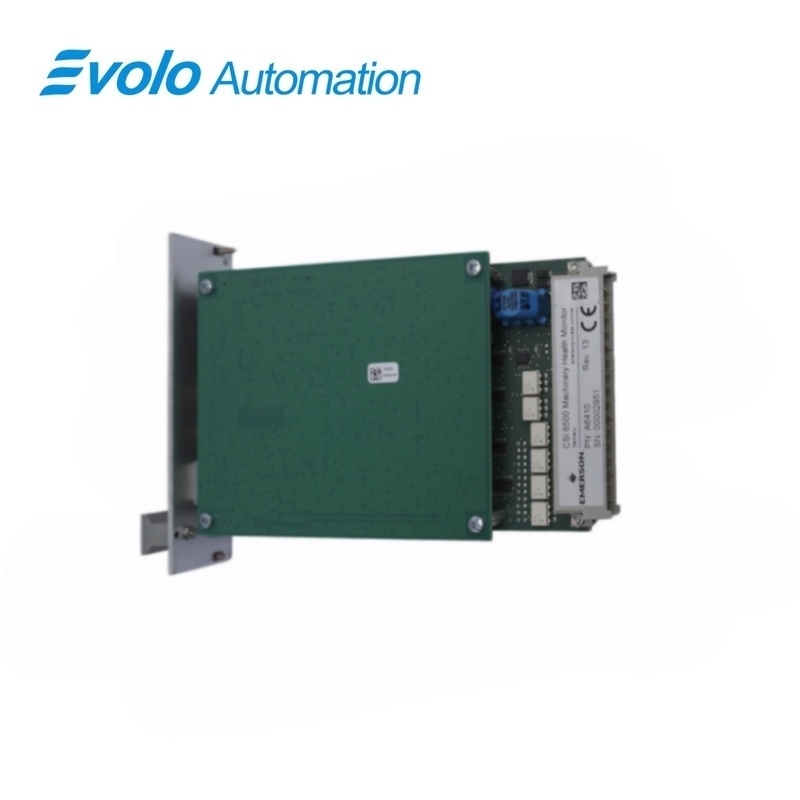

A6410 is identified by the complete manufacturer model and the photographed unit.
Application focus
A6410 is intended for turbine valve position and case-expansion monitoring.
Ordering control
A6410 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson A6410 is a two-channel valve-position and case-expansion monitor for the AMS 6500 machinery protection architecture.
The official protection-card reference identifies two independent differential inputs for inductive half-bridge, full-bridge and differential-transformer sensors. A6410 compares configured measurements with alert and danger setpoints to drive protection indications and relay logic.
Key Functions
Valve Position Monitoring
Measures main steam-inlet valve stem position so the configured percentage-open indication can support turbine operating awareness.
Case Expansion Measurement
Monitors inductive displacement sensors mounted along the turbine case to compare expansion behavior during startup and operation.
Protection and Output Processing
Evaluates alert and danger limits and provides buffered, 0/4–20 mA and 0–10 V outputs for the configured channels.
Official Specifications
| Inputs | 2 independent differential inputs |
|---|---|
| Sensor types | Inductive half bridge, full bridge and differential transformers |
| Official sensor references | PR 9350/xx and K20315/xx |
| Measuring frequency | 0–100 Hz (−3 dB) |
| Operating temperature | 0–65 °C |
| Valve Position Monitoring | Measures main steam-inlet valve stem position so the configured percentage-open indication can support turbine operating awareness. |
| Case Expansion Measurement | Monitors inductive displacement sensors mounted along the turbine case to compare expansion behavior during startup and operation. |
| Protection and Output Processing | Evaluates alert and danger limits and provides buffered, 0/4–20 mA and 0–10 V outputs for the configured channels. |
| Input Frequency Range | 0–100 Hz |
| Differential Input Count | 2 |
| Half-Bridge Sensor Support | Supported |
| Supported Sensor Reference 1 | PR 9350/xx |
| Supported Sensor Reference 2 | K20315/xx |
| Current Output Range | 0/4–20 mA |
| Voltage Output Range | 0–10 V |
| Alert Threshold | Configurable |
Official source: Emerson Protection Cards for AMS 6500 Classic Systems — A6410. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which AMS 6500 machinery protection configuration should be confirmed for A6410?
It is intended for AMS 6500 machinery protection.
For which engineering duty is A6410 specified as a Dual-Channel Valve and Case Expansion Monitor?
Turbine valve position and case-expansion monitoring.
Which mounting and connection details should be verified before fitting A6410?
Identify PR 9350/K20315 sensor type and bridge configuration. Record channel range, sensitivity, alert and danger settings.
What documented valve position monitoring limits apply to A6410?
Measures main steam-inlet valve stem position so the configured percentage-open indication can support turbine operating awareness.
How should case expansion measurement be checked during maintenance of A6410?
Monitors inductive displacement sensors mounted along the turbine case to compare expansion behavior during startup and operation.
What design information about protection and output processing is required for A6410?
Evaluates alert and danger limits and provides buffered, 0/4–20 mA and 0–10 V outputs for the configured channels.
What should maintenance teams compare before selecting A6410 as a replacement?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for A6410
- Confirm the A6410 model and rack slot.
- Identify PR 9350/K20315 sensor type and bridge configuration.
- Record channel range, sensitivity, alert and danger settings.
- Verify buffered, current and voltage output assignments.
