330880-16-00-060-03-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330880-16-00-060-03-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

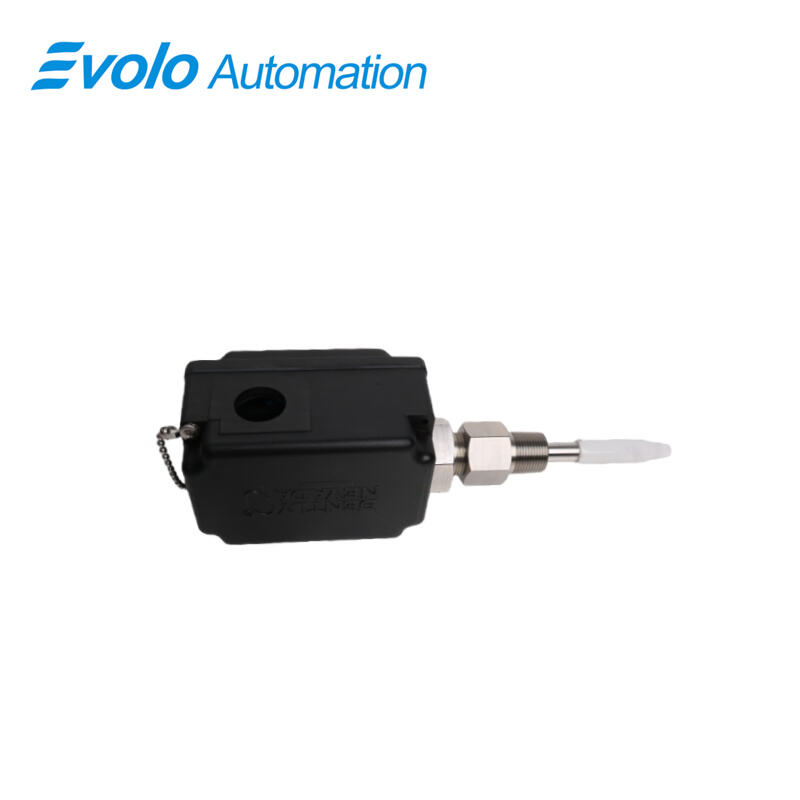

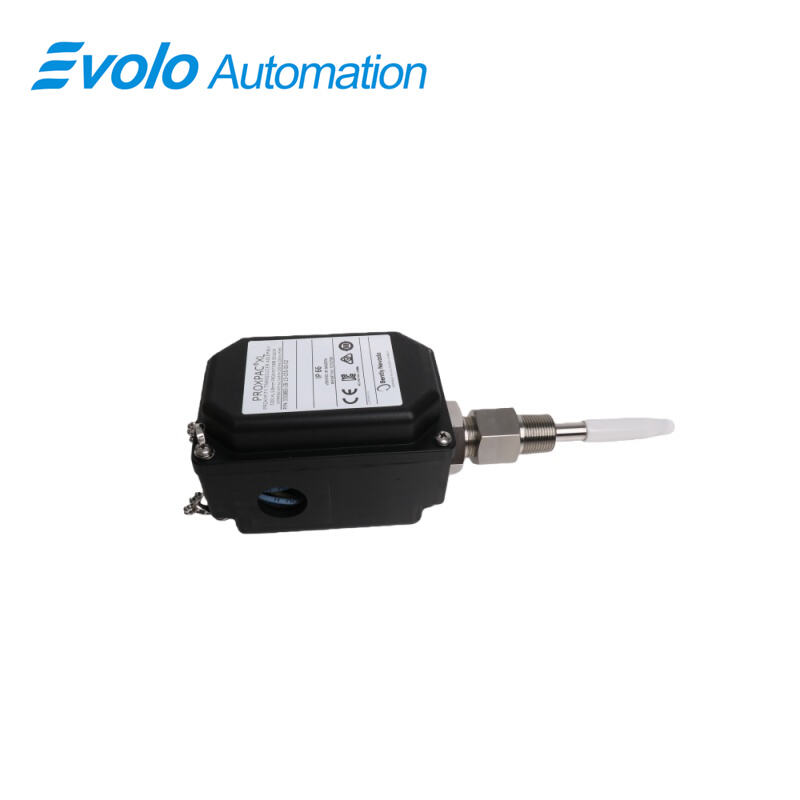

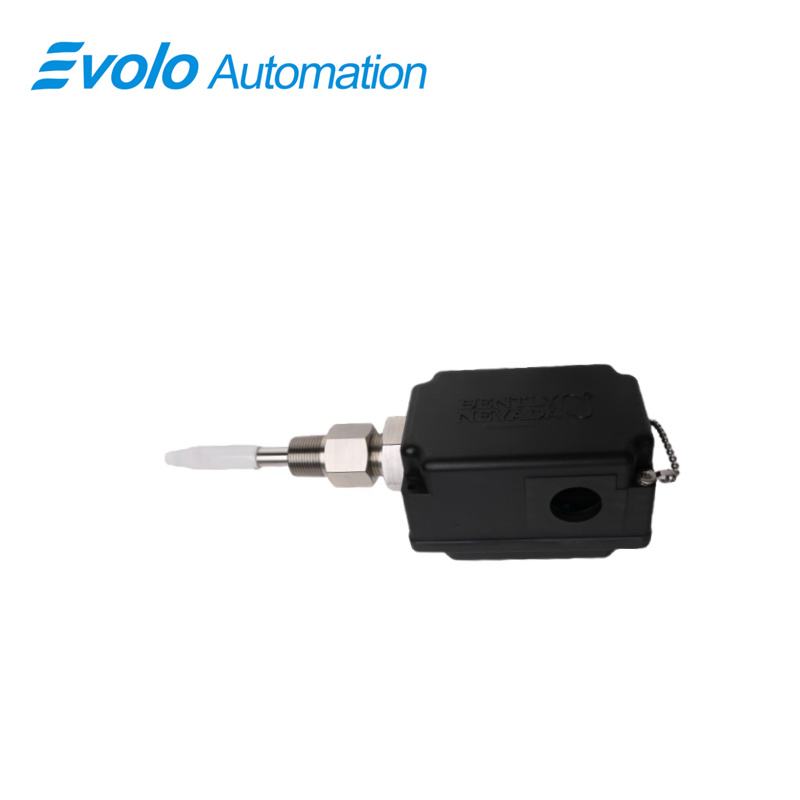

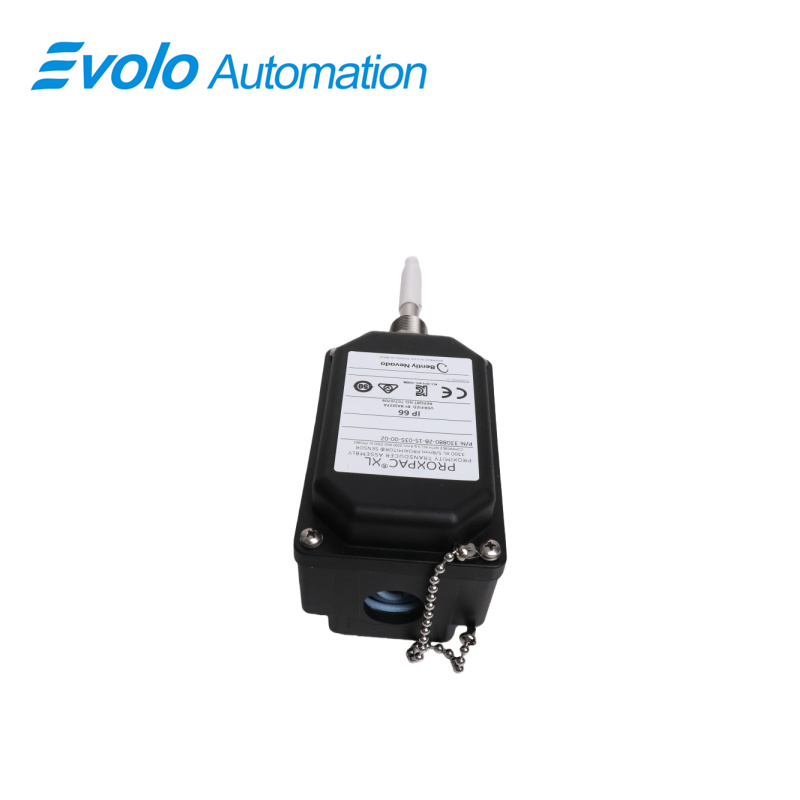

The 330880-16-00-060-03-02 PROXPAC XL Proximity Transducer is a fully integrated automation sensor designed for high-precision monitoring of rotating machinery, including turbines, compressors, and pumps. This self-contained 3300 XL assembly combines the proximity probe and Proximitor sensor within a Polyphenylene Sulfide (PPS) housing, eliminating the need for an extension cable or separate Proximitor enclosure. It provides a linear range of 2 mm (80 mils), recommended 1.27 mm (50 mils) gap, and 50 Ω output resistance for precise vibration and shaft position measurements. The probe supports shaft diameters from 50.8 mm to 76.2 mm, operates in extreme temperatures from -52°C to +100°C, and meets IP66 and Type 4X housing ratings for protection against dust, water, and corrosive environments. The PPS housing, reinforced with glass and conductive fibers, dissipates electrostatic charges and improves durability. Field wiring accommodates 0.2–1.5 mm² (16–24 AWG), and supply sensitivity is less than 2 mV/V. This fully integrated design simplifies installation, reduces maintenance, and ensures consistent, reliable performance for automation, machinery protection, and predictive maintenance systems.

Applications

Vibration and Position Monitoring on Turbines
Measures radial and axial vibration on shafts from 50.8 mm to 76.2 mm, enabling early detection of imbalance or misalignment in high-speed turbines.

Compressor Shaft Monitoring
Provides precise displacement readings on centrifugal and refrigeration compressors, supporting predictive maintenance and machinery health monitoring.

Self-Contained Proximity System Installation
Eliminates the need for an extension cable or separate Proximitor housing, simplifying retrofits and new installations in confined or complex machinery layouts.

Harsh Environment Operation
Rated IP66 and Type 4X, with PPS housing resistant to chemicals, moisture, and dust, suitable for offshore, petrochemical, or industrial applications.

Keyphasor and Speed Measurement
Generates phase reference signals for rotor speed monitoring, ensuring reliable Keyphasor output for control and automation systems.

Specifications

Competitive Advantage

Integrated Probe and Proximitor Sensor
Combines probe and Proximitor sensor into a single assembly, reducing installation time and eliminating wiring errors.

Durable PPS Housing
Advanced Polyphenylene Sulfide material with glass and conductive fibers resists corrosion, dissipates electrostatic charges, and withstands harsh industrial conditions.

Wide Operational Temperature Range
Operates reliably from -52°C to +100°C and stores up to +105°C, making it suitable for extreme industrial environments.

Precise Electrical Performance
50 Ω output resistance and less than 2 mV/V supply sensitivity ensure consistent, accurate measurements under varying voltage and load conditions.

IP66 and Type 4X Protection
Certified for dust-tight, water-resistant, and corrosive environments, protecting the transducer in severe operating conditions and minimizing maintenance downtime.
