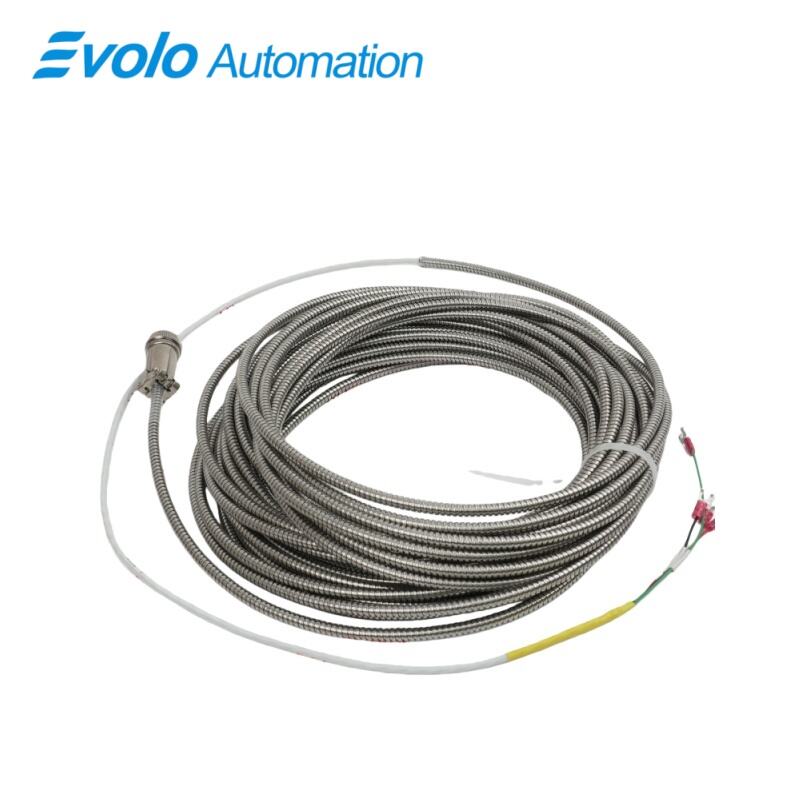

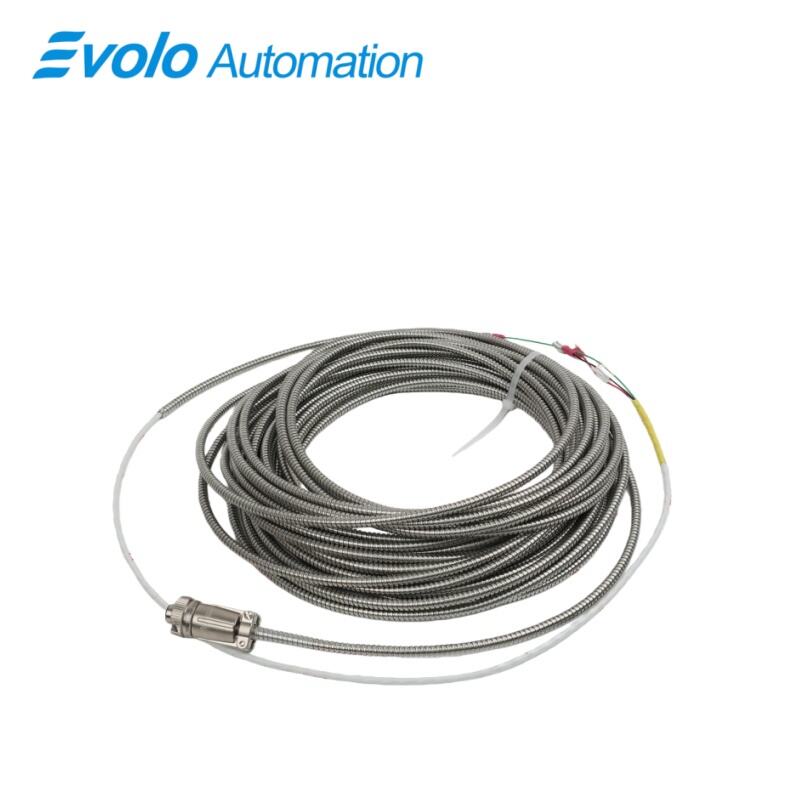

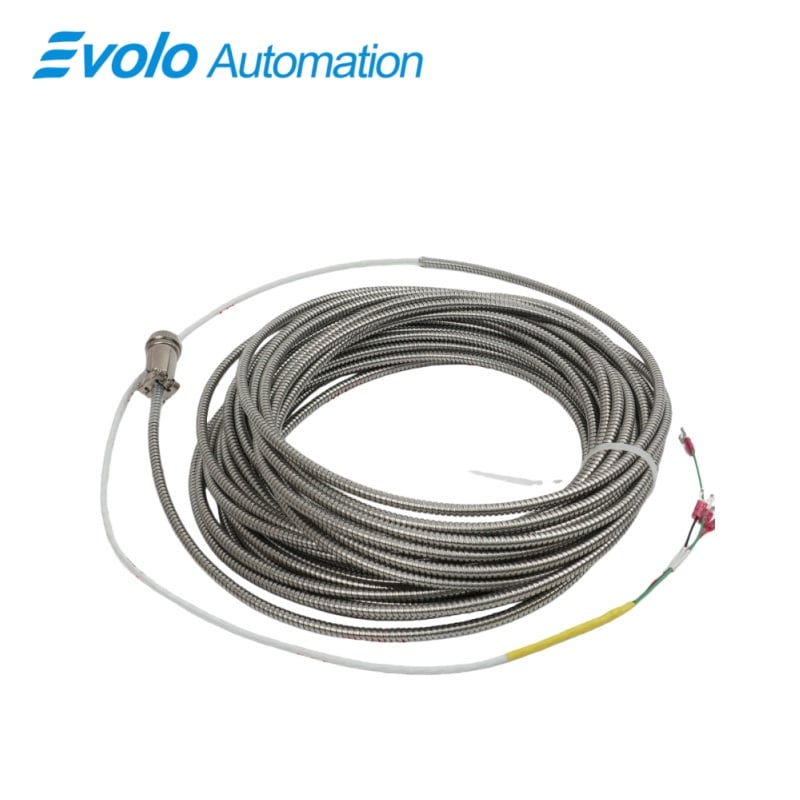

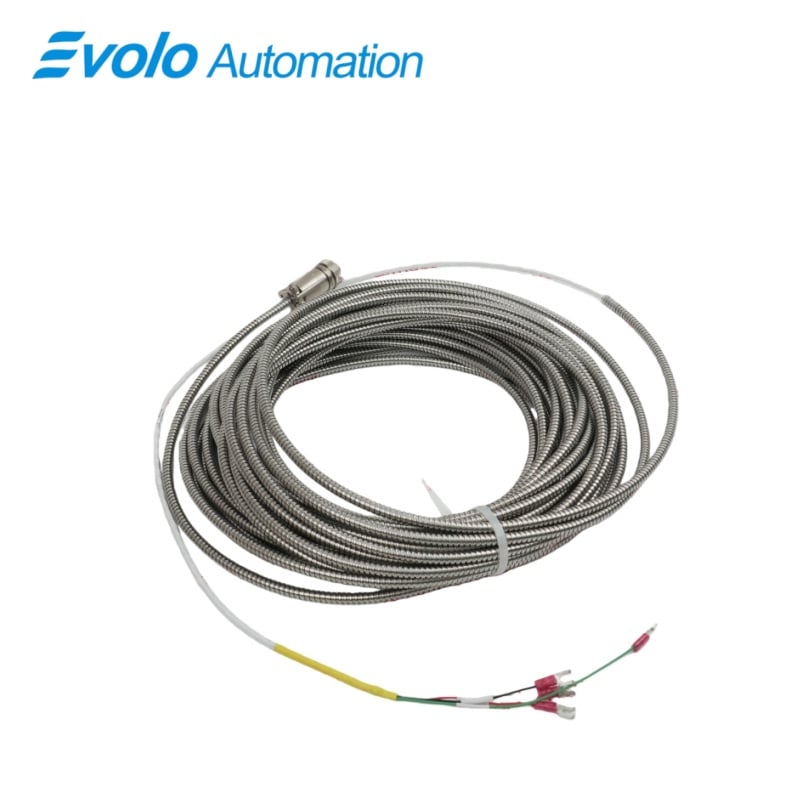

16710-66 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-66
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16710-66 Interconnect Cable is a high-reliability industrial signal transmission solution specifically designed for precision monitoring and machinery protection systems that require stable, low-noise data transfer over extended distances. As a critical interconnection component, the 16710-66 Interconnect Cable ensures accurate and consistent transmission of displacement, vibration, and positional signals between sensors, signal conditioners, and monitoring units in demanding industrial environments. Its design focuses on signal integrity, environmental durability, and long-term operational stability, making it an essential element in condition monitoring architectures.

At the electrical core of the 16710-66 Interconnect Cable is a 24 AWG tinned copper conductor, selected for its excellent conductivity, corrosion resistance, and long service life. The cable maintains a fixed 50 Ω output resistance and a low capacitance of 55 pF/m, enabling precise signal transmission with minimal attenuation or distortion. These electrical characteristics are especially important in vibration and proximity measurement systems, where even minor signal degradation can affect diagnostic accuracy and machinery protection performance. The optimized impedance matching of the 16710-66 Interconnect Cable reduces reflection losses and ensures stable communication between connected components.

Applications

The 16710-66 Interconnect Cable is widely used in rotating machinery monitoring systems to transmit vibration and displacement signals between sensors and monitoring equipment. Its low capacitance and stable 50 Ω resistance ensure accurate signal delivery in turbine, compressor, and pump installations, supporting early fault detection and predictive maintenance programs.

In industrial environments with high electromagnetic interference, such as power plants, steel mills, and petrochemical facilities, the 16710-66 Interconnect Cable provides reliable signal transmission. The ≥86 dB shielding effectiveness protects sensitive measurement signals from electrical noise generated by drives, motors, and high-voltage equipment.

The cable is suitable for harsh environmental conditions, including high-temperature machinery rooms and outdoor installations. With an operating range from -45°C to +126°C and excellent mechanical flexibility, the 16710-66 Interconnect Cable maintains stable performance in confined spaces, vibration-prone installations, and extreme climate conditions.

Specifications

Competitive Advantage

1. High Signal Integrity with Low Electrical Loss

The 16710-66 Interconnect Cable features a low capacitance of 55 pF/m and a fixed 50 Ω output resistance, ensuring minimal signal attenuation and accurate data transmission. This electrical stability supports precise monitoring results and reduces measurement errors in critical condition monitoring systems.

2. Superior EMI Protection for Industrial Environments

With shielding effectiveness of ≥86 dB at 1 GHz, the cable effectively blocks electromagnetic interference from surrounding equipment. This advantage allows reliable operation in electrically noisy environments where standard cables may suffer from signal instability or distortion.

3. Durable Construction and Wide Temperature Tolerance

Designed with a tinned copper conductor and flexible structure, the 16710-66 Interconnect Cable withstands harsh operating conditions. Its wide operating and storage temperature range, combined with strong mechanical flexibility, ensures long service life and dependable performance across diverse industrial applications.
