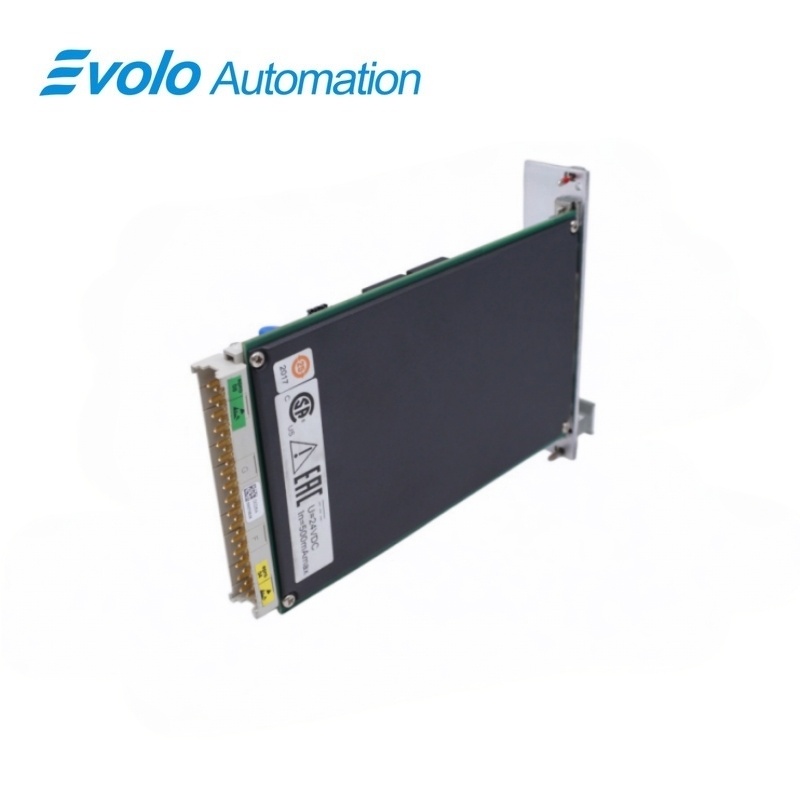

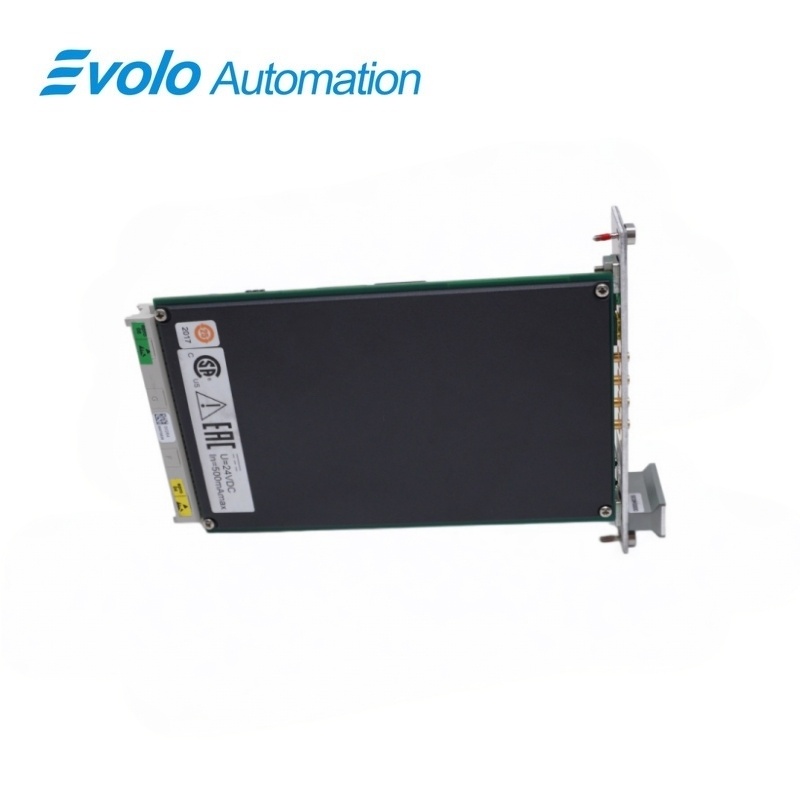

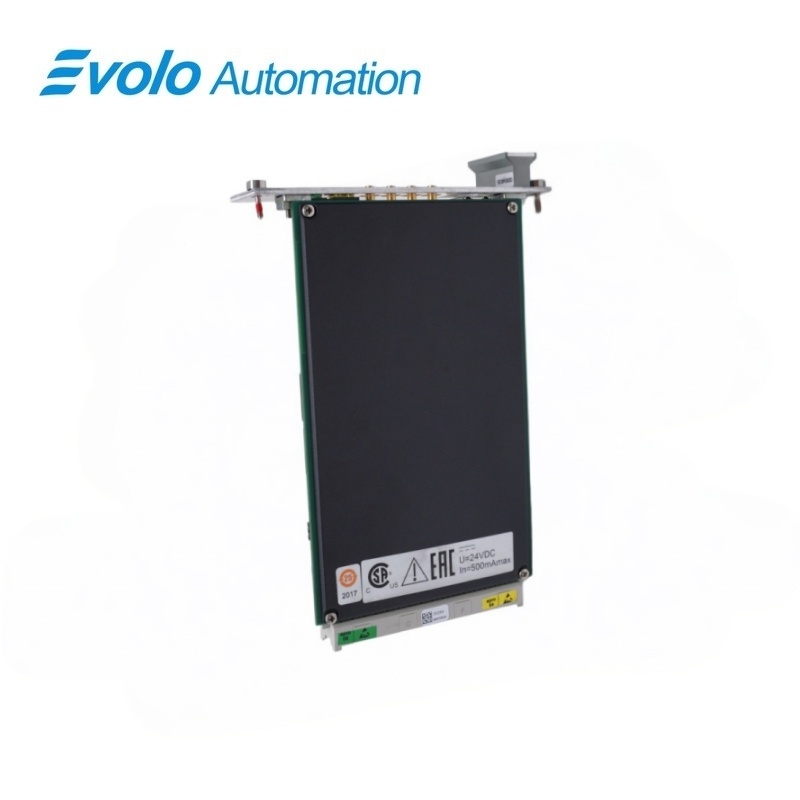

Emerson A6312 6TE Dual-Channel Speed and Key Monitor
Manufacturer: Emerson (EPRO)
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
IMR 6000 MACHINERY PROTECTION
A6312 6TE Dual-Channel Speed and Key Monitor
Official-source product identification, application guidance and ordering checks for A6312.
At a Glance
| Brand | Emerson (EPRO) |
|---|---|
| Model | A6312 |
| Product Type | 6TE Dual-Channel Speed and Key Monitor |
| Core Function | Speed, phase/key, zero-speed and rotation-direction monitoring. |
| Application / Compatible Series | IMR 6000 machinery protection |
Verified identification
A6312 is identified by the complete manufacturer model and the photographed unit.
Application focus
A6312 is intended for speed, phase/key, zero-speed and rotation-direction monitoring.
Ordering control
A6312 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson A6312 6TE is the dual-channel Speed and Key Monitor version intended for IMR 6000/10 and IMR 6000/30 rack systems.
Its two independent eddy-current inputs support speed, key/phase, zero-speed and rotation-direction measurements. The official manual distinguishes this 6TE card from the wider A6312-8 AMS 6500 version.
Key Functions
Dual Speed Channels
Measures rotational speed from supported eddy-current probe systems and configurable trigger wheels with 1–255 marks.
Phase and Rotation Logic
Uses key pulses or paired trigger signals to establish phase information and direction of rotation.
IMR 6000 Rack Format
The 6TE card is specified for IMR 6000/10 and IMR 6000/30 systems rather than the 8TE AMS 6500 position.
Official Specifications
| Rack version | 6TE module for IMR 6000/10 and IMR 6000/30 |
|---|---|
| Inputs | 2 independent eddy-current differential inputs |
| Input frequency | 0–20,000 Hz |
| Maximum indicated speed | 65,535 rpm |
| Module width | 30 mm (6TE) |
| Dual Speed Channels | Measures rotational speed from supported eddy-current probe systems and configurable trigger wheels with 1–255 marks. |
| Phase and Rotation Logic | Uses key pulses or paired trigger signals to establish phase information and direction of rotation. |
| IMR 6000 Rack Format | The 6TE card is specified for IMR 6000/10 and IMR 6000/30 systems rather than the 8TE AMS 6500 position. |
| Measurement Principle | Eddy current |
| Input Channel Count | 2 |
| Input Sensor Type | Eddy-current differential |
| Trigger-Wheel Mark Range | 1–255 |
| Phase Reference Input | Key pulses |
| Rotation Direction Detection | Supported |
| Compatible Rack 1 | IMR 6000/10 |
| Compatible Rack 2 | IMR 6000/30 |
Official source: Emerson Protection Cards for AMS 6500 Classic Systems — A6312/A6312-8. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which existing IMR 6000 machinery protection environment is intended for A6312 6TE?
It is intended for IMR 6000 machinery protection.
In which plant application would an engineer use A6312 6TE as a 6TE Dual-Channel Speed and Key Monitor?
Speed, phase/key, zero-speed and rotation-direction monitoring.
Which cabinet, carrier and wiring conditions must match before A6312 6TE is installed?
Confirm use in IMR 6000/10 or IMR 6000/30. Check probe/converter type and trigger-wheel geometry.
What design information about dual speed channels is required for A6312 6TE?
Measures rotational speed from supported eddy-current probe systems and configurable trigger wheels with 1–255 marks.
Which phase and rotation logic details should engineers confirm for A6312 6TE?
Uses key pulses or paired trigger signals to establish phase information and direction of rotation.
How does A6312 6TE handle imr 6000 rack format?
The 6TE card is specified for IMR 6000/10 and IMR 6000/30 systems rather than the 8TE AMS 6500 position.
How can buyers confirm the correct hardware version of A6312 6TE?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for A6312 6TE
- Read A6312 and verify the 6TE front-width version.
- Confirm use in IMR 6000/10 or IMR 6000/30.
- Check probe/converter type and trigger-wheel geometry.
- Back up speed, key, zero-speed and alarm parameters.
