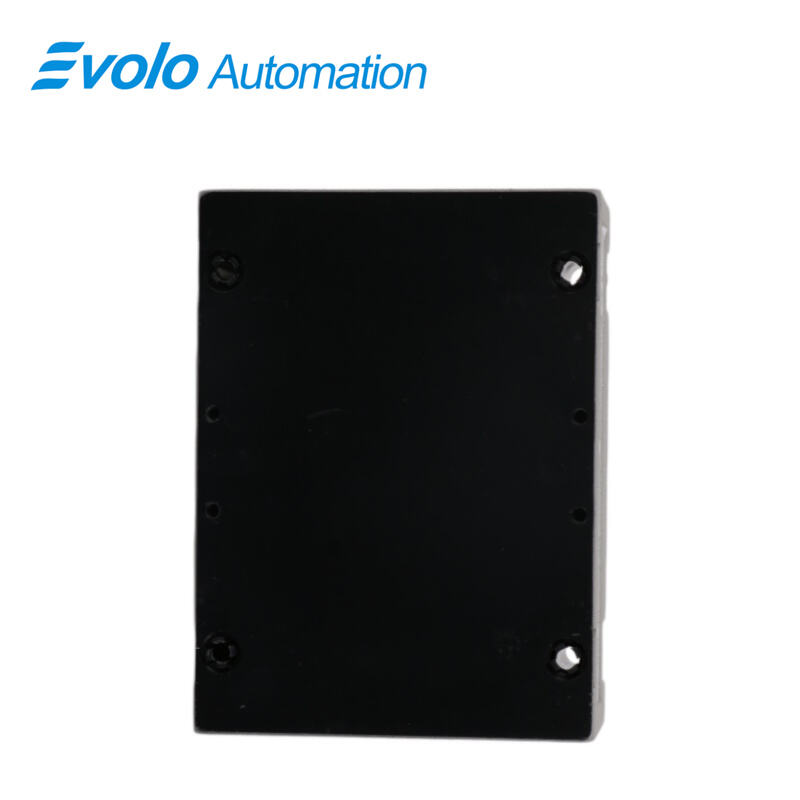

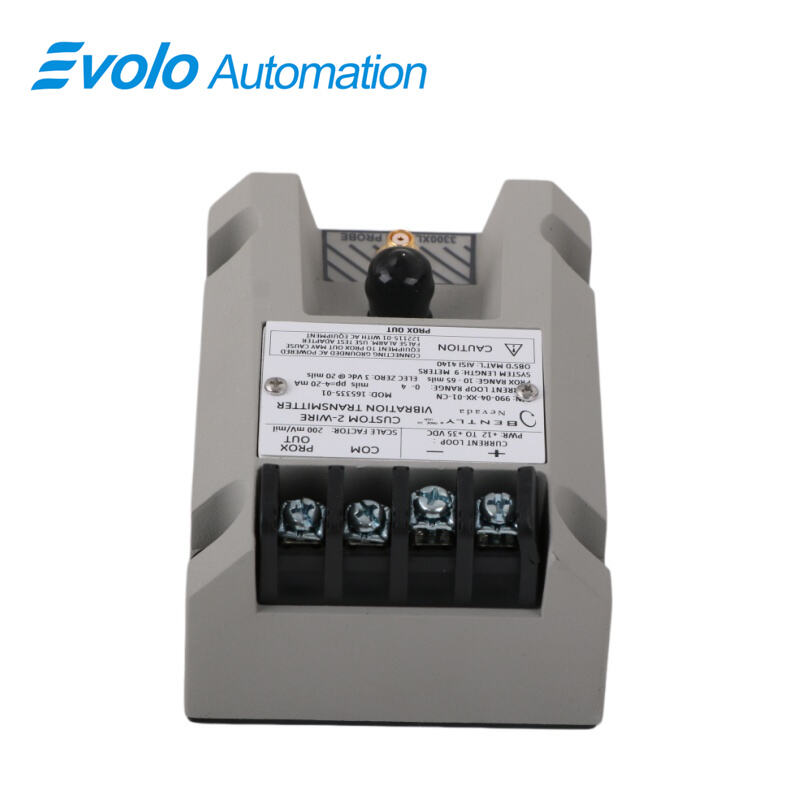

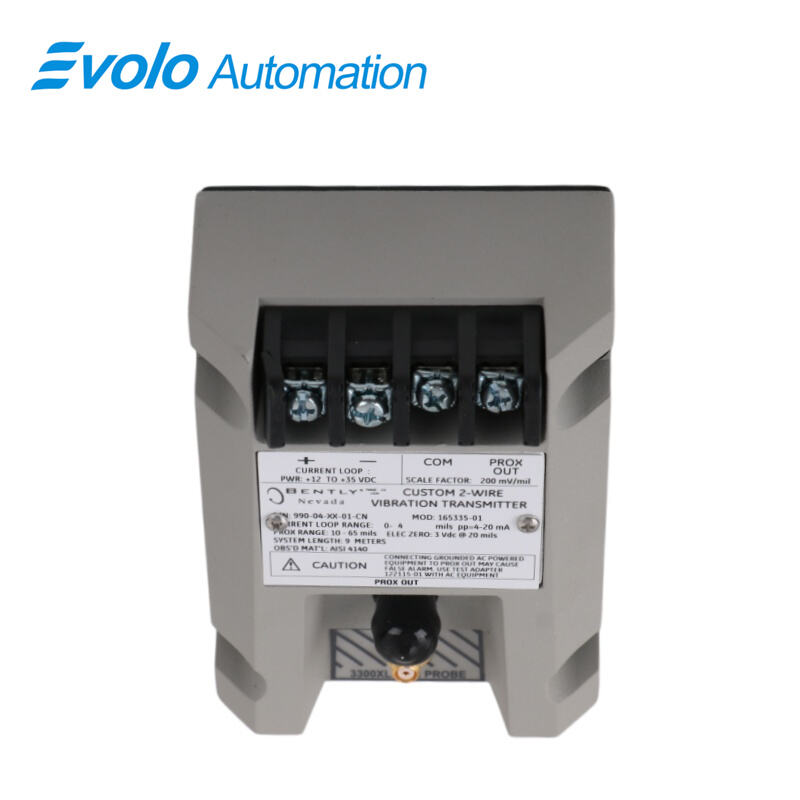

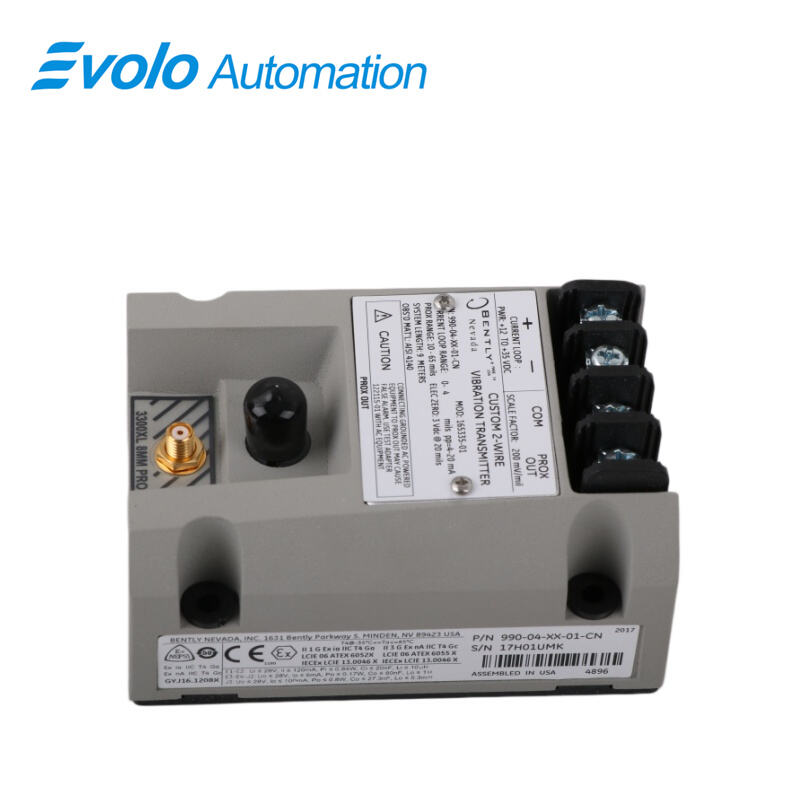

990-04-XX-01-CN MOD 165335-01 Vibration Transmitter

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	990-04-XX-01-CN MOD 165335-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 990-04-XX-01-CN MOD 165335-01 Vibration Transmitter converts displacement from a 3300 NSv Proximity Probe into a 4–20 mA proportional signal for automated machinery control. Supporting full-scale 0–4 mils pp (0–100 μm pp) and a linear range of 0.25–1.65 mm (10–65 mils), the 990-04-XX-01-CN MOD 165335-01 is loop-powered at +12 to +35 Vdc with 23 mA typical current and up to 1,000 Ω loop resistance. Compatible with 7 m extension cables, it mounts on 35 mm DIN rails. Integrated Proximitor Sensor outputs dynamic vibration and gap signals via BNC for diagnostics. Non-interacting zero/span potentiometers allow fast loop adjustment, while the Not OK/Signal Defeat circuit prevents false alarms from loose or faulty probes. Potted construction supports 100% condensing environments, making the 990-04-XX-01-CN MOD 165335-01 ideal for compact centrifugal compressors, pumps, motors, or fans in industrial automation.

Applications

Application – Radial Vibration Monitoring
The 990-04-XX-01-CN MOD 165335-01 monitors radial vibration on shafts under 50 mm diameter, converting amplitude (up to 4 mils pp) into a proportional 4–20 mA signal for real-time control and predictive maintenance.

Application – Axial Displacement Measurement
Using the 990-04-XX-01-CN MOD 165335-01, operators can measure axial position on flat targets smaller than 15 mm, with a linear range of 0.25–1.65 mm, providing precise inputs to automated machinery logic.

Application – Compact System Installation
With its integrated Proximitor Sensor and support for 7 m cables, the 990-04-XX-01-CN MOD 165335-01 fits into tight spaces typical of centrifugal compressors, small motors, and pumps.

Specifications

Competitive Advantage

Competitive Advantage – Integrated Sensor
The 990-04-XX-01-CN MOD 165335-01 eliminates external units, reducing wiring complexity. Its integrated Proximitor Sensor processes vibration from a 3300 NSv Proximity Probe directly, providing accurate 4–20 mA signals.

Competitive Advantage – Extended Loop and Cable Capacity
The 990-04-XX-01-CN MOD 165335-01 supports up to 1,000 Ω loop resistance and 7 m cable lengths, ensuring minimal signal loss even in remote installations.

Competitive Advantage – Field Calibration Efficiency
Non-interacting zero and span potentiometers on the 990-04-XX-01-CN MOD 165335-01 allow fast calibration, and BNC outputs provide dynamic vibration and gap voltage data for diagnostics.

Competitive Advantage – High-Accuracy Output
With full-scale 0–4 mils pp and linear range 0.25–1.65 mm, the 990-04-XX-01-CN MOD 165335-01 delivers precise inputs to control systems, ensuring accurate machinery monitoring.

Competitive Advantage – Harsh Environment Operation
Potted construction and operation up to 100% condensing humidity make the 990-04-XX-01-CN MOD 165335-01 suitable for industrial environments with high moisture and temperature variations.
