Emerson Motion Control 960177-02 PCM Positioning Drive Module
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
960177-02 PCM Positioning Drive Module

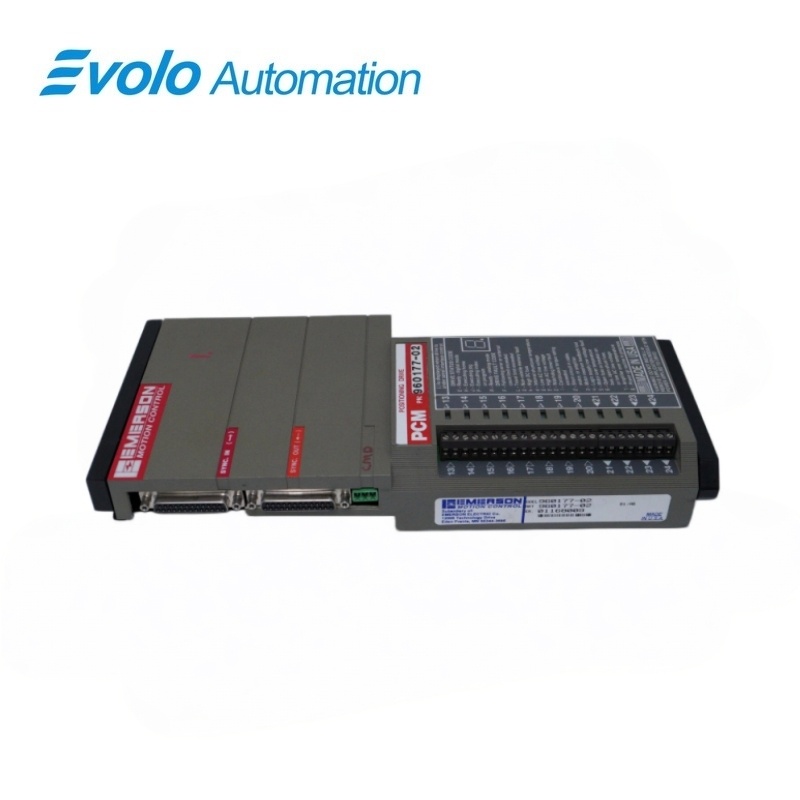

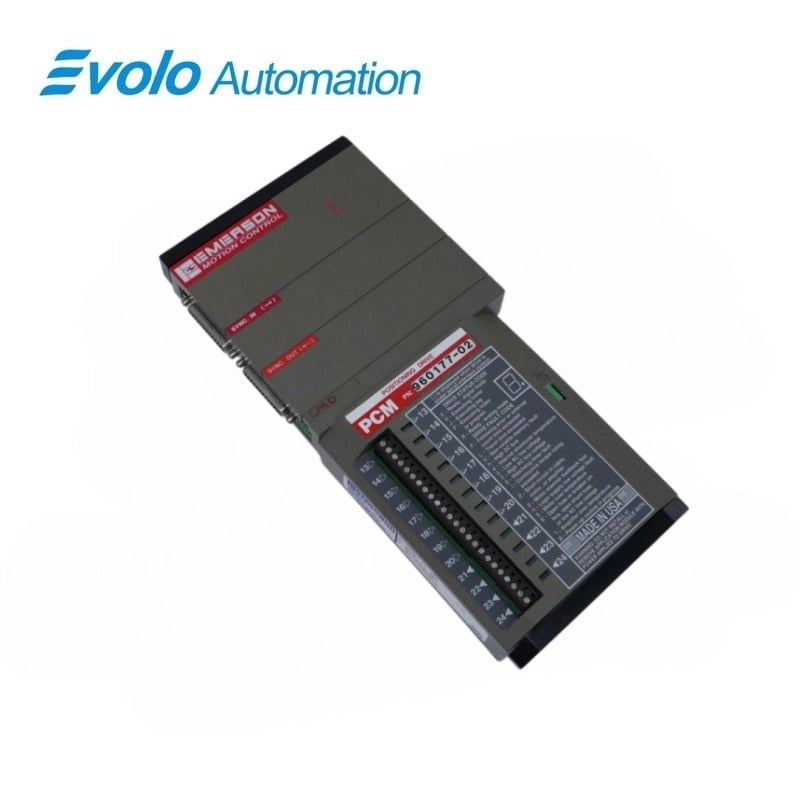

Photographed product identification and front-panel hardware details for accurate replacement matching.
At a Glance
| Brand | Emerson Motion Control |
|---|---|
| Model | 960177-02 |
| Product Type | PCM Positioning Drive Module |
| Core Function | Positioning-drive control with dedicated synchronization I/O, field terminals and front-panel diagnostics |
| Application / Compatible Series | Emerson Motion Control PCM positioning-drive systems requiring part number 960177-02 |
Exact Identification
Match the PCM marking, complete part number 960177-02 and all revision or serial markings.
Synchronization Layout
Confirm the labeled SYNC IN and SYNC OUT connectors and their physical arrangement.
Diagnostic Check
Verify terminals 13–24, the status-code display and the printed diagnostic legend.
Product Overview
960177-02 is an Emerson Motion Control PCM positioning drive module. The photographed unit shows dedicated SYNC IN and SYNC OUT connectors, a dual-row terminal block numbered 13 through 24, and a front status-code display.
Key Functions
Positioning-Drive Control
The PCM module provides the hardware interface for positioning-drive control within the matching Emerson Motion Control system.
Synchronization Interfaces
Dedicated SYNC IN and SYNC OUT connectors are identified on the covered upper connector section.
Front-Panel Diagnostics
A numeric status-code display, printed diagnostic legend and front status indicator support operating-state and fault checks.
Official Specifications
| Module Marking | PCM |
|---|---|
| Synchronization Input | Connector labeled SYNC IN |
| Synchronization Output | Connector labeled SYNC OUT |
| Synchronization Connector Count | 2 |
| Synchronization Connector Format | D-sub |
| Synchronization Interface Location | Covered upper connector section |
| Field Terminal Numbers | 13 through 24 |
| Field Terminal Position Count | 12 labeled positions |
| Terminal Block Layout | Dual-row front terminal block |
| Terminal Block Location | Lower front panel |
| Status Display Type | Single-character numeric status-code display |
| Diagnostic Reference | Printed drive and system status-code legend |
| Command Section Marking | CMD |
| Front Status Indicator | Green indicator adjacent to the diagnostic panel |
| Enclosure Form | Enclosed rectangular industrial drive module |
Identification source: Photographed Emerson Motion Control PCM nameplate and front-panel markings for part number 960177-02.
Frequently Asked Questions
Which product family does 960177-02 belong to?
It is marked as an Emerson Motion Control PCM positioning drive module.
Which synchronization connections are provided on 960177-02?
Dedicated SYNC IN and SYNC OUT connectors are identified on the covered upper connector section.
How are the field terminals identified on 960177-02?
The front terminal block uses twelve labeled positions numbered 13 through 24.
What diagnostic display is available on 960177-02?
A single-character numeric status-code display and a printed drive/system diagnostic legend are provided on the front panel.
Which hardware details should be matched before installing 960177-02?
Match the PCM marking, complete part number, connector layout, terminal numbering and all visible revision or serial markings.
How should engineers verify connector compatibility for 960177-02?
Compare both synchronization connectors and the dual-row terminal block with the removed module and the cabinet wiring.
What should be checked before commissioning 960177-02?
Confirm connector engagement, terminal wiring, the front status indicator and the diagnostic display before returning the positioning system to service.
Compatibility & Ordering Notes
Compatibility Checklist for 960177-02
- Confirm the PCM positioning-drive marking and complete part number 960177-02.
- Compare the labeled SYNC IN and SYNC OUT connectors with the removed module.
- Match the dual-row terminal block and terminal numbers 13 through 24.
- Verify the status-code display, diagnostic legend and cabinet wiring before commissioning.
Identification source: Photographed Emerson Motion Control PCM nameplate and front-panel markings
