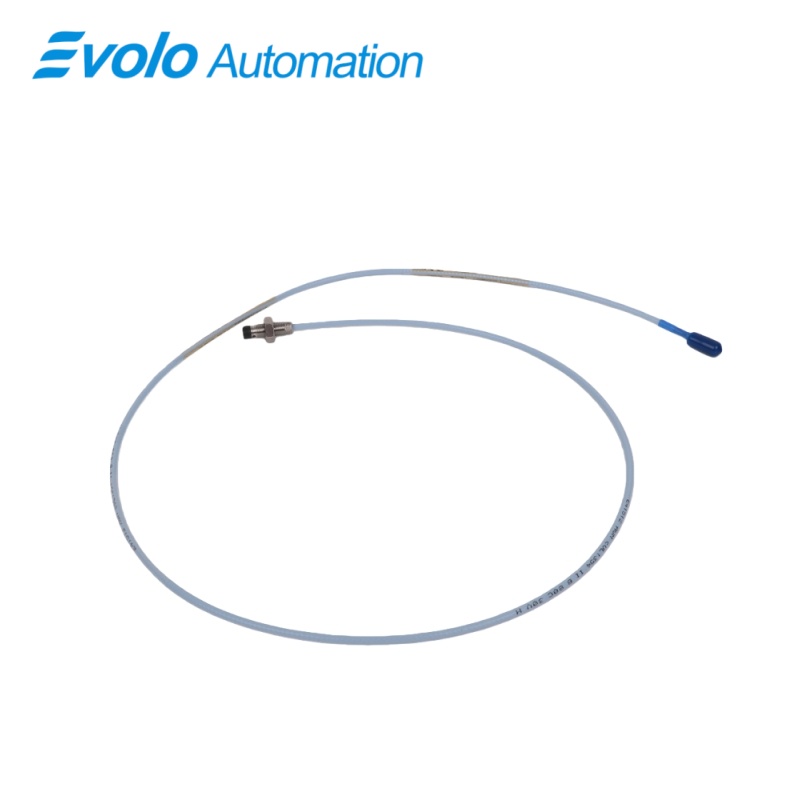

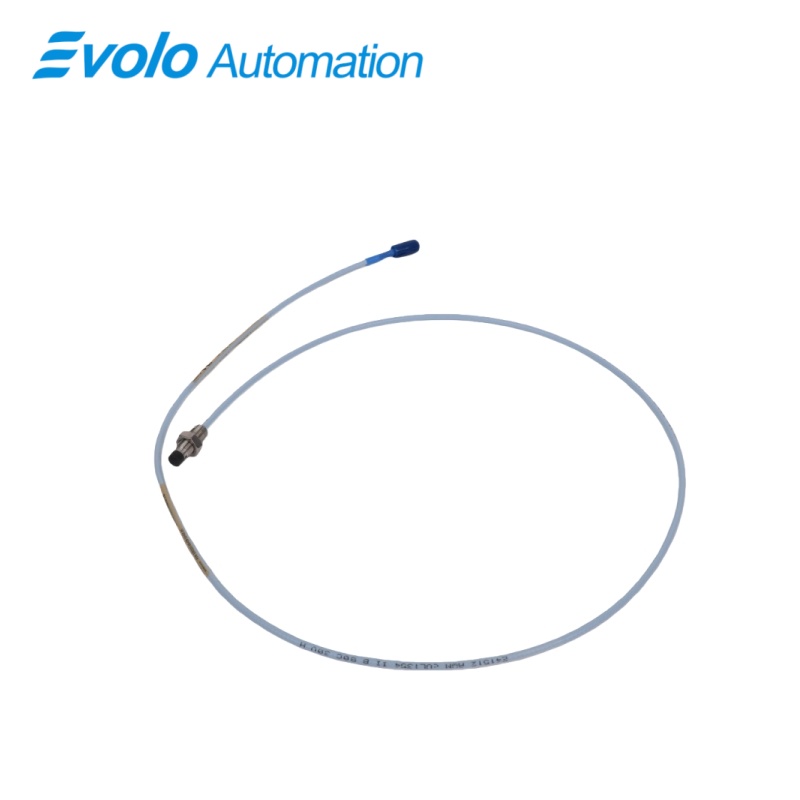

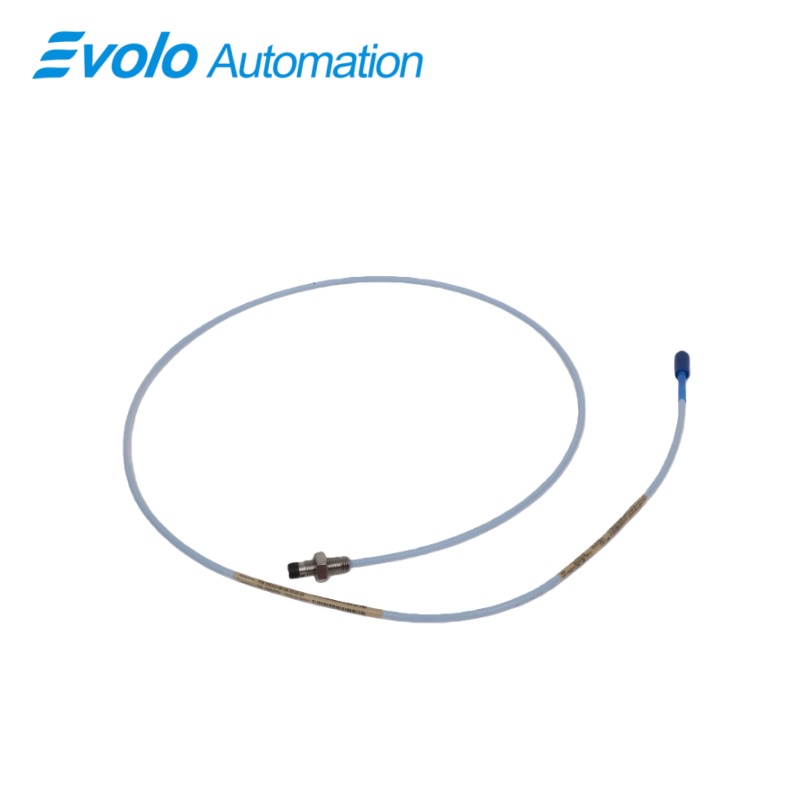

330101-00-09-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-09-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-09-10-02-05 is a precision-engineered eddy current sensor belonging to the industry-standard 3300 XL 8 mm Proximity Probes series by Bently Nevada. This specific configuration features a 0.9-inch overall case length with a 0-inch unthreaded length, designed specifically for flush-mount or tight-clearance installations in critical rotating machinery. As a cornerstone of the 3300 XL 8 mm Proximity Probes ecosystem, this transducer converts the physical distance between the probe tip and a conductive target into a high-fidelity electrical signal, enabling real-time monitoring of shaft vibration and position.

Engineered for extreme reliability, the 330101-00-09-10-02-05 utilizes a Polyphenylene sulfide (PPS) tip and an AISI 303 or 304 stainless steel body. These materials allow the 3300 XL 8 mm Proximity Probes to operate flawlessly within a temperature range of -50°C to +165°C, making them ideal for high-heat environments like steam turbine housings or internal pump compartments. This model comes with a 1.0-meter total length standard cable and a miniature coaxial ClickLoc connector, ensuring a secure, vibration-resistant link to the extension cable and Proximitor sensor.

Compliance with the API 670 standard ensures that the 3300 XL 8 mm Proximity Probes provide exceptional linearity and interchangeability. The 330101-00-09-10-02-05 provides a 2 mm (80 mils) linear range, delivering the accuracy required for sophisticated condition monitoring. With global hazardous area approvals including CSA, ATEX, and IECEx, these 3300 XL 8 mm Proximity Probes are the preferred choice for oil and gas, petrochemical, and power generation sectors. By integrating the 330101-00-09-10-02-05 into your asset protection strategy, you ensure high-performance data acquisition that reduces the risk of unplanned downtime and extends the operational life of your most critical machinery.

Applications

The 330101-00-09-10-02-05 is primarily deployed for Radial Vibration Monitoring in fluid-film bearing machines. Its compact 0.9-inch case length allows it to be installed in space-constrained bearing housings where larger probes cannot fit. By capturing minute shaft movements, it provides essential data for detecting rotor unbalance, misalignment, and bearing wear in high-speed compressors and turbines.

This probe is highly effective for Axial (Thrust) Position Measurement within heavy industrial equipment. It monitors the "float" of the shaft to prevent catastrophic metal-to-metal contact between rotating and stationary parts. Thanks to its CSA, ATEX, and IECEx certifications, it is safely used in explosive atmospheres common in offshore oil platforms and chemical refineries, providing a reliable safety interlock for critical machinery protection.

The 330101-00-09-10-02-05 serves as a high-precision Keyphasor Reference sensor. By detecting a notch or protrusion on the shaft, it provides a once-per-turn pulse used for phase measurements and speed tracking. Its wide temperature range (up to +165°C) ensures stable performance near hot turbine shafts, offering accurate timing data for diagnostic software and overspeed protection systems.

Specifications

Competitive Advantage

Global Safety Compliance and Hazardous Area Certification The 330101-00-09-10-02-05 is fully certified by CSA, ATEX, and IECEx, allowing for immediate deployment in Zone 0, 1, and 2 hazardous locations. This advantage simplifies the engineering process for international projects and ensures that your machinery protection system meets the highest global safety standards for explosive environments.

Extreme Temperature Resilience and Material Durability Unlike standard sensors, this probe is rated for operation up to +165°C (+351°F). The combination of a PPS tip and AISI 303/304 stainless steel housing provides superior resistance to thermal degradation and chemical corrosion. This rugged construction significantly extends the sensor's lifespan in harsh conditions, reducing the frequency of maintenance and replacement.

Optimized Compact Design for Tight Installations With a 0-inch unthreaded length and a total case length of only 0.9 inches, this model offers maximum installation flexibility. It is specifically designed to solve mounting challenges in high-density machinery where space is at a premium. This compact footprint, combined with the ClickLoc connector system, ensures a fast and secure installation without sacrificing signal integrity.in high-vibration industrial settings.
