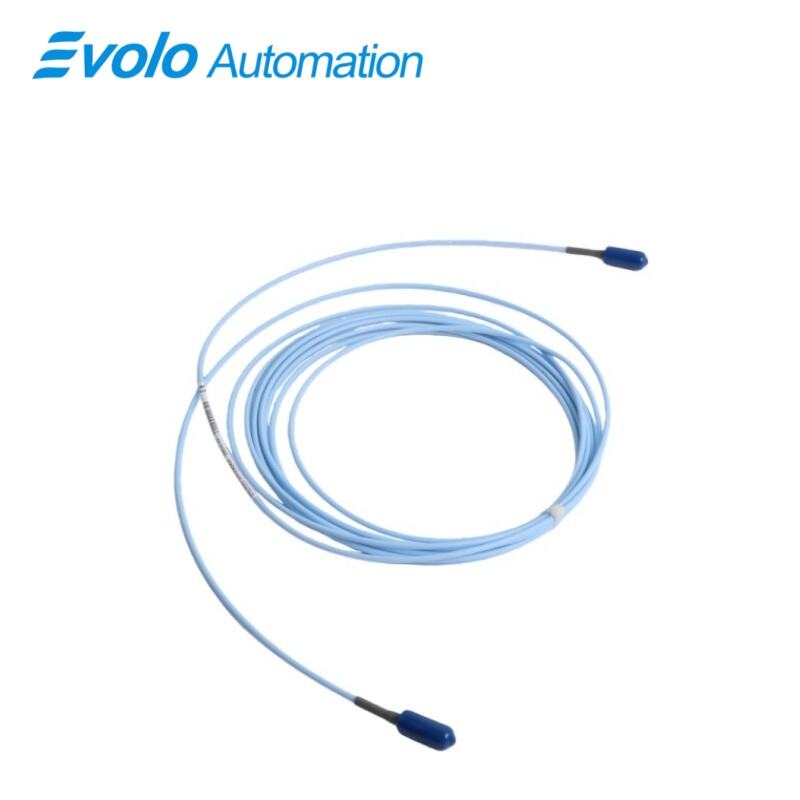

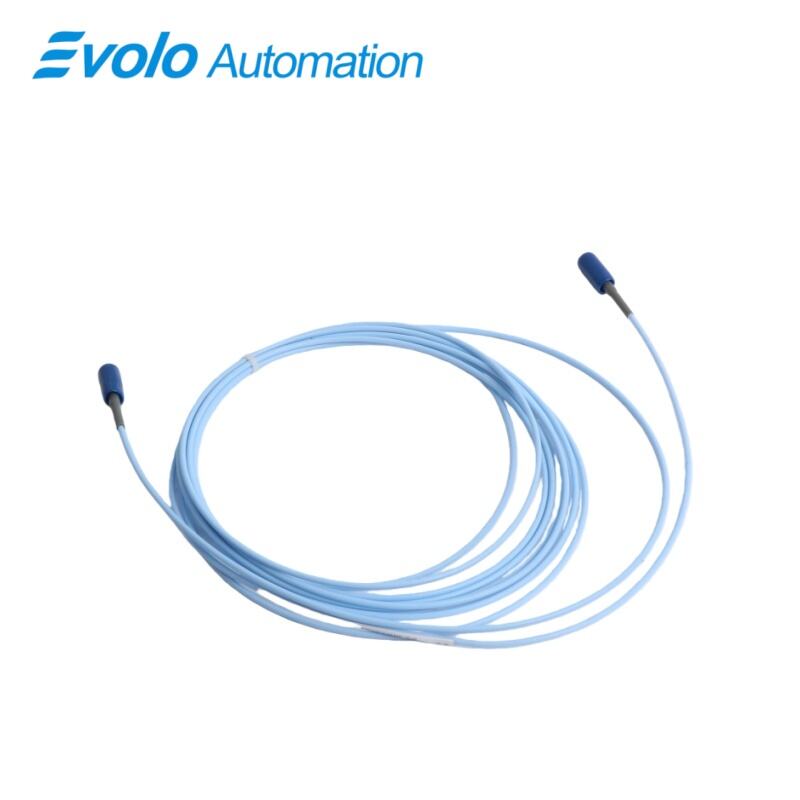

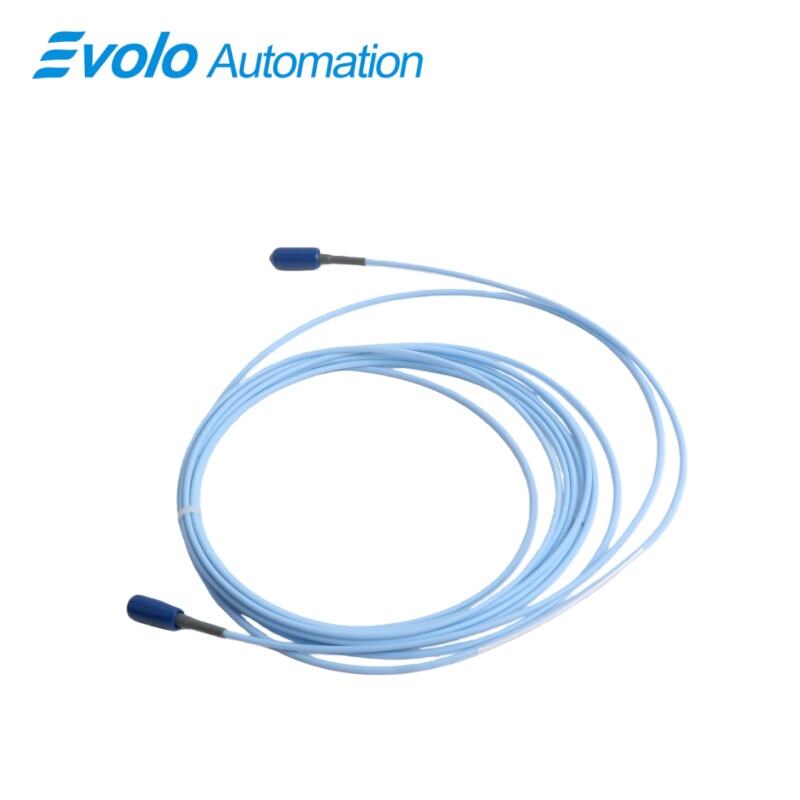

330930-040-03-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-040-03-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-040-03-05 3300 NSv Extension Cable is a purpose-built signal transmission component engineered to ensure reliable and accurate data transfer within 3300 NSv proximity measurement systems. As a dedicated member of the 3300 NSv Extension Cable family, this model is designed to extend the connection between NSv proximity probes and monitoring electronics while preserving signal integrity in demanding industrial environments. Its construction, electrical characteristics, and environmental performance are optimized to support precision vibration and displacement monitoring in critical machinery applications.

The 3300 NSv Extension Cable features a 4.0-meter (13.1 feet) cable length, providing essential flexibility for machinery layouts where probes and monitoring modules cannot be installed in close proximity. This additional reach allows routing across structural frames, enclosures, and safety barriers without compromising system performance. The cable is engineered with carefully controlled electrical properties, including a typical capacitance of 69.9 pF/m and a center conductor DC resistance of 0.220 Ω/m, ensuring minimal signal attenuation and stable transmission over the full cable length. These characteristics are critical for maintaining accurate displacement and vibration measurements in NSv proximity systems.

Applications

The 330930-040-03-05 3300 NSv Extension Cable is used to transmit vibration and displacement signals between NSv proximity probes and monitoring electronics in rotating machinery such as turbines, compressors, pumps, and generators. Its controlled capacitance and low conductor resistance ensure accurate signal delivery for condition monitoring and machinery protection systems.

In harsh industrial environments where cables are exposed to vibration, mechanical stress, moisture, or industrial fluids, the 3300 NSv Extension Cable provides reliable performance. The FEP jacket and optional stainless steel armor make it suitable for installation in power plants, petrochemical facilities, and heavy manufacturing sites.

The 4.0-meter cable length supports flexible installation in complex machinery layouts where probes and monitoring modules are separated by enclosures, safety zones, or structural components. This makes the 330930-040-03-05 3300 NSv Extension Cable ideal for both new installations and retrofit projects requiring extended routing distance.

Specifications

Competitive Advantage

1. Robust Mechanical Protection for Industrial Use

The 3300 NSv Extension Cable combines an FEP jacket with optional stainless steel armor to protect against abrasion, vibration, and mechanical damage, ensuring long-term reliability in demanding operating conditions.

2. Stable Electrical Performance for Accurate Monitoring

With controlled capacitance of 69.9 pF/m and low DC resistance of the center conductor, the 330930-040-03-05 3300 NSv Extension Cable preserves signal integrity, minimizing attenuation and distortion over extended cable runs.

3. Secure Connectivity and Wide Temperature Capability

The miniature coaxial ClickLoc connector with protector provides a vibration-resistant connection, while the wide operating temperature range from -50°C to +175°C allows the 3300 NSv Extension Cable to perform reliably across extreme industrial environments.
