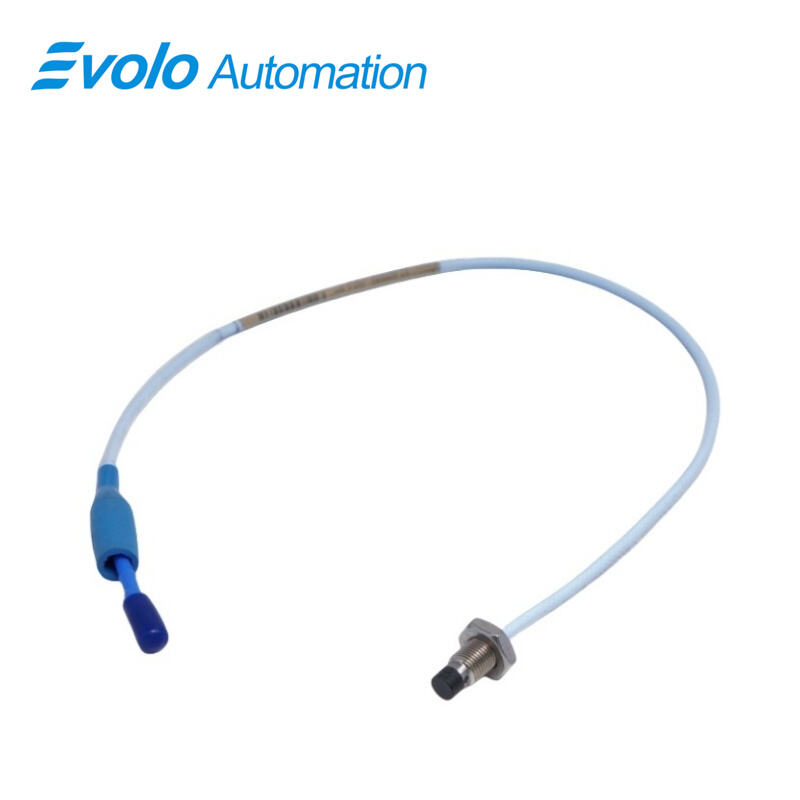

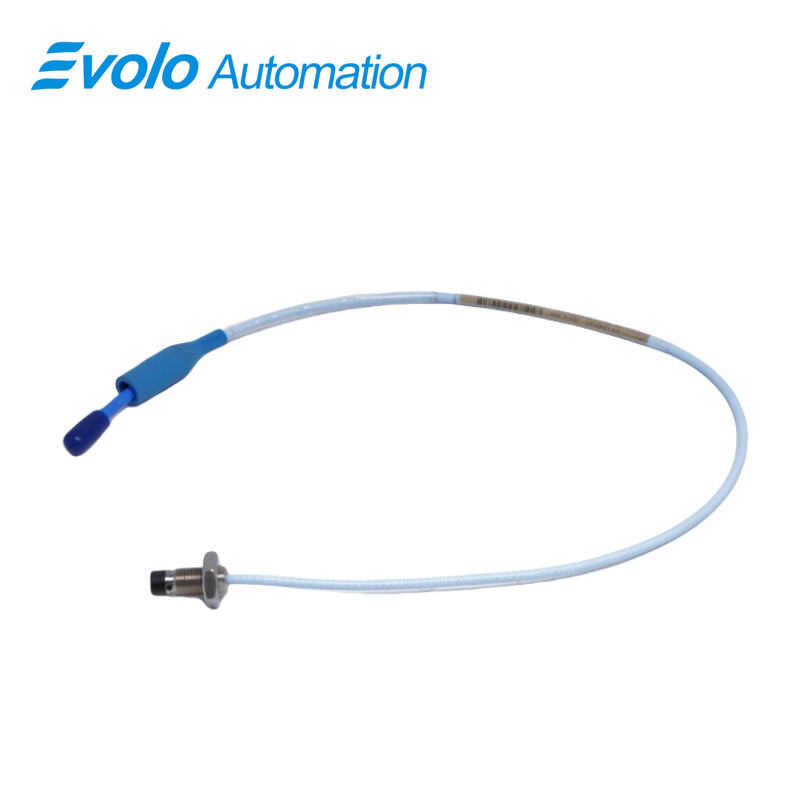

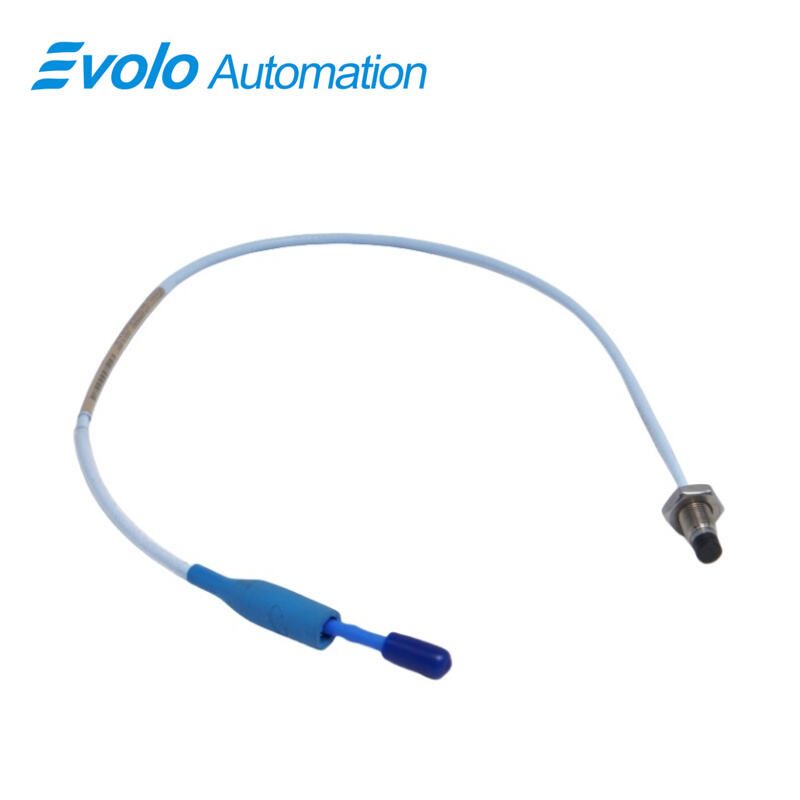

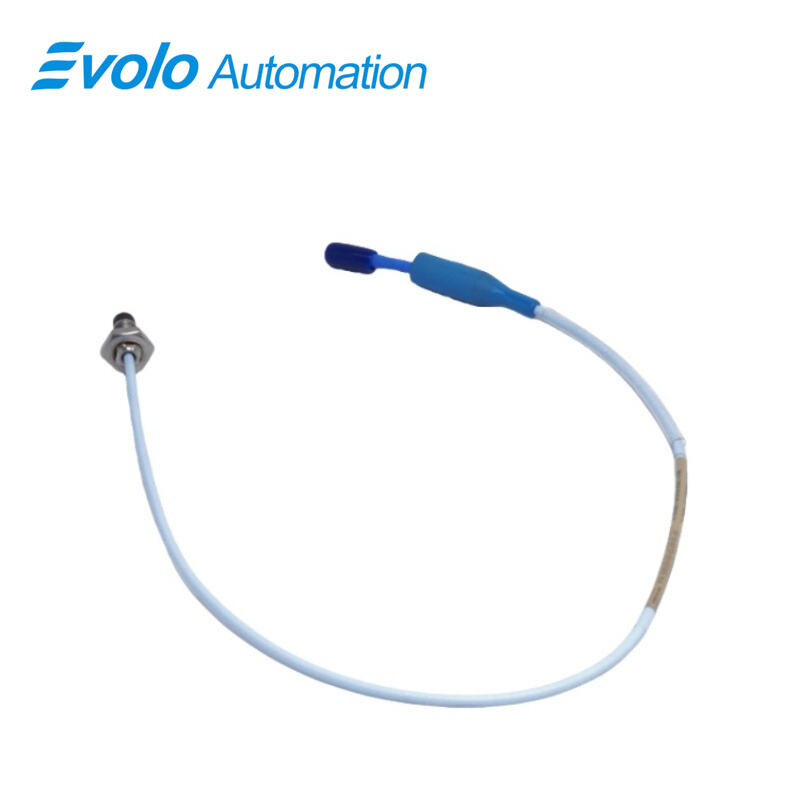

330103-00-02-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-02-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-02-05-02-00 3300 XL 8 mm Proximity Probe represents a high-precision solution for monitoring vibration and position in industrial machinery, particularly for fluid-film bearing equipment. This advanced eddy current proximity transducer system outputs a voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static positions and dynamic vibration signals. Its exceptional sensitivity and linearity make it ideal for applications requiring precise position monitoring, Keyphasor reference signals, and rotational speed measurements.

Engineered for superior performance, the 3300 XL 8 mm Proximity Probe system adheres fully to the API 670 standard, ensuring mechanical robustness, linear range accuracy, and temperature stability. The standard configuration includes a 5-meter probe cable, offering flexibility for installation in a variety of industrial settings. One of the key advantages of the 3300 XL 8 mm system is its complete interchangeability with Proximitor sensors, extension cables, and other probe components, eliminating the need for individual calibration or component matching. This backward compatibility also extends to older 3300 series 5 mm and 8 mm probes, allowing for seamless integration in systems where space constraints may require smaller probe sizes.

The probe incorporates significant design improvements over previous models. A patented TipLoc molding technique reinforces the connection between the probe tip and body, enhancing durability under rigorous operational conditions. In addition, the CableLoc design of the probe cable provides a pull strength of 330 N (75 lbf), ensuring secure attachment and reducing the risk of mechanical damage during installation or operation. For applications where fluid containment is critical, the optional FluidLoc cable prevents oil and other liquids from migrating along the cable path, maintaining system integrity and protecting surrounding equipment.

Ideal for harsh industrial environments, the 3300 XL 8 mm Proximity Probe delivers reliable, high-fidelity measurements for predictive maintenance, machinery diagnostics, and vibration analysis. Its robust design, coupled with high interchangeability and compliance with industry standards, makes it an essential component for engineers seeking precise and dependable monitoring solutions in critical rotating machinery applications.

Applications

The 3300 XL 8 mm Proximity Probe is engineered for high-precision, non-contact measurement of both static and dynamic parameters in industrial machinery. The system produces an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate measurement of shaft position, vibration, and displacement. Its advanced eddy current design makes it ideal for monitoring fluid-film bearing machines, providing reliable Keyphasor reference signals and speed measurements.

The 3300 XL 8 mm system is fully compliant with API 670 standards, ensuring linearity, temperature stability, and accuracy in demanding industrial environments. Its modular design supports interchangeability of probes, extension cables, and Proximitor sensors without the need for individual calibration, and it is backward compatible with previous 5 mm and 8 mm 3300 series transducer components. This feature allows flexible deployment where space constraints or legacy systems exist.

Enhanced durability is achieved through a patented TipLoc molding that strengthens the probe tip-to-body bond, and a CableLoc design that secures the probe cable with 330 N pull strength. An optional FluidLoc cable prevents fluid leakage through the probe cable in oil-lubricated machinery. Operating in temperatures ranging from -52°C to +177°C (-62°F to +350°F), and constructed with PPS probe tip and AISI 303/304 stainless steel housing, the 3300 XL 8 mm probe ensures robust performance in harsh industrial environments.

Typical applications include:

• Vibration monitoring in turbines, pumps, and compressors

• Shaft position tracking in fluid-film bearing machines

• Speed and phase reference signals for rotating machinery

• Dynamic condition monitoring for preventive maintenance programs

Overall, the 3300 XL 8 mm Proximity Probe combines precision, reliability, and flexibility, making it a benchmark solution for industrial condition monitoring and machinery protection.

Specifications

Competitive Advantage

The 3300 XL 8 mm Proximity Probe delivers industry-leading precision for vibration and position monitoring on fluid-film bearing machines. Its output is directly proportional to distance, allowing accurate measurement of both static and dynamic conditions. Fully API 670 compliant, the system ensures reliable performance, temperature stability, and easy interchangeability with other 3300 series components.

Durable and robust, the probe features patented TipLoc and CableLoc designs for secure connections and long-lasting operation, while the optional FluidLoc cable prevents oil leakage, enhancing safety and reducing maintenance. Compact yet rugged, with stainless steel housing and PPS probe tip, it performs reliably across extreme temperatures from -52°C to +177°C (-62°F to +350°F). With flexible installation options and backward compatibility, the 3300 XL 8 mm combines precision, durability, and versatility for demanding industrial applications.
