Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
8C-TPOX01 51307022-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
8C-TPOX01 51307022-175 |
|
Part Type |
Profibus Gateway Module |
|
Dimensions |
14.5 x 12 x 5.5 cm |
|
Weight |
0.16 kg |
|
Voltage Rating |
24 V DC |
|
Module Current Rating |
430 mA |
|
Supervisory Network Type |
Series 8 PGM standard FTE node |
|
Mounting Method |
Standard Series 8 mounting assembly (IOTA); Series 8 cabinet |
|
Power & Grounding |
Standard Series 8 power system required |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Module Removal/Insertion Under Power |
Supported |
|
PROFIBUS DP (V2) Support |
Not supported in release R110 |
|
DP Network Redundancy |
Supported via 3rd party Redundancy Link Modules (e.g., ABB RLM, Siemens Y Link) |
|
DP Slave Redundancy Support |
Supported at network level; no V1 slave redundancy capability in PGM |
|
PROFIBUS PA Support |
Yes, via 3rd party PA-to-DP converters/couplers |
|
Asset Management Support |
Yes (via Honeywell FDM) |
|
FDM Function |
Acts as Class 2 master for DP network access using DTMs |
|
Simulation Support |
Not supported (R110) |
Description

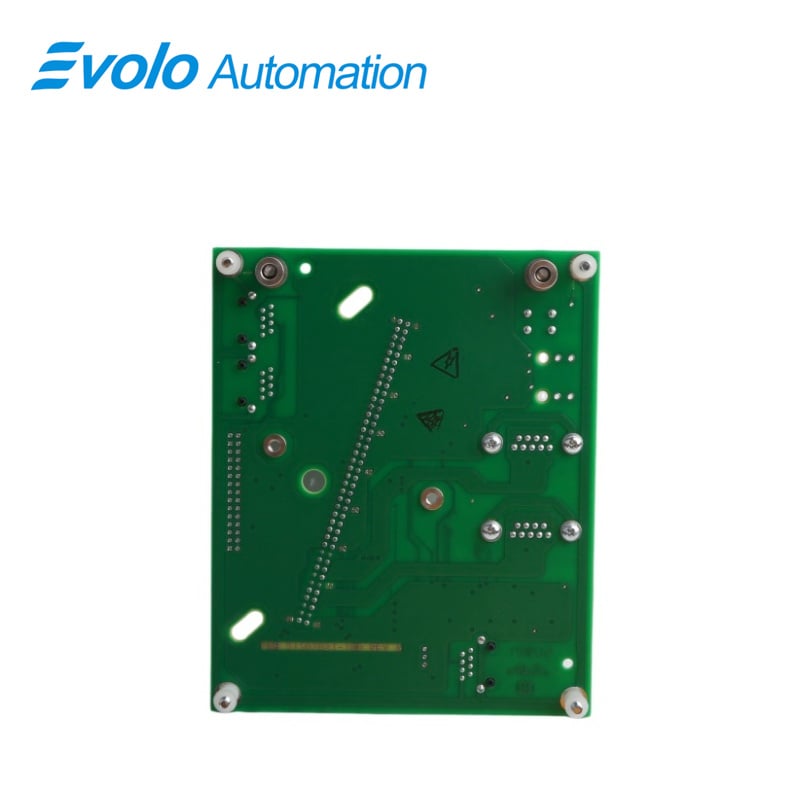

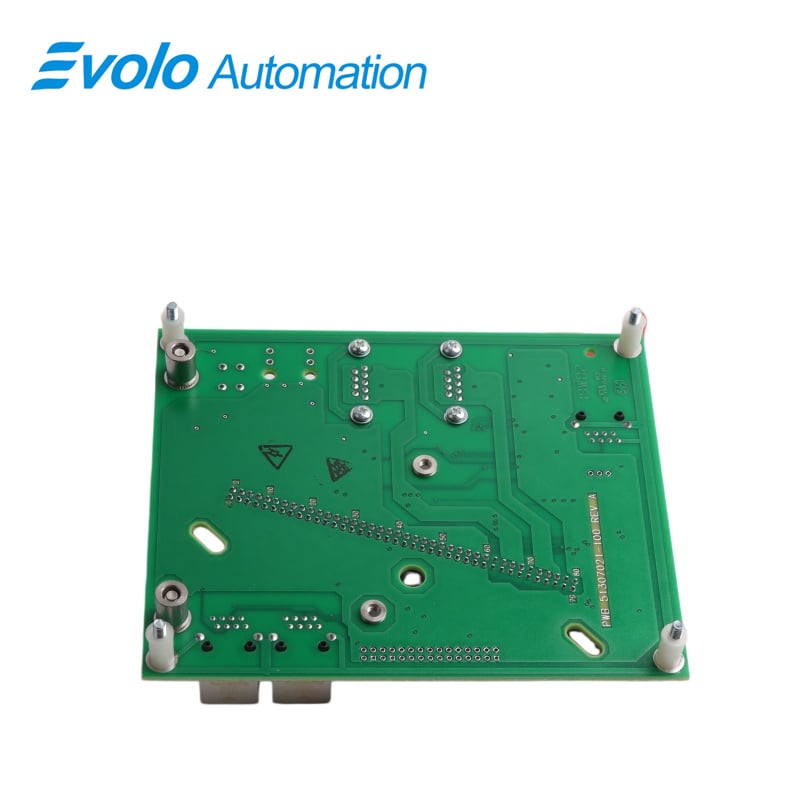

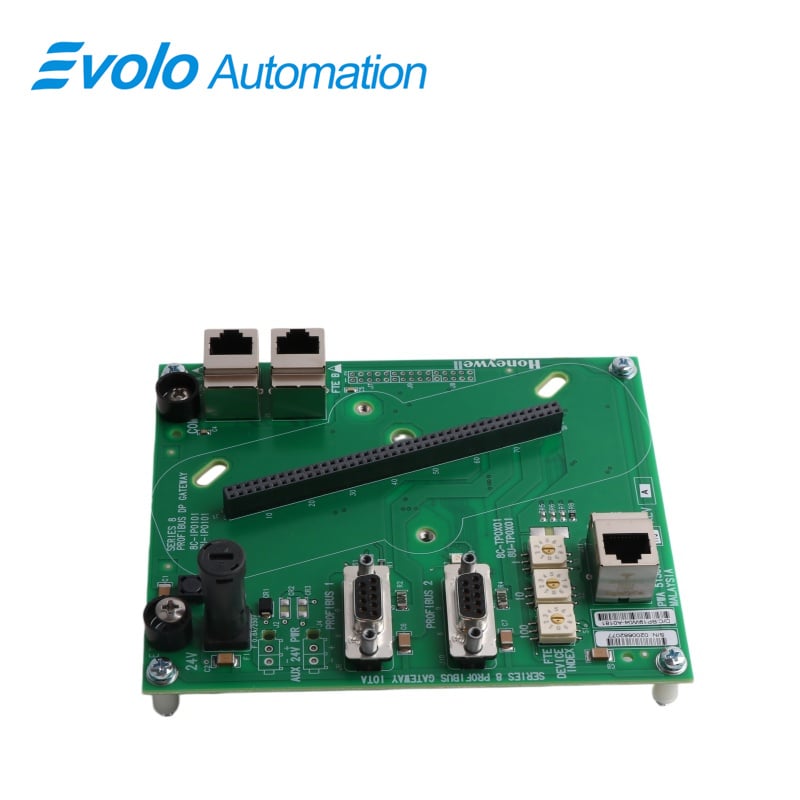

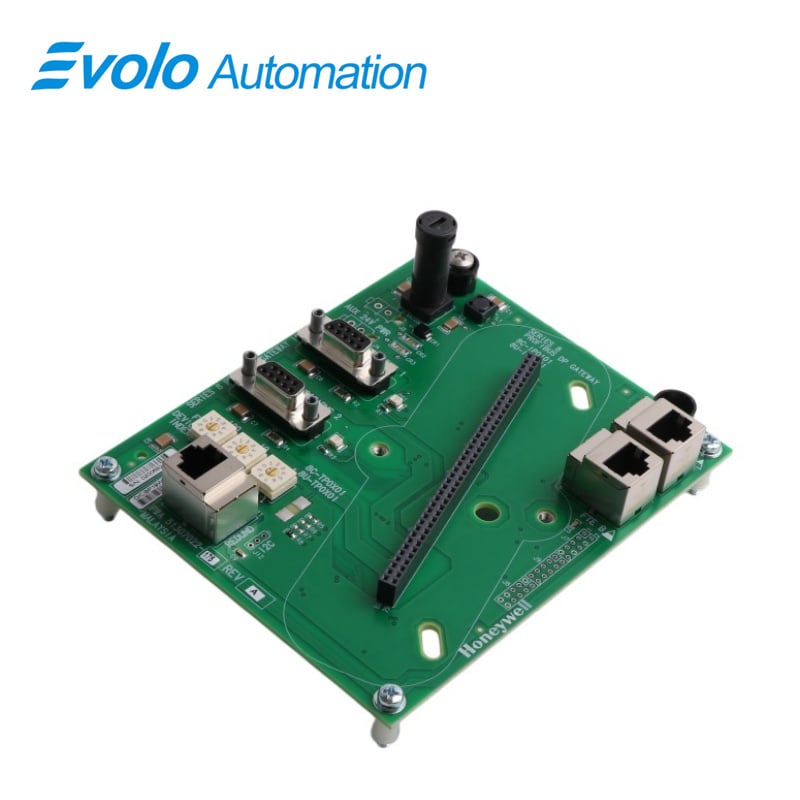

The Honeywell 8C-TPOX01 51307022-175 is a Profibus Gateway Module. This module carries electronic modules and connects to field network cables. It directly interfaces with the controller, primarily responsible for uploading and translating industrial communication protocol data from lower-level standalone devices, smart meters, and frequency converters to the main controller's network system.
Applications
Large refinery / chemical plant: integrates Profibus PA transmitters into Experion system for unified asset management.
Thermal power plant: connects third-party MCC systems to access Profibus DP data from drives and soft starters.
Smart water treatment plant: uses Ethernet-based architecture for high-speed aggregation of Profibus network data in distributed cabinets.
Paper and packaging plant: applies redundant communication links to ensure high availability of Profibus network in automated production lines.
Function
Redundancy
Cold start command
Experion LX by Experion events and alarms
Experion LX by Experion Bulk Build utility
Experion LX by Experion import/export functionality
Qualification and Version Control
Peer-to-peer communications
FAQ
Q: What are the rated voltage and module current of the 8C-TPOX01 51307022-175?
A: Rated voltage 24 V DC, module rated current 430 mA.
Q: What network type and mounting method are used by the 8C-TPOX01 51307022-175?
A: It is a Series 8 PGM standard FTE node and requires a standard Series 8 cabinet with an IOTA base.
Q: What are the operating and storage temperature ranges of the 8C-TPOX01 51307022-175?
A: Operating temperature 0°C to +60°C, storage temperature -40°C to +85°C.
Q: Does the 8C-TPOX01 51307022-175 support hot swapping under power?
A: Yes, it allows module insertion and removal while powered.
Q: What PROFIBUS redundancy and asset management features are supported by the 8C-TPOX01 51307022-175?
A: Supports slave redundancy and PA conversion through third-party link modules, and supports Honeywell FDM asset management.
