Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
8C-TAOX61 51306981-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
8C-TAOX61 51306981-175 |
|
Part Type |
Analog Output Module |
|
Dimensions |
29.5 x 12 x 6.5 cm |
|
Weight |
0.38 kg |
|
Output Channels |
8 channels |
|
Signal Types Supported |
4–20 mA current output; 0–10 V voltage output (configurable) |
|
Resolution |
16-bit DAC |
|
Accuracy |
±0.196% of full scale |
|
Isolation |
Channel-to-system bus isolation |
|
Response Time |
<100 ms |
Description

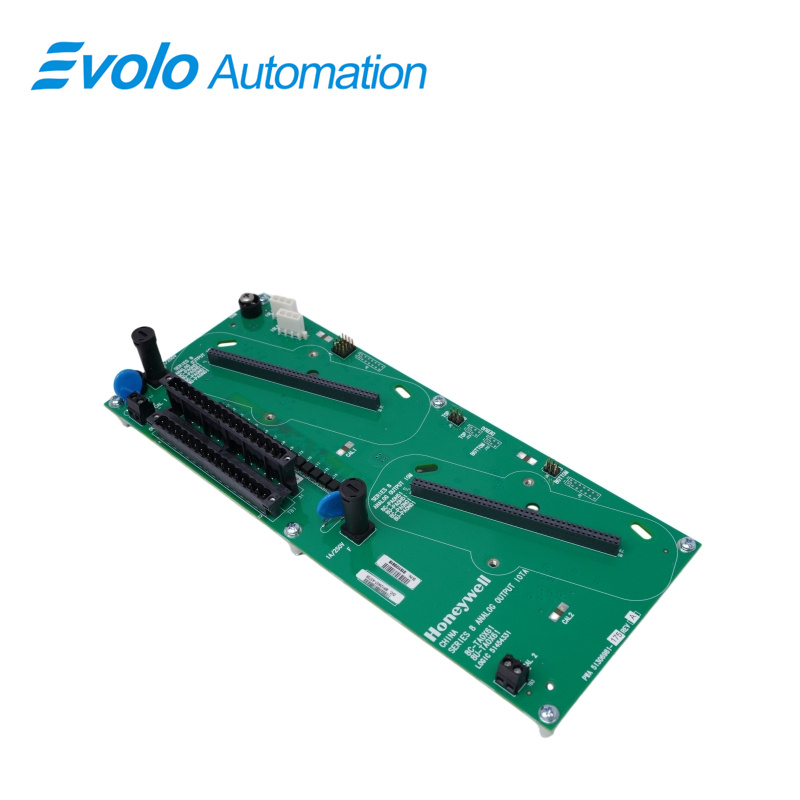

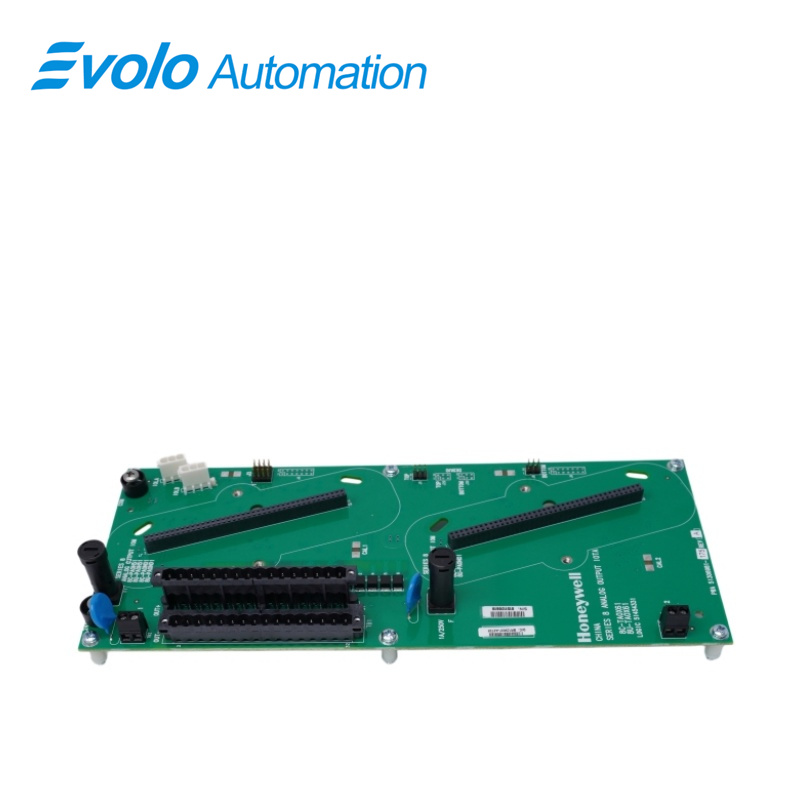

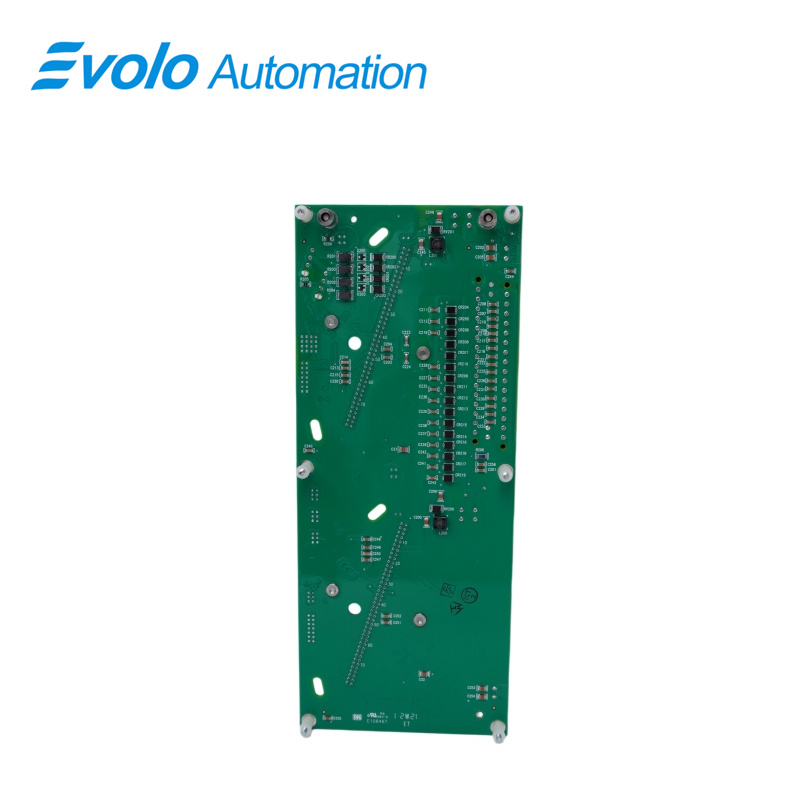

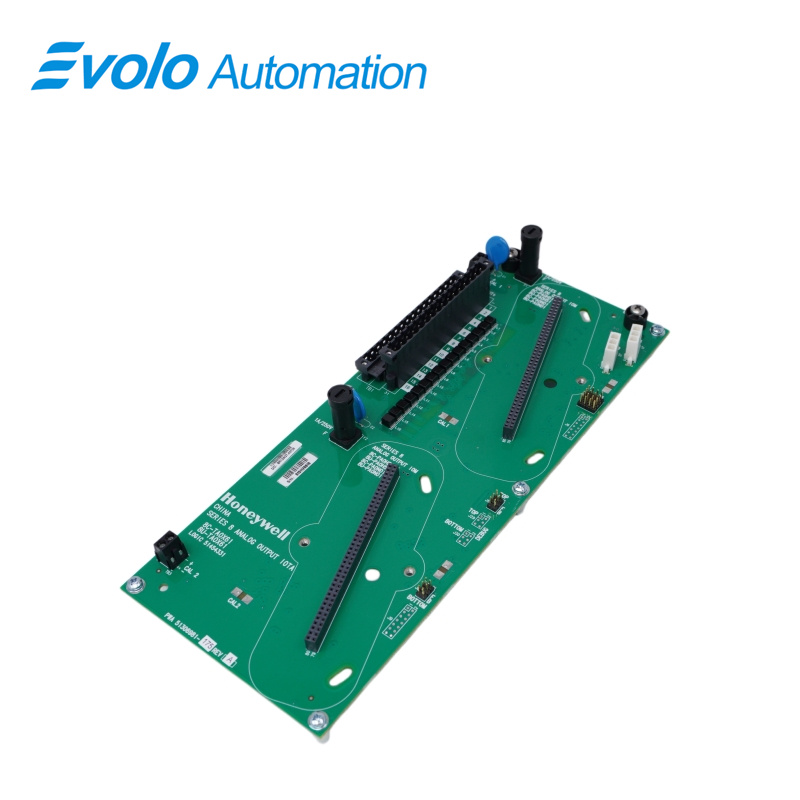

The Honeywell 8C-TAOX61 51306981-175 is a analog output module used for process control applications. It converts digital control signals from the Experion system into precise analog outputs, enabling direct control of field devices such as valves, dampers, and variable speed drives.
Applications
Fine chemical plant: uses high-resolution DAC control for precise adjustment of catalyst dosing pump frequency, ensuring strict reaction ratio accuracy.
Food processing plant: drives servo speed control signals in packaging and weighing lines, with fast response enabling high-speed production line switching.
Paper pulp plant: regulates slurry mixing control valves, with channel isolation reducing high-frequency interference from variable frequency drives.
Special metal smelting plant: precisely controls heating power output signals to maintain stable furnace temperature during melting processes.
Biopharmaceutical plant: drives air damper actuators in sterile environments using voltage or current signals for high-precision cleanliness control.
Features
High Precision Control: 16-bit resolution ensures smooth actuator response
Multi-signal capability: Supports both current and voltage outputs
Noise Immunity: Isolated design protects against electrical interference
Fast Response: <100 ms output update for real-time control loops
System Integration: Seamlessly fits into Honeywell Experion PKS/C300 racks
Reliability: Built for continuous operation in harsh industrial environments
FAQ
Q: What channels does 8C-TAOX61 51306981-175 have and what signal types does it support?
A: 8 channels, supports configurable 4–20 mA current or 0–10 V voltage output.
Q: What is the conversion resolution and hardware output accuracy of 8C-TAOX61 51306981-175?
A: Equipped with 16-bit DAC, output accuracy is ±0.196% of full scale.
Q: What is the signal response time of 8C-TAOX61 51306981-175?
A: Response time is less than 100 ms (<100 ms).
Q: Does 8C-TAOX61 51306981-175 have electrical isolation protection?
A: Yes, electrical isolation is provided between output channels and the system bus.
Q: What is the main change of 8C-TAOX61 51306981-175 compared with the previous 8C-TAOX51 model?
A: The number of channels is reduced from 16 to 8, but it adds 0–10 V voltage output and 16-bit high resolution.
