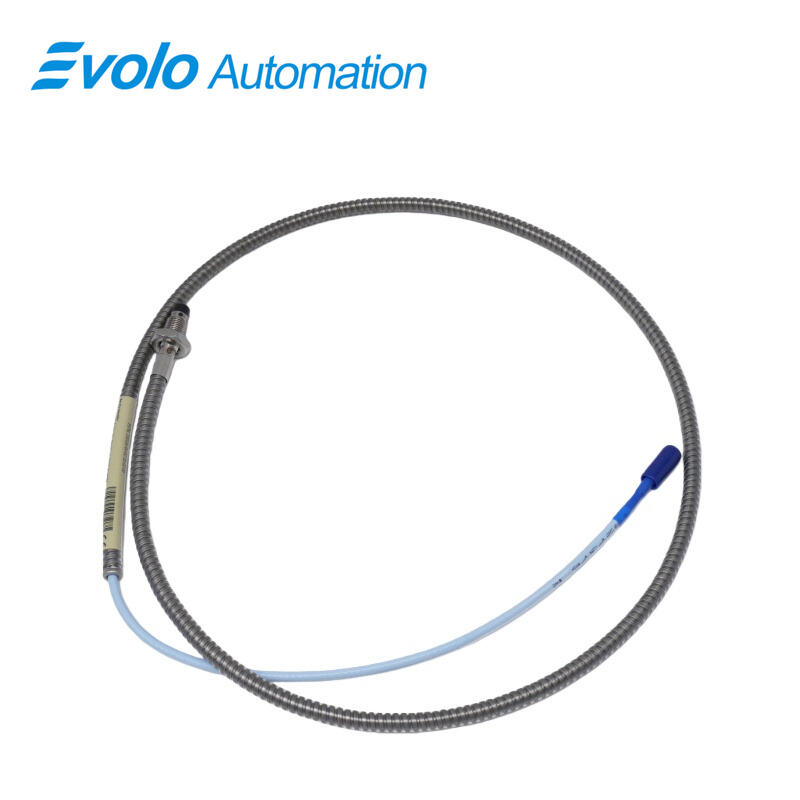

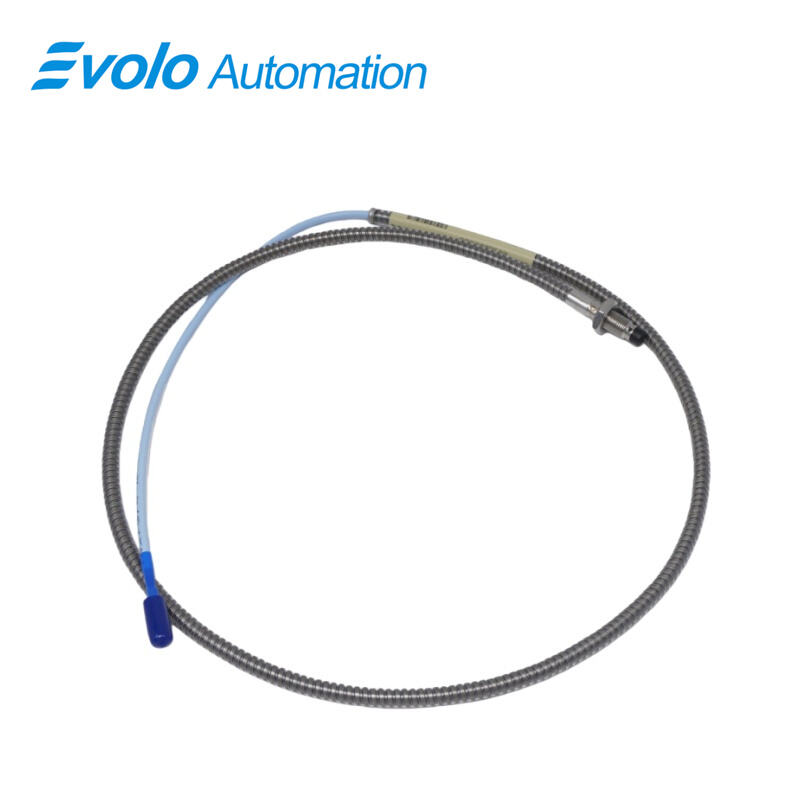

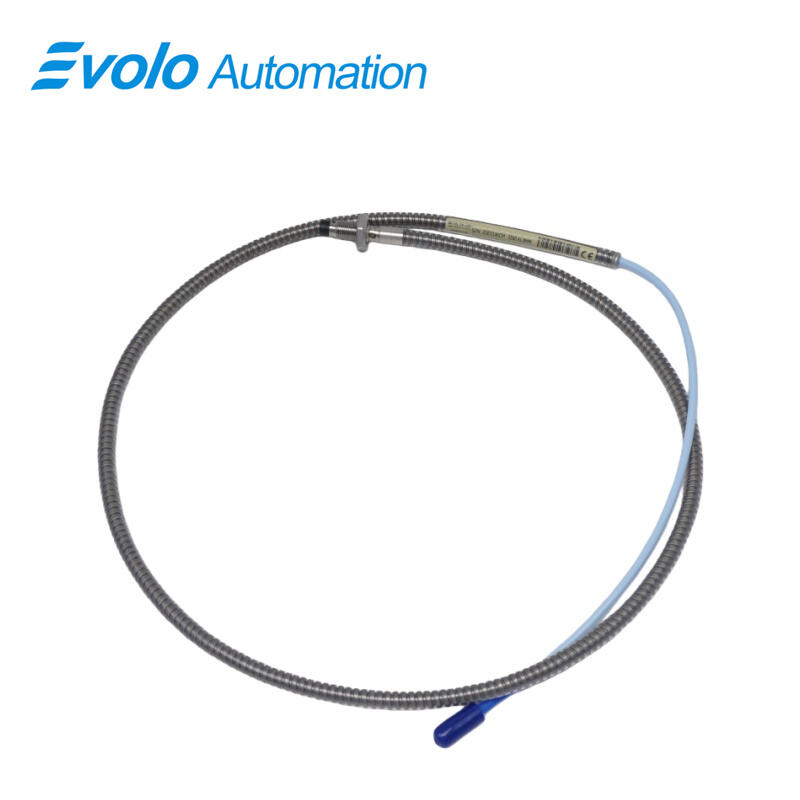

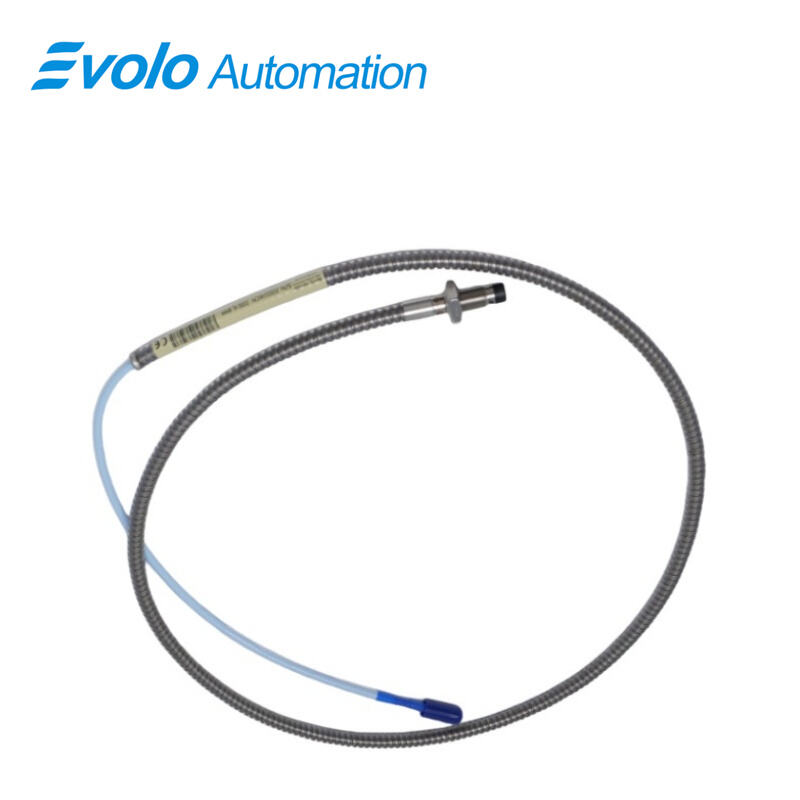

330104-02-15-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-02-15-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-02-15-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision, industrial-grade eddy current probe designed for integration with the 3300 XL 8 mm Proximity Transducer System. Engineered for both static (position) and dynamic (vibration) measurement, this probe ensures reliable and accurate signal output for advanced machinery automation and protection applications. It features a linear range of 2 mm (80 mils), a 150 mm overall case length, and an M10x1 threaded design with 15 mm maximum engagement, providing secure mounting in industrial equipment. The miniature coaxial ClickLoc connector with cable protector ensures robust electrical connection and signal stability, while the 50 Ω output resistance and 69.9 pF/m extension cable capacitance guarantee consistent transmission over long field wiring distances. Operating reliably from -52°C to +177°C (-62°F to +350°F), this probe supports automated monitoring in extreme temperature environments. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength for mechanical durability, and optional FluidLoc configurations prevent liquid ingress, protecting measurement integrity. Fully backward-compatible with all 3300 XL and non-XL 5 mm and 8 mm system components, the 330104-02-15-10-01-00 probe ensures interchangeability, API 670 standard compliance, and seamless integration into industrial automation and machinery monitoring systems.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Provides precise dynamic vibration data for turbines, pumps, and compressors, supporting predictive maintenance programs and reducing unplanned downtime.

2. Centrifugal Compressor Position Feedback
Delivers accurate static and dynamic measurements for rotor position control, enabling high-speed machinery automation and protection.

3. Keyphasor and Speed Sensing
Supports precise speed and phase reference measurements for rotating machinery, improving automation accuracy and reliability.

4. Compact Machine Automation Systems
Long case length of 150 mm and M10x1 threading allow installation in confined spaces without compromising measurement linearity and accuracy.

5. High-Temperature Industrial Environments
Operates reliably from -52°C to +177°C, providing consistent output in chemical, petrochemical, and power generation facilities.

Specifications

Competitive Advantage

1. Robust Mechanical Design
TipLoc molding and CableLoc cable attachment provide 330 N pull strength, ensuring secure installation and long-term durability.

2. Extended Operating Temperature
Reliable functionality across -52°C to +177°C enables deployment in extreme industrial and high-temperature environments.

3. High Signal Stability
50 Ω output resistance and 69.9 pF/m capacitance maintain precise measurement signals over extended field wiring distances.

4. System Interchangeability
Fully compatible with all 3300 XL and non-XL 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying upgrades and reducing inventory complexity.

5. Fluid Protection Option
Optional FluidLoc cable design prevents oil and liquid ingress, protecting signal integrity and reducing maintenance in automated machinery systems.
