Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5461-648 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5461-648 |
|
Product Type |
Transceiver Module |
|
Dimensions |
43 × 32.2 × 3 cm |
|
Weight |
2.5 kg |
|
Operating Voltage |
24 VDC |
|
Current Range |
±10 to ±250 mA |
|
Input Impedance |
2000 Ω |
|
Output Frequency |
56–245 Hz |
|
Communication Interface |
3 × Gigabit Ethernet ports |
|
Processing Capability |
High-speed processing |
|
Data Capacity |
Approx. 40–45 KB |
|
I/O Points |
8 points |
|
Operating Environment |
Industrial ambient conditions |
|
Humidity Range |
5%–60% |
Description

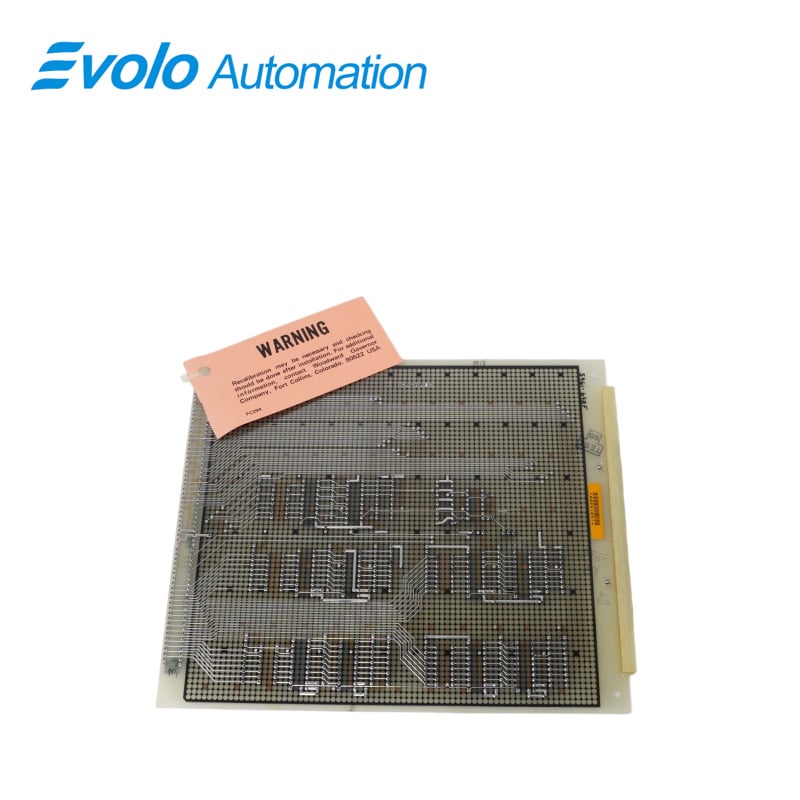

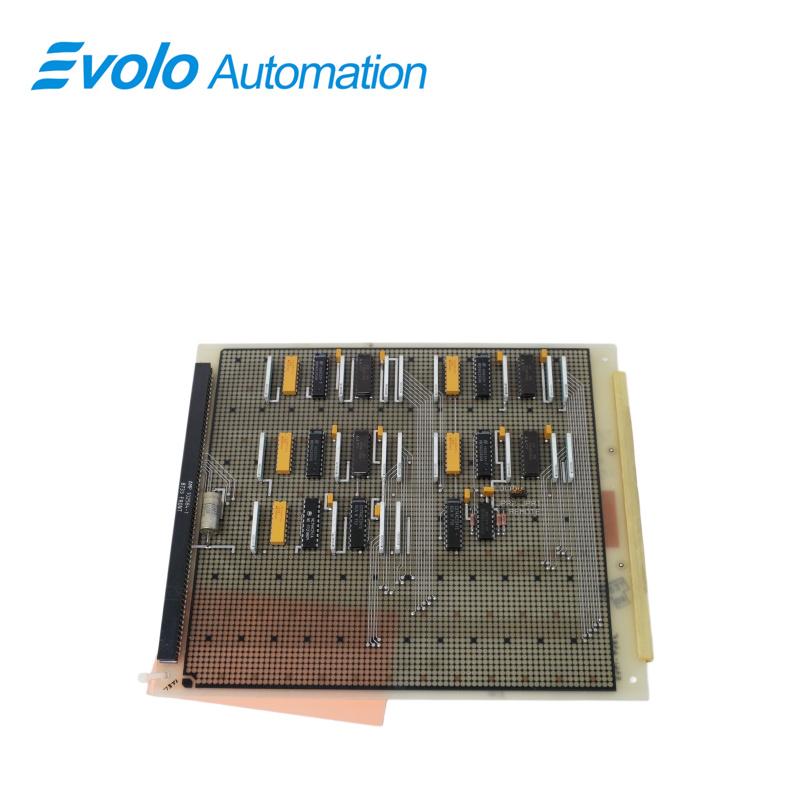

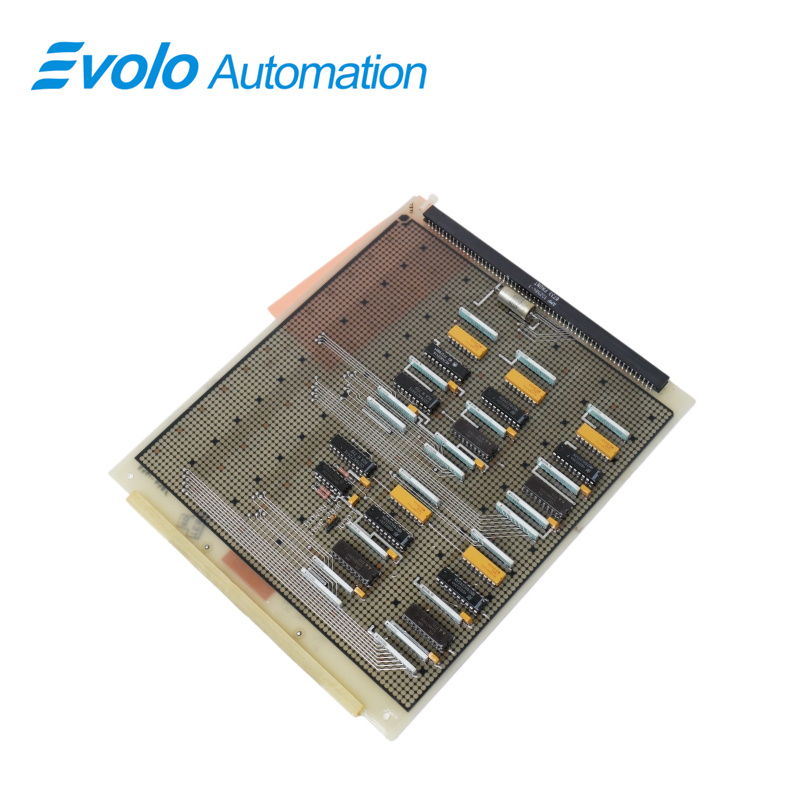

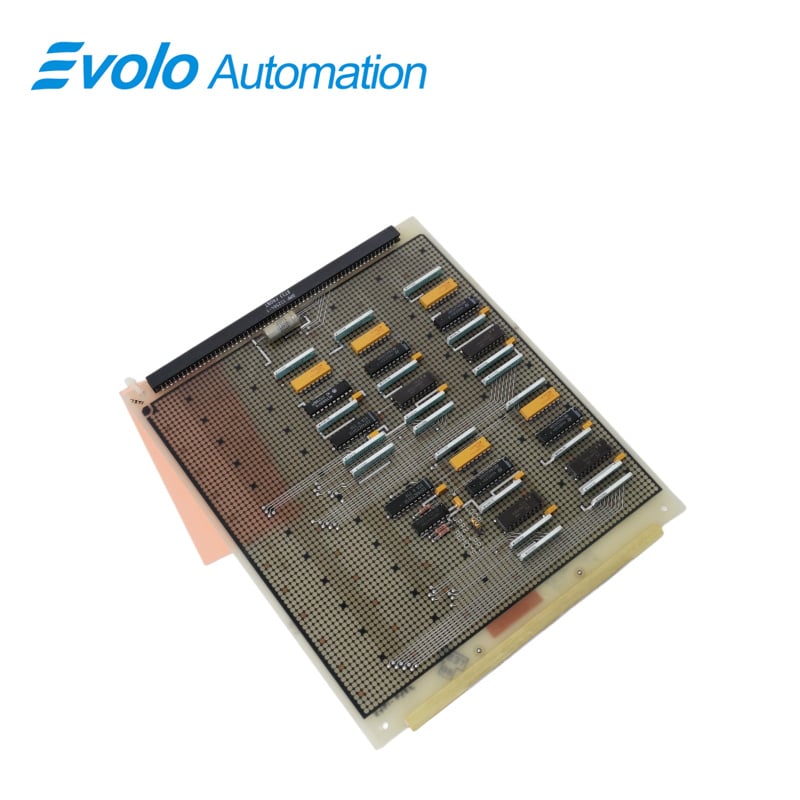

5461-648 is an Transceiver Module developed by Woodward. As a transceiver module, it combines the functionalities of both a transmitter and a receiver in a single unit. This module is designed to facilitate reliable and efficient communication between different components or systems within a larger network. It incorporates cutting- edge technology and features to ensure seamless and accurate data transmission. It operates within specified frequency ranges and utilizes various communication protocols to enable effective communication in diverse applications.
Applications
Precision Electronics Plants: Enables high-speed Ethernet networking for millisecond-level communication across automated production lines.
Heavy Machinery Plants: Provides wide-range current control for accurate feedback of heavy-duty servo systems.
Water Pumping Plants: Supports multi-channel I/O and high-frequency signal transmission for real-time pump and flow monitoring.
Food & Tobacco Packaging Plants: Handles process data and interlock signals in controlled humidity environments.
Textile Printing & Dyeing Plants: Uses high input impedance design to reduce electrical noise and improve signal accuracy.
Features
Communication Protocols: Supports Ethernet, Modbus, CANbus, Profibus and other industrial standards.
Data Transmission: Handles reliable digital and analog signal transmission between devices.
Signal Processing: Includes error checking, conditioning, compression, and optional encryption.
Compact Design: Space-saving structure for easy system integration.
FAQ
Q: What is the operating voltage of 5461-648?
A: The operating voltage is 24 VDC.
Q: What current range does 5461-648 support?
A: The current range is ±10 to ±250 mA.
Q: How many I/O points does 5461-648 include?
A: It includes 8 I/O points.
Q: How many Gigabit Ethernet ports does 5461-648 have?
A: It has 3 Gigabit Ethernet ports.
Q: What is the approximate data capacity of 5461-648?
A: The data capacity is approximately 40–45 KB.
