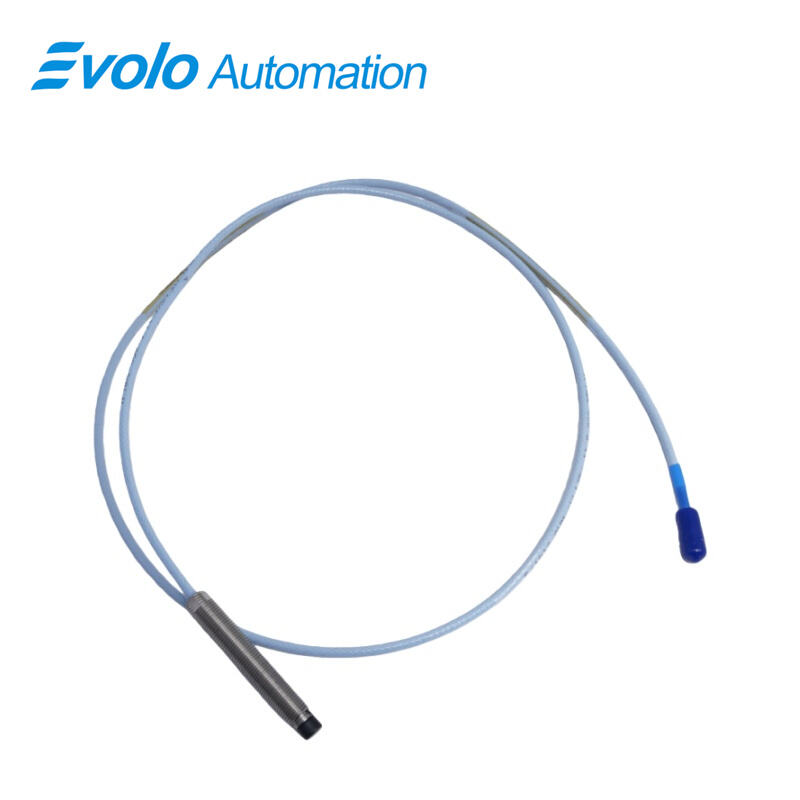

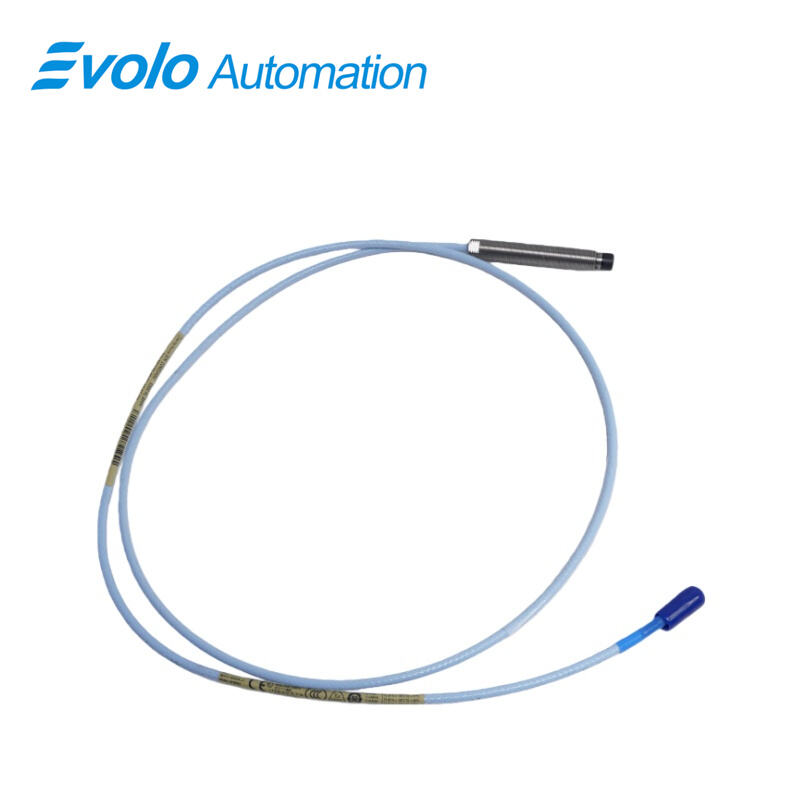

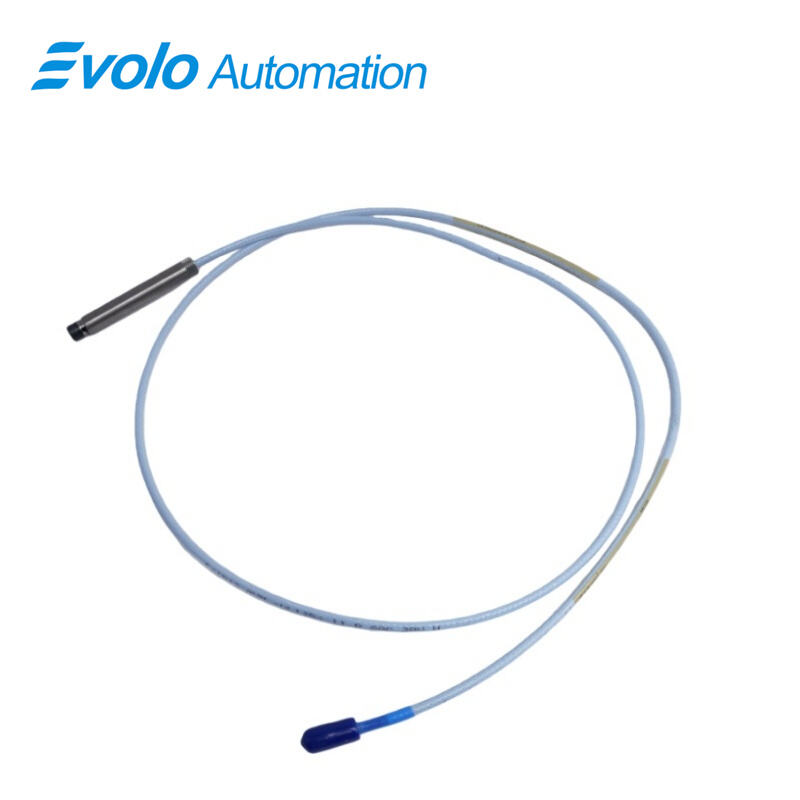

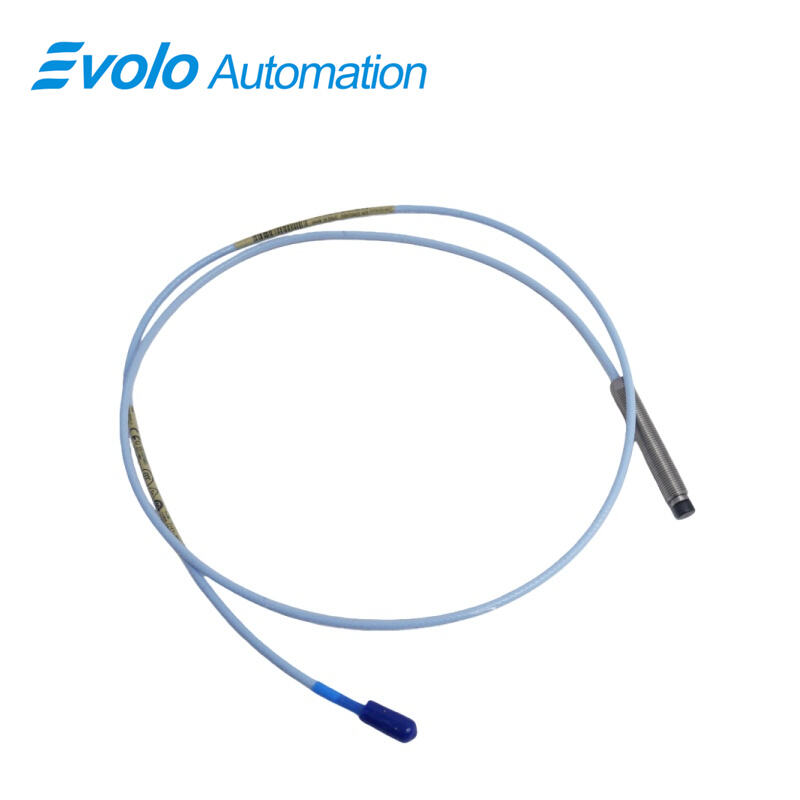

330103-00-06-15-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-15-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (330103-00-06-15-02-05) is an advanced eddy current transducer engineered for precision automation and industrial condition monitoring. It delivers an output voltage that is directly proportional to the distance between the probe tip and the monitored conductive surface, enabling accurate static position and dynamic vibration measurements. Designed for fluid-film bearings, pumps, compressors, and turbines, this probe is ideal for predictive maintenance, Keyphasor reference signals, and speed monitoring in high-demand industrial environments.

This model features a 60 mm overall case length with an M10x1 threaded probe, providing stable mounting even in compact equipment. Its 1.5-meter (4.9-foot) miniature coaxial ClickLoc cable ensures reliable signal transmission to standard 3300 XL Proximitor systems. Certified under CSA, ATEX, and IECEx standards, it guarantees safe operation in hazardous industrial zones. Operating temperatures range from -52°C to +177°C (-62°F to +350°F), while supply sensitivity is less than 2 mV/V, with 50 Ω output resistance and 2 mm linear range, ensuring high-fidelity, repeatable measurements.

The probe incorporates TipLoc molding for a robust bond between the tip and body, and the CableLoc design provides 330 N (75 lbf) pull strength, securing the probe cable. Optional FluidLoc cables prevent oil or liquids from entering the machine through the cable, enhancing reliability and maintenance efficiency. Fully backward compatible with 3300 series 5 mm and 8 mm probes, it supports easy system upgrades without recalibration.

Applications

1. Vibration Analysis in Turbines
Measures rotor vibrations up to ±2 mm linear range to detect imbalance or misalignment early, reducing operational downtime.

2. Position Monitoring in Pumps
Tracks shaft displacement in fluid-film pumps, supporting predictive maintenance strategies and enhancing reliability.

3. Keyphasor Signal Generation
Provides precise phase-synchronized signals for condition monitoring, rotor balancing, and advanced vibration diagnostics.

4. Compact Equipment Installation
60 mm case and M10x1 thread allow installation in tight spaces without compromising accuracy or stability.

5. Hazardous Zone Operation
CSA, ATEX, and IECEx approvals enable monitoring in high-risk industrial environments like chemical plants and refineries.

Specifications

Competitive Advantage

1. Extreme Temperature Tolerance
Operates reliably in -52°C to +177°C conditions, ensuring functionality in harsh industrial environments.

2. Robust Mechanical Integrity
TipLoc and CableLoc technology provide 330 N pull strength, preventing mechanical failures and cable detachment.

3. High Measurement Accuracy
Linear range of 2 mm and supply sensitivity <2 mV/V guarantee precise position and vibration readings.

4. Interchangeable with Existing Systems
Compatible with all 3300 series 5 mm and 8 mm probes, simplifying upgrades and reducing recalibration needs.

5. Oil and Liquid Protection
Optional FluidLoc cables prevent fluid ingress, maintaining probe integrity and minimizing downtime for maintenance.
