Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
531X305NTBAPG1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name |
531X305NTBAPG1 |
|
Type |
Terminal Board |
|
Dimensions |
28.6x7x3.5 cm |
|
Weight |
0.38 kg |
|
Power Supply Outputs (+5 VDC / +15 VDC) |
300 mA each |
|
Power Supply Outputs (24 VDC) |
500 mA (unregulated) |
|
Power Supply Outputs (120 VAC) |
0.5 A |
|
Digital Inputs |
12 general-purpose inputs (up to 24 VDC); includes RESET and CONTROL ON inputs; supports positive/negative logic; jumper selectable bias (+24 VDC / -24 VDC) |
|
Relay Outputs |
7 A/C-type relays; 120 VAC contact rating for actuator control |
|
Analog Scaling |
4 integrated potentiometers for low-level analog I/O scaling and calibration |
|
Communication Interfaces |
Ethernet; supports Modbus TCP/IP and SRTP |
|
Industrial Protocol Compatibility |
Profibus; DeviceNet |
|
Operating Temperature |
-25°C to +60°C |
|
Humidity |
10% to 90% RH |
Description

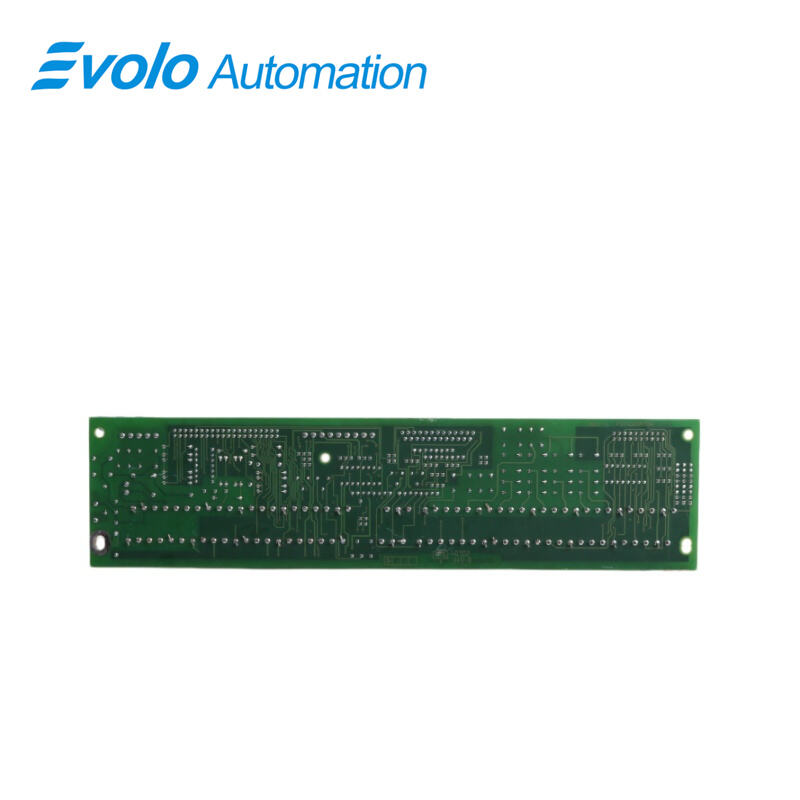

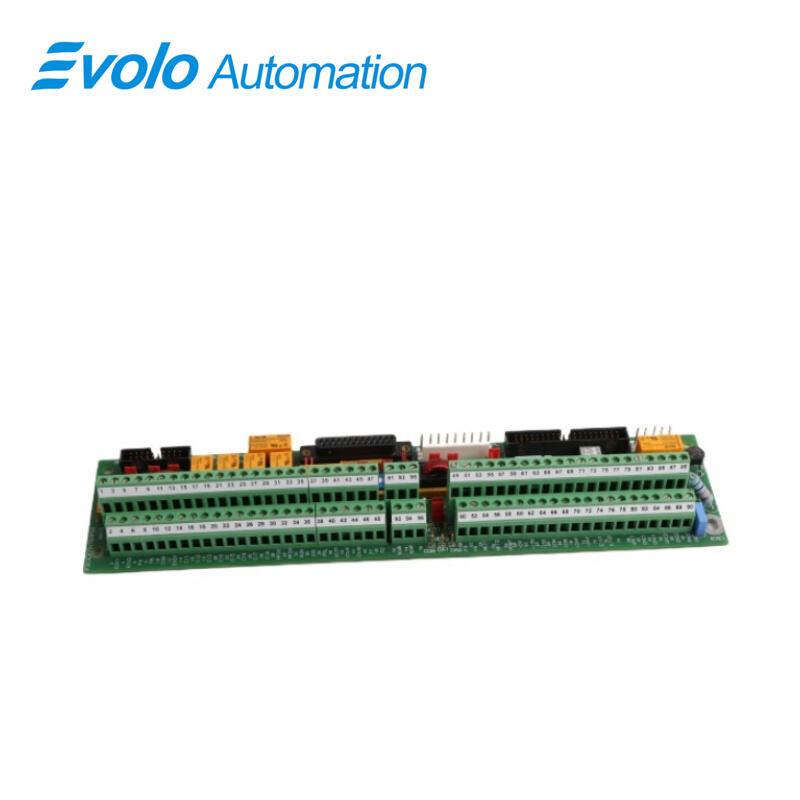

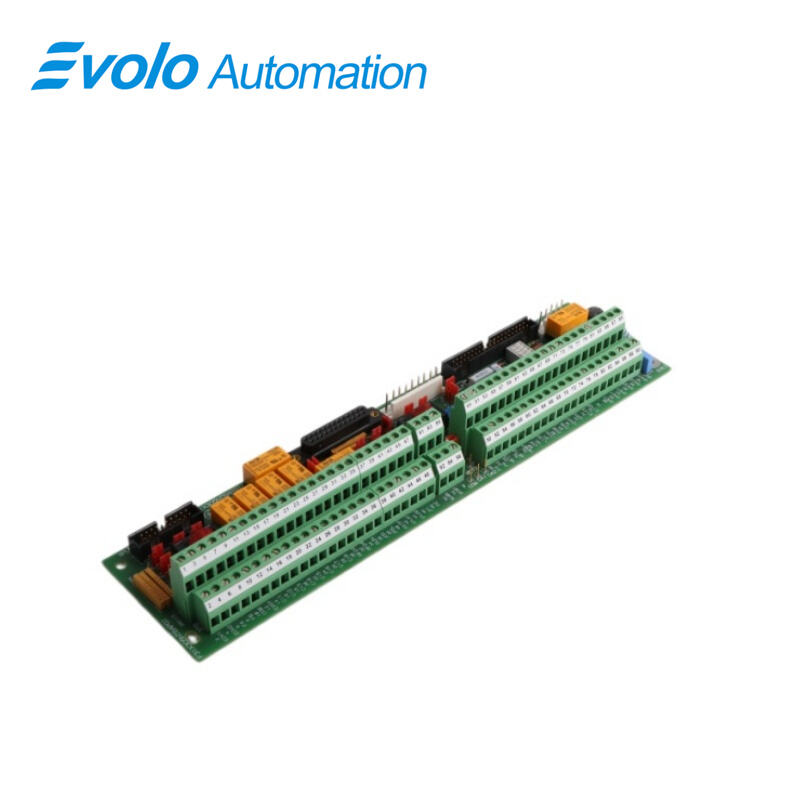

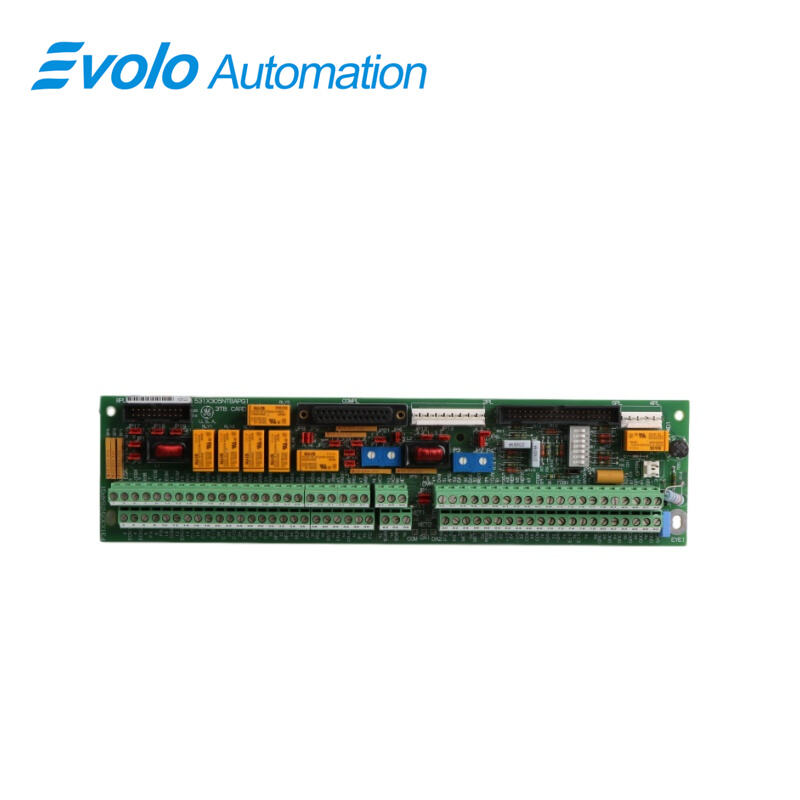

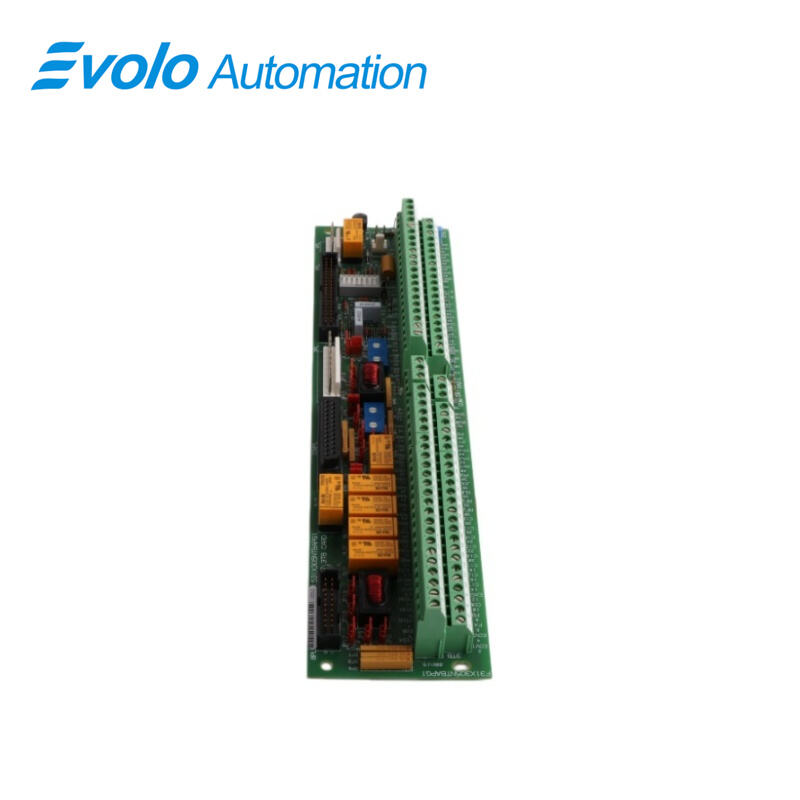

531X305NTBAPG1 is a Terminal Board developed by GE under the EX2000 Excitation system. The drive (or exciter) cabinet houses the 531X305NTE (NTB/3TB) board. The drive's (or exciter's) connection terminals for the majority of external signal-level I/O are located on the board, along with passive interface circuitry Plugs 6PL and 8PL from the drive control board, plugs 2PL and 4PL from the power supply board, plug COMPL from the terminal board 3TB, and plugs 2PL and 4PL from external equipment connect to the NTB/3TB.
Applications
Smart Manufacturing Plant: Uses Ethernet and Modbus for remote drive monitoring.
Power Distribution Plant: Executes control and interlocking logic in switchgear systems.
Oil Refining Plant: Collects field signals and provides stable power in harsh environments.
Food Processing Plant: Coordinates multi-unit operation with distributed I/O control.
Large Paper Mill: Uses industrial networks for synchronized drive communication.
Features
This card expands drive interfacing with serial and relay outputs, analog I/O, encoder support, and auxiliary power functions. The NTB/3TB terminal board provides both regulated and unregulated power sources for connected devices.
It supports 5 VDC, 15 VDC, 24 VDC, and 120 VAC power options, with configurable jumpers for encoder adjustment and load matching.
The board also integrates seven Form A/Form C relay outputs, VAC-rated relay contacts, and four potentiometers for analog I/O scaling.
FAQ
Q: What communication modes does the Ethernet interface of the 531X305NTBAPG1 support?
A: This board supports Modbus TCP/IP and SRTP protocols for real-time Ethernet communication and remote diagnostics.
Q: What are the logic requirements for digital inputs on the 531X305NTBAPG1 terminal board?
A: It supports 12 inputs with positive/negative logic, selectable via +24 VDC or -24 VDC jumper bias.
Q: What are the main functions of the four potentiometers on the 531X305NTBAPG1?
A: They are used for analog I/O scaling and field calibration of low-level signals.
Q: Can the 531X305NTBAPG1 start in low-temperature factory environments?
A: Yes. It operates down to -25°C, suitable for cold industrial conditions.
Q: How can the 531X305NTBAPG1 be used for distributed control?
A: It connects via industrial networks like Profibus or DeviceNet to act as a remote I/O node for system expansion.
