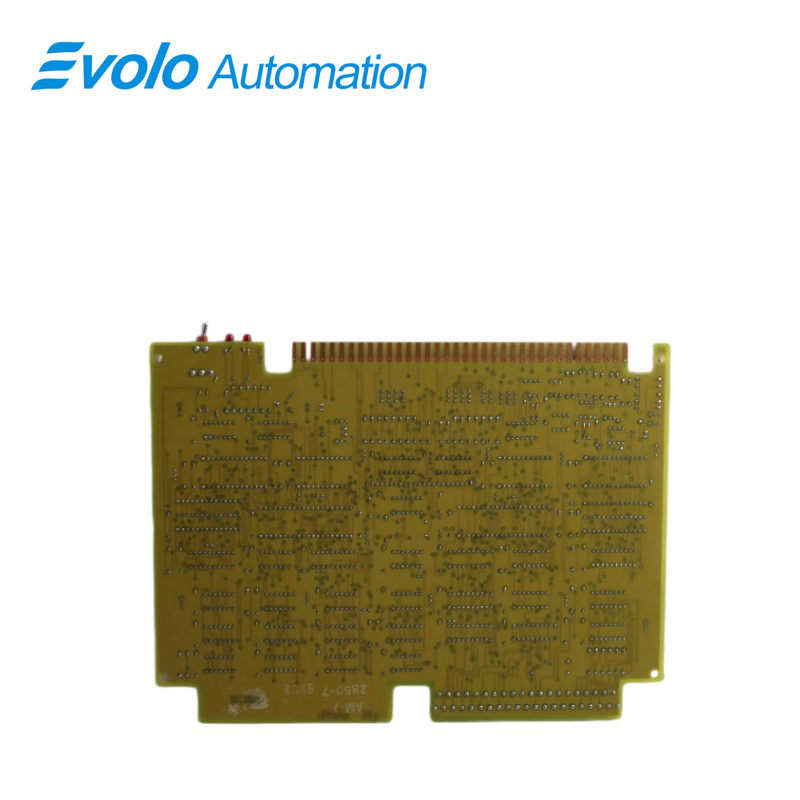

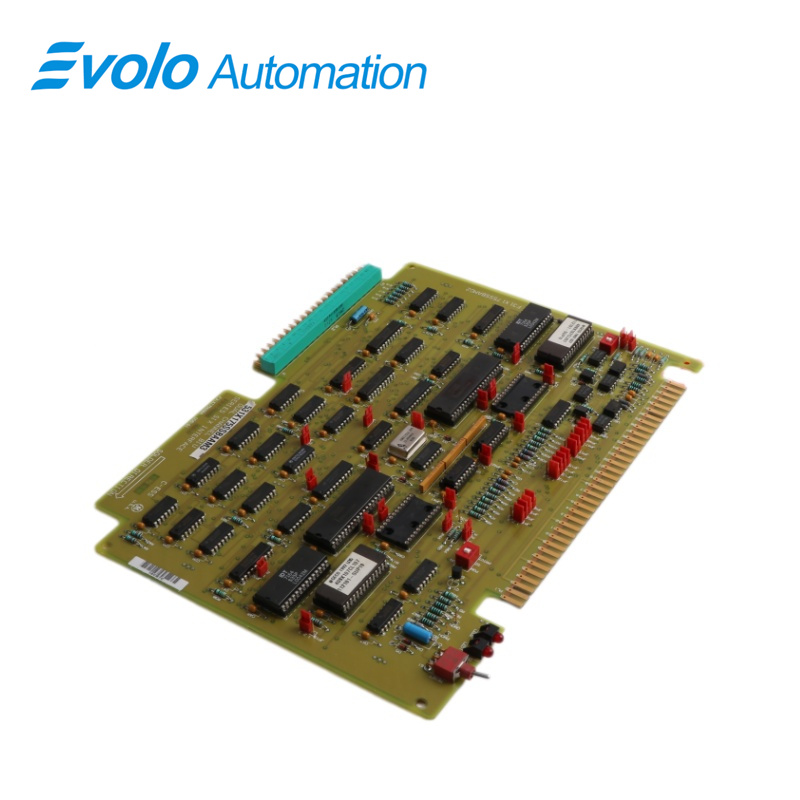

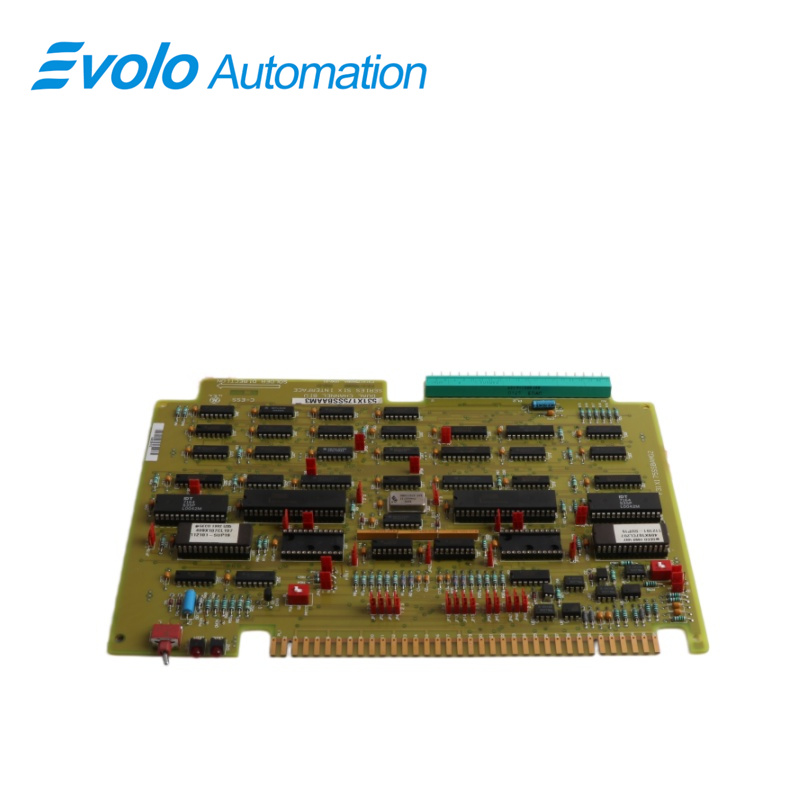

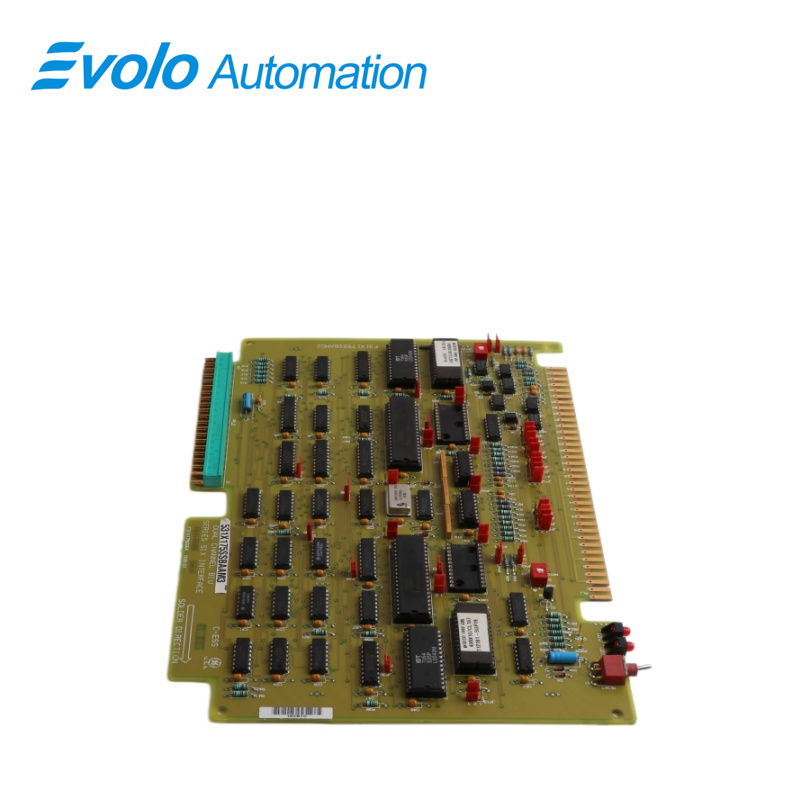

531X175SSBAAM3 Dual Channel BIU Interface Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X175SSBAAM3
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The General Electric 531X175SSBAAM3 is a dual-channel BIU interface board engineered to manage communication between modules within complex industrial drive systems. Its precision data-handling architecture supports synchronized control across multiple system components in demanding automation environments.

Applications

Large paper mills: Used for communication coordination of multi-stage drive systems to ensure speed synchronization between different roll groups.

Metal rolling mills: Enables real-time data links between the main controller and slave drives in complex continuous rolling production lines.

Rubber extrusion plants: Integrated into multi-unit linkage control cabinets, responsible for logical synchronization between extruders and traction machines.

Chemical fiber textile mills: Serves as the bus core in precision winding equipment, handling high-frequency position feedback and command issuance.

Automated assembly plants: Used for the maintenance and upgrade of legacy Series Six systems, maintaining stable communication of distributed I/O on the production line.

Key Features

Dual-Channel BIU Architecture: Manages two simultaneous communication channels, expanding system capacity and improving coordination across complex drive networks.

High-Speed Data Processing: Ensures rapid transmission of control signals and operational data, enabling real-time drive system responsiveness.

Robust Industrial Construction: Engineered to withstand vibration, heat, and electrical interference common in heavy-duty automation environments.

Efficient Drive System Integration: Uses standardized interfaces and connectors for seamless installation into GE drive architectures with minimal modification.

FAQ

Q: What do the two red LED indicators on the 531X175SSBAAM3 represent?
A: Used for real-time monitoring of two communication channels or alarm feedback.

Q: Does replacing the 531X175SSBAAM3 require configuring 47 chips?
A: No. Chips are pre-integrated; only set jumpers or DIP switches per manual.

Q: Does the right-side connector on the 531X175SSBAAM3 support hot-swapping?
A: No. Install or replace only after full power-off to protect chips.

Q: Is the dual-channel design of the 531X175SSBAAM3 for redundancy or load balancing?
A: Provides communication redundancy; backup channel ensures stable transmission if one path fails.

Q: What are the wiring space requirements for the 531X175SSBAAM3 right-angled connector?
A: Reserve 3–5 cm on connector side to avoid signal loss from cable bending.
