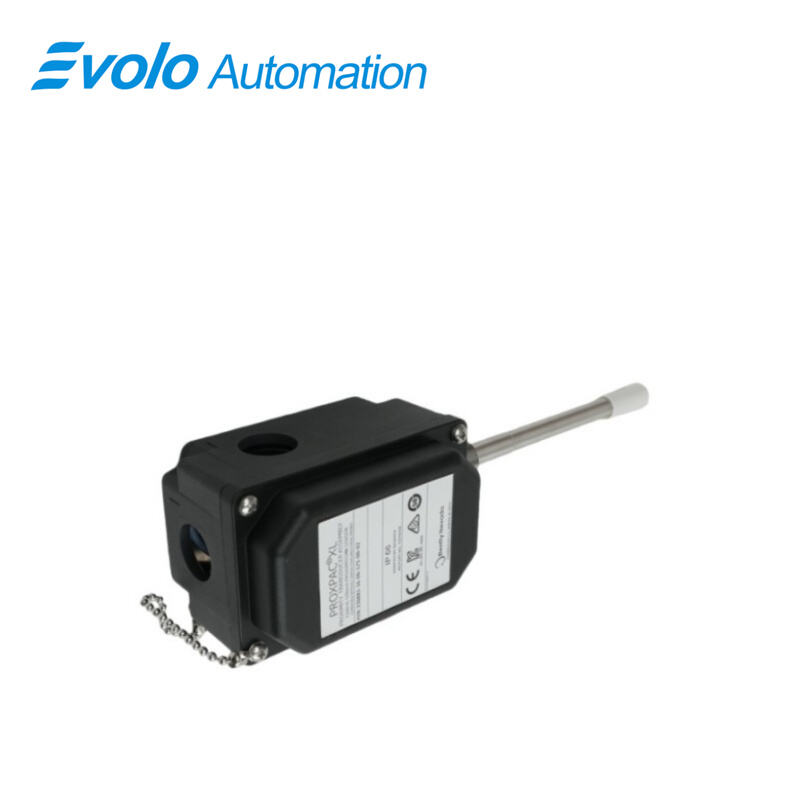

330881-16-00-395-06-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-16-00-395-06-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330881-16-00-395-06-02 PROXPAC XL Proximity Transducer is a fully integrated 3300 XL 8 mm proximity sensor assembly designed for advanced industrial automation applications. This transducer assembly combines a robust PROXPAC housing with an embedded 3300 XL Proximitor sensor, eliminating the need for extension cables and separate sensor housings, streamlining installation and reducing system complexity. Engineered for precision vibration and position measurement on shafts with diameters from 50.8 mm (2 in) to 76.2 mm (3 in), the transducer offers a linear measurement range of 2 mm (80 mils) with a recommended gap setting of 1.27 mm (50 mils). Its rugged housing is constructed from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, ensuring excellent durability, electrostatic dissipation, and resistance to harsh industrial environments. Rated IP66 and Type 4X, it operates reliably between -52°C and +100°C (-62°F to +212°F) and stores safely up to +105°C (+221°F). The PROXPAC XL system meets high industrial standards for automation, providing consistent output resistance of 50 Ω and minimal supply sensitivity (<2 mV change per volt), making it ideal for precision monitoring in compressors, turbines, and process machinery.

Applications

High-Speed Shaft Vibration Monitoring
Measures radial and axial vibrations on rotating machinery operating at high speeds, ensuring early detection of imbalance and misalignment in shafts from 50.8 mm to 76.2 mm.

Position Measurement in Critical Machinery
Provides accurate static and dynamic shaft position data for fluid-film bearings, enabling precise alignment and motion control in industrial compressors.

Self-Contained Transducer Installations
Eliminates the need for extension cables and separate Proximitor housings, allowing installation in compact or high-density areas with minimal wiring complexity.

Harsh Environment Operation
Withstands severe conditions, including dust, moisture, and chemical exposure, due to IP66 and Type 4X rated PPS housing with conductive fiber reinforcement.

Industrial Automation and Control Feedback
Delivers consistent linear output for real-time automation systems, facilitating predictive maintenance, process control, and Keyphasor reference signal generation.

Specifications

Competitive Advantage

Integrated Design for Simplified Installation
Embedded 3300 XL Proximitor sensor reduces installation time and eliminates extension cables, lowering system complexity and potential failure points.

Robust Housing Material
PPS housing reinforced with glass and conductive fibers ensures durability, electrostatic dissipation, and long-term reliability in demanding industrial environments.

Wide Operating Temperature Range
Functionality from -52°C to +100°C (-62°F to +212°F) enables deployment in extreme temperature conditions without signal degradation.

High Measurement Accuracy
Linear range of 2 mm (80 mils) with precise recommended gap setting of 1.27 mm (50 mils) ensures accurate vibration and position monitoring on a wide shaft diameter range.

Severe Environment Protection
Rated IP66 and Type 4X, providing full protection against dust, moisture, and corrosive elements, supporting safe and reliable operation in critical process machinery.
