Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401381-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401381-100 |
|
Product Type |
5 Slot Cardfile Backplane |
|
Dimensions |
42.8 x 17 x 4 cm |
|
Weight |
1.02 kg |
|
Number of Slots |
5 standard card slots |
|
Power Supply |
24 VDC |
|
Operating Temperature Range |
0 °C to +60 °C |
|
Storage Temperature Range |
-40 °C to +85 °C |
|
Data Transmission Rate (System Bus) |
Up to 1 Mbps |
|
Flame Retardant Certification |
UL 94V-0 high-level industrial flame retardant rating |
Description

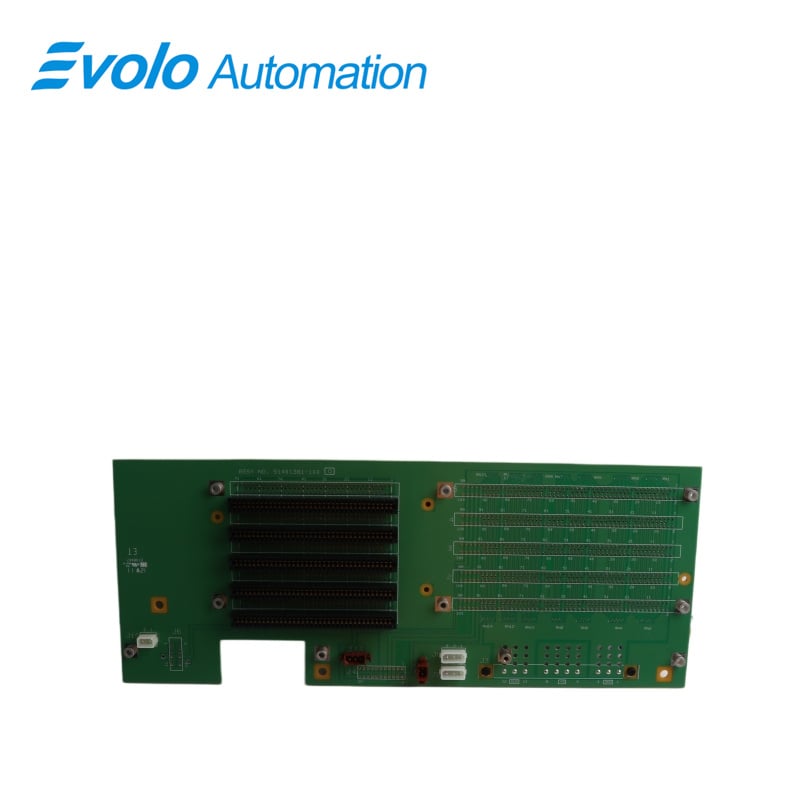

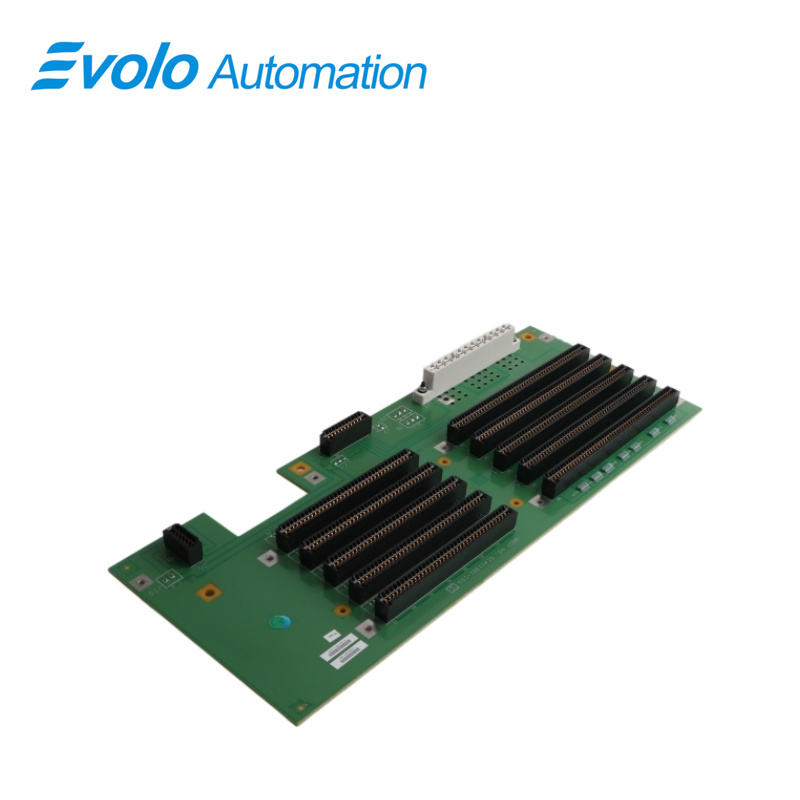

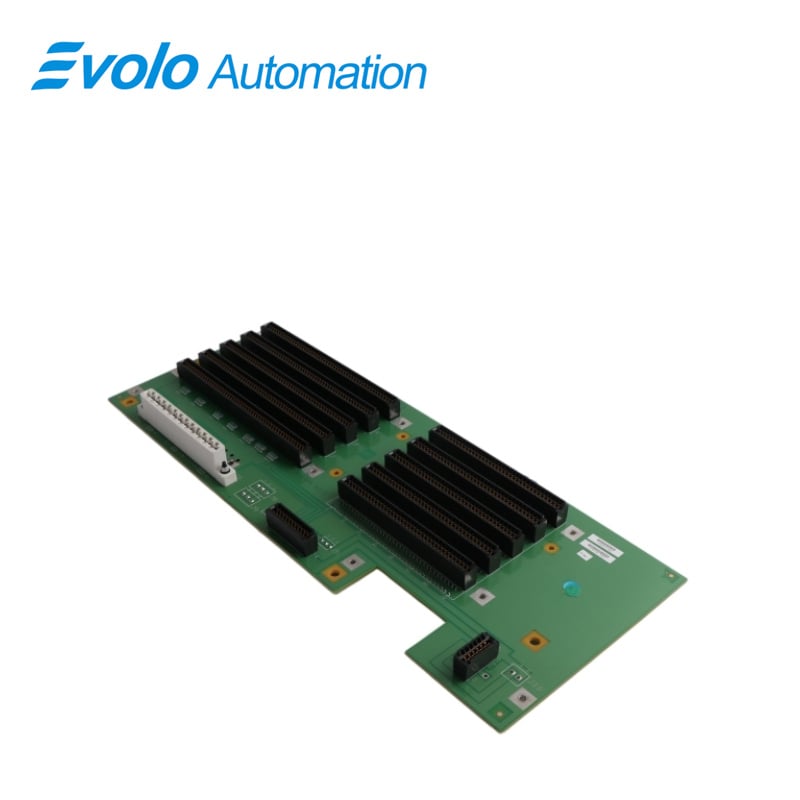

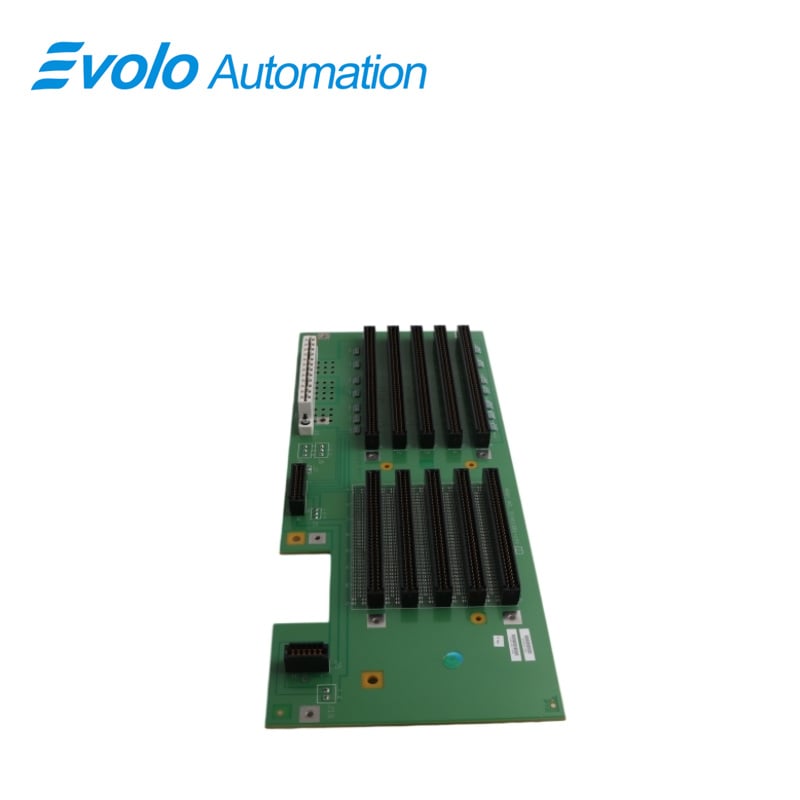

51401381-100 is a 5 slot cardfile backplane. The five-slot backplane is configured to perform various functions, such as Applications, Gateways, History, and Universal Stations in the TPS system. Each module occupies a specific address (node) on the Local Control Network (LCN).
Applications
Refining Plants: Control catalytic cracking and distillation units.
Chemical Plants: Monitor reactors and toxic gas systems.
Power Plants: Regulate boiler combustion and turbine operation.
Pharmaceutical Plants: Control fermentation and sterile batching.
Paper Plants: Control pulp cooking and machine speed.
Functional Node
Hardware Interconnection Hub: Connects processor, communication, and I/O cards via high-density backplane for fast local data exchange.
Multi-functional Node Carrier: Configures AM, HM, NIM, and US nodes for processing, history storage, network bridging, and operator display.
FAQ
Q: How many slots does 51401381-100 have?
A: It has 5 standard slots.
Q: What is the power supply of 51401381-100?
A: The power supply is 24 VDC.
Q: What is the storage temperature range of 51401381-100?
A: The storage range is -40°C to +85°C.
Q: What is the system bus data rate of 51401381-100?
A: Up to 1 Mbps.
Q: What flame-retardant rating does 51401381-100 have?
A: UL 94V-0 industrial flame-retardant rating.
